• Question 101:

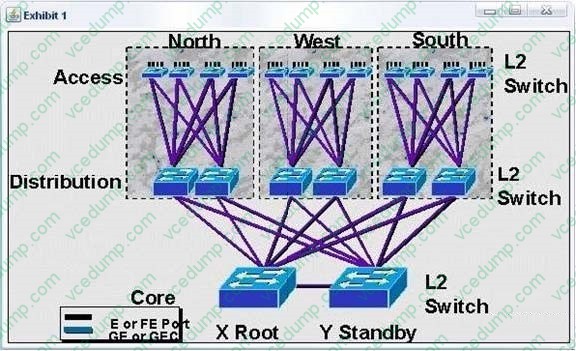

  Click the Exhibit button to view the topology.



  The diagram shows an L2 switched campus. Switch X is the STP root and switch Y is the standby root. How many of the links in the diagram in blocking mode by STP?

  A. 6
  B. 7
  C. 12
  D. 13
  E. 18
  F. 19
  E. 18

• Question 102:

  What condition is NOT a valid criterion for initiating a BLSR protection switch?

  A. Reception of an AIS (all 1 's) signal
  B. High path bit-error-rate (BER) indicated in the B3 byte
  C. Loss-oF. frame (LOF) alarm
  D. Request for a line switch in the K1 byte
  B. High path bit-error-rate (BER) indicated in the B3 byte

• Question 103:

  Of the four types of SONET transmission equipment, what performs the 3R (Refresh/ Re-amplify, Reshape, Retime) function?

  A. Path Terminating Equipment
  B. SONET Terminating Equipment
  C. Regenerator
  D. Add/Drop Multiplexer
  E. Digital Cross-Connect System
  F. Line Multiplexing Equipment
  G. Post/PreAmplifier
  C. Regenerator

• Question 104:

  A router is set to boot from flash, but cannot find boot commands in the configuration. Also, valid files do not exist in the default flash device. The router will:

  A. Boot from ROM, since there are no valid sources
  B. Try to boot from the network, using a default filename
  C. Terminate the boot process with an error message
  D. Try to boot from the network, then boot from ROM as a backup
  D. Try to boot from the network, then boot from ROM as a backup

• Question 105:

  Which three events might you diagnose as the cause of a line switching event?

  A. Loss of signal and frame
  B. Line AIS (all ones in STS pointer)
  C. Routine exercises
  D. Excessive signaling messages
  E. Excessive bit errors in overhead
  F. Switched photon elements
  A. Loss of signal and frame
  B. Line AIS (all ones in STS pointer)
  E. Excessive bit errors in overhead

• Question 106:

  Routers running OSPF and sharing a common segment become neighbors on that segment. What statement regarding OSPF neighbors is FALSE?

  A. The Primary and Secondary addresses on an interface allow the router to belong to different areas at the same time.
  B. All routers must agree on the stub area flag in the OSPF Hello Packets.
  C. Neighbors will fail to form an adjacency if their Hello and Dead intervals differ.
  D. Two routers will not become neighbors if the Area-ID and Authentication password do not match.
  A. The Primary and Secondary addresses on an interface allow the router to belong to different areas at the same time.

• Question 107:

  What is the major difference between multicast and unicast packet handling in RPR?

  A. They are sent via different Ring IDs.
  B. Multicast packets use source stripping.
  C. Multicast packets are sent highest priority.
  D. Only unicast packets are affected by the TTL parameter.
  B. Multicast packets use source stripping.

• Question 108:

  If two routers connected to the same Ethernet are configured to run HSRP (Hot Standby Router Protocol) in the same group number, which router's MAC address will be associated with the virtual IP address?

  A. It depends on which router is active.
  B. Neither- a virtual MAC address will be assigned based on the group number, unless the routers are configured to use their burned in addresses (BIAS).
  C. The routers will negotiate and decide automatically which MAC address to use based on the routers' IDs.
  D. Both routers' MAC addresses will be associated with the virtual IP address.
  E. Neither - the hosts will broadcast all traffic, which needs to travel ofF. segment.
  B. Neither- a virtual MAC address will be assigned based on the group number, unless the routers are configured to use their burned in addresses (BIAS).

• Question 109:

  What is true about the DLCI field in the Frame Relay header?

  A. It consists of two portions, source and destination, which map data to a logical channel.
  B. It generally has significance only between the local switch and the DTE device.
  C. It is an optional field in the ITU-T specification.
  D. It is present only in data frames sent through the network.
  B. It generally has significance only between the local switch and the DTE device.

• Question 110:

  Click the Exhibit button to view the topology.



  The diagram shows an L2 switched campus. Switch X is the STP root and switch Y is the standby root. How many of the links in the diagram in blocking mode by STP?

  A. 6
  B. 7
  C. 12
  D. 13
  E. 18
  F. 19
  E. 18
