Cisco CCNP 300-730 Questions & Answers

• Question 31:

  Which two NHRP functions are specific to DMVPN Phase 3 implementation? (Choose two.)

  A. registration reply

  B. redirect

  C. resolution reply

  D. registration request

  E. resolution request

  Correct Answer: CE

  Registration reply/request in present in all DMVPN phases Resolution reply/request in only in DMVPN phase 3

• Question 32:

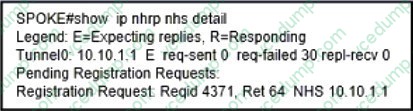

  Refer to the exhibit.



  The DMVPN spoke is not establishing a session with the hub. Which two actions resolve this issue? (Choose two.)

  A. Change the spoke nhs to 172.16.18.1 and the nbma to 10.0.0.1.

  B. Change the transform set to mode tunnel.

  C. Change the ISAKMP policy authentication on the spoke to pre-shared.

  D. Change the ISAKMP key address on the spoke to 0.0.0.0.

  E. Change the nhrp authentication key on the spoke to cisco123.

  Correct Answer: CE

• Question 33:

  Refer to the exhibit.



  A network engineer is configuring a remote access SSLVPN and is unable to complete the connection using local credentials. What must be done to remediate this problem?

  A. Enable the client protocol in the Cisco AnyConnect profile.

  B. Configure a AAA server group to authenticate the client.

  C. Change the authentication method to local.

  D. Configure the group policy to force local authentication.

  Correct Answer: A

  AAA Server Group is already configured as local. But at the bottom the ssl client is not activated

• Question 34:

  Which command shows the smart default configuration for an IPsec profile?

  A. show run all crypto ipsec profile

  B. ipsec profile does not have any smart default configuration

  C. show smart-defaults ipsec profile

  D. show crypto ipsec profile default

  Correct Answer: D

• Question 35:

  A network engineer must design a remote access solution to allow contractors to access internal servers. These contractors do not have permissions to install applications on their computers. Which VPN solution should be used in this design?

  A. IKEv2 AnyConnect

  B. Clientless

  C. Port forwarding

  D. SSL AnyConnect

  Correct Answer: B

• Question 36:

  Refer to the exhibit.



  Which type of Cisco VPN is shown for group Cisc012345678?

  A. Cisco AnyConnect Client VPN

  B. DMVPN

  C. Clientless SSLVPN

  D. GETVPN

  Correct Answer: A

  It is stated client-vpn as the vpn-tunnel-protocol.

• Question 37:

  Where must an engineer configure a preshared key for a site-to-site VPN tunnel configured on a Cisco ASA?

  A. isakmp policy

  B. group policy

  C. crypto map

  D. tunnel group

  Correct Answer: D

• Question 38:

  A network engineer has been tasked with configuring SSL VPN to provide remote users with access to the corporate network. Traffic destined to the enterprise IP range should go through the tunnel, and all other traffic should go directly to the Internet. Which feature should be configured to achieve this?

  A. U-turning

  B. hairpinning

  C. split-tunnel

  D. dual-homing

  Correct Answer: C

• Question 39:

  An engineer has integrated a new DMVPN to link remote offices across the internet using Cisco IOS routers. When connecting to remote sites, pings and voice data appear to flow properly, and all tunnel stats show that they are up. However, when trying to connect to a remote server using RDP, the connection fails. Which action resolves this issue?

  A. Adjust the MTU size within the routers.

  B. Add RDP port to the extended ACL.

  C. Replace certificate on the RDP server.

  D. Change DMVPN timeout values.

  Correct Answer: A

• Question 40:

  An organization wants to implement a site-to-site VPN solution that must be able to support 350 sites with direct communications between all sites, fully encrypt the packet header and payload, and support propagation of routing information over IPsec. Which solution meets these requirements?

  A. IPsec full mesh

  B. DMVPN

  C. GETVPN

  D. FlexVPN

  Correct Answer: D
