• Question 101:

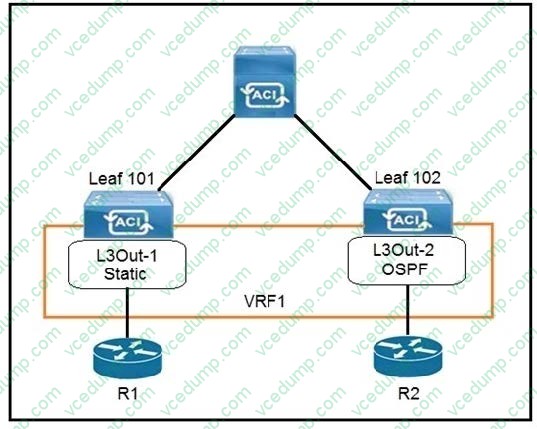

  Refer to the exhibit. The 0.0.0.0/0 is configured as a default static route on L3Out-1. Which action should be taken for the 0.0.0.0/0 prefix to advertise out on L3Out-2 OSPF?

  A. Enable Shared Security Import Subnet
  B. Enable Aggregate Export Subnet
  C. Enable Shared Route Control Subnet
  D. Enable Export Route Control Subnet
  B. Enable Aggregate Export Subnet

• Question 102:

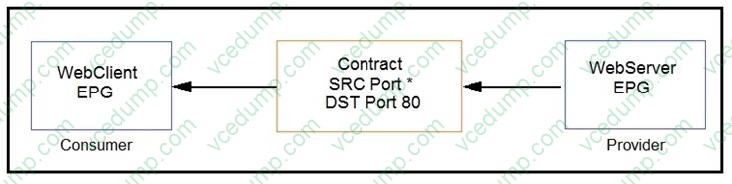

  Refer to the exhibit. Which combination of flags in the Cisco ACI contract allows a client in WebClient EPG to establish an HTTP connection toward a server in WebServer EPG?

  A. Apply Both Direction ENABLED and Reverse Port Filter ENABLED
  B. Apply Both Direction DISABLED and Reverse Port Filter DISABLED
  C. Apply Both Direction DISABLED and Reverse Port Filter ENABLED
  D. Apply Both Direction ENABLED and Reverse Port Filter DISABLED
  A. Apply Both Direction ENABLED and Reverse Port Filter ENABLED

• Question 103:

  Which device replicates Broadcast, Unicast, and Multicast (BUM) frames to all remote sites in a Cisco ACI Multi-Site with multiple stretched bridge domains?

  A. remote spine node that translates the VNID to the locally significant value
  B. receiving leaf that learns the location for the sourced BUM traffic
  C. source leaf that floods the traffic to the specific multicast group or GlPo
  D. local spine that is elected the designated forwarder for each bridge domain
  D. local spine that is elected the designated forwarder for each bridge domain

• Question 104:

  A packet is routed between two endpoints on different Cisco ACI leaf switches. Which VXLAN VNID is applied to the packet?

  A. VRF
  B. EPG
  C. BD
  D. FD
  A. VRF

• Question 105:

  As part of a newly deployed ACI fabric, a pair of border leaf switches have been deployed to provide shared services for all tenants. The configured L3Out runs OSPF as the routing protocol. The requirement is to advertise the routes from the border leaf switches to the compute leaf switches. Which configuration must be implemented to meet these requirements?

  A. Configure a BGP route reflector policy for the Cisco ACI pod
  B. Define the shared L3Out in the common tenant
  C. Enable Import Route Control Enforcement in the L3Out policy
  D. Define the consumer subnet under the consumer EPG
  A. Configure a BGP route reflector policy for the Cisco ACI pod

  ---

  https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/guide-c07-743150.html

• Question 106:

  A company must connect three Cisco ACI data centers by using Cisco ACI Multi-Site. An engineer must configure the Inter-Site Network (ISN) between the existing sites. Which two configuration steps must be taken to implement the ISN? (Choose two.)

  A. Configure encapsulation VLAN-4 between the routers and spine nodes.
  B. Configure OSPF on subinterfaces on routers that are directly connected with spine nodes
  C. Configure ISN site extension on Cisco routers in the network
  D. Configure OSPF on all ISN routers.
  E. Configure BIDIR-PIM on all ISN routers.
  A. Configure encapsulation VLAN-4 between the routers and spine nodes.
  B. Configure OSPF on subinterfaces on routers that are directly connected with spine nodes

• Question 107:

  An organization deploys active-active data centers and active-standby firewalls in each data center. Which action should be taken in a Cisco ACI Multi-Pod to maintain traffic symmetry through the firewalls?

  A. Enable Endpoint Dataplane Learning
  B. Disable service node Health Tracking
  C. Enable Pod ID Aware Redirection
  D. Disable Resilient Hashing
  C. Enable Pod ID Aware Redirection

• Question 108:

  What are two characteristics of Cisco ACI interaction with MSTP? (Choose two.)

  A. A Cisco ACI leaf flushes all local endpoints in the received EPG when an MSTP TCN frame is received.
  B. A static path binding is required for native VLAN to carry the MST BPDUs in existing EPGs.
  C. Mis-cabling protocol is used to snoop the MSTP TCN packets.
  D. A dedicated EPG must be created for the native VLAN ID with static bindings toward the MSTP-enabled switches.
  E. The PVST simulation must be configured on external network switches to support MSTP.
  A. A Cisco ACI leaf flushes all local endpoints in the received EPG when an MSTP TCN frame is received.
  D. A dedicated EPG must be created for the native VLAN ID with static bindings toward the MSTP-enabled switches.

• Question 109:

  What are two characteristics of Cisco ACI and Spanning Tree Protocol interaction? (Choose two.)

  A. When a TCN BPDU is received in a VLAN, Cisco ACI flushes the endpoints for the associated encapsulation.
  B. STP BPDUs are dropped due to MCP.
  C. MST BPDUs are flooded correctly in Cisco ACI fabric without additional configuration.
  D. BPDU filter and BPDU guard can be configured on Cisco ACI leaf edge ports.
  E. Cisco ACI must be configured as the STP root for all VLANs.
  A. When a TCN BPDU is received in a VLAN, Cisco ACI flushes the endpoints for the associated encapsulation.
  D. BPDU filter and BPDU guard can be configured on Cisco ACI leaf edge ports.

• Question 110:

  What is the advantage of implementing an active-active firewall cluster that is stretched across separate pods when anycast services are configured?

  A. A different MAC/IP combination can be configured for the firewall in each pod.
  B. The local pod anycast node is preferred by the local spines.
  C. A cluster can be deployed in transparent mode across pods.
  D. Local traffic in a pod is load-balanced between the clustered firewalls.
  B. The local pod anycast node is preferred by the local spines.
