Cisco 300-620 Online Practice Questions and Exam Preparation

300-620 Exam Details

  • Exam Code
    :300-620
  • Exam Name
    :Implementing Cisco Application Centric Infrastructure (DCACI)
  • Certification
    :CCNP Data Center
  • Vendor
    :Cisco
  • Total Questions
    :388 Q&As
  • Last Updated
    :May 29, 2026

Cisco 300-620 Online Questions & Answers

  • Question 301:

    Where is the COOP database located?

    A. leaf
    B. spine
    C. APIC
    D. endpoint

  • Question 302:

    Which protocol does ACI use to securely sane the configuration in a remote location?

    A. SCP
    B. HTTPS
    C. TFTP
    D. FTP

  • Question 303:

    Refer to the exhibit.

    A Cisco ACI fabric has these configurations:

    1.

    VPC exists between Leaf2 and Leaf3.

    2.

    A switch profile called SW_Prof exists.

    3.

    A switch selector called SW_Selec exists.

    4.

    An interface selector named Int_Selec exists.

    5.

    An interface profile named Int_Prof exists.

    Which two sets of actions must the engineer perform to connect Server1 to Leaf2 and Leaf3 using VPC? (Choose two.)

    A. Map switch selector SW_Selec under switch profile SW_Prof. Add Leaf2 and Leaf3 node IDs under switch selector SW_Selec. Assign policy group to interface selector Int_Selec.
    B. Add Leaf2 and Leaf3 node IDs under switch selector SW_Selec. Map switch profile SW_Prof under switch selector SW_Selec. Create the explicit VPC group from access policies.
    C. Create the explicit VPC group from fabric policies. Map interface Eth1/1 under interface selector Int_Selec. Assign policy group to interface selector Int_Selec.
    D. Add Leaf2 and Leaf3 node IDs under switch profile SW_Prof. Map Int_Selec under Int_Prof. Assign policy group to interface profile Int_Prof.
    E. Create the explicit VPC group from access policies. Map Interface Eth1/1 under interface selector Int_Selec. Map Int_Selec under Int_Prof.

  • Question 304:

    An ACI engineer is implementing a Layer 3 Out inside the Cisco ACI fabric that must meet these requirements:

    1.

    The data center core switch must be connected to one of the leaf switches with a single 1G link.

    2.

    The routes must be exchanged using a link-state routing protocol that supports hierarchical network design.

    3.

    The data center core switch interface must be using 802.1Q tagging, and each VLAN will be configured with a dedicated IP address.

    Which set of steps accomplishes this goals?

    A. Set up the EIGRP Protocol policy with the selected Autonomous System number. Create the Routed Outside object and Node Profile, selecting EIGRP. Configure the Interface profile, selecting Routed Interface and the appropriate interfaces. Create the External Network object with a network of 0.0.0 0/0.
    B. Set up the EIGRP Protocol policy with the selected Autonomous System number. Set up the Routed External Network object and Node Profile, selecting EIGRP. Create the Switch profile, selecting Port-channel and the appropriate interfaces. Create the default network and associate it with the Routed Outside object.
    C. Set up the BGP Protocol policy with the Autonomous System number of 0. Configure an Interface policy and an External Bridged Domain. Create an External Bridged Network using the configured VLAN pool. Build the Leaf profile, selecting Routed sub-interface and the appropriate VLAN.
    D. Configure the OSPF Protocol policy with an area of 0. Create Routed Outside object and Node Profile, selecting OSPF as the routing protocol. Build the Interface profile, selecting Routed Sub-interface and the appropriate VLAN. Configure the External Network object with a network of 0 0.0 0/0.

  • Question 305:

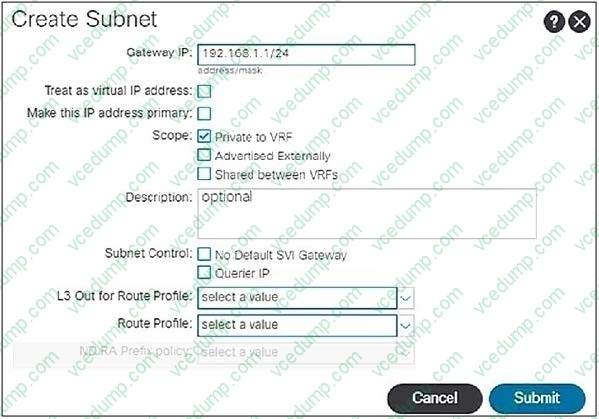

    When the subnet is configured on a bridge domain, on which physical devices is the gateway IP address configured?

    A. all leaf switches and all spine nodes
    B. only spine switches where the bridge domain of the tenant is present
    C. only leaf switches where the bridge domain of the tenant is present
    D. all border leaf nodes where the bridge domain of the tenant is present

  • Question 306:

    Which resolution immediacy setting allows a policy to be downloaded to the Cisco ACI leaf switch software regardless of CDP/LLDP neighborship?

    A. Expedite
    B. Immediate
    C. Pre-Provision
    D. On Demand

  • Question 307:

    DRAG DROP

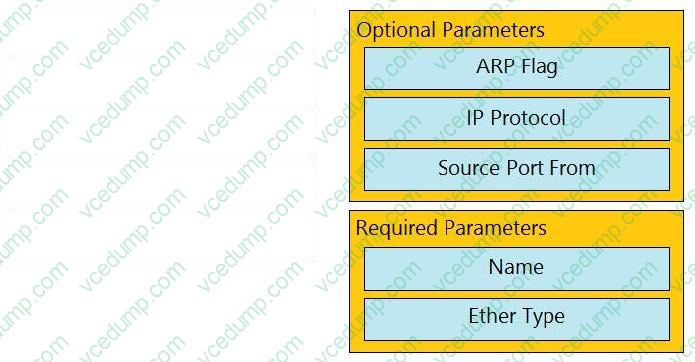

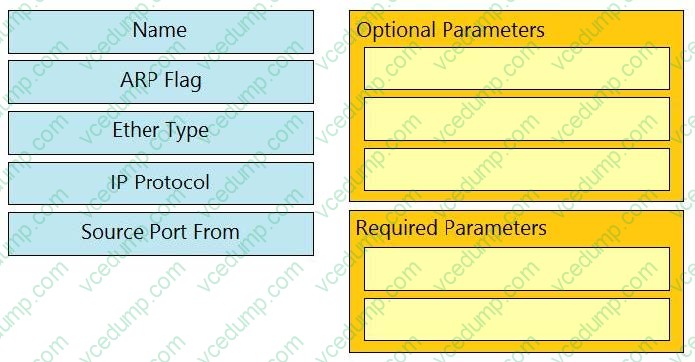

    Drag and drop the Cisco ACI filter entry options from the left onto the correct categories on the right indicating what are required or optional parameters.

    Select and Place:

  • Question 308:

    An engineer has set the VMM resolution immediacy to pre-provision in a Cisco ACI environment. No Cisco Discovery Protocol neighborship has been formed between the hypervisors and the ACI fabric leaf nodes.

    How does this affect the download policies to the leaf switches?

    A. No policies are downloaded because LLDP is the only supported discovery protocol.
    B. Policies are downloaded when the hypervisor host is connected to the VMM VDS.
    C. Policies are downloaded to the ACI leaf switch regardless of Cisco Discovery Protocol neighborship.
    D. No policies are downloaded because there is no discovery protocol neighborship.

  • Question 309:

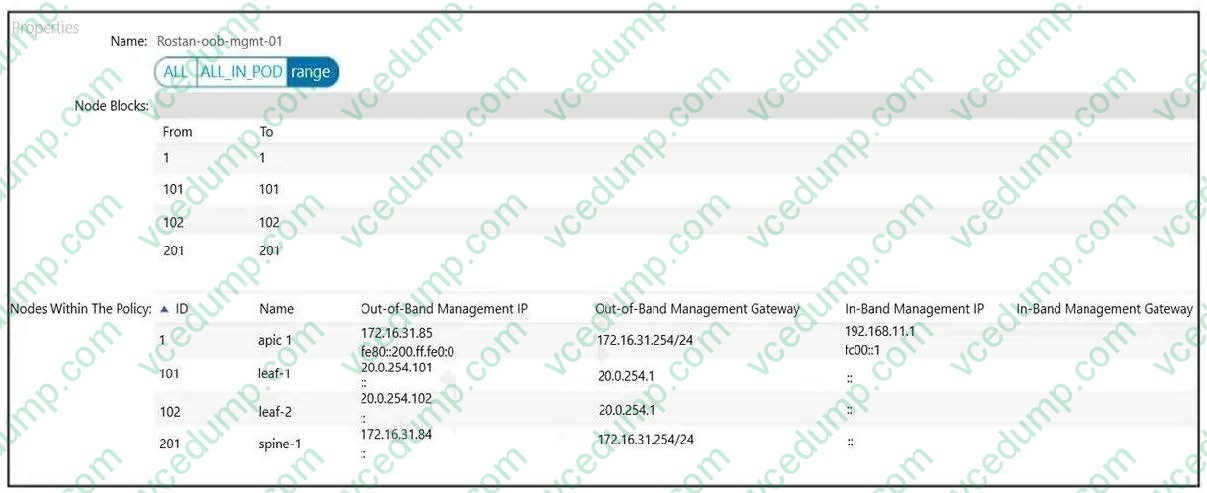

    Refer to the exhibit A Cisco ACI fabric is using out-of-band management connectivity. The APIC must access a routable host with an IP address of 192.168.11.2. Which action accomplishes this goal?

    A. Change the switch APIC Connectivity Preference to in-band management
    B. Modify the Pod Profile to use the default Management Access Policy
    C. Add a Fabric Access Policy to allow management connections
    D. Remove the in-band management address from the APIC

  • Question 310:

    Which log type provides information about configuration changes initiated by the user in the Cisco ACI fabric?

    A. fault
    B. session
    C. event
    D. audit
