Cisco CCNP 300-535 Questions & Answers

• Question 51:

  Which schema allows device configuration elements to be enclosed within a remote procedure call message when NETCONF is implemented?

  A. JSON-RPC

  B. XML

  C. YAML

  D. JSON

  Correct Answer: B

  Reference: https://books.google.com/books?id=jWVsAQAAQBAJandpg=PA21andlpg=PA21anddq=schema+allows+device+configuration+elements+to+be+enclosed+within+a+remote+procedure+call+message+when+NETCONF+is +implementedandsource=blandots=mcS25iO8ecandsig=ACfU3U08SQUN0Y7L2-An37GjHRqBzLGFUAandhl=enandsa=Xandved=2ahUKEwir16OF4dbpAhV7GjQIHc64B5kQ6AEwAHoECAoQAQ#v=onepageandq=schema%20allows%20device% 20configuration%20elements%20to%20be%20enclosed%20within%20a%20remote%20procedure%20call%20message%20when%20NETCONF%20is%20implementedandf=false

• Question 52:

  Which two use cases are valid for Cisco WAN Automation Engine? (Choose two.)

  A. deployment of SR policies

  B. integration with Cisco XTC

  C. what-if analysis

  D. device manager

  E. network controller

  Correct Answer: AB

  Reference: https://www.ciscolive.com/c/dam/r/ciscolive/apjc/docs/2018/pdf/BRKSPG-2008.pdf Slide 16

• Question 53:



  Refer to the exhibit. What is the result of the Ansible task?

  A. It configures a Cisco IOS XR router with BGP AS65000 with two neighbors and redistributes OSPF into BGP.

  B. It validates the BGP configuration on a Cisco IOS XR router, but it is a read-only module and cannot modify the configuration on the router.

  C. It validates the BGP configuration on a Cisco IOS XE router, but it is a check mode-only network module and cannot modify the configuration on the router.

  D. It configures a Cisco IOS router with BGP on AS500 and redistributes OSPF into BGP.

  Correct Answer: A

  Reference: https://docs.ansible.com/ansible/latest/modules/iosxr_bgp_module.html

• Question 54:

  An automation engineer is trying to configure a destination group to use dial-out telemetry with gRPC on a Cisco IOS XR platform. The template created is failing to apply. Which parameters must be configured?

  A. source IP address, source port, encoding, and sampling interval

  B. source IP address, source port, encoding, and protocol

  C. destination IP address, destination port, encoding, and sensor path

  D. destination IP address, destination port, encoding, and protocol

  Correct Answer: D

  Reference: https://www.cisco.com/c/en/us/td/docs/iosxr/asr9000/telemetry/b-telemetry-cg-asr9000-61x/b-telemetry-cg-asr9000-61x_chapter_010.html

• Question 55:

  Which command configures the remote peer when the Cisco IOS XR Traffic Controller is used?

  A. peer-sync ipv4 192.168.0.3

  B. state ipv4 192.168.0.3

  C. peer ipv4 192.168.0.3

  D. state-sync ipv4 192.168.0.3

  Correct Answer: D

  Reference: https://www.cisco.com/c/en/us/td/docs/routers/asr9000/software/asr9k-r6-2/segment-routing/configuration/guide/b-segment-routing-cg-asr9000-62x/b-seg-routing-cg-asr9000-62x_chapter_01001.html

• Question 56:

  Which two Python libraries are used to write a script to retrieve network device information using RESTCONF? (Choose two.)

  A. PySNMP

  B. requests

  C. ncclient

  D. YANG

  E. json

  Correct Answer: BE

• Question 57:



  Refer to the exhibit. An engineer implements an automation with Cisco XTC. Which problem results in the 404 Not Found error code on the REST call?

  A. The resource that you are trying to delete does not exist.

  B. Port 8080 is not enabled on XTC.

  C. XTC does not offer any APIs.

  D. You must change the request method.

  Correct Answer: B

• Question 58:

  What tool is used to perform a "what if" failure analysis in a service provider network that is running Segment Routing?

  A. Cisco WAN Automation Engine

  B. Cisco Evolved Programmable Network Manager

  C. Cisco Network Services Orchestrator

  D. Cisco Segment Routing Path Computation Element

  Correct Answer: A

  Reference: https://www.cisco.com/c/en/us/products/routers/wan-automation-engine/index.html

• Question 59:

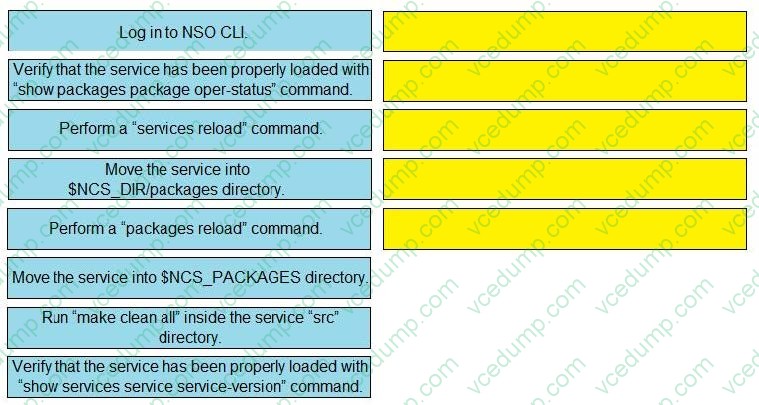

  DRAG DROP

  Drag and drop the steps from the left into the correct order on the right to deploy an already created service into NSO. Not all options are used.

  Select and Place:

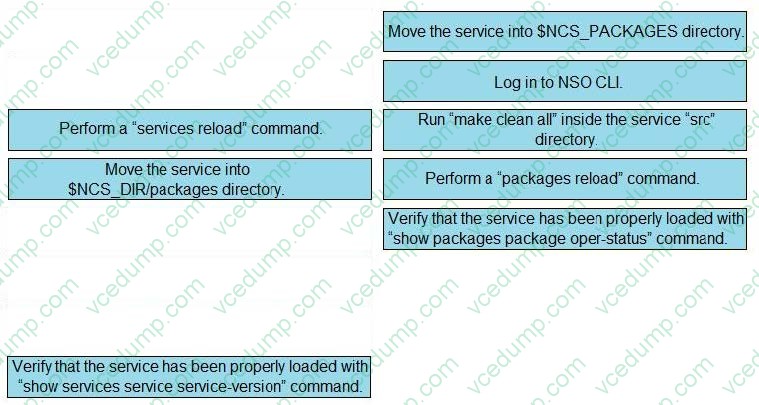

  Correct Answer:



  Reference: https://www.ciscolive.com/c/dam/r/ciscolive/emea/docs/2019/pdf/LABSPG-2442.pdf

• Question 60:

  DRAG DROP

  Drag and drop the components of Cisco Network Services Orchestrator from the left onto the correct definitions on the right.

  Select and Place:



  Correct Answer:
