Cisco 300-430 Online Practice Questions and Exam Preparation

Cisco 300-430 Online Questions & Answers

• Question 131:

  When implementing self-registration for guest/BYOD devices, what happens when an employee tries to connect four devices to the network at the same time?

  A. The last device is removed and the newly added device is updated as active device.
  B. The registration is allowed, but only one device is connected at any given time.
  C. All devices are allowed on the network simultaneously.
  D. Purge time dictates how long a device is registered to the portal.
  C. All devices are allowed on the network simultaneously.

  ---

  Explanation Explanation/Reference:

• Question 132:

  A WLAN on the WLC is configured for web authentication as the Layer 3 Security policy with the web-auth type External. Which two elements are required as part of the configuration? (Choose two.)

  A. WLAN being not present in the default AP group
  B. HTTPS redirection enabled
  C. nonroutable IP address assigned to the virtual interface
  D. web-auth secure web option enabled
  E. preauth ACL to allow access to the external web server
  B. HTTPS redirection enabled
  E. preauth ACL to allow access to the external web server

• Question 133:

  A customer requires wireless traffic from the branch to be routed through the firewall at corporate headquarters. A RADIUS server is in each branch location. Which Cisco FlexConnect configuration must be used?

  A. central authentication and local switching
  B. central authentication and central switching
  C. local authentication and local switching
  D. local authentication and central switching
  D. local authentication and central switching

• Question 134:

  An IT administrator deployed an OEAP to the home of a remote user, but the OEAP cannot reach the WLC. Which two configuration settings must be completed before an OEAP is deployed successfully? (Choose two.)

  A. Configure Secondary Controller Name and Management IP address in the High Availability tab.
  B. Configure LSC to authorize the OEAP.
  C. Configure the AP mode to FlexConnect and check the box for Office Extend AP.
  D. Configure the WLC with an external IP address on the virtual interface.
  E. Configure Primary Controller Name and Management IP address in the High Availability tab.
  C. Configure the AP mode to FlexConnect and check the box for Office Extend AP.
  E. Configure Primary Controller Name and Management IP address in the High Availability tab.

  ---

  Step 4 and 5: https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-1/configuration-guide/b_cg81/b_cg81_chapter_0101111.pdf

• Question 135:

  After looking in the logs, an engineer notices that RRM keeps changing the channels for non-IEEE 802. 11 interferers. After surveying the area, it has been decided that RRM should not change the channel. Which feature must be enabled to ignore non-802.11 interference?

  A. Avoid Cisco AP Load
  B. Avoid Persistent Non-WIFI Interference
  C. Avoid Foreign AP Interference
  D. Avoid Non-802. 11 Noise
  B. Avoid Persistent Non-WIFI Interference

  ---

  Check the Avoid Non-802.11a (802.11b) Noise check box to cause the controller's RRM algorithms to consider noise (non-802.11 traffic) in the channel when assigning channels to lightweight access points, or uncheck it to disable this feature. For example, RRM may have access points avoid channels with significant interference from nonaccess point sources, such as microwave ovens. The default value is selected. Check the Avoid Persistent Non-WiFi Interference check box to configure the controller to stop ignoring persistent non-Wi-Fi interference in new channel calculation. The persistent non-Wi-Fi interference is considered during the metric calculation for channels. https://www.cisco.com/c/en/us/td/docs/wireless/controller/9800/configure-guide/b_wi_16_10_cg/radio-resource-management.html https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-6/config-guide/b_cg86/radio_resource_management.html

• Question 136:

  An engineer is deploying a virtual MSE. The network has 3000 APs and needs 7000 IPS licenses. To which size server does the engineer scale it?

  A. virtual
  B. standard
  C. high end
  D. low end
  C. high end

• Question 137:

  Which EAP method can an AP use to authenticate to the wired network?

  A. EAP-GTC
  B. EAP-MD5
  C. EAP-TLS
  D. EAP-FAST
  D. EAP-FAST

• Question 138:

  A wireless network engineer must present a list of all rogue APs with a high severity score to senior management. Which report must be created in Cisco Prime Infrastructure to provide this information?

  A. Rogue AP Count Summary
  B. New Rogue APs
  C. Rogue AP Events
  D. Rogue APs
  D. Rogue APs

• Question 139:

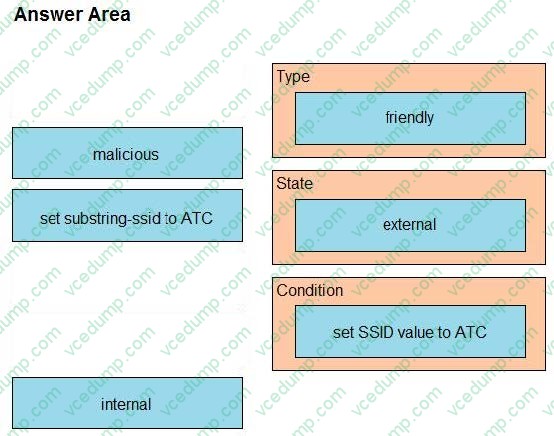

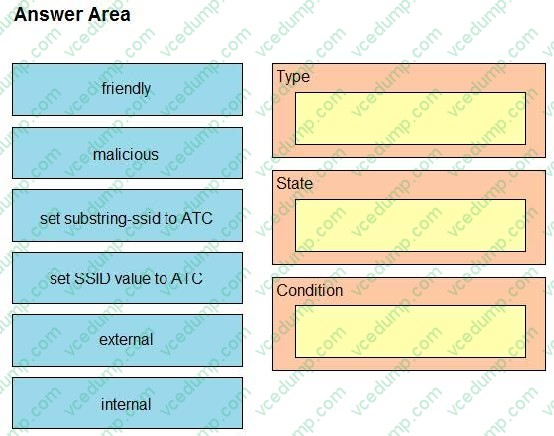

  DRAG DROP

  The network management team in a large shopping center has detected numerous rogue APs from local coffee shops that are broadcasting SSIDs. All of these SSIDs have names starting with ATC (for example, ATC302, ATC011, and ATC566). A wireless network engineer must appropriately classify these SSIDs using the Rogue Rules feature. Drag and drop the options from the left onto the categories in which they must be used on the right. Not all options are used.

  Select and Place:





  ---

  Explanation/Reference:

• Question 140:

  An engineer is using Cisco Prime Infrastructure reporting to monitor the state of security on the WLAN. Which output is produced when the Adaptive wIPS Top 10 AP report is run'?

  A. last 10 wIPS events from sniffer mode APs
  B. last 10 wIPS events from monitor mode APs
  C. last of 10 sniffer mode APs with the most wIPS events
  D. last of 10 monitor mode APs with the most wIPS events
  B. last 10 wIPS events from monitor mode APs
