Cisco 300-415 Online Practice Questions and Exam Preparation

Cisco 300-415 Online Questions & Answers

• Question 531:

  Which destination UDP port is used by WAN Edge router to make a DTLS connection with vBond Orchestrator?

  A. 12343
  B. 12345
  C. 12346
  D. 12347
  C. 12346

• Question 532:

  How many network interface cards are needed to add in virtual machine settings when installing vSmart controller on VMware vSphere ESXi Hypervisor software?

  A. 1
  B. 2
  C. 3
  D. 4
  B. 2

• Question 533:

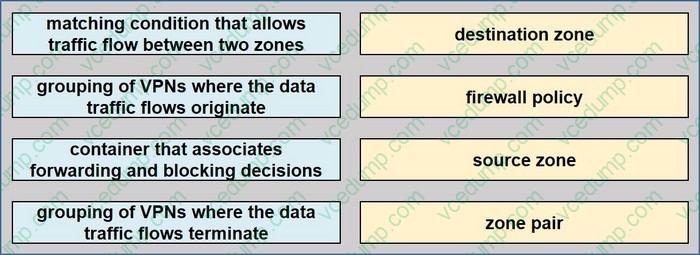

  DRAG DROP

  Drag and drop the definitions from the left to the configuration on the right.

  Select and Place:





• Question 534:

  In Cisco SD-WAN, what protocol is used for control connections between SD-WAN devices?

  A. BGP
  B. OSPF
  C. DTLS
  D. OMP
  C. DTLS

  ---

  Explanation

  In the reference link under the 'Control Plane Authentication' part, you can find the following:

  Then, during the automatic authentication process, as pairs of devices (routers and controllers) are establishing DTLS control connections, each device compares the serial numbers (and for routers, the chassis numbers) to those in the files installed on the router.

  DTLS is the connection that facilitates the exchange of OMP information between the devices. In vManage the number of control connections also shows the amount of DTLS connections to/from a device. OMP is not the control connection, it's the control plane management protocol.

• Question 535:

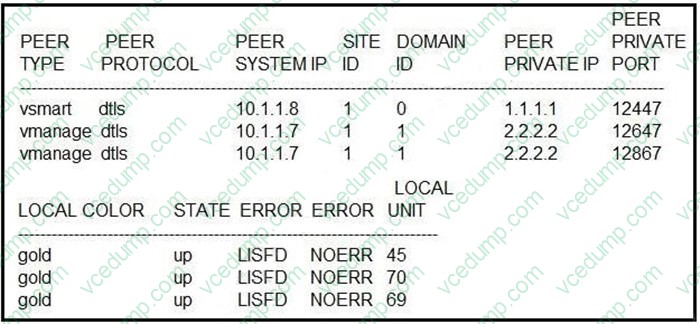

  Refer to the exhibit.



  An engineer is troubleshooting a control connection issue on a WAN Edge device that shows socket errors. The packet capture shows some ICMP packets dropped between the two devices.

  Which action resolves the issue?

  A. Remove IP duplication in the network and configure a unique IP address.
  B. Recover vBond or wait for the controller to reload, which could be caused by a reset.
  C. Recover the vManage controller that is down in a high availability cluster.
  D. Change the system IP or restart the WAN Edge if the system IP is changed.
  A. Remove IP duplication in the network and configure a unique IP address.

• Question 536:

  An engineer must configure local redundancy on a site.

  Which configuration accomplishes the task?

  A. vpn 0 tloc-extension interface interface-name
  B. interface interface-name tloc-extension
  C. tloc-extension interface interface-name
  D. vpn 0 interface interface-name tloc-extension interface-name
  D. vpn 0 interface interface-name tloc-extension interface-name

• Question 537:

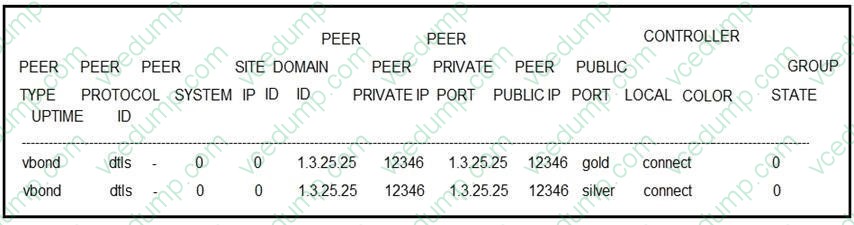

  Refer to the exhibit. An engineer is troubleshooting a control connection issue.

  What does "connect" mean in this show control connections output?



  A. Control connection is down
  B. Control connection is up
  C. Control connection attempt is in progress
  D. Control connection is connected
  C. Control connection attempt is in progress

  ---

  Explanation

  References:

  https://community.cisco.com/t5/networking-documents/sd-wan-routers-troubleshoot-control-connections/ta-p/3813237

• Question 538:

  Which feature builds transport redundancy by using the cross link between two redundant WAN Edge routers?

  A. OMP
  B. zero-touch provisioning
  C. quality of service
  D. TLOC extension
  D. TLOC extension

• Question 539:

  What is the purpose of "vpn 0" in the configuration template when onboarding a WAN Edge node?

  A. It carries control traffic over secure IPsec connections between vSmart controllers and vEdge routers, and between vSmart and vManager
  B. It carries control out-of-bond network management traffic among the Viptela devices in the overlay network.
  C. It carries control traffic over secure IPsec connections between vSmart controllers and vEdge routers, and between vSmart and vManager
  D. It carries control traffic over secure DTLS or TLS connections between vSmart controllers and vEdge routers, and between vSmart and vBond
  D. It carries control traffic over secure DTLS or TLS connections between vSmart controllers and vEdge routers, and between vSmart and vBond

• Question 540:

  Which SD-WAN component detects path performance information in the organization to report the issue to the service provider at site ID:123456?

  A. vBond Orchestrator
  B. Cisco DNA
  C. vManage NMS
  D. vAnalytics
  D. vAnalytics

  ---

  Explanation

  Cisco vAnalytics is a cloud-based analytics service for Cisco SD-WAN offering comprehensive insights into application and network performance. The analytics service is available with Cisco DNA Advantage and Cisco DNA Premier software subscriptions. Cisco vAnalytics collects and stores metadata about traffic flows in its cloud storage and produces analytics based on this collected data.

  https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/vAnalytics/vAnalytics-book/vAnalytics.html
