Cisco 300-415 Online Practice Questions and Exam Preparation

Cisco 300-415 Online Questions & Answers

• Question 421:

  A network administrator is configuring a centralized control policy based on match action pairs for multiple conditions.

  Which order must be configured to prefer Prefix List over TLOC and TLOC over Origin?

  A. highest to lowest sequence number
  B. nonsequential order
  C. deterministic order
  D. lowest to highest sequence number
  D. lowest to highest sequence number

  ---

  Explanation

  By assigning higher sequence numbers to the rules or match action pairs you want to prioritize, you ensure that these rules are evaluated first. In this case, you would configure the Prefix List rule with a higher sequence number than the TLOC rule, and the TLOC rule with a higher sequence number than the Origin rule.

• Question 422:

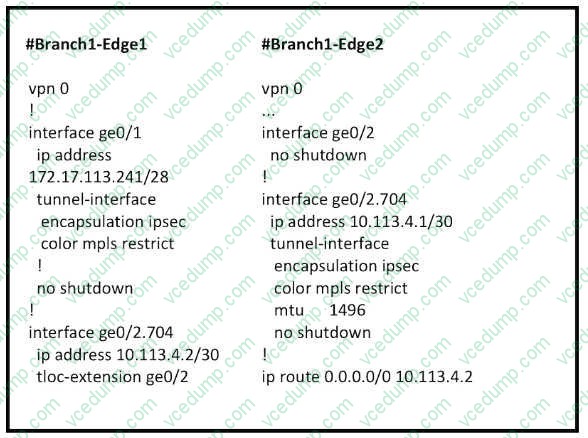

  Refer to the exhibit.

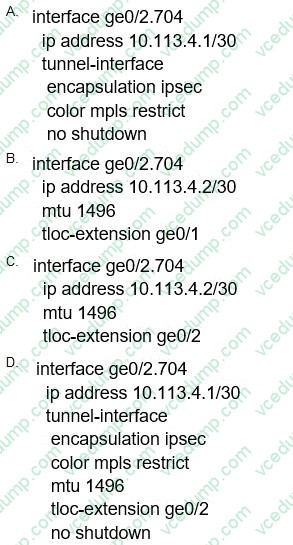

  Which configuration change is needed to configure the tloc-extention on Branch1-Edge1?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

• Question 423:

  SIMULATION

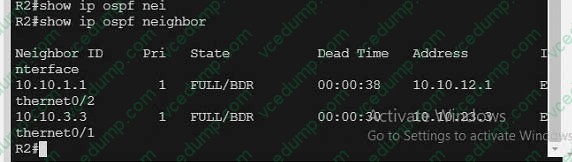

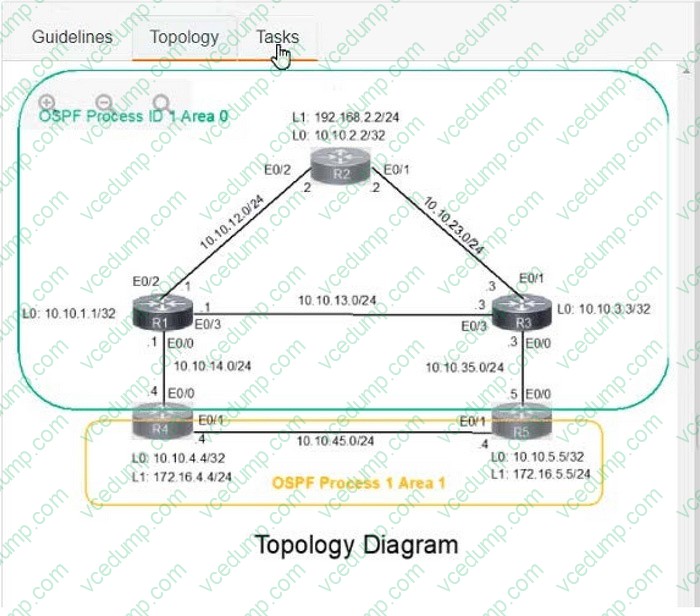

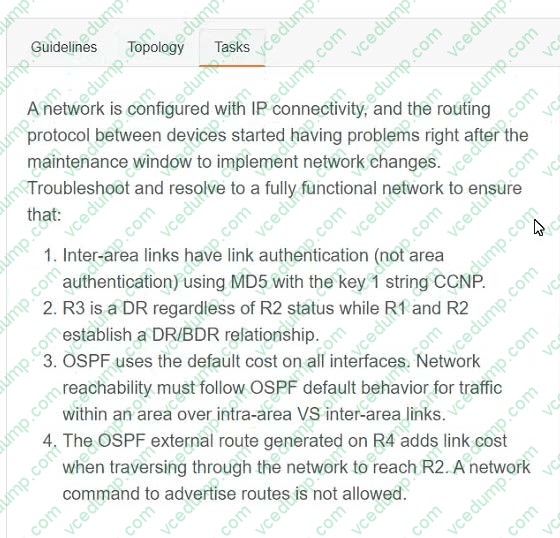

  A network is configured with IP connectivity, and the routing protocol between devices started having problems right after the maintenance window to implement network changes.

  Troubleshoot and resolve to a fully functional network to ensure that:

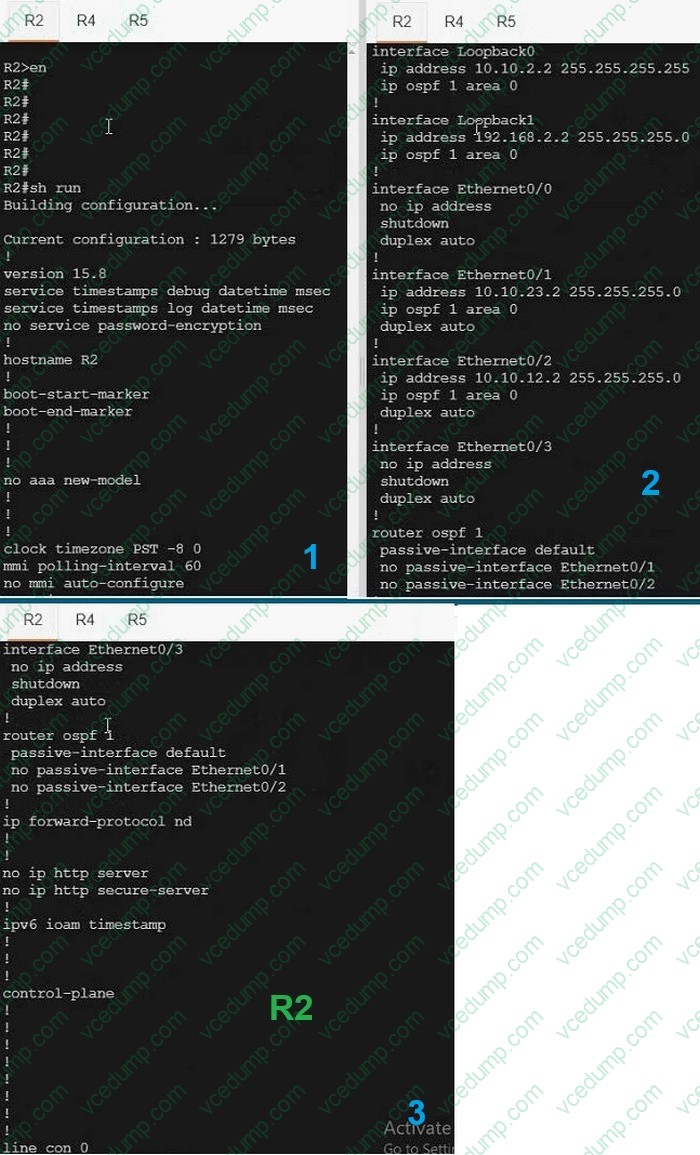

  R2



  R4

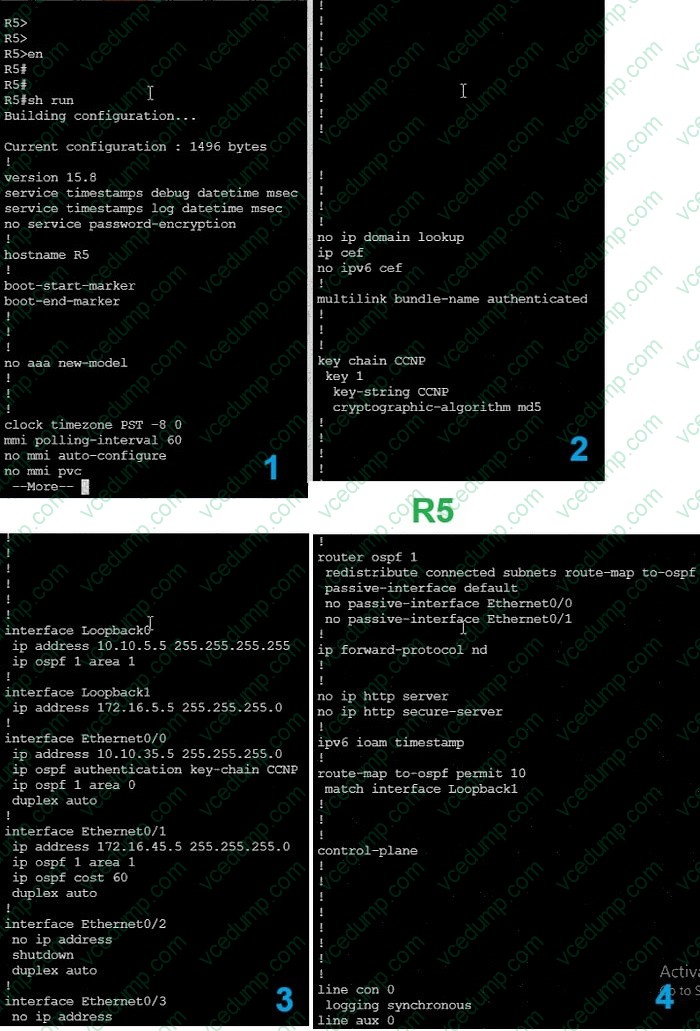

  R5



  A. See the solution below in explanation
  B. PlaceHolder
  C. PlaceHolder
  D. PlaceHolder
  A. See the solution below in explanation

  ---

  Explanation

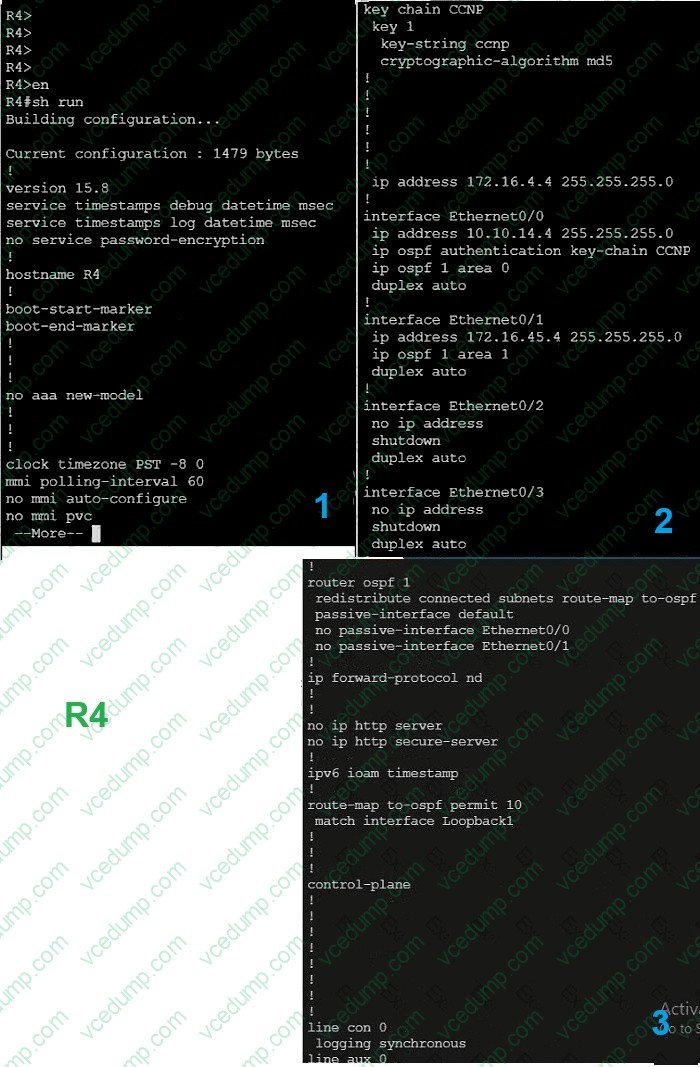

  R4

  Int range et0/0 -- 1

  Ip ospf authentication message-digest

  Ip ospf message-digest-key 1 md5 CCNP

  Router ospf 1

  Redistribute connected subnets route-map to-ospf metric-type 1

  Copy run start

  R5

  Int range et0/0 -- 1

  Ip ospf authentication message-digest

  Ip ospf message-digest-key 1 md5 CCNP

  Interface eth 0/1

  Ip ospf cost 10

  Copy run start



• Question 424:

  Which two platforms for the Cisco SD-WAN architecture are deployable in a hypervisor on-premises or in IAAS Cloud? (Choose two.)

  A. CSR 1000v
  B. ISR 4431
  C. vEdge 100c
  D. vEdge 2000
  E. vEdge Cloud
  A. CSR 1000v
  E. vEdge Cloud

  ---

  Explanation

  1. Hardware platforms

  Cisco vEdge (formerly Viptela vEdge) Routers running Viptela OS

  Integrated Services Router (ISR) 1000 and 4000 Series running IOS XE SDWAN Software Aggregation Services Router (ASR) 1000 Series running IOS XE SD-WAN Software

  2. Virtual platforms

  Cloud Services Router (CSR) 1000v running IOS XE SD-WAN Software vEdge Cloud Router running Viptela OS

  References:

  https://www.cisco.com/c/dam/en/us/solutions/collateral/enterprise-networks/sd-wan/nb-06-cisco-sd-wan-ebook-cte-en.pdf

• Question 425:

  An administrator must configure an ACL for traffic coming in from the service-side VPN on a specific WAN device with circuit ID 391897770.

  Which policy must be used to configure this ACL?

  A. local data policy
  B. central data policy
  C. app-aware policy
  D. central control policy
  A. local data policy

  ---

  Explanation

  Localized data policy controls the flow of data traffic into and out of interfaces and interface queues on a vEdge router. This type of data policy is provisioned locally, on the vEdge router, using access lists. It allows you to classify traffic and map different classes to different queues. It also allows you to mirror traffic and to police the rate at which data traffic is transmitted and received.

  https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/policies/vedge/policies-book/control-policies.html#c_Localized_Control_Policy_12226.xm

• Question 426:

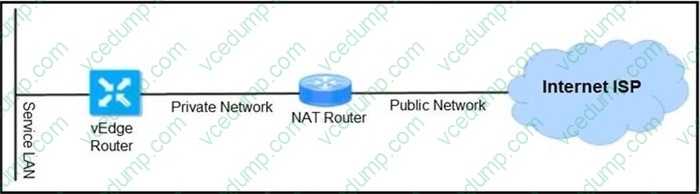

  Refer

  to the exhibit.



  Which NAT type must the engineer configure for the vEdge router to bring up the data plane tunnels?

  A. Use private color on the TLOC.
  B. Enable Full Cone NAT on the vEdge interface.
  C. Enable Symmetric NAT on the vEdge interface.
  D. Use public color on the TLOC.
  D. Use public color on the TLOC.

• Question 427:

  What is the default value (in milliseconds) set for the poll interval in the BFD basic configuration?

  A. 300,000
  B. 600,000
  C. 900,000
  D. 1,200,000
  B. 600,000

  ---

  Explanation

  https://sdwan-docs.cisco.com/Product_Documentation/vManage_Help/Release_18.2/Configuration/Templates/BFD

• Question 428:

  A customer is deploying the Cisco Catalyst SD-WAN solution for its 100 branches where branches reach the hub site using only the MPLS circuit.

  Which configuration should the networking team implement?

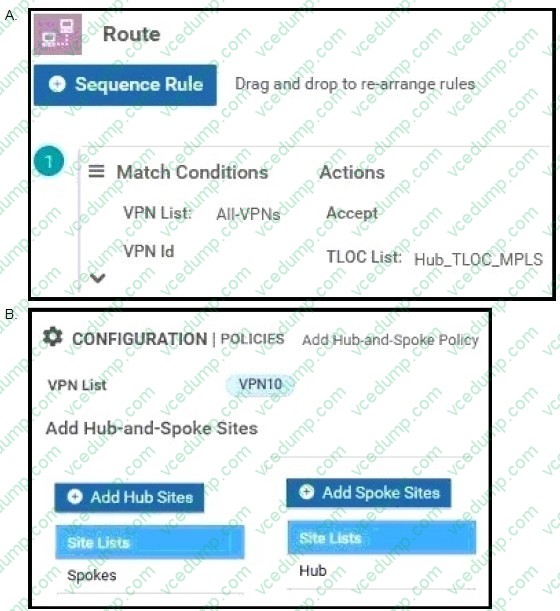

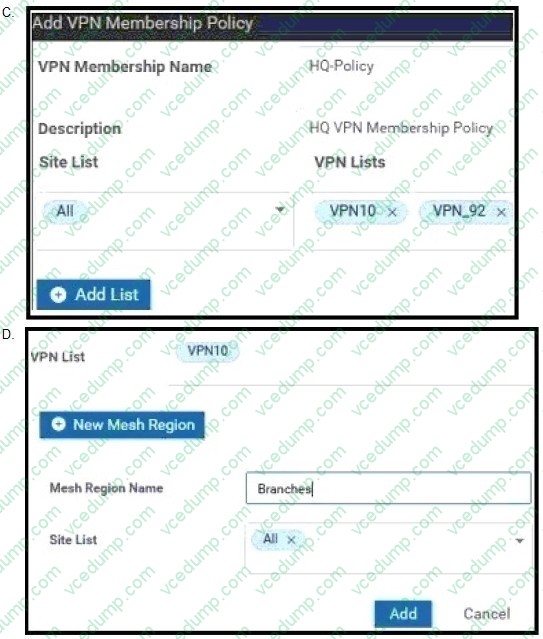

  A. Option A
  B. Option B
  C. Option C
  D. Option D
  A. Option A

• Question 429:

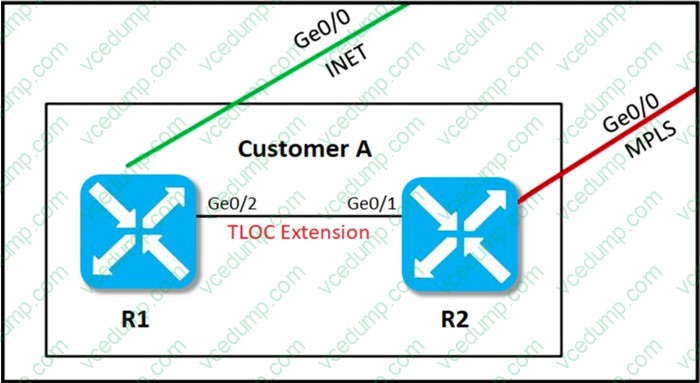

  Refer to the exhibit.



  An MPLS connection on R2 must extend to R1. Users behind R1 must have dual connectivity for data traffic.

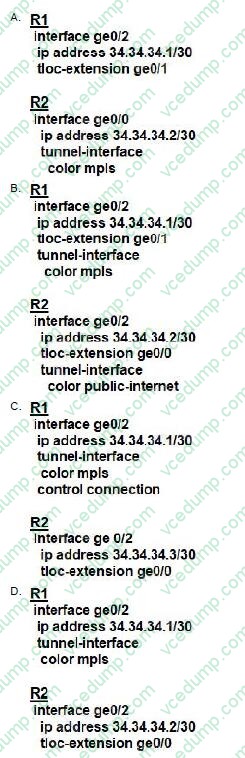

  Which configuration provides R1 control connectivity over the MPLS connection?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  D. Option D

• Question 430:

  Which value of the IPsec rekey timer must be set by the engineer for an OMP graceful restart value set for 24 hours?

  A. 6 hours
  B. 12 hours
  C. 36 hours
  D. 48 hours
  C. 36 hours
