Cisco 300-415 Online Practice Questions and Exam Preparation

Cisco 300-415 Online Questions & Answers

• Question 231:

  Refer to the exhibit.

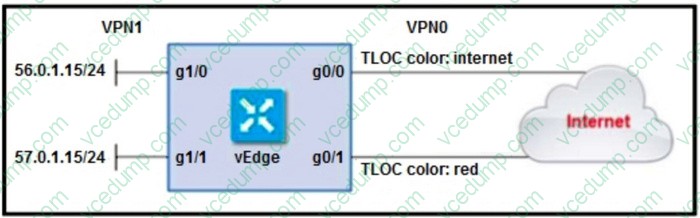

  The ge0/0 interface connects to a 30-MB link. A network administrator wants to always have 10 MB available for high-priority traffic. When lower-priority traffic bursts exceed 20 MB, traffic should be redirected to the second WAN interface, ge0/1.

  Which set of configurations accomplishes this task?

  A. policy policer bursty-traffic rate 1000000 burst 20000 exceed continue access-list policer-bursty-traffic sequence 10 match source-ip 56.0.1.0/24 action accept policer bursty-traffic default-action accept
  B. policy policer bursty-traffic rate 10 burst 20 exceed remark access-list policer-bursty-traffic sequence 10 match source-ip 56.0.1.0/24 action accept policer bursty-traffic default-action accept
  C. policy policer bursty-traffic rate 10000 burst 20000 exceed drop access-list policer-bursty-traffic sequence 10 match source-ip 56.0.1.0/24 action accept policer bursty-traffic default-action accept
  D. policy policer bursty-traffic rate 1000000 burst 20000 exceed remark access-list policer-bursty-traffic sequence 10 match source-ip 56.0.1.0/24 action accept policer bursty-traffic default-action accept
  D. policy policer bursty-traffic rate 1000000 burst 20000 exceed remark access-list policer-bursty-traffic sequence 10 match source-ip 56.0.1.0/24 action accept policer bursty-traffic default-action accept

  ---

  Explanation

  https://www.cisco.com/c/dam/en/us/td/docs/routers/sdwan/configuration/config-18-4.pdf#page=546

• Question 232:

  Which platforms are managed by a single vManage dashboard?

  A. ISR4351, ASR1002HX, vEdge2000, vEdge Cloud
  B. ISR4321, ASR1001, Nexus, ENCS
  C. ISR4321, ASR1001, ENCS, ISRv
  D. ISR4351, ASR1009, vEdge2000, CSR1000v
  C. ISR4321, ASR1001, ENCS, ISRv

  ---

  Explanation

  References:

  https://www.cisco.com/c/dam/en/us/solutions/collateral/enterprise-networks/sd-wan/nb-06-sw-defined-wan-faq-cte-en.pdf

• Question 233:

  What is the primary purpose of monitoring "Event Trace" for OMP agent and SD-WAN subsystems?

  A. It provides the functionality to run diagnostics of SD-WAN tracking between the SD-WAN Manager and SD-WAN subsystems.
  B. It adds support for event notifications for Cisco IOS XE devices and SD-WAN subsystems.
  C. It adds support for event alerts for Cisco WAN Edge routers and SD-WAN subsystems.
  D. It provides the functionality to capture the SD-WAN traces between the SD-WAN daemons and SD-WAN subsystems.
  D. It provides the functionality to capture the SD-WAN traces between the SD-WAN daemons and SD-WAN subsystems.

• Question 234:

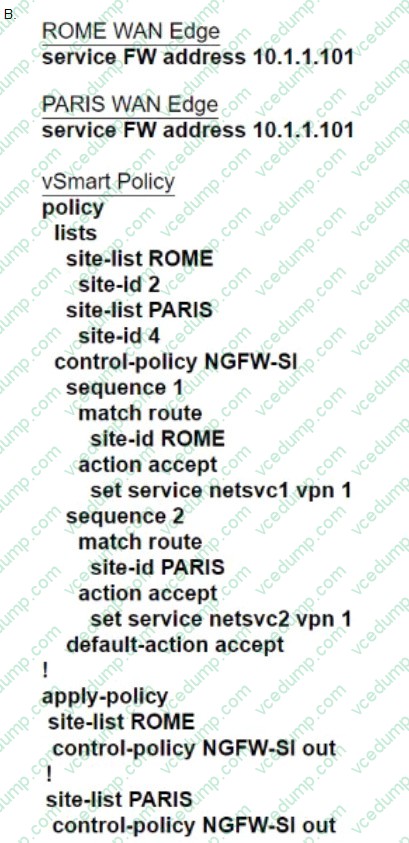

  Refer to the exhibit.

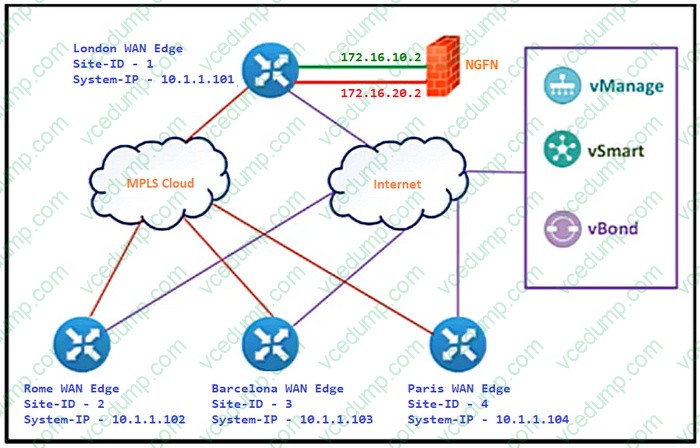

  The Cisco SD-WAN is deployed using the default topology. The engineer wants to configure a service insertion policy such that all data traffic between Rome to Paris is forwarded through the NGFW located in London.

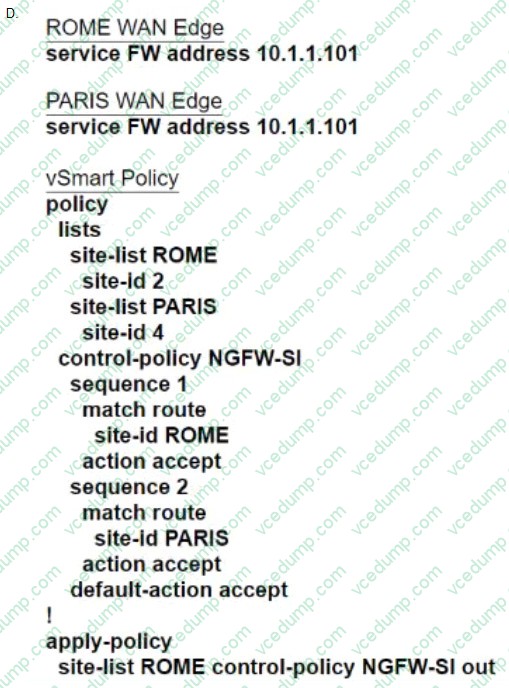

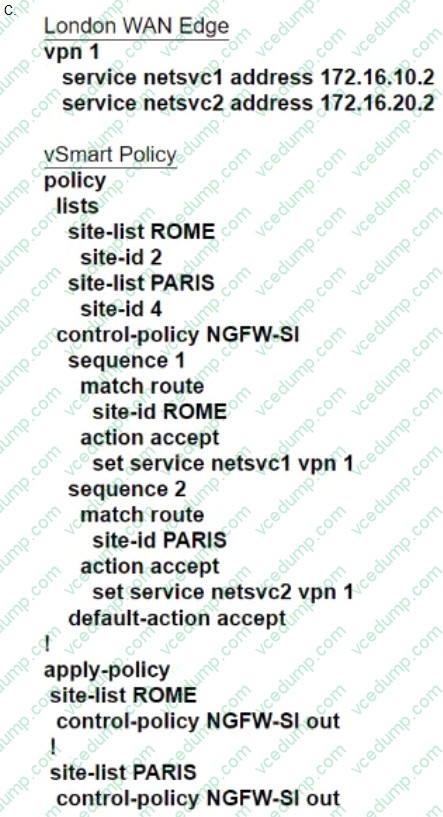

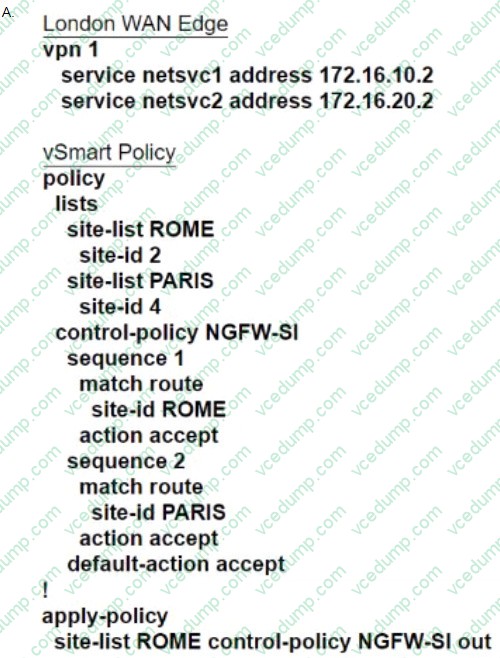

  Which configuration fulfills this requirement, assuming that the Service VPN ID is 1?









  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

• Question 235:

  An engineer is adding a tenant with location ID 123456789 in vManage.

  What is the maximum number of alphanumeric characters that is accepted in the tenant name field?

  A. 64
  B. 128
  C. 256
  D. 8
  B. 128

• Question 236:

  What are the two components of centralized policy deployment in vManage? (Choose two.)

  A. policy definition
  B. lists
  C. QoS map
  D. policy-based routing
  E. route policy
  A. policy definition
  B. lists

• Question 237:

  Which type of packet is sent to UTD for action when TLS proxy is enabled on a Cisco SD-WAN device?

  A. initial data packets
  B. server hello packets
  C. TCP SYN packets
  D. client hello packets
  D. client hello packets

• Question 238:

  An enterprise is continuously adding new sites to its Cisco SD-WAN network. It must configure any cached routes flushed when OMP peers have lost adjacency.

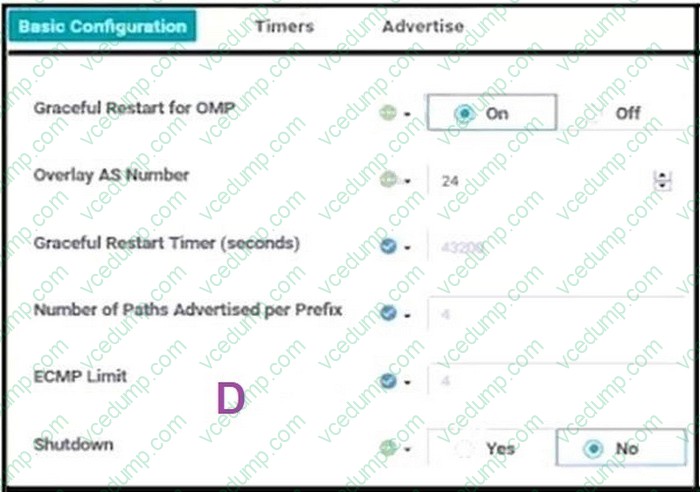

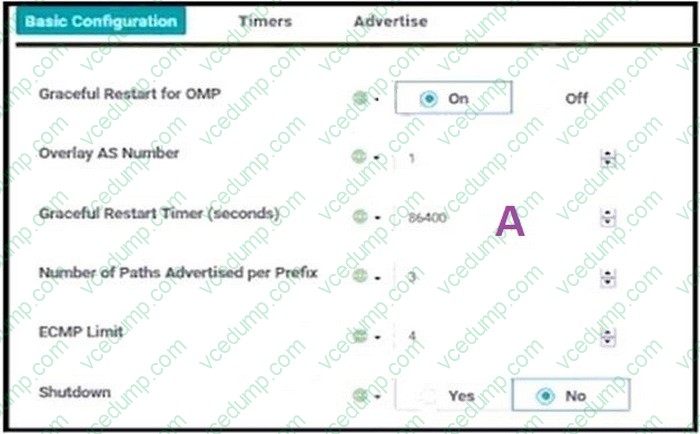

  Which configuration allows the cached OMP routes to be flushed after every 24 hours from its routing table?









  A. Option A
  B. Option B
  C. Option C
  D. Option D
  A. Option A

• Question 239:

  SIMULATION

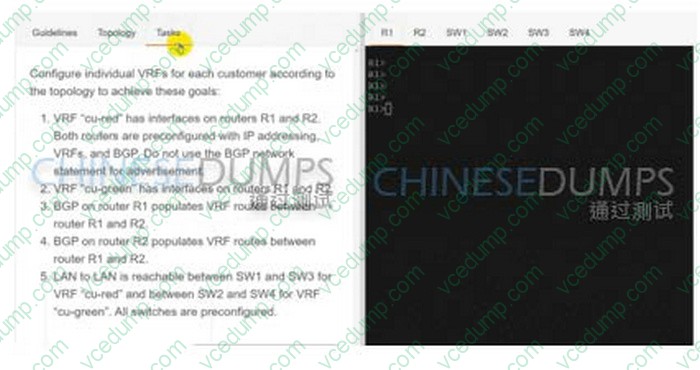

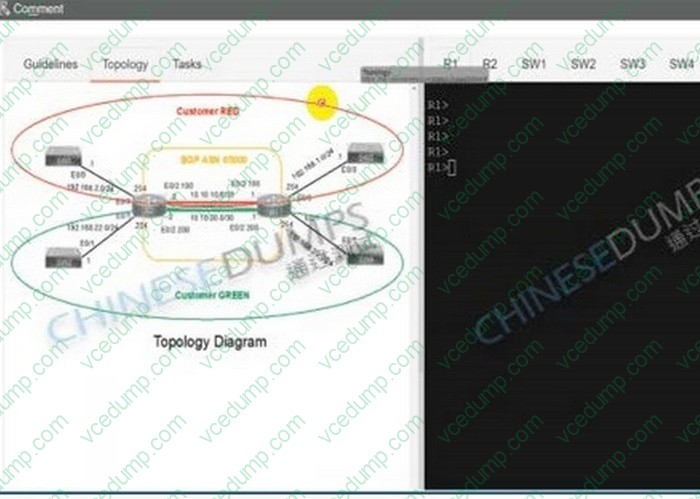

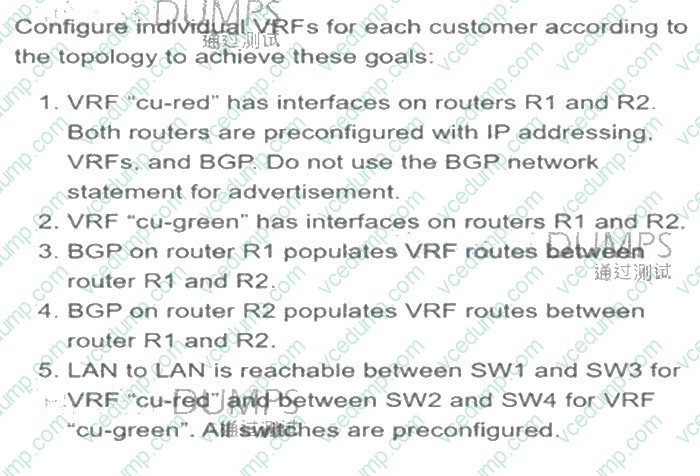

  Configure individual VRFs for each customer according to the topology to achieve these goals :

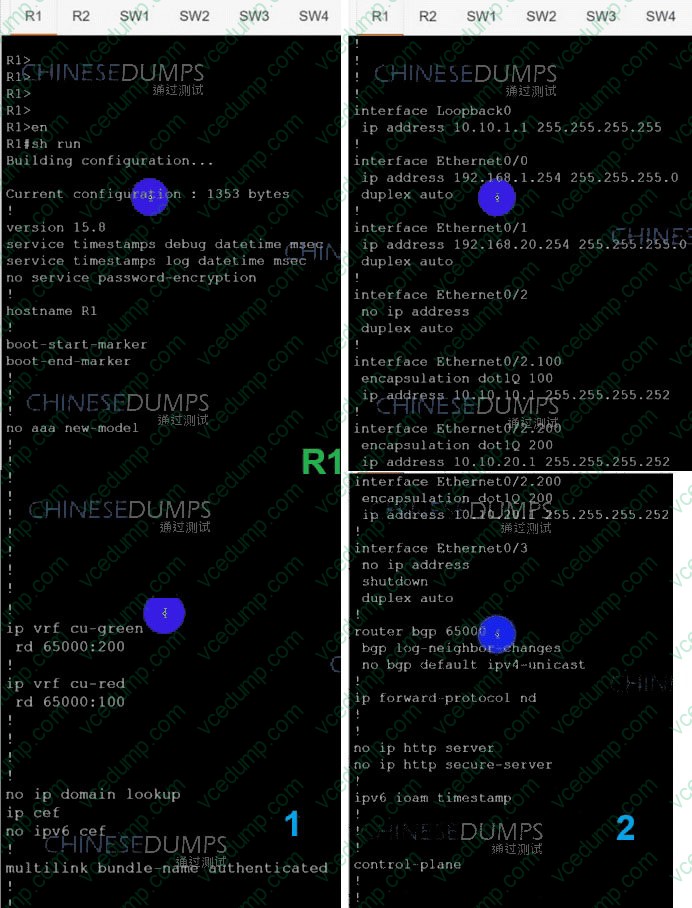

  R1



  R2



  SW1



  SW2



  SW3

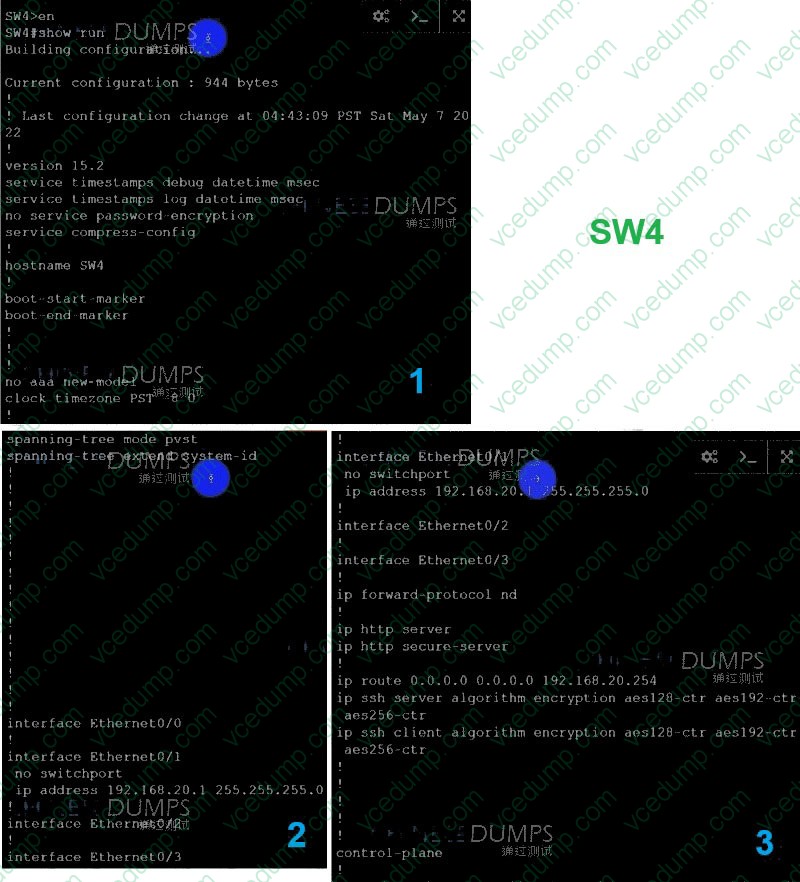

  SW4



  Tasks



  A. See the solution below in explanation.
  B. PlaceHolder
  C. PlaceHolder
  D. PlaceHolder
  A. See the solution below in explanation.

  ---

  Explanation

  Use cu-red under interfaces facing SW1 & SW3:

  On R1:

  interface Ethernet0/0 ip vrf forwarding cu-red

  ip address 192.168.1.254 255.255.255.0

  Check reachability to SW1:

  R1#ping vrf cu-red 192.168.1.1

  Type escape sequence to abort.

  Sending 5, 100-byte ICMP Echos to 192.168.2.1, timeout is 2 seconds:

  !!!!!

  Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

  On R2:

  interface Ethernet0/0 ip vrf forwarding cu-red

  ip address 192.168.2.254 255.255.255.0

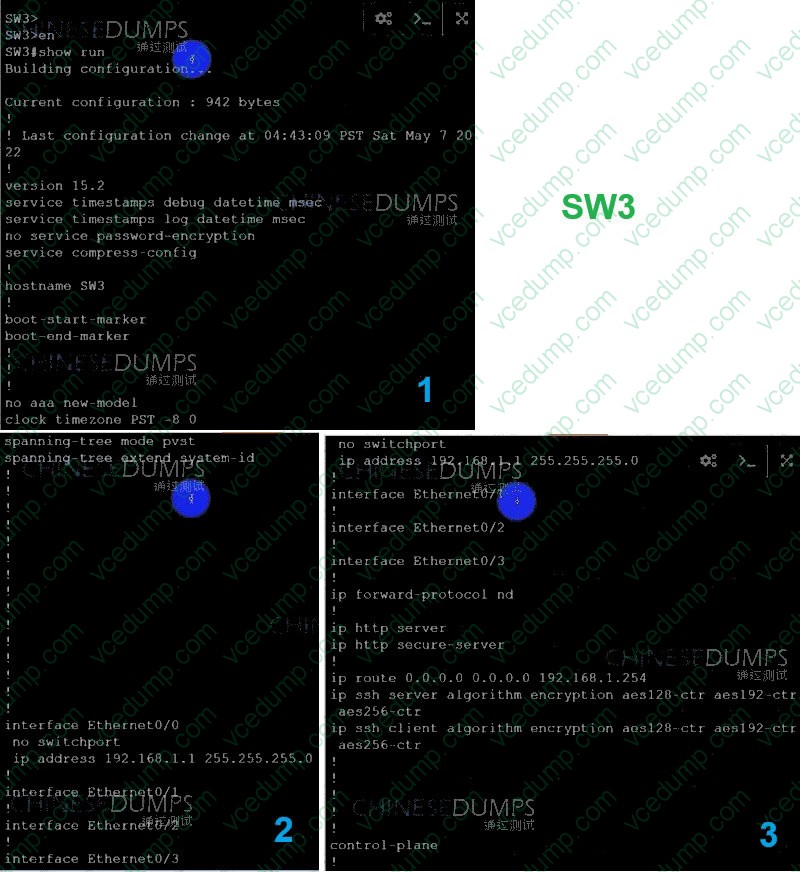

  Check reachability to SW3:

  R2#ping vrf cu-red 192.168.2.1

  Type escape sequence to abort.

  Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:

  !!!!!

  Use vrf cu-green for SW2 & SW4:

  On R1:

  interface Ethernet0/1 ip vrf forwarding cu-green

  ip address 192.168.20.254 255.255.255.0

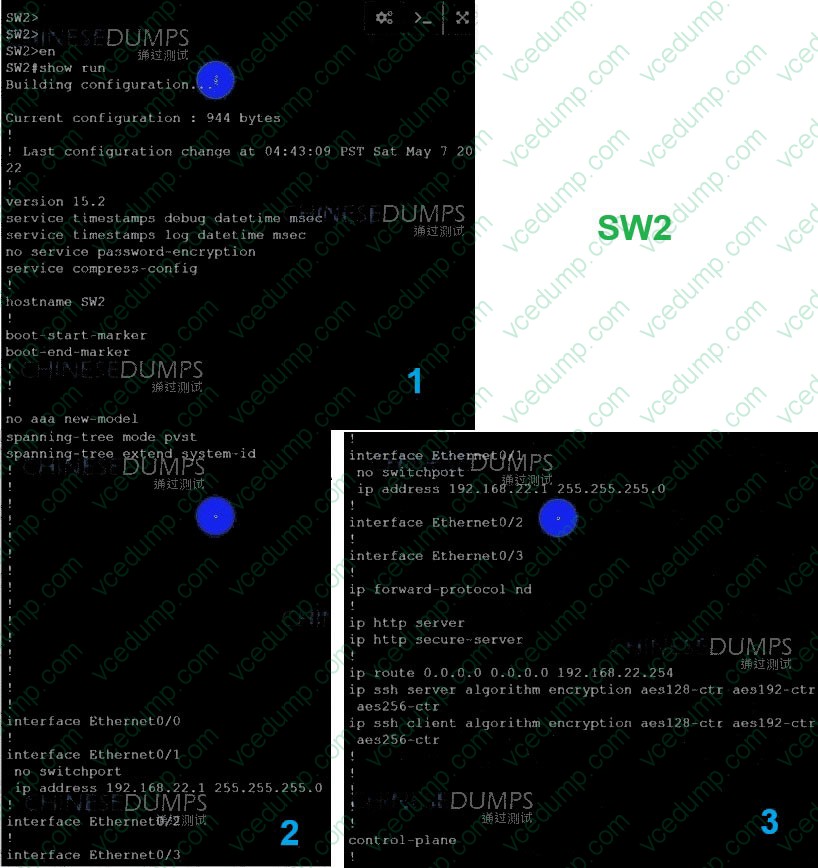

  Test reachability to SW2:

  R1#ping vrf cu-green 192.168.20.1

  Type escape sequence to abort.

  Sending 5, 100-byte ICMP Echos to 192.168.22.1, timeout is 2 seconds:

  !!!!!

  Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

  On R2:

  interface Ethernet0/1 ip vrf forwarding cu-green

  ip address 192.168.22.254 255.255.255.0

  Test reachability to SW4:

  R2#ping vrf cu-green 192.168.22.1

  Type escape sequence to abort.

  Sending 5, 100-byte ICMP Echos to 192.168.20.1, timeout is 2 seconds:

  !!!!!

  Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

  On R1:

  interface Ethernet0/2.100

  mpls ip

  !

  interface Ethernet0/2.200

  mpls ip

  !

  Configure BGP:

  router bgp 65000

  neighbor 10.10.10.2 remote-as 65000

  neighbor 10.10.20.2 remote-as 65000

  !

  address-family vpnv4

  neighbor 10.10.10.2 activate

  neighbor 10.10.20.2 activate

  exit-address-family

  !

  address-family ipv4 vrf cu-green redistribute connected

  exit-address-family

  !

  address-family ipv4 vrf cu-red redistribute connected

  exit-address-family

  !

  R1(config)#ip vrf cu-red

  R1(config-vrf)#route-target both 65000:100

  !

  R1(config)#ip vrf cu-green

  R1(config-vrf)#route-target both 65000:200

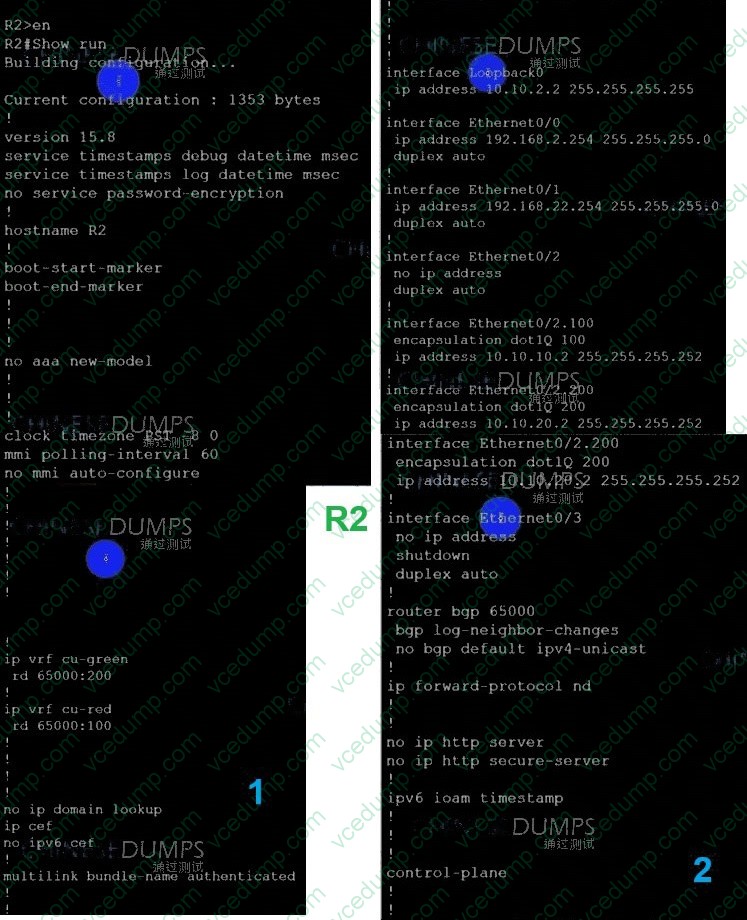

  On R2:

  interface Ethernet0/2.100

  mpls ip

  !

  interface Ethernet0/2.200

  mpls ip

  !

  router bgp 65000

  neighbor 10.10.10.1 remote-as 65000

  neighbor 10.10.20.1 remote-as 65000

  !

  address-family vpnv4

  neighbor 10.10.10.1 activate

  neighbor 10.10.20.1 activate

  exit-address-family

  !

  address-family ipv4 vrf cu-green redistribute connected

  exit-address-family

  !

  address-family ipv4 vrf cu-red redistribute connected

  exit-address-family

  R2(config)#ip vrf cu-red

  R2(config-vrf)#route-target both 65000:100

  !

  R2(config)#ip vrf cu-green

  R2(config-vrf)#route-target both 65000:200

  Verification:

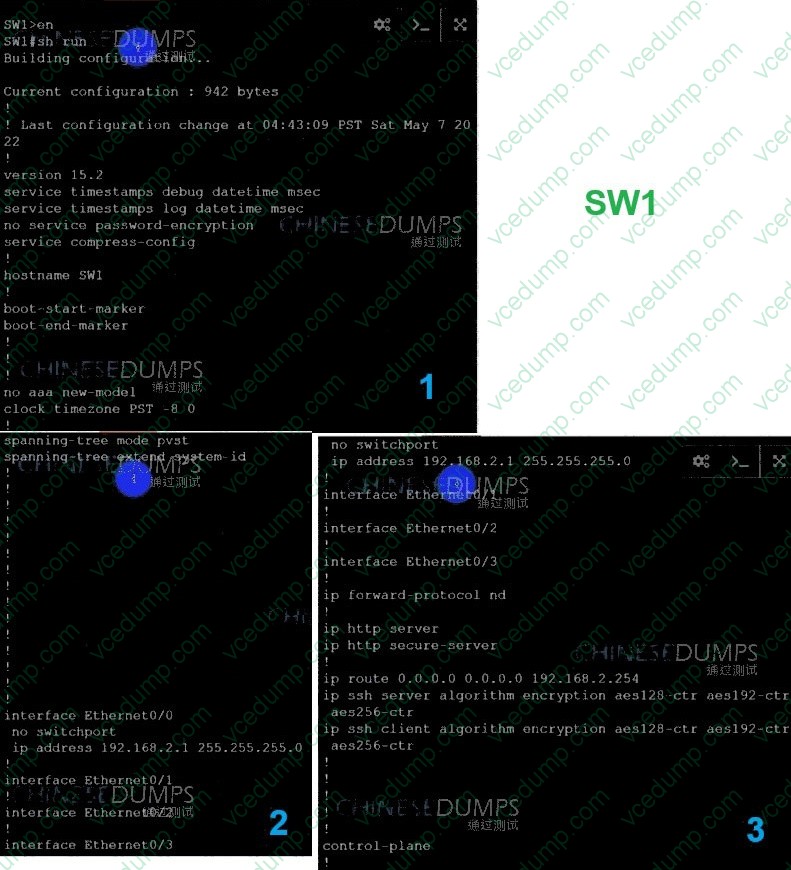

  From SW1 to SW3:

  SW1#ping 192.168.1.1

  Type escape sequence to abort.

  Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:

  !!!!!

  Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

  But can't Reach SW2 or SW4 in VRF cu-green:

  SW1#ping 192.168.22.1

  Type escape sequence to abort.

  Sending 5, 100-byte ICMP Echos to 192.168.22.1, timeout is 2 seconds:

  Success rate is 0 percent (0/5)

  Same Test for SW2:

  From SW2 to SW4:

  SW2#ping 192.168.20.1

  Type escape sequence to abort.

  Sending 5, 100-byte ICMP Echos to 192.168.20.1, timeout is 2 seconds:

  !!!!!

  Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

  But can't Reach SW3 or SW1 in VRF cu-red:

  SW2#ping 192.168.1.1

  Type escape sequence to abort.

  Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:

  !!!!!

  Success rate is 0 percent (0/5)

  SW2#ping 192.168.2.1

  Type escape sequence to abort.

  Sending 5, 100-byte ICMP Echos to 192.168.2.1, timeout is 2 seconds:

  !!!!!

  Success rate is 0 percent (0/5)

  Both R1 & R2 has separate tables for VRFs cu-red and cu-green.

• Question 240:

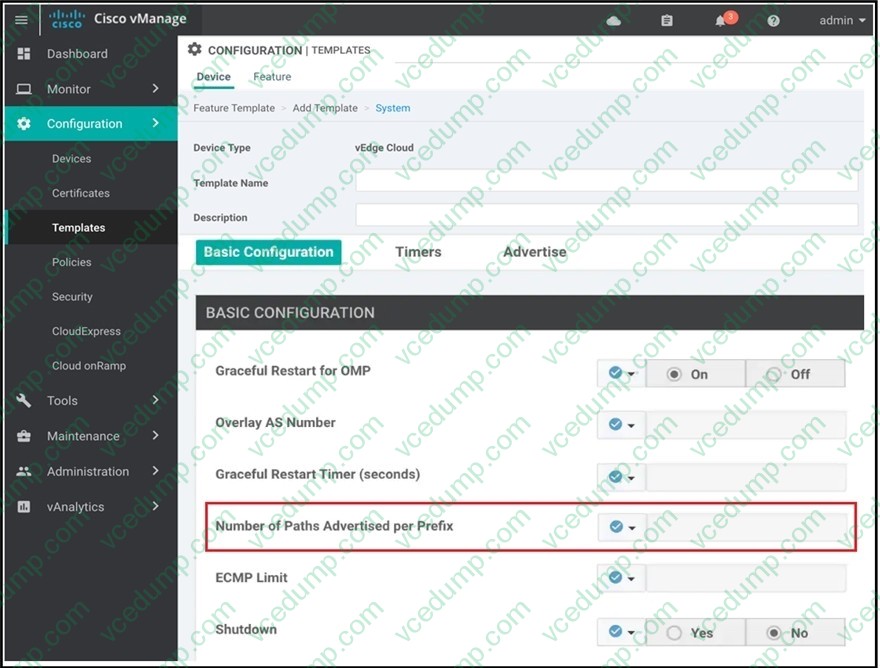

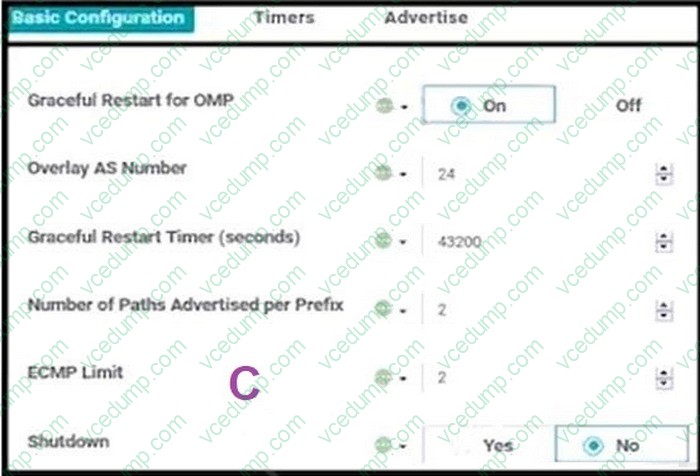

  Refer to the exhibit.

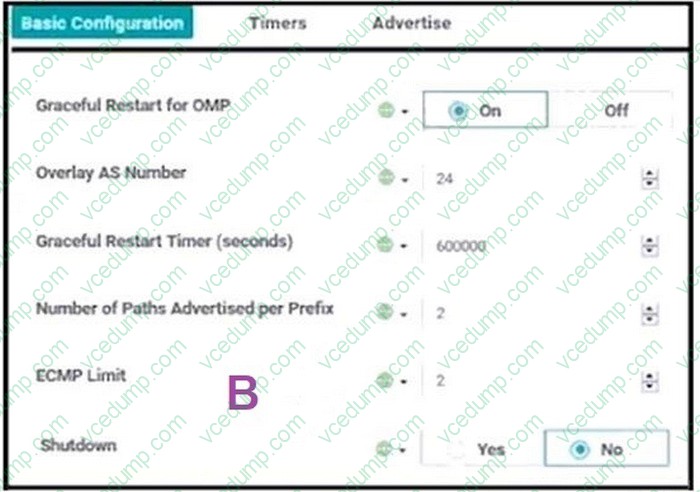

  A network administrator is configuring OMP in vManage to advertise all the paths for the same prefix from a site that has two WAN Edge devices Each WAN Edge device is connected to three ISPs and two private MPLS transports.

  What is the minimum value for 'Number of Paths advertised per Prefix" that should be configured?

  A. 2
  B. 3
  C. 5
  D. 10
  D. 10
