Cisco 300-410 Online Practice Questions and Exam Preparation

Cisco 300-410 Online Questions & Answers

• Question 321:

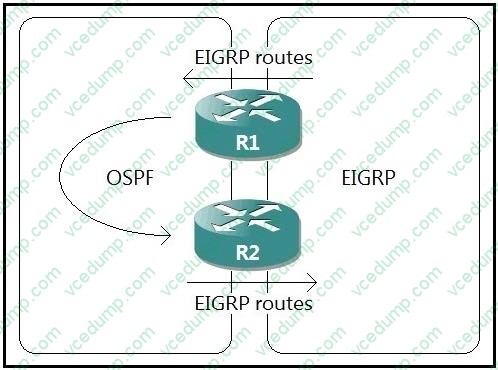

  Refer to the exhibit.



  A network administrator configured mutual redistribution on R1 and R2 routers, which caused instability in the network. Which action resolves the issue?

  A. Set a tag in the route map when redistributing EIGRP into OSPF on R1, and match the same tag on R2 to deny when redistributing OSPF into EIGRP.
  B. Set a tag in the route map when redistributing EIGRP into OSPF on R1, and match the same tag on R2 to allow when redistributing OSPF into EIGRP.
  C. Apply a prefix list of EIGRP network routes in OSPF domain on R1 to propagate back into the EIGRP routing domain.
  D. Advertise summary routes of EIGRP to OSPF and deny specific EIGRP routes when redistributing into OSPF.
  A. Set a tag in the route map when redistributing EIGRP into OSPF on R1, and match the same tag on R2 to deny when redistributing OSPF into EIGRP.

  ---

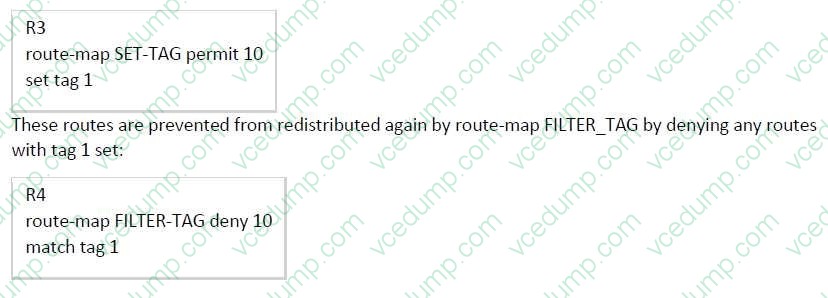

  When doing mutual redistribution at multiple points (between OSPF and EIGRP on R1 and R2), we may create routing loops so we should use route-map to prevent redistributed routes from redistributing again into the original domain. In the below example, the route-map "SET-TAG" is used to prevent any routes that have been redistributed into EIGRP from redistributed again into OSPF domain by tagging these routes with tag 1:



• Question 322:

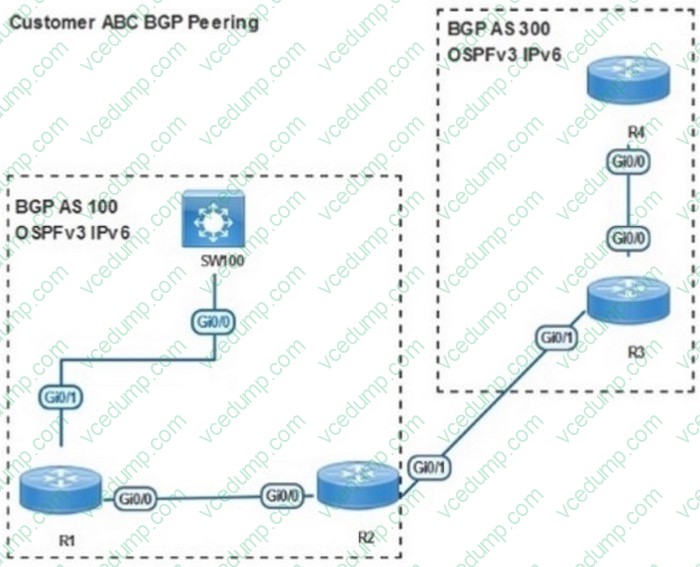

  Refer to the exhibit

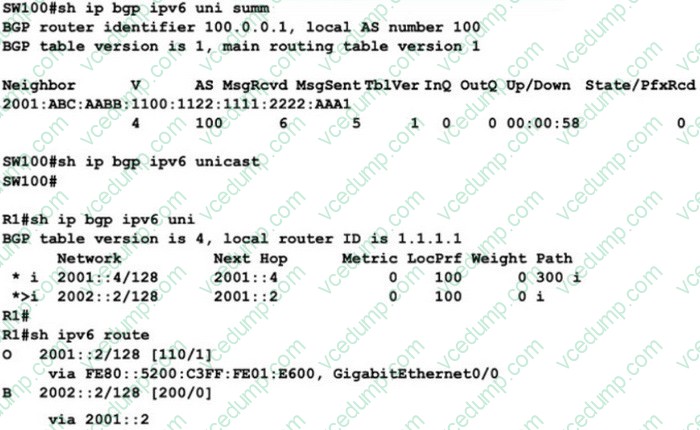

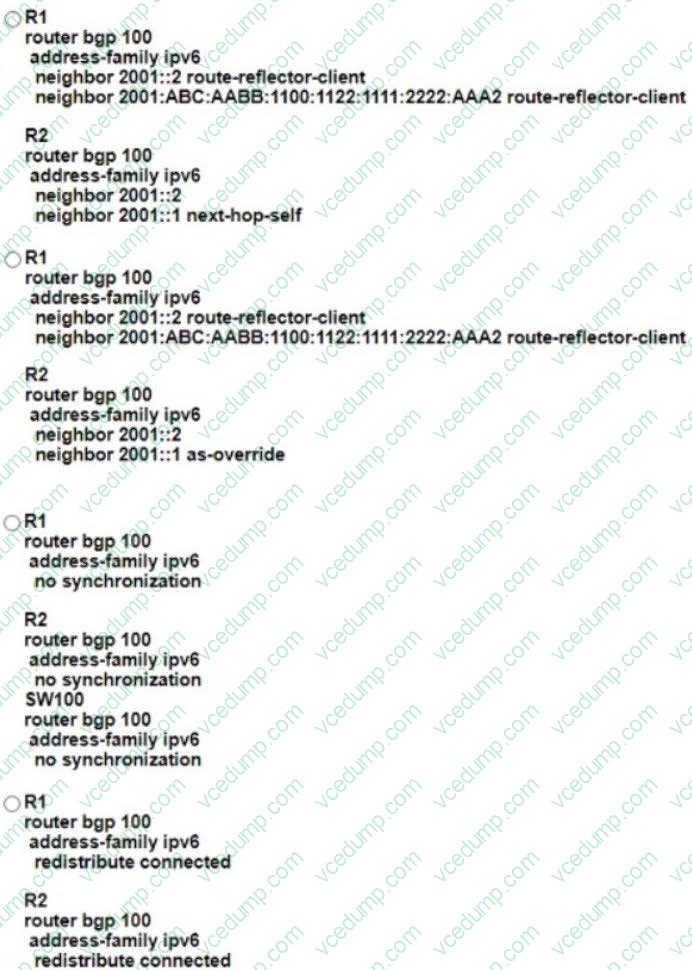

  SW100 cannot receive routes from R1. Which configuration resolves the issue?



  A. Option A
  B. Option B
  C. Option C
  D. Option C
  A. Option A

  ---

• Question 323:

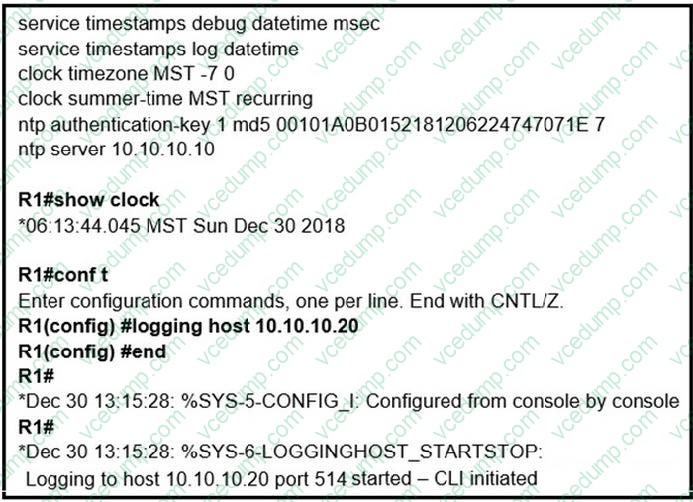

  Refer to the exhibit. An timestamps on the system logs did not match the clock. What is the reason for this error?



  A. An authentication error with the NTP server results in an incorrect timestamp.
  B. The keyword localtime is not defined on the timestamp service command.
  C. The NTP server is in a different time zone.
  D. The system clock is set incorrectly to summer-time hours.
  B. The keyword localtime is not defined on the timestamp service command.

• Question 324:

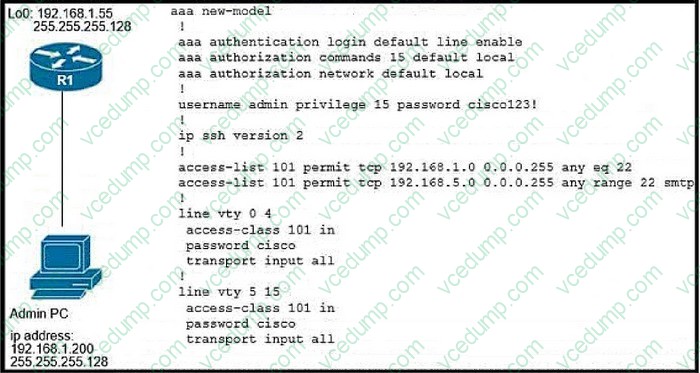

  Refer to the exhibit.



  The administrator successfully logs into R1 but cannot access privileged mode commands.what should be configured to resolve the issue ?

  A. aaa authorization reverse-access
  B. secret cisco 123! at the end of the username command instead of password cisco123!
  C. matching password on vty lines as cisco123!
  D. enable secret or enable password commands to enter into privileged mode
  D. enable secret or enable password commands to enter into privileged mode

• Question 325:

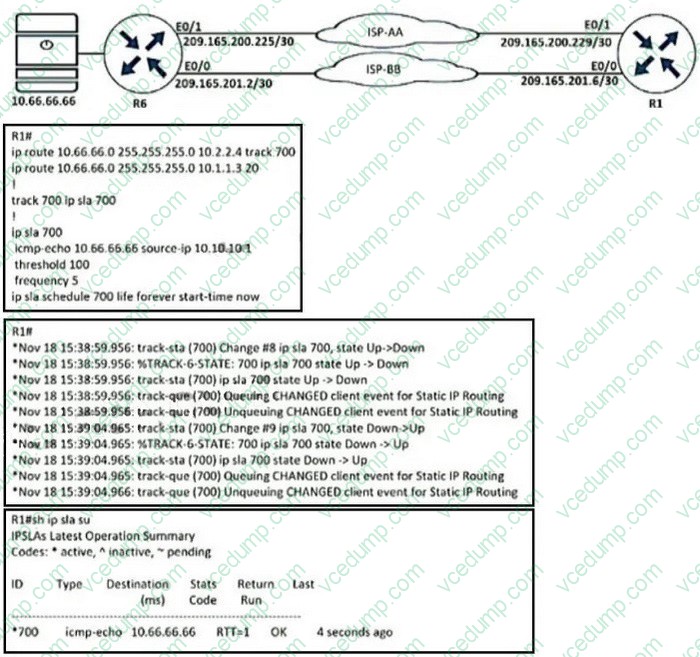

  Refer to the exhibit. R1 is configured with IP SLA to check the availability of the server behind R6 but it kept failing. Which configuration resolves the issue?



  A. R1(config)# ip sla 700 R1(config-track)# delay down 30 up 20
  B. R1(config)# ip sla 700 R1(config-track)# delay down 20 up 30
  C. R1(config)# track 700 ip sla 700 R1(config-track)# delay down 30 up 20
  D. R1(config)# track 700 ip sla 700 R1(config-track)# delay down 20 up 30
  C. R1(config)# track 700 ip sla 700 R1(config-track)# delay down 30 up 20

• Question 326:

  Which protocol is used to determine the NBMA address on the other end of a tunnel when mGRE is used?

  A. NHRP
  B. IPsec
  C. MP-BGP
  D. OSPF
  A. NHRP

• Question 327:

  Refer to the exhibit.



  R10 attempts to copy an image file from R11 using TFTP, and the operation is timing out. Which action resolves the issue?

  A. Change R10 duplex to auto to resolve the duplex mismatch between routers R10 and R11.
  B. R10 must be configured to belong to the same VRF TFTP.
  C. R11 requires the TFTP server source-interface to be set to GigabitEthernetO/0.
  D. R11 requires the TFTP server command for the image to be set to the VRF TFTP.
  C. R11 requires the TFTP server source-interface to be set to GigabitEthernetO/0.

• Question 328:

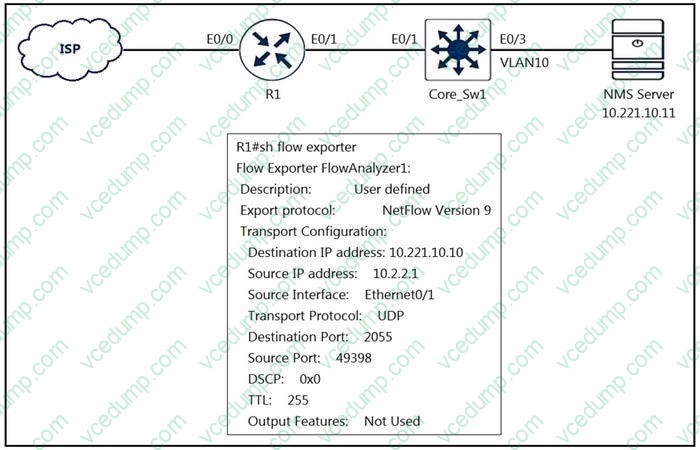

  Refer to the exhibit.



  An engineer configured NetFlow on R1, but the NMS server cannot see the flow from R1. Which configuration resolves the issue?

  A. interface Ethernet0/1 flow-destination 10.221.10.11
  B. interface Ethernet0/0 flow-destination 10.221.10.11
  C. flow exporter FlowAnalyzer1 destination 10.221.10.11
  D. flow monitor Flowmonitor1 destination 10.221.10.11
  C. flow exporter FlowAnalyzer1 destination 10.221.10.11

  ---

  From the output we notice that the destination IP address is not correct. The NMS server IP address should be 10.221.10.11, not 10.221.10.10. Therefore we have to change this information under "flow exporter ..."configuration. NetFlow configuration reference:https://www.cisco.com/c/en/us/td/docs/iosxml/ios/fnetflow/configuration/15-mt/fnf-15-mt-book/cfg-de-fnflow-exprts.html

• Question 329:

  Which of the following are control plane protocols used within a service provider MPLS network? (Choose two.)

  A. OAM
  B. RSVP
  C. Targeted LDP
  D. SNMP
  E. LDP
  B. RSVP
  E. LDP

• Question 330:

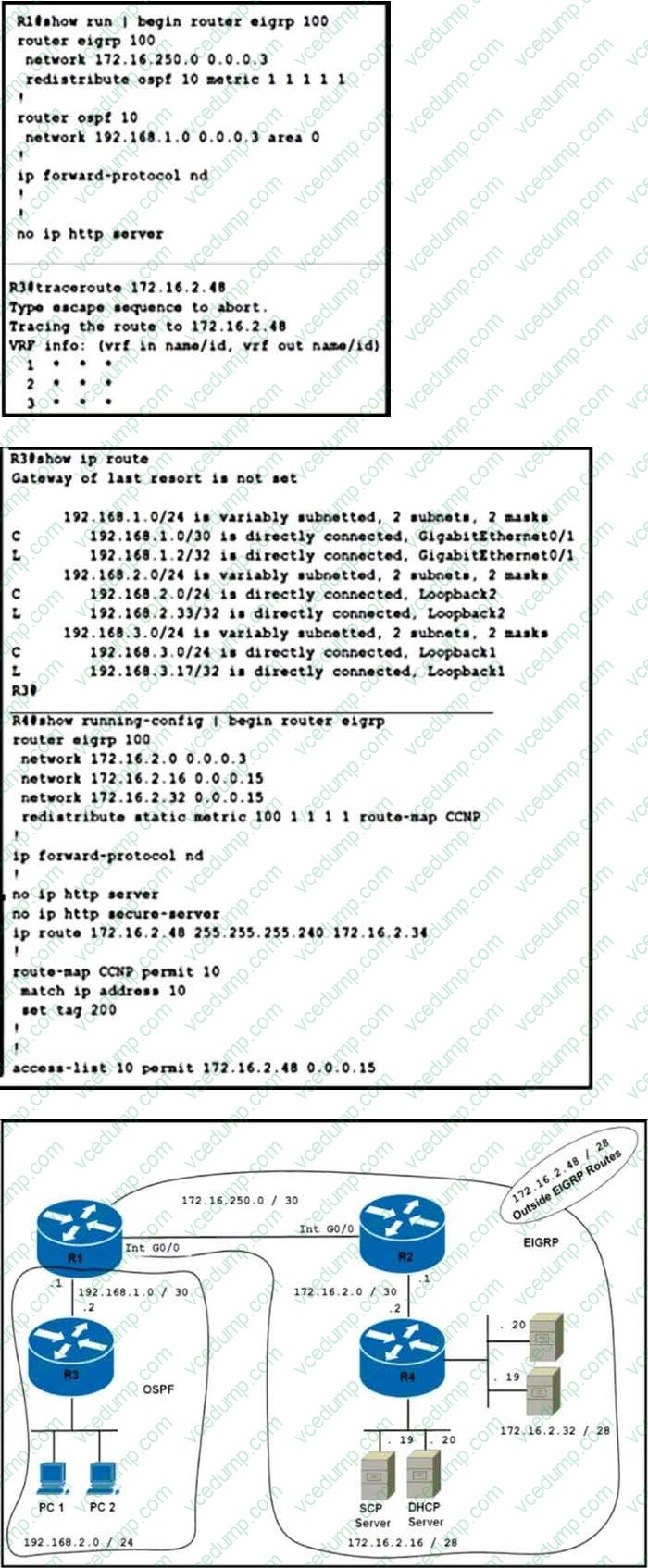

  Refer to the exhibit. An engineer must troubleshoot a connectivity issue impacting the redistribution of the subnet 172.16.2.48/28 into the OSPF domain. Which configuration on router R1 advertises this subnet into the OSPF domain?



  A. R1(config)#route-map CCNP permit 10 R1(config-route-map)#match tag 200 R1(conflg-route-map)#exit R1(config)#router ospf 10 R1(config-router)#redistribute eigrp 100 subnets route-map CCNP
  B. R1(config)#route-map CCNP deny 10 R1(conflg-route-map)#match tag 200 R1(config)#route-map CCNP permit 10 R1(config)#router ospf 10 R1(conflg-router)#redistrlbute eigrp 100 subnets route-map CCNP
  C. R1(config)#route-map CCNP permit 10 R1(config-route-map)#match route-type internal R1(config)#router ospf 10 R1(config-router)#redistribute eigrp 100 subnets route-map CCNP
  D. R1(config)#route-map CCNP permit 10 R1(config-route-map)#match route-type level-2 R1(config)#router ospf 10 R1(config-router)#redistribute eigrp 100 subnets route-map CCNP
  B. R1(config)#route-map CCNP deny 10 R1(conflg-route-map)#match tag 200 R1(config)#route-map CCNP permit 10 R1(config)#router ospf 10 R1(conflg-router)#redistrlbute eigrp 100 subnets route-map CCNP
