• Question 271:

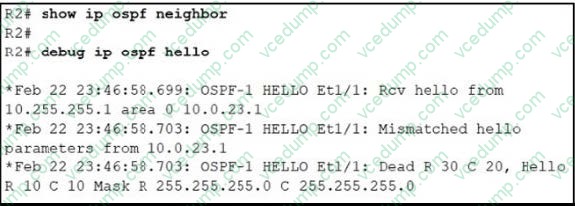

  Refer to the exhibit.



  The connected routers do not show up as OSPF neighbors. Which action resolves the issue?

  A. Change the R1 dead timer to 20.
  B. Change the R2 dead timer to 20.
  C. Change the R2 hello timer to 20.
  D. Change the R1 hello timer to 20.
  A. Change the R1 dead timer to 20.

  ---

• Question 272:

  A network administrator performed a Compact Flash Memory upgrade on a Cisco Catalyst 6509 Switch. Everything is functioning normally except SNMP, which was configured to monitor the bandwidth of key interfaces but the interface indexes are changed. Which global configuration resolves the issue?

  A. snmp-server ifindex permanent
  B. snmp ifindex permanent
  C. snmp-server ifindex persist
  D. snmp ifindex persist
  C. snmp-server ifindex persist

  ---

  The SNMP ifIndex persistence feature provides an interface index (ifIndex) value that is retained and used when the router reboots. The ifIndex value is a unique identifying number associated with a physical or logical interface. In the following example, SNMP ifIndex persistence is enabled for all interfaces: router(config)# snmp-server ifindex persist

• Question 273:

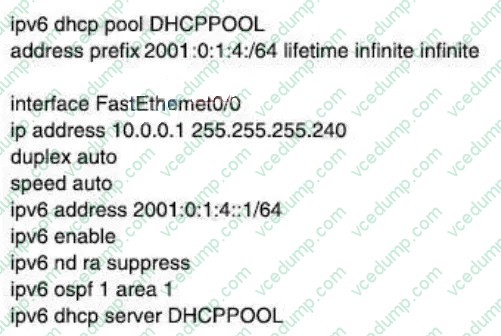

  Refer to the exhibit. Reachability between servers in a network deployed with DHCPv6 is unstable. Which command must be removed from the configuration to make DHCPv6 function?



  A. ipv6 address 2001:0:1:4::1/64
  B. ipv6 dhcp server DHCPPOOL
  C. ipv6 nd ra suppress
  D. address prefix 2001:0:1:4::/64 lifetime infinite infinite
  C. ipv6 nd ra suppress

• Question 274:

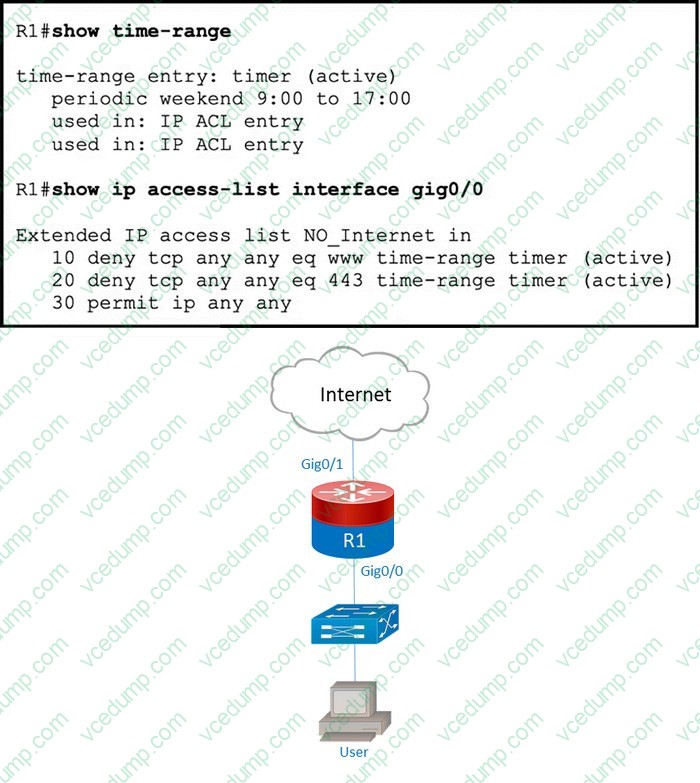

  Refer to the exhibit.



  Users on a call center report that they cannot browse the internet on Saturdays during the afternoon. Which configuration resolves the issue?

  A. time-range timer no periodic weekend 9:00 to 17:00 periodic weekend 17:00 to 23:59
  B. no time-range timer
  C. interface gig0/0 ip access-group NO_Internet out
  D. ip access-list extended NO_Internet 15 permit tcp any any eq www
  A. time-range timer no periodic weekend 9:00 to 17:00 periodic weekend 17:00 to 23:59

• Question 275:

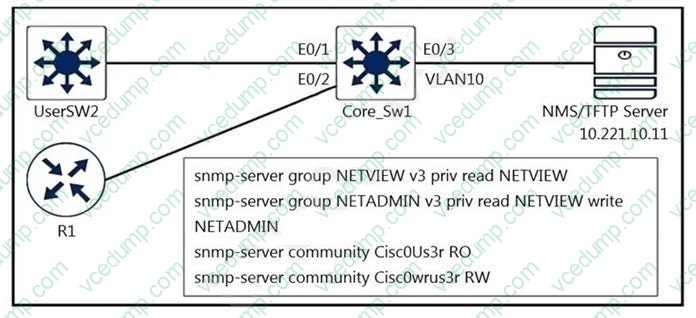

  Refer to the exhibit.



  A junior engineer configured SNMP to network devices. Malicious users have uploaded different configurations to the network devices using SNMP and TFTP servers.

  Which configuration prevents changes from unauthorized NMS and TFTP servers?

  A. access-list 20 permit 10.221.10.11 access-list 20 deny any log ! snmp-server group NETVIEW v3 priv read NETVIEW access 20 snmp-server group NETADMIN v3 priv read NETVIEW write NETADMIN access 20 snmp-server community Cisc0Us3r RO 20 snmp-server community Cisc0wrus3r RW 20 snmp-server tftp-server-list 20
  B. access-list 20 permit 10.221.10.11 access-list 20 deny any log ! snmp-server group NETVIEW v3 priv read NETVIEW access 20 snmp-server group NETADMIN v3 priv read NETVIEW write NETADMIN access 20 snmp-server community Cisc0wrus3r RO 20 snmp-server community Cisc0Us3r RW 20 snmp-server tftp-server-list 20
  C. access-list 20 permit 10.221.10.11 access-list 20 deny any log
  D. access-list 20 permit 10.221.10.11
  A. access-list 20 permit 10.221.10.11 access-list 20 deny any log ! snmp-server group NETVIEW v3 priv read NETVIEW access 20 snmp-server group NETADMIN v3 priv read NETVIEW write NETADMIN access 20 snmp-server community Cisc0Us3r RO 20 snmp-server community Cisc0wrus3r RW 20 snmp-server tftp-server-list 20

• Question 276:

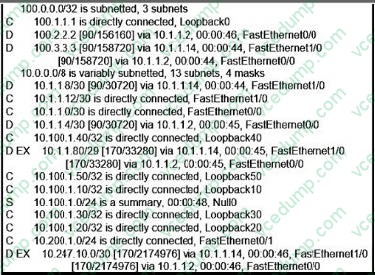

  Refer to the exhibit.



  R1 must advertise all loopback interfaces IP addresses to neighbors, but EIGRP neighbors receive a summary route. Which action resolves the issue?

  A. Redistribute connected routes into EIGRP Enable
  B. EIGRP on loopback Interfaces.
  C. Disable auto summarization on R1.
  D. Remove the 10.100.1.0/24 static route.
  D. Remove the 10.100.1.0/24 static route.

  ---

• Question 277:

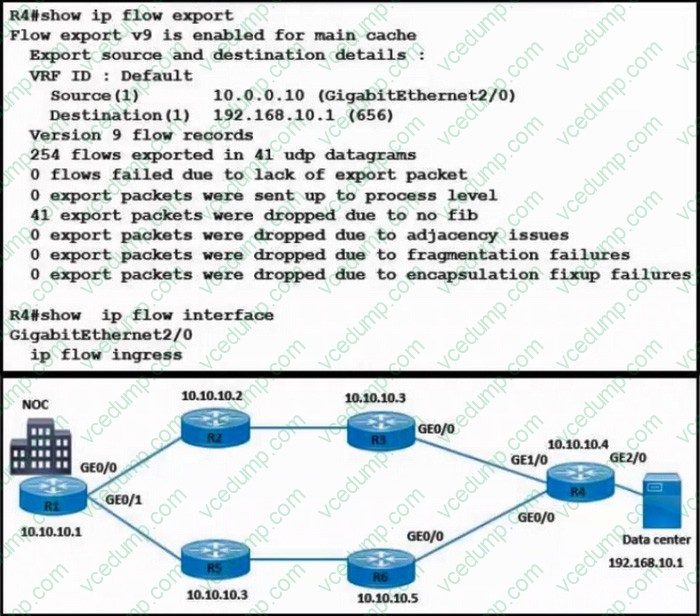

  Refer to the exhibit An enterprise operations team must monitor all application server traffic in the data center



  The team finds that traffic coming from the hub site from R3 and R6 rs monitored successfully but traffic destined to the application server is not monitored

  Which action resolves the issue?

  A. R4(config)#int gigabitEthernet 1/0 R4(config-if)#ip flow ingress
  B. R3(config)#int gigabitEthernet 0/0 R3(config-if)#ip flow egress
  C. R4(config)#int gigabitEthernet 2/0 R4(config-if)#ip flow egress
  D. R1(config)#int gigabitEthernet 0/0 R1(config-if)#ip flow egress
  C. R4(config)#int gigabitEthernet 2/0 R4(config-if)#ip flow egress

• Question 278:

  Which commands will prevent the local router from advertising the 139.10.0.0 network out of the Ethernet 0/0 interface, while allowing all other networks to be advertised?

  A. RouterA(config)router rip RouterA(config-router)# network 10.0.0.0 RouterA(config-router)# network 139.10.0.0 RouterA(config-router)# network 199.10.10.0 RouterA(config-router)# distribute-list 10 out e0/0 RouterA(config)# access-list 10 deny 139.10.0.0 0.0.255.255 RouterA(config)# access-list 10 permit any
  B. RouterA(config)router rip RouterA(config-router)# network 10.0.0.0 RouterA(config-router)# network 139.10.0.0 RouterA(config-router)# network 199.10.10.0 RouterA(config-router)# distribute-list 10 in e0/0 RouterA(config)# access-list 10 deny 139.10.0.0 0.0.255.255 RouterA(config)# access-list 10 permit any
  C. RouterA(config)# router rip RouterA(config-router)# network 10.0.0.0 RouterA(config-router)# network 139.10.0.0 RouterA(config-router)# network 199.10.10.0 RouterA(config-router)# access-group 10 out e0/0 RouterA(config)# access-list 10 deny 139.10.0.0 0.0.255.255 RouterA(config)# access-list 10 permit any
  D. RouterA(config)# router rip RouterA(config-router)# network 10.0.0.0 RouterA(config-router)# network 139.10.0.0 RouterA(config-router)# network 199.10.10.0 RouterA(config)# access-list 10 deny 139.10.0.0 0.0.255.255 RouterA(config)# access-list 10 permit any RouterA(config)# interface e0/0 RouterA(config-if)# access-group 10 out
  A. RouterA(config)router rip RouterA(config-router)# network 10.0.0.0 RouterA(config-router)# network 139.10.0.0 RouterA(config-router)# network 199.10.10.0 RouterA(config-router)# distribute-list 10 out e0/0 RouterA(config)# access-list 10 deny 139.10.0.0 0.0.255.255 RouterA(config)# access-list 10 permit any

  ---

  The following command set will prevent the local router from advertising the 139.10.0.0 network out of the Ethernet 0/0 interface, while allowing all other networks to be advertised:

  RouterA(config)# router rip

  RouterA(config-router)# network 10.0.0.0

  RouterA(config-router)# network 139.10.0.0

  RouterA(config-router)# network 199.10.10.0

  RouterA(config-router)# distribute-list 10 out e0/0

  RouterA(config)# access-list 10 deny 139.10.0.0 0.0.255.255

  RouterA(config)# access-list 10 permit any

  The distribute-list command allows you to apply a basic access list to a routing process. Just like applying an access list to an interface, when you apply it to a routing process, the permit statements determine what networks may be advertised out the interface. The deny statements determine what networks are not allowed to be advertised out the interface. Instead of applying the access list to an interface, you use the distribute-list command in router configuration mode to apply it to the particular routing

  process. By specifying an interface and a direction (in or out) in the distribute-list command, you can indicate where the advertisements will be blocked and in what direction.

  Keep in mind that when applied this way, the access list does not affect what data traffic passes through the interface. It only affects what networks that the routing protocol will advertise. In the scenario here, RIP will not send advertisements for the 139.10.0.0 network out Ethernet 0/0, but traffic coming from or going to that network is still allowed through the interface in either direction unless there is an access list applied to the interface that will block it.

  Conversely, if you applied an access-list to the interface that blocked traffic to or from the 139.10.0.0 network, but permitted all other traffic, it would not stop the routing updates about the 139.10.0.0 from passing through.

  Note: The last command in the sequence, RouterA(config)#access-list 10 permit any, is VERY important. If that line is missing, any route not specified with an allow statement will be denied. For example, if you wanted to only allow one network to be advertised, you could configure an allow statement for that network and leave off the permit any parameter. It would block all advertisements with the exception of the one specified by the allow statement.

  The following command set is incorrect because the distribute list is applied inbound, which would prevent the reception of updates concerning the 139.10.0.0/16 but would not prevent them from being advertised:

  RouterA(config)# router rip

  RouterA(config-router)# network 10.0.0.0

  RouterA(config-router)# network 139.10.0.0

  RouterA(config-router)# network 199.10.10.0

  RouterA(config-router)# distribute-list 10 in e0/0

  RouterA(config)# access-list 10 deny 139.10.0.0 0.0.255.255

  RouterA(config)# access-list 10 permit any

  The following command set is incorrect because it applies an access list to the interface instead of a distribute list. The effect would be to block all traffic for that network, but allow routing updates:

  RouterA(config)# router rip

  RouterA(config-router)# network 10.0.0.0

  RouterA(config-router)# network 139.10.0.0

  RouterA(config-router)# network 199.10.10.0

  RouterA(config-router)# access-group 10 out e0/0

  RouterA(config)# access-list 10 deny 139.10.0.0 0.0.255.255

  RouterA(config)# access-list 10 permit any

  The following command set is incorrect because it also applies an access list instead of a distribute list, this time incoming instead of outgoing:

  RouterA(config)# router rip

  RouterA(config-router)# network 10.0.0.0

  RouterA(config-router)# network 139.10.0.0

  RouterA(config-router)# network 199.10.10.0

  RouterA(config)# access-list 10 deny 139.10.0.0 0.0.255.255

  RouterA(config)# access-list 10 permit any

  RouterA(config)# interface e0/0

  RouterA(config-if)# access-group 10 out

  Objective:

  Layer 3 Technologies

  Sub-Objective:

  Configure and verify filtering with any protocol

  References:

  Cisco > Cisco IOS IP Configuration Guide, Release 12.2 > Configuring IP Routing Protocol-Independent Features > Filtering Routing Information Cisco > Cisco IOS IP Routing: Protocol-Independent Command Reference > distribute-list out (IP)

• Question 279:

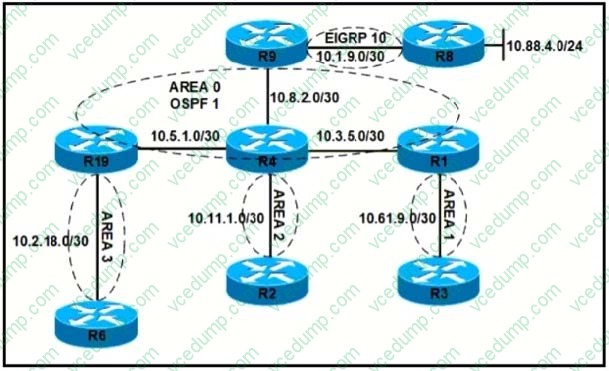

  Refer to the exhibit.



  An engineer recently modified the configuration for area 3 to accept only type 1, 2, and 3 LSAs. Immediately after the changes, users connected to router R6 began to report connectivity issues. Which configuration restores connectivity to R6 and meets the requirement?

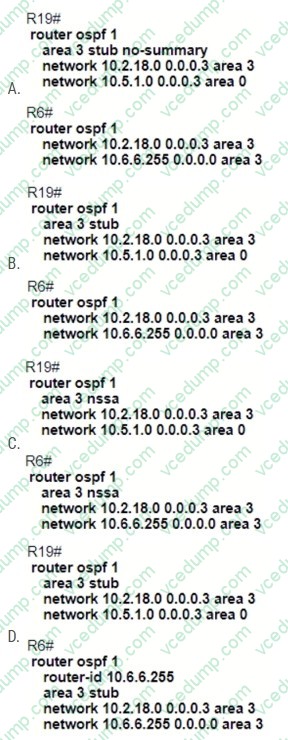

  A. Option A
  B. Option B
  C. Option C
  D. Option D
  D. Option D

• Question 280:

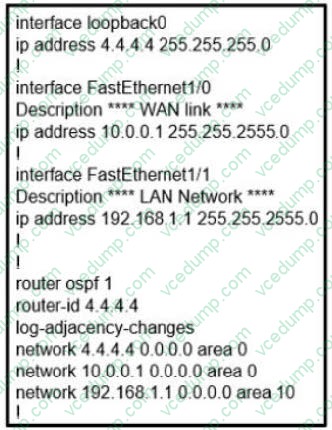

  Refer to the exhibit.



  Which set of commands restore reachability to loopback0?

  A. interface loopback0 ip address 4.4.4.4 255.255.255.0 ip ospf interface type network
  B. interface loopback0 ip address 4.4.4.4 255.255.255.0 ip ospf network broadcast
  C. interface loopback0 ip address 4.4.4.4 255.255.255.0 ip ospf network point-to-point
  D. interface loopback0 ip address 4.4.4.4 255.255.255.0 ip ospf interface area 10
  C. interface loopback0 ip address 4.4.4.4 255.255.255.0 ip ospf network point-to-point

  ---

  Loopbacks are considered host routes in Open Shortest Path First (OSPF).

  To make OSPF advertise the loopback subnet as the actual subnet with the loopback mask, instead of as host route /32, issue the ip ospf network point-to-point command under the loopback interface.

  For more information, refer to the 9.1. Interface States section of RFC 2328.

  https://networkengineering.stackexchange.com/questions/13099/why-do-we-use-ospf-point-to-point-networks-for-loopbacks
