Cisco 300-320 Online Practice Questions and Exam Preparation

Cisco 300-320 Online Questions & Answers

• Question 681:

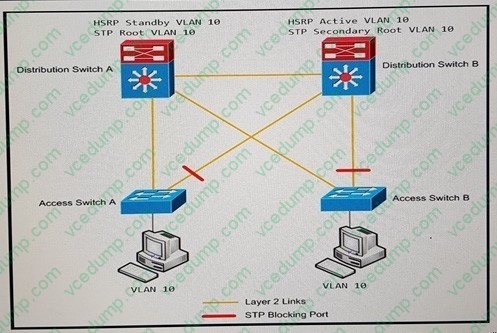

  Refer to the exhibit. An engineer must provide a redesign for the distribution and access layers of the network. Which correction allows for a more efficient design?



  A. Change the link between Distribution Switch A and Distribution Switch B to be a routed link.
  B. Reconfigure the Distribution Switch A to become the HSRP Active.
  C. Create an EtherChannel link between Distribution Switch A and Distribution Switch B.
  D. Add a link between Access Switch A and Access Switch B.
  B. Reconfigure the Distribution Switch A to become the HSRP Active.

• Question 682:

  What are the three configuration requirements for implementing Modular QoS on a router? (Choose three.)

  A. CoS
  B. class map
  C. precedence
  D. service policy
  E. priority
  F. policy map
  B. class map
  D. service policy
  F. policy map

• Question 683:

  Which of the following two statements about Cisco NSF and SSO are the most relevant to the network designer? (Choose two.)

  A. You can reduce outages to 1 to 3 seconds by using SSO in a Layer 2 environment or Cisco NSF with SSO in a Layer 3 environment.
  B. SSO and NSF each require the devices to either be graceful restart-capable or graceful restart- aware.
  C. In a fully redundant topology adding redundant supervisors with NSF and SSO may cause longer convergence times than single supervisors with tuned IGP timers
  D. The primary deployment scenario for Cisco NSF with SSO is in the Distribution and Core layers.
  E. Cisco NSF-aware neighbor relationships are independent of any tuned IGP timers
  B. SSO and NSF each require the devices to either be graceful restart-capable or graceful restart- aware.
  C. In a fully redundant topology adding redundant supervisors with NSF and SSO may cause longer convergence times than single supervisors with tuned IGP timers

  ---

  https://www.safaribooksonline.com/library/view/foundation-learning-guide/9780132652933/ch02.html "In a fully redundant topology with tuned IGP timers, adding redundant supervisors with Cisco nonstop forwarding (NSF) and stateful

  switchover (SSO) may cause longer convergence times than single supervisors with tuned IGP timers."

  "A graceful restart-aware neighbor is required so that graceful restart -capable systems can rebuild their databases and maintain their neighbor adjacencies across a switchover."

• Question 684:

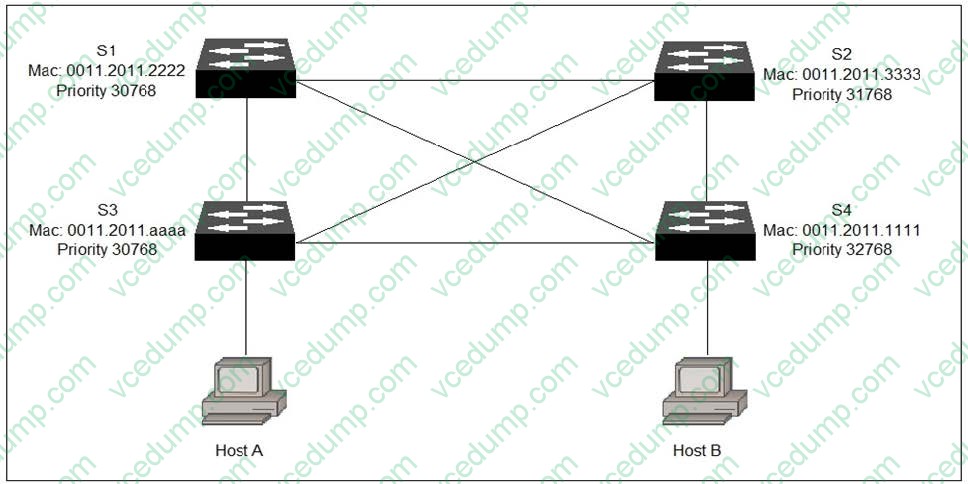

  Refer to the exhibit. The network uses STP. All switches use the default priority and have the same bandwidth. Which description of the network is true?

  A. S3 is elected as the root bridge
  B. S2 is elected as the root bridge
  C. Host A can always reach host B through S1
  D. The redundant links between the switches are blocked
  D. The redundant links between the switches are blocked

• Question 685:

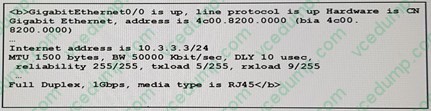

  What should be implemented to prevent exceeding the 50mb allowable bandwidth of internet circuit?

  A. policing
  B. shaping
  C. CIR
  D. rate-limit
  B. shaping

• Question 686:

  A company wants to configure BGP on a router so that other BGP neighbors cannot influence the path of a particular route .which action must be taken to accomplish this configuration ?

  A. Configure a low router ID for the route
  B. Configure a high local preference for the route
  C. Configure a high weight for the route
  D. Configure a low MED for the route
  B. Configure a high local preference for the route

• Question 687:

  An engineer is working for large cable TV provider that required multicast multi sourced stream video, but must not use an RPM. Which protocol needs to be used?

  A. ASM
  B. PIM-SM
  C. BIDR-PIM
  D. SSM
  D. SSM

• Question 688:

  HSRP is running between distribution switch A and Distribution Switch B.

  A. Distribution Switch A, port Gig4/1 to Access Switch, port Gig 1/0/1
  B. Core switch B, port Gig2/2 to Distribution Switch B, Port Gig3/2
  C. Core switch A, port Gig2/1 to Distribution Switch A, port Gig3/1
  D. Core switch A, port Gig1/1 to Core Switch B, port Gig1/2
  E. Distribution Switch B, Port Gig4/2 to Access Switch, port Gig2/0/1
  F. Distribution Switch A, port Gig5/1 to Distribution Switch B, port Gig5/2
  A. Distribution Switch A, port Gig4/1 to Access Switch, port Gig 1/0/1
  E. Distribution Switch B, Port Gig4/2 to Access Switch, port Gig2/0/1

• Question 689:

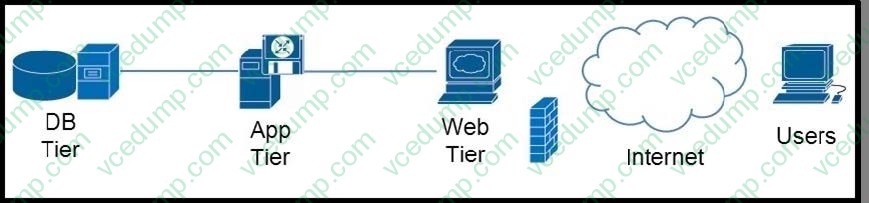

  Refer to the exhibit. A customer requires a web application implementation, but the web server has communication only to the application server and users, and the database server has communication only to the application server. What firewall design is the best fit for this scenario?



  A. transparent mode with the servers on the same subnet
  B. routed mode with three security zones
  C. transparent mode with three security zones
  D. routed mode with two security zones
  B. routed mode with three security zones

• Question 690:

  Which first hop redundancy protocol ensures that load balancing occurs over multiple routers using a single virtual IP address and multiple virtual MAC addresses?

  A. GLBP
  B. VRRP
  C. HSRP
  D. IRDP
  A. GLBP
