Cisco 300-320 Online Practice Questions and Exam Preparation

Cisco 300-320 Online Questions & Answers

• Question 361:

  Which two statements are correct regarding Flex Links? (Choose two.)

  A. An interface can belong to multiple Flex Links.
  B. Flex Links operate only over single pairs of links.
  C. Flex Link pairs must be of the same interface type.
  D. Flex Links automatically disable STP so no BPDUs are propagated.
  E. Failover from active to standby on Flex Links takes less than a second.
  B. Flex Links operate only over single pairs of links.
  D. Flex Links automatically disable STP so no BPDUs are propagated.

  ---

  Flex Links are a pair of a Layer 2 interfaces (ports or port channels), where one interface is configured to act as a backup to the other. Flex Links are typically configured in service-provider or enterprise networks where customers do not want to run STP. Flex Links provide link-level redundancy that is an alternative to Spanning Tree Protocol (STP). STP is automatically disabled on Flex Links interfaces. A backup link does not have to be the same type as the active link. https:// www.cisco.com/c/en/us/td/docs/switches/lan/catalyst6500/ios/12-2SX/configuration/guide/book/flexlink.html

• Question 362:

  While troubleshooting an Application Centric network cluster, an engineer sees that an APIC has gone offline. What is the minimum number of APICs required for a production ACI fabric to continue to operate?

  A. 1
  B. 2
  C. 3
  D. 4
  C. 3

• Question 363:

  Which two statements about 802.1X are true? (Choose two.)

  A. It can allow and deny port access based on device identity.
  B. It is a Cisco proprietary standard.
  C. It works only with wired devices.
  D. By default, it allows devices that lack 802.1 support.
  E. It can allow and deny port access based on user identity.
  A. It can allow and deny port access based on device identity.
  E. It can allow and deny port access based on user identity.

• Question 364:

  There are 3 steps to confirm whether a range of IP addresses can be summarized. Which of the following is used in each of these 3 steps?

  A. The first number in the contiguous block of addresses
  B. The last number in the contiguous block of addresses
  C. The size of the contiguous block of addresses
  D. The subnet mask of the original network address
  C. The size of the contiguous block of addresses

• Question 365:

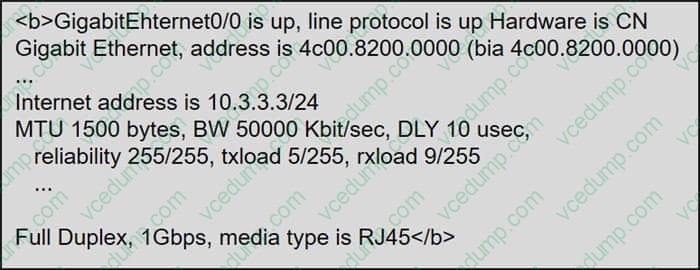

  Refer to the exhibit.



  An engineering team is analyzing the WAN connection for a site that has a 50 Mbps Ethernet circuit. Which technology should be uses to keep the router from overrunning the carrier's 50 Mbps rate?

  A. shaping
  B. Access Control List
  C. Committed Information Rate
  D. Rate-Limit
  E. Policing
  A. shaping

• Question 366:

  A large-scale IP SLA deployment is causing memory and CPU shortages on the router in an enterprise network. Which solution can be implemented to mitigate these issues?

  A. An offline router for disaster recovery
  B. CPE device that is managed by the network provider
  C. A shadow router
  D. A standby router for failover operation
  C. A shadow router

  ---

  https://www.cisco.com/en/US/technologies/tk869/tk769/technologies_white_paper0900aecd806bfb52.html

• Question 367:

  Two Cisco switches with 1 SUP and many 10G line-card ports for each switch, run in VSS mode. In which case or for what reason you don't connect all VSL to SUP?

  A. The need for hardware diversity
  B. Bandwidth congestion at SUP
  C. In case the sup fail
  D. Qos must be configured on both
  A. The need for hardware diversity

• Question 368:

  A customer with 30 branch offices requires dynamic IGP routing protocol, IP multicast, and non-IP protocol support. Which solution satisfies these requirements?

  A. dmvpn spoke-to-spoke
  B. dmvpn hub-and-spoke
  C. vti
  D. p2p gre
  E. IPsec direct encapsulation
  D. p2p gre

• Question 369:

  Why IP MPLS has preference compared to VRF-Lite over WAN?

  A. Distribute load balancing
  B. Reliability
  C. Opex – Cost
  C. Opex – Cost

• Question 370:

  A legacy OSPF network design solution historically included a large number of routers in a single backbone area 0. The network currently has over 300 OSPF routers. How is the network redesigned to allow further expansion?

  A. Break down area 0 into smaller nonbackbone areas
  B. Use EIGRP routing protocol instead of OSPF
  C. Implement route summarization on the routers in the backbone
  D. Adjust OSPF timers to smaller values
  A. Break down area 0 into smaller nonbackbone areas
