Cisco 300-206 Online Practice Questions and Exam Preparation

Cisco 300-206 Online Questions & Answers

• Question 341:

  CSM Rules Inheritance



  Correct Answer. Check the answer below
  Check the answer below

  ---

  Introduction

  Shared policies enable you to configure and assign a common policy definition to multiple devices.

  Rule inheritance takes this feature one step further by enabling a device to contain the rules defined in a shared policy in addition to local rules that are specific to that particular device. Using inheritance, Security Manager can enforce a

  hierarchy where policies at a lower level (called child policies) inherit the rules of policies defined above them in the hierarchy (called parent policies).

  Note If a policy bundle includes a shared policy that inherits from other shared policies, those

  inherited rules are also applied to any devices on which the policy bundle is applied.

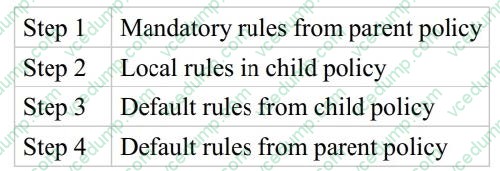

  Rule Order When Using Inheritance

  An access list (ACL) consists of rules (also called access control entries or ACEs) arranged in a table.

  An incoming packet is compared against the first rule in the ACL. If the packet matches the rule, the packet is permitted or denied, depending on the rule. If the packet does not match, the packet is compared against the next rule in the table

  and so forth, until a matching rule is found and executed.

  This first-match system means that the order of rules in the table is of critical importance. When you create a shared access rule policy, Security Manager divides the rules table into multiple sections, Mandatory and Default. The Mandatory

  section contains rules that cannot be overridden by the local rules defined in a child policy. The Default section contains rules that can be overridden by local rules.

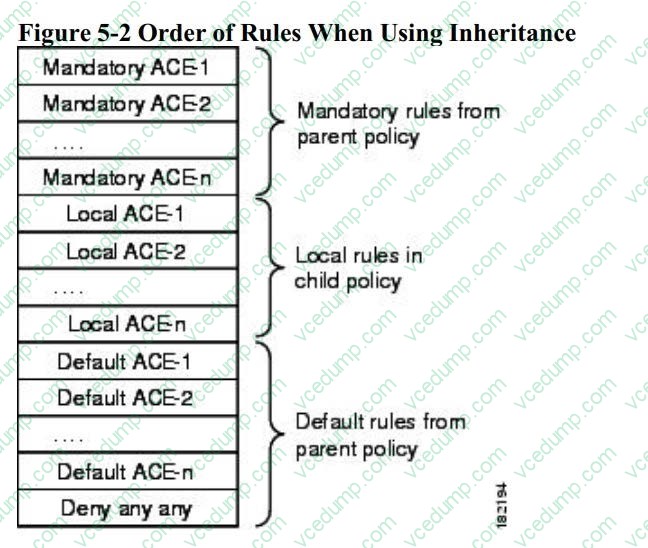

  Figure 5-2 describes how rules are ordered in the rules table when using inheritance.



  Benefits of Using Inheritance The ability to define rule-based policies in a hierarchical manner gives you great flexibility when defining your rule sets, and the hierarchy can extend as many levels as required. For example, you can define an access rule policy for the device at a branch office that inherits rules from a parent policy that determines access at the regional level. This policy, in turn, can inherit rules from a global access rules policy at the top of the hierarchy that sets rules at the corporate level. In this example, the rules are ordered in the rules table as follows:

  -

  Mandatory corporate access rules

  -

  Mandatory regional access rules

  -Local rules on branch device

  -

  Default regional access rules

  -

  Default corporate access rules

  The policy defined on the branch device is a child of the regional policy and a grandchild of the

  corporate policy. Structuring inheritance in this manner enables you to define mandatory rules at the corporate level that apply to all devices and that cannot be overridden by rules at a lower level in the hierarchy. At the same time, rule

  inheritance provides the flexibility to add local rules for specific devices where needed.

  Having default rules makes it possible to define a global default rule, such as eny any any? that

  appears at the end of all access rule lists and provides a final measure of security should gaps exist in the mandatory rules and default rules that appear above it in the rules table.

  Inheritance Example

  For example, you can define a mandatory worm mitigation rule in the corporate access rules policy that mitigates or blocks the worm to all devices with a single entry. Devices configured with the regional access rules policy can inherit the

  worm mitigation rule from the corporate policy while adding rules that apply at the regional level. For example, you can create a rule that allows FTP traffic to all devices in one region while blocking FTP to devices in all other regions. However,

  the mandatory rule at the corporate level always appears at the top of the access rules list. Any mandatory rules that you define in a child policy are placed after the mandatory rules defined in the parent policy. With default rules, the order is

  reversed - default rules defined in a child policy appear before default rules inherited from the parent policy. Default rules appear after any local rules that are defined on the device, which makes it possible to define a local rule that overrides a

  default rule. For example, if a regional default rule denies FTP traffic to a list of destinations, you can define a local rule that permits one of those destinations.

  IPS Policy Inheritance

  Event action filter policies for IPS devices can also use inheritance to add rules defined in a parent policy to the local rules defined on a particular device. The only difference is that although active and inactive rules are displayed together in

  the Security Manager interface, all inactive rules are deployed last, after the inherited default rules.

  Signature policies for IPS devices use a different type of inheritance that can be applied on a persignature basis.

• Question 342:

  An engineer is adding devices to Cisco Prime Infrastructure using Discovery and wants to use Web Services Management Agent for configuring devices. Which credential setting must be used?

  A. SNMPv2 Credential
  B. SNMPv3 Credential
  C. Telnet Credential
  D. SSH Credential
  D. SSH Credential

• Question 343:

  A security engineer is troubleshooting traffic across a Cisco ASA firewall using a packet tracer.

  When configuring the packet tracer, which option must be used first?

  A. interface
  B. protocol
  C. source
  D. destination
  A. interface

• Question 344:

  An enterprise has enforced DHCP snooping on the enterprise switches. In which two cases does the switch drop a DHCP packet? (Choose two.)

  A. A packet is received on an untrusted interface, and the source MAC address and the DHCP client hardware address match.
  B. A DHCP relay agent forwards a DHCP packet that includes a 0.0.0.0 relay-agent IP address.
  C. The switch receives a DHCPRELEASE broadcast message that has a MAC address in the DHCP snooping binding database, and the interface information in the binding database matches the interface on which the message was received.
  D. A packet is received on an untrusted interface, and the source MAC address and the DHCP client hardware address do not match.
  E. A packet from a DHCP server, such as a DHCPOFFER or DHCPLEASEQUERY packet, is received from outside the network or firewall.
  D. A packet is received on an untrusted interface, and the source MAC address and the DHCP client hardware address do not match.
  E. A packet from a DHCP server, such as a DHCPOFFER or DHCPLEASEQUERY packet, is received from outside the network or firewall.

• Question 345:

  To which port does a firewall send secure logging messages?

  A. TCP/1500
  B. UDP/1500
  C. TCP/500
  D. UDP/500
  A. TCP/1500

• Question 346:

  Which statement describes the correct steps to enable Botnet Traffic Filtering on a Cisco ASA version 9.0 transparent-mode firewall with an active Botnet Traffic Filtering license?

  A. Enable DNS snooping, traffic classification, and actions.
  B. Botnet Traffic Filtering is not supported in transparent mode.
  C. Enable the use of the dynamic database, enable DNS snooping, traffic classification, and actions.
  D. Enable the use of dynamic database, enable traffic classification and actions.
  C. Enable the use of the dynamic database, enable DNS snooping, traffic classification, and actions.

• Question 347:

  Which information does the ASA fail to replicate to the secondary Cisco ASA adaptive security appliance in an active/standby configuration with stateful and failover links?

  A. TCP sessions
  B. routing tables
  C. DHCP lease
  D. NAT translations
  C. DHCP lease

• Question 348:

  An engineer must secure a LAN infrastructure from potential Layer 2 spoofing attacks. Which technology helps mitigate this issue?

  A. BPDU guard
  B. PVLANs
  C. VRFs
  D. ARP inspection
  D. ARP inspection

• Question 349:

  What are three of the RBAC views within Cisco IOS Software? (Choose three.)

  A. Admin
  B. CLI
  C. Root
  D. Super Admin
  E. Guest
  F. Super
  B. CLI
  C. Root
  F. Super

• Question 350:

  Which two main functions for application inspection on ASA are true?

  A. When services use dynamically assigned ports, the application inspection identifies dynamic port and permits data on these ports.
  B. When services embed IP addresses in the packet, the application inspection translates embedded addresses and updates the checksum.
  C. When services are operating on nonstandard ports, the application inspection identifies the nonstandard port and allows the service to run normally.
  D. When services need IP options to function, the application inspection keeps IP options during the packet transition through the appliance.
  E. When services use load balancing, the application inspection ensures that connections are load blanaced across the servers equally.
  A. When services use dynamically assigned ports, the application inspection identifies dynamic port and permits data on these ports.
  B. When services embed IP addresses in the packet, the application inspection translates embedded addresses and updates the checksum.
