Cisco 300-170 Online Practice Questions and Exam Preparation

Cisco 300-170 Online Questions & Answers

• Question 51:

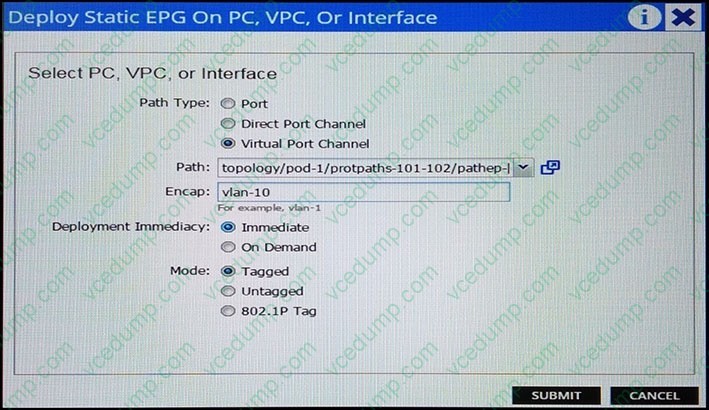

  Refer to the exhibit.



  You perform the configuration as shown in the exhibit. Which two additional tasks must you perform to deploy EPG on PC, VPC, or Interface? (Choose two.)

  A. Add the border leaf node to the Layer 2 outside connection.
  B. Create an Attachable Access Entity Profile.
  C. Create a Layer 2 outside connection.
  D. Create a physical domain and a VLAN pool for the physical domain, and associate the physical domain to the EPG WEB.
  E. Extend the VLAN represented by EPG out of the Cisco ACI fabric.
  A. Add the border leaf node to the Layer 2 outside connection.
  B. Create an Attachable Access Entity Profile.

• Question 52:

  What is the retention period for remotely attached endpoints?

  A. 3 minutes
  B. 15 minutes
  C. 5 minutes
  D. 10 minutes
  A. 3 minutes

  ---

  Reference: http://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_010010.html

• Question 53:

  Which offer is selected when a Cisco Nexus Series Switch receives multiple DHCP offers during the POAP DHCP discover phase?

  A. The offer that has the highest TFTP server IP address is selected.
  B. An offer is selected randomly.
  C. The first offer is selected.
  D. The offer that has the lowest TFTP server IP address is selected.
  B. An offer is selected randomly.

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5500/sw/fundamentals/7x/b_5500_Fund_Config_7x/b_5500_Fund_Config_7x_chapter_0100.html#concept_30D7470D460348118805EE1BD0DB8640

• Question 54:

  Which description of the Cisco AVS is true?

  A. VLAN or VXLAN encapsulation can be used in No Local Switching mode.
  B. The AVS implements the device package for control plane communication.
  C. The AVS supports individual interface policies.
  D. The AVS supports PC, VPC, MAC pinning, and FEX interface policies.
  D. The AVS supports PC, VPC, MAC pinning, and FEX interface policies.

• Question 55:

  When you provision a VDC, which command is used in VDC configuration mode?

  A. vrf context
  B. boot-order
  C. vdc resource template
  D. vdc combined-hostname
  B. boot-order

• Question 56:

  Which management interface is selected by the Cisco APIC by default if an in-band management interface and an out-of-band management interface exist?

  A. In-band is preferred.
  B. The first configured interface is selected.
  C. The interface that has the highest priority is selected.
  D. Out-of-band is preferred.
  D. Out-of-band is preferred.

• Question 57:

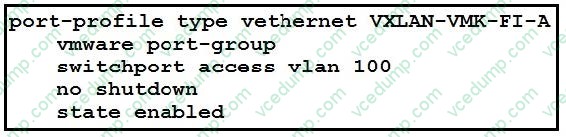

  Refer to the exhibit. You must configure VXLAN on a Cisco Nexus 1000V Series Switch.

  Which command must you run on the port profile to encapsulate VXLAN traffic from the connected VMkernel interface?

  A. encapsulation vxlan
  B. capability l3control
  C. capability vxlan
  D. system vlan 100
  B. capability l3control

• Question 58:

  You have a Cisco Nexus device that is configured to use a RADIUS server. What occurs when local RBAC user account and RADIUS roles exist simultaneously?

  A. Only rules that are in local roles and the RADIUS roles are applied
  B. Rules from local account and the RADIUS roles are merged
  C. Only rules from the local roles are applied
  D. Only rules from the RADIUS roles are applied
  D. Only rules from the RADIUS roles are applied

• Question 59:

  Which action must you take to implement VXLAN in an environment that runs the Cisco Nexus 1000v Essential edition?

  A. Enable the feature by using the feature vxlan-gateway command
  B. Enable the feature by using the feature segmentation command
  C. Purchase and install a Cisco Nexus 1000v Enterprise edition license
  D. Purchase and install a Cisco Nexus 1000v Advanced edition license
  B. Enable the feature by using the feature segmentation command

  ---

  Reference: https://www.cisco.com/c/en/us/support/docs/switches/nexus-1000v-switch/117618-configure-N1kV-00.html

• Question 60:

  By default, which action does a bridge domain take with unknown unicast packets?

  A. It forwards the packets to the next TEP.
  B. It floods the packets.
  C. It forwards the packets to the gateway.
  D. It forwards the packets to the spine proxy.
  B. It floods the packets.
