Cisco 300-170 Online Practice Questions and Exam Preparation

Cisco 300-170 Online Questions & Answers

• Question 31:

  A host connected to a leaf switch sends an ARP request. By default, what does the ingress switch do with the ARP requests?

  A. Suppress the ARP.
  B. Send the ARP by using unicast.
  C. Send the ARP by using a broadcast.
  D. Send the ARP by using multicast.
  C. Send the ARP by using a broadcast.

• Question 32:

  When you perform a task in the Cisco APIC GUI, the GUI creates and sends internal API messages to the operating system to exclude the task. Which ACI tool enables you to view and copy the API messages?

  A. SPAN
  B. Postman
  C. syslog
  D. API Inspector
  E. SNMP
  F. EPG Listener
  D. API Inspector

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/GSG/b_APIC_Getting_Started_Guide_Rel_2_x/b_APIC_Getting_Started_Guide_Rel_2_x_chapter_011.html

• Question 33:

  Which feature of a Cisco Nexus 1000V Series Switch allows you to deploy traffic steering for a virtual infrastructure?

  A. SGT
  B. PVLAN
  C. ACL
  D. vPath
  D. vPath

  ---

  Reference: https://webcache.googleusercontent.com/search?q=cache:aHnlUDizUw4J:https://www.cisco.com/c/dam/en/us/solutions/collateral/switches/nexus-1000v-switch-vmware-vsphere/at_a_glance_c45-492852.pdf +andcd=2andhl=enandct=clnkandgl=inandclient=firefox-b-ab

• Question 34:

  Which statement about policy-based redirect in an ACI fabric is true?

  A. It allows traffic to be redirected based on an access list.
  B. It requires that service provisioning be enabled by the Layer 4 to Layer7 device package.
  C. It allows the provisioning consumer and the provider endpoint groups to be in the same VRF.
  D. It allows unmanaged nodes to be in separate VRFs.
  C. It allows the provisioning consumer and the provider endpoint groups to be in the same VRF.

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_01100.html

• Question 35:



  Refer to the exhibit. Which description of the state of the in-band management configuration is true?

  A. A contract named default is consumed by the in-band EPG.
  B. In-band management is functional.
  C. VLAN 10 is the in-band management VLAN.
  D. A bridge domain was not assigned.
  C. VLAN 10 is the in-band management VLAN.

• Question 36:

  When configuring the SVS Domain in Layer 2 mode on the Cisco Nexus 1000v, which three parameters are required? (Choose three.)

  A. Packet VLAN
  B. Attribute
  C. Domain ID
  D. Port Profile
  E. Control VLAN
  F. Port group
  A. Packet VLAN
  C. Domain ID
  E. Control VLAN

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus1000/sw/4_0_4_s_v_1_2/system_management/configuration/guide/n1000v_system/n1000v_system_3domain.html

• Question 37:

  DRAG DROP

  Drag and drop the actions on the left to the corresponding scripting tools on the right.

  Select and Place:





• Question 38:

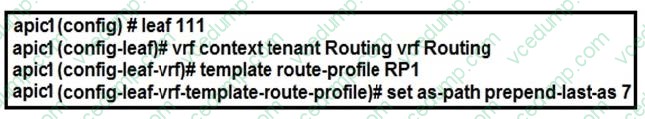

  Refer to the exhibit. What is the result of the configuration?

  A. Add the last AS number seven times for all the outgoing routes from the ACI fabric network.
  B. Add AS number 7 after the last AS number in the AS-Path list for all outgoing routes from the ACI fabric network.
  C. Add AS number 7 after the last AS number in the AS-Path list for all incoming routes to the ACI fabric network.
  D. Add the last AS number seven times for all the incoming routes to the ACI fabric network.
  D. Add the last AS number seven times for all the incoming routes to the ACI fabric network.

  ---

  Reference: https://sites.google.com/site/amitsciscozone/home/bgp/bgp-as-path-prepending-and-as-path-filters

• Question 39:

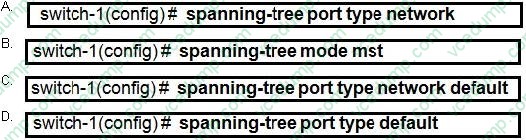

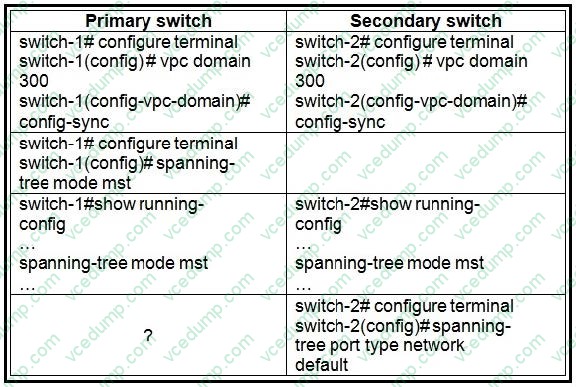

  Refer to the exhibit. You are implementing configuration synchronization. What is the expected result on switch-1?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus2000/sw/configuration/guide/b_Configuring_the_Cisco_Nexus_2000_Series_Fabric_Extender_rel_7_x/ b_Configuring_the_Cisco_Nexus_2000_Series_Fabric_Extender_rel_7_x_chapter_011.html

• Question 40:

  You are implementing multicast routing between bridge domains for a client who is running ACI version 3.0 with Nexus ACI first-generation switches. What is required for multicast to operate?

  A. an external router to perform multicast routing between the bridge domains
  B. bootstrap router for RP to group mapping
  C. PIM Any Source Multicast protocol
  D. PIM Source Specific Multicast protocol
  A. an external router to perform multicast routing between the bridge domains
