Cisco 300-160 Online Practice Questions and Exam Preparation

Cisco 300-160 Online Questions & Answers

• Question 491:

  What design will effect traffic flows in the Data Center Core layer?

  A. The domain needed to extend a VLAN from one switch to another is determined at the core layer
  B. With a 3 layer (Access, Aggregation, Core) design the Layer 2 domain must be configured across the Core for VLAN extension to occur
  C. Extending Layer 2 through a core causes path blocking by STP and has the risk of uncontrollable broadcast issues related to extending Layer 2 domains, and therefore should be avoided
  D. Server-to-server traffic typically travels between aggregation modules by way of the core, while backup and replication traffic remains within the aggregation module
  C. Extending Layer 2 through a core causes path blocking by STP and has the risk of uncontrollable broadcast issues related to extending Layer 2 domains, and therefore should be avoided

• Question 492:

  Which three options are characteristics of N-Port ID Virtualization? (Choose three.)

  A. primarily a switch-based technology
  B. primarily a host-based solution
  C. designed to reduce switch management and overhead in larger SAN deployments
  D. introduces a new type of Fibre Channel port, the NP Port, which connects to an F Port and acts as a proxy for other N Ports on the NPIV-enabled switch
  E. introduces a new type of Fibre Channel port, the NP Port, which connects to an F Port and acts as a proxy for other N Ports on the NPV-enabled switch
  F. designed to increase switch management and overhead in larger SAN deployments
  G. primarily a circuit switching technology
  A. primarily a switch-based technology
  C. designed to reduce switch management and overhead in larger SAN deployments
  E. introduces a new type of Fibre Channel port, the NP Port, which connects to an F Port and acts as a proxy for other N Ports on the NPV-enabled switch

• Question 493:

  Which option accurately describes the OSPF Graceful Restart feature in Cisco NX-OS?

  A. keeps the control plane state active during an OSPF process restart
  B. shuts down the OSPF process gracefully to replace the router
  C. prevents the OSPF process from restarting when the process crashes
  D. allows a router to remain in the data forwarding path during an OSPF process restart
  D. allows a router to remain in the data forwarding path during an OSPF process restart

• Question 494:

  Which statement accurately describes the allocation of IP pools for out-of-band management of a Cisco UCS Series environment*?

  A. The management IP addresses used to access CIMC on a server can be out-of-band addresses, through which traffic traverses the Fabric Interconnect via the management port
  B. The management IP addresses used to access CIMC on a server can be out-of-band addresses through which traffic traverses the Fabric Interconnect via the fabric uplink port
  C. A maximum of sixteen OOB IP addresses can be configured to access the CIMC on a server
  D. A maximum of eight OOB IP addresses can be configured to access the CIMC on a server
  B. The management IP addresses used to access CIMC on a server can be out-of-band addresses through which traffic traverses the Fabric Interconnect via the fabric uplink port

• Question 495:

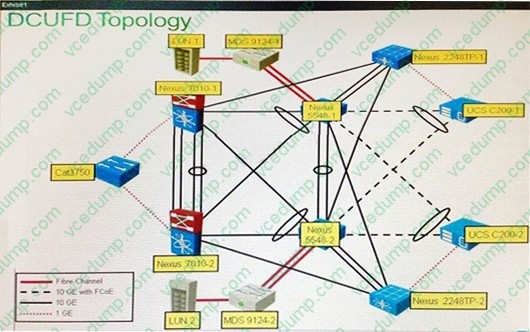

  Refer to the Topology in Exhibit 1.

  Scenario

  Review topology and screenshots, and then answer questions that validate your knowledge of Cisco Nexus Switches.



  Instructions

  To access the multiple-choice questions, click on the numbered boxes on the left of the top panel.

  Review the Exhibit associated with the question.

  There are four multiple-choice questions with this task.

  Be sure to answer all four questions before selecting the Next button



  Which of the following statements is true?

  A. All four links from the Cisco Nexus7000s to the Cisco Nexus 5000s are forwarding.
  B. Multipath I/O from the Cisco UCS C200 servers to Fibre Channel storage is unavailable with this topology.
  C. The Fabric Extenders are simultaneously active on the Cisco Nexus 5000s and Cisco Nexus 7000 switches.
  D. The Fabric Extenders support FCoE.
  B. Multipath I/O from the Cisco UCS C200 servers to Fibre Channel storage is unavailable with this topology.

• Question 496:

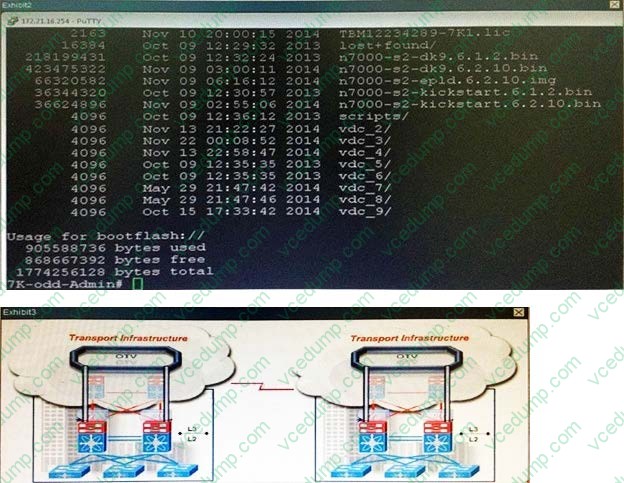

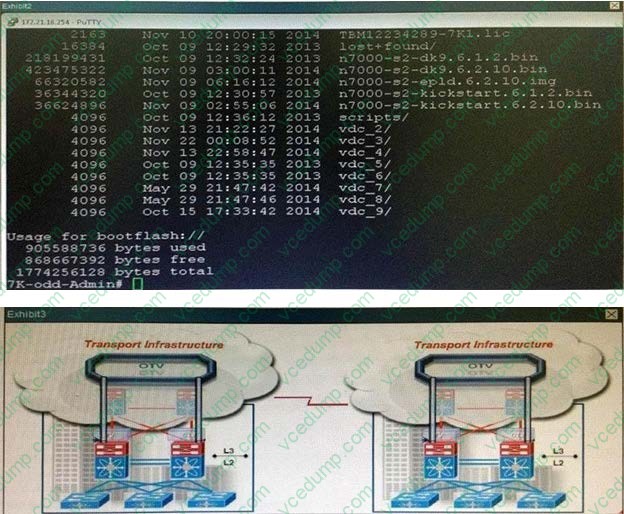

  Refer to the figure in Exhibit 3.

  Scenario

  Review topology and screenshots, and then answer questions that validate your knowledge of Cisco Nexus Switches.



  Instructions

  To access the multiple-choice questions, click on the numbered boxes on the left of the top panel.

  Review the Exhibit associated with the question.

  There are four multiple-choice questions with this task.

  Be sure to answer all four questions before selecting the Next button



  Which item is uniquely required when OTV is configured to use a Unicast Control Pane?

  A. ASM
  B. Join Interface
  C. Adjacency Server
  D. Enable Classical Ethernet MAC learning on Edge Interfaces.
  D. Enable Classical Ethernet MAC learning on Edge Interfaces.

• Question 497:

  Which two platforms are supported by Cisco Prime Data Center Network Manager? (Choose two.)

  A. Cisco Catalyst switches
  B. Cisco Nexus switches
  C. Cisco ACE
  D. Cisco Aironet
  E. Cisco MDS switches
  B. Cisco Nexus switches
  E. Cisco MDS switches

• Question 498:

  A client require that direct attached storage be connected to the appliance port of the fabric interconnect.

  The storage and UCS manager subnets.

  To which UCS manager design point must you adhere to have communication between your server and the DAS?

  A. When a VSAN is created for an appliance port in the Appliances section of SAN, the same VSAN must not be created in the LAN cloud.
  B. When a VLAN is created for an appliance port in the Appliances section of LAN, the same VLAN must not be created in the LAN cloud.
  C. When a VSAN is created for an appliance port in the Appliances section of SAN, you must create the same VSAN in the SAN cloud.
  D. When a VLAN is created for an appliance port in the Appliances section of LAN, you must create the same VLAN in the LAN cloud.
  D. When a VLAN is created for an appliance port in the Appliances section of LAN, you must create the same VLAN in the LAN cloud.

• Question 499:

  You are configuring CIMC management IP pools. You need to avoid the following misconfigurations: Assigning an IP pool that contains only IPv4 addresses as the in-band IPv6 policy Assigning an IP pool that contains only IPv6 addresses as the in-band IPv4 policy to a server CIMC

  What does a cisco recommend?

  A. Configure two separate in-band addresses pools that each have only IPv4 or IPv6 addresses
  B. Configure out-of-band management only for IPv6 and accept the default settings for IPv4
  C. Accept the default pool settings for both IPv4 and IPv6
  D. Configure out-of-band management only for IPv4 and accept the default settings for IPv6
  A. Configure two separate in-band addresses pools that each have only IPv4 or IPv6 addresses

• Question 500:

  Which command sequence represents a correct process to establish OSPF peer authentication credentials?

  A. N7010-C2(config)# key chain OSPF N7010-C2(config-keychain)# key 0 N7010-C2(config-keychain-key)# key-string
  B. N7010-C2(config)# key-chain 0 N7010-C2(config-key-chain)# key-name OSPF N7010-C2(config-key-chain-key)# key-string
  C. N7010-C2(config)# key ring OSPF N7010-C2(config-keyring)# key 0 N7010-C2(config-keyring-key)# key-string
  D. N7010-C2(config)# key-ring 0 N7010-C2(config-key-ring)# key-name OSPF N7010-C2(config-key-ring-key)# key-string
  A. N7010-C2(config)# key chain OSPF N7010-C2(config-keychain)# key 0 N7010-C2(config-keychain-key)# key-string
