VMware 2V0-41.19 Online Practice Questions and Exam Preparation

VMware 2V0-41.19 Online Questions & Answers

• Question 21:

  Which network tool cloud an administrator use on an ESXi 6.7 host to capture packets when troubleshooting connectivity issues?

  A. Wireshark
  B. pktcap-uw
  C. net-stats
  D. tcpdump
  B. pktcap-uw

  ---

  If you do when troubleshooting connectivity issues on your Virtualization environment. This post will help you to capture Network traffic on ESXi host using pktcap-uw tool.

  Reference: http://www.vmwarearena.com/how-to-capture-network-trafficpacket-on-esxi-hosts/

• Question 22:

  An NSX administrator is planning to deploy a multi-tier routing topology in their NSX-T Data Center environment to provide north-south connectivity for the VMs.

  Which routing component must be deployed?

  A. Tier-0 Gateway
  B. Edge Node
  C. Tier-1 Gateway
  D. Edge Cluster
  C. Tier-1 Gateway

• Question 23:

  An NSX administrator has observed connectivity issues between the NSX Manager and the KVM Transport Node.

  Which two log files could be used to troubleshoot the issue on the KVM Transport Node? (Choose two.)

  A. /var/log/vmware/nsx-syslog
  B. /usr/vmware/log/syslog
  C. /var/log/nsx/syslog
  D. /usr/vmware/nsx-syslog
  E. /var/log/syslog
  A. /var/log/vmware/nsx-syslog
  E. /var/log/syslog

• Question 24:

  A user is assigned these two roles in NSX Manager:

  1.

  Load Balancer Administrator

  2.

  Network Engineer

  What privileges does this user have in the system?

  A. full access permissions on all networking services and full access permissions on load balancing features
  B. read permissions on all networking services and read permissions on load balancing features
  C. read permissions on all networking services and full access permissions on load balancing features
  D. full access permissions on all networking services and read permissions on load balancing features
  A. full access permissions on all networking services and full access permissions on load balancing features

• Question 25:

  What is the maximum supported ECMP paths in NSX-T 2.4 Data Center?

  A. 6
  B. 8
  C. 9
  D. 7
  B. 8

  ---

  A maximum of eight ECMP paths are supported.

  Reference: https://docs.vmware.com/en/VMware-NSX-T-Data-Center/2.4/administration/GUID-443B6B0D-F179-429E-83F3-E136038332E0.html

• Question 26:

  Which three CLI commands will list the TEP IPs configured on an ESXi transport node? (Choose three.)

  A. esxcfg-vswitch -1
  B. esxcfg-vmknic -1
  C. esxcli network ip address list
  D. esxcli network ip netstack list
  E. esxcli network ip interface ipv4 get
  F. esxcli network ip interface list
  B. esxcfg-vmknic -1
  D. esxcli network ip netstack list
  E. esxcli network ip interface ipv4 get

  ---

  Reference:

  https://docs.pivotal.io/pks/1-3/nsxt-deploy.html

  https://shuttletitan.com/nsx-t/nsx-t-installation-series/nsx-t-installation-series-step-9-configure-host-transport-node/

• Question 27:

  An NSX administrator has created a segment named WEB-LS from the simplified UI and noticed the segment is not realized on the KVM Transport node. What are two possible causes for this issue? (Choose two.)

  A. Since the Compute Manager is disconnected in Simplified UI, the WEB-LS segment will not be realized on the KVM Transport Node.
  B. The virtual machines running on the KVM Transport Node are connected to the WEB-LS segment, but are in Powered Off state.
  C. The virtual machines running on the KVM Transport Node are not connected to the VDS.
  D. The KVM Transport node has hardware issues and will not realize the WEB-LS Segment.
  E. The virtual machines running on the KVM transport node are not connected to the WEB-LS Segment.
  A. Since the Compute Manager is disconnected in Simplified UI, the WEB-LS segment will not be realized on the KVM Transport Node.
  B. The virtual machines running on the KVM Transport Node are connected to the WEB-LS segment, but are in Powered Off state.

• Question 28:

  Which port is used by a transport node to communicate with NSX Manager in NSX-T Data Center 2.4?

  A. 5671
  B. 1234
  C. 1235
  D. 5678
  A. 5671

  ---

  Reference: https://docs.vmware.com/en/VMware-NSX-T-Data-Center/2.4/nsxt_24_install.pdf

• Question 29:

  An NSX administrator is configuring the KVM hypervisor host as a transport node and wants to apply the Failover Order as a NIC teaming policy. Which profile allows the administrator to configure the NIC Teaming policy as Failover Order?

  A. N-VDS Profile
  B. Uplink Profile
  C. Host Switch Profile
  D. Transport Node Profile
  B. Uplink Profile

  ---

  Reference: https://docs.vmware.com/en/VMware-NSX-T-Data-Center/2.1/com.vmware.nsxt.install.doc/GUID-50FDFDFB-F660-4269-9503-39AE2BBA95B4.html

• Question 30:

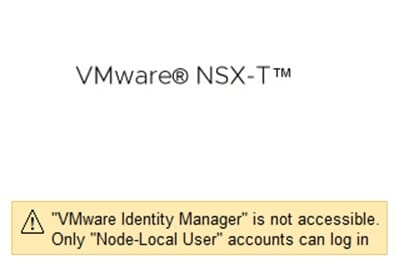

  Refer to the exhibit.



  A vSphere administrator is trying to connect T1-Web-01 virtual machine to a NSX-T logical switch and is receiving an error.

  Which service must be restarted to connect the virtual machine to a NSX-T logical switch?

  A. /etc/init.d/nsx-opsagent start
  B. /etc/init.d/nsx-proxy start
  C. /etc/init.d/nsxa start
  D. /etc/init.d/nsx-datapath start
  A. /etc/init.d/nsx-opsagent start
