Cisco 200-310 Online Practice Questions and Exam Preparation

Cisco 200-310 Online Questions & Answers

• Question 151:

  When selecting which hardware switches to use throughout an enterprise campus switched network, which consideration is not relevant?

  A. whether data link layer switching based upon the MAC address is required
  B. the number of shared media segments
  C. which infrastructure service capabilities are required
  D. whether to support Layer 3 services at the network edge
  B. the number of shared media segments

• Question 152:

  What is SNMP?

  A. Simple Network Management Protocol
  B. Simple Network Monitoring Protocol
  C. Sampling Network Management Process
  D. Simple Network Maintenance Procedure
  A. Simple Network Management Protocol

• Question 153:

  Which two devices support context virtualization? (Choose two.)

  A. Cisco ASR 1000 Series Aggregation Services Router
  B. Cisco 5520 Series Wireless LAN Controller
  C. Cisco ASA
  D. Cisco Catalyst 9500 Series Switch
  E. Cisco Nexus 7000 Series Switch
  D. Cisco Catalyst 9500 Series Switch
  E. Cisco Nexus 7000 Series Switch

• Question 154:

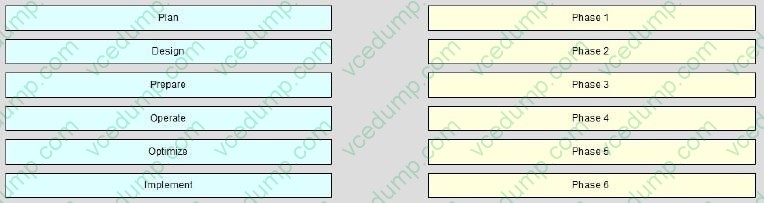

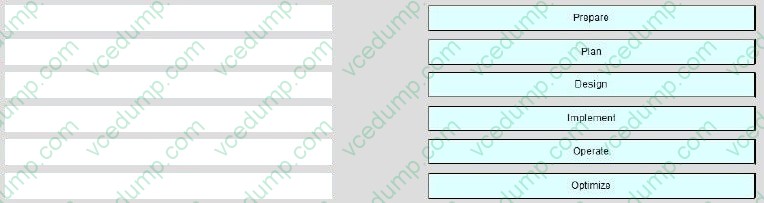

  Click and drag the phases of the PPDIOO network lifecycle approach on the left to their order on the right.

  Select and Place:





• Question 155:

  Which layer of the OSI model, when included in the access layer, results in a smaller fault domain?

  A. Layer 1
  B. Layer 2
  C. Layer 3
  D. Layer 4
  B. Layer 2

• Question 156:

  What two addresses are defined under RFC 1918? (Choose two.)

  A. 19.22.37.1
  B. 10.1.7.19
  C. 127.0.0.1
  D. 172.31.1.1
  E. 239.15.12.1
  B. 10.1.7.19
  D. 172.31.1.1

• Question 157:

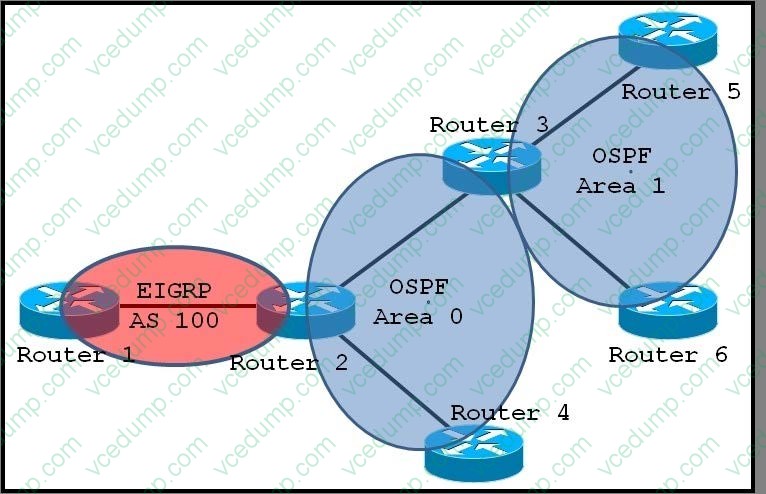

  Refer to the exhibit. On which router should you configure redistribution?



  A. Router 1
  B. Router 2
  C. Router 3
  D. Router 4
  E. Router 5
  B. Router 2

• Question 158:

  What is the vlan subnet that can handle 60 hosts?

  A. /21
  B. /24
  C. /25
  D. /26
  D. /26

• Question 159:

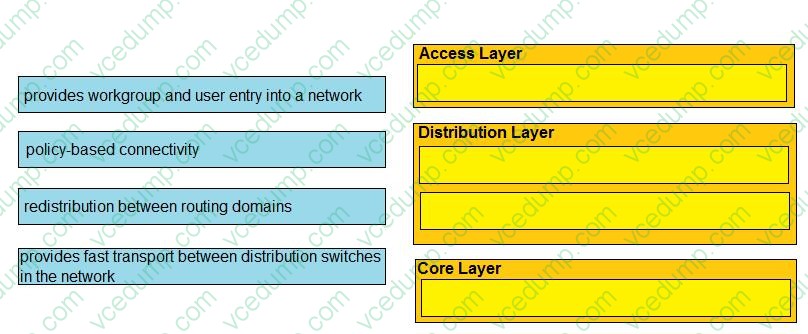

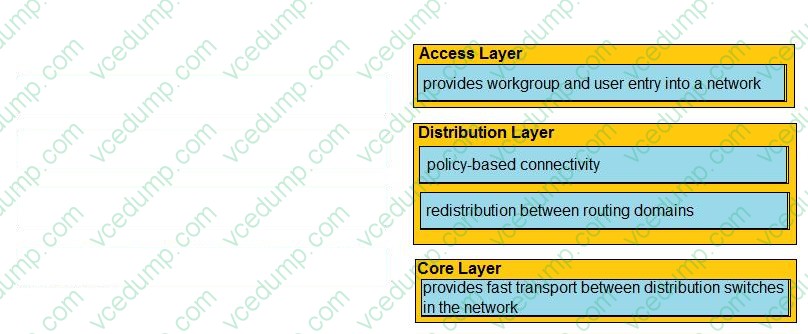

  DRAG DROP

  An engineer is designing a hierarchical LAN design for an enterprise campus. Drag and rop the function from the left onto the correct layer on the right.

  Select and Place:





• Question 160:

  Examine the following protocols, which two are used for IP Security?

  A. Generic Routing Encapsulation (GRE) and Internetwork Packet Exchange (IPX)(EIGRP)
  B. Border Gateway Protocol (BGP) and Enhanced Interior Gateway Routing Protocol
  C. Authentication Header (AH) and Encapsulating Security Payload (ESP)
  D. Virtual Private Dial-Up Network (VPDN) and GRE
  C. Authentication Header (AH) and Encapsulating Security Payload (ESP)
