Citrix 1Y0-403 Online Practice Questions and Exam Preparation

Citrix 1Y0-403 Online Questions & Answers

• Question 81:

  Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. Currently, the environment is configured as 2 locations with identical Citrix Virtual Desktops Sites. Each Site has 2 Delivery Controllers, 2

  StoreFront servers, and 1 Citrix ADC high-availability pair. The same applications have been published from both Sites for all users. Two zones (Zone A and Zone B) are configured in each Site with 1 Delivery Controller in each zone. The

  Microsoft Exchange server is only accessible from Virtual Delivery Agent (VDA) machines in Zone A in each Site.

  Six access requirements have been identified:

  Users should have a single URL when accessing resources from different Sites.

  Users should always connect to the data center closest to their location.

  Applications added to Favorites within the Citrix Workspace app should be retained when accessed from different Sites.

  Launched applications and desktops should always connect through a local Citrix ADC.

  No duplication of applications published from different Sites.

  Microsoft Outlook should always launch in Zone A.

  What should the architect recommend configuring subscription synchronization to retain applications added to Favorites?

  A. Within server groups of each Site
  B. Between stores across the Sites
  C. Between server groups across the Sites
  D. Within stores of each Site
  D. Within stores of each Site

• Question 82:

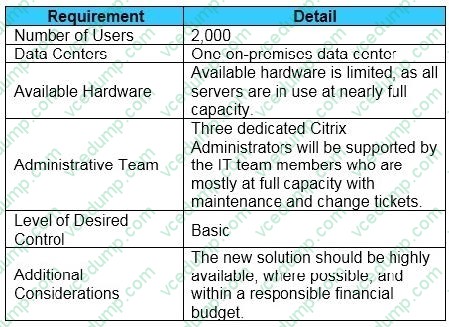

  Scenario: A Citrix Architect is creating a conceptual architecture for a Citrix Virtual Apps and Desktops environment. Based on some initial the company's business goals and objectives, the architect has collected the information shown in the exhibit.

  Click the Exhibit button to view the information.



  Which delivery model should the architect recommend?

  A. Single-Site in Citrix Cloud, public cloud, and on-premises resource locations
  B. Multi-Site, multi-zone, and multiple on-premises data centers
  C. Multi-Site in Citrix Cloud, and multiple public cloud resource locations
  D. Single-Site, single-zone, and single on-premises data center
  C. Multi-Site in Citrix Cloud, and multiple public cloud resource locations

• Question 83:

  Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment.

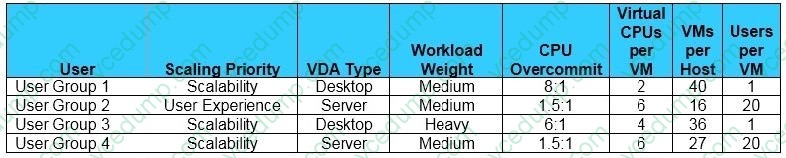

  The table in the exhibit lists details about the requirements of the current user groups and their Virtual Delivery Agent (VDA) machine workloads.

  Click the Exhibit button to view the table.



  The architect should scale the hardware used to host the virtual machines (VMs) for User Group 1 to __________ cores. (Choose the correct option to complete the sentence.)

  A. 32
  B. 64
  C. 96
  D. 24
  E. 16
  D. 24

• Question 84:

  Scenario: An additional zone was recently added to a Citrix Virtual Apps and Desktops environment. The main zone is located in New York City, and a small, second zone is located in Tokyo. Within the next year, the number of users in Tokyo

  is expected to equal that in New York City.

  A Citrix Architect recommended the addition of 2 StoreFront servers in Tokyo to support the users.

  What should the architect recommend for this environment to ensure user-experience consistency and reduce WAN bandwidth consumption?

  A. Add 2 StoreFront servers to separate server groups and configure subscription synchronization
  B. Add 2 StoreFront servers and configure the Optimal Gateway routing feature
  C. Add 2 standalone StoreFront servers
  D. Add 2 StoreFront servers to the same server group
  B. Add 2 StoreFront servers and configure the Optimal Gateway routing feature

  ---

  Reference: https://www.citrix.com/content/dam/citrix/en_us/documents/white-paper/ns-optimal-gateway-routing-tech-wp.pdf

• Question 85:

  Scenario: A Citrix Architect is assessing an existing infrastructure for a company that has storage challenges as a result of hyper-growth. They currently have a large IT infrastructure that consists of 15 hypervisor hosts and more than 200 virtual machines (VMs) worldwide. Management has advised the architect that they need to improve their storage infrastructure to include high performance and scalability.

  Which storage solution should the architect implement within this infrastructure?

  A. DAS
  B. SAN
  C. NAS
  D. Local
  B. SAN

• Question 86:

  Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The environment will utilize Citrix Provisioning (PVS) for image management of physical and virtual machines (VMs). Upon review of the current network infrastructure, the architect determined a number of considerations that will impact the overall imaging process.

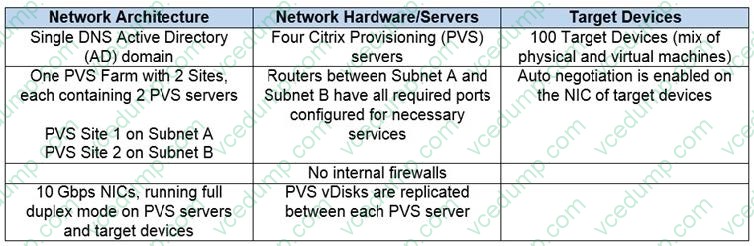

  Click the Exhibit button to view the existing internal network and PVS infrastructure details.



  What should the architect do to optimize the Citrix Provisioning server to target device communication and the streaming process?

  A. Enable Replication and set to Fixed
  B. Enable Subnet Affinity and set to Fixed
  C. Enable Subnet Affinity and set to None
  D. Enable Replication and set to Best Effort
  B. Enable Subnet Affinity and set to Fixed

• Question 87:

  Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. Two Control Layer security requirements have been identified:

  Secure XML traffic between StoreFront and the Delivery Controller using SSL.

  Secure Ticket Authority (STA) traffic must be protected with SSL.

  Which three tools can the architect use to ensure that all security requirements are met? (Choose three.)

  A. Citrix Studio console
  B. Internet Information Services (IIS)
  C. Citrix Director console
  D. Citrix StoreFront console
  E. 'NETSH' command line
  B. Internet Information Services (IIS)
  D. Citrix StoreFront console
  E. 'NETSH' command line

• Question 88:

  Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. Currently, the environment is configured with 2 locations with identical Citrix Virtual Desktops Sites. Each Site has 2 Delivery Controllers, 2

  StoreFront servers, and 1 Citrix ADC high-availability pair. The same applications have been published from both Sites for all users. Two zones (Zone A and Zone B) are configured in each Site with 1 Delivery Controller in each zone. The

  Microsoft Exchange server is only accessible from Virtual Delivery Agent (VDA) machines in Zone A in each Site.

  Six access requirements have been identified:

  Users should have a single URL when accessing resources from different Sites.

  Users should always connect to the data center closest to their location.

  Applications added to Favorites within the Citrix Workspace app should be retained when accessed from different Sites.

  Launched applications and desktops should always connect through a local Citrix ADC.

  No duplication of applications published from different Sites.

  Microsoft Outlook should always launch in Zone A.

  What should the architect recommend to ensure that Microsoft Outlook always launches from Zone A for every user?

  A. Configure zone preference based on user location.
  B. Configure Zone A as the application Home Zone for Microsoft Outlook.
  C. Move a Delivery Controller from Zone B to Zone A.
  D. Designate Zone A as the Home Zone for all users.
  B. Configure Zone A as the application Home Zone for Microsoft Outlook.

• Question 89:

  Scenario: A Citrix Architect is designing a Citrix Virtual Desktops environment. The Graphic Designers Group uses graphic-intensive applications. Graphic designers will be provided with a Windows 10-hosted assigned desktop, with NVIDIA graphics hardware acceleration. HDX 3D Pro mode was selected during the installation of the Virtual Delivery Agent (VDA).

  What is the maximum number of monitors supported for the Graphic Designers Group?

  A. 4
  B. 1
  C. 2
  D. 8
  D. 8

  ---

  Reference: https://support.citrix.com/article/CTX131385

• Question 90:

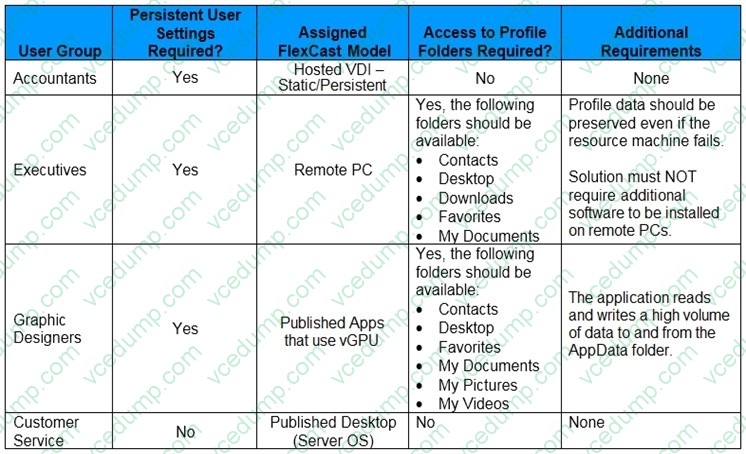

  Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The architect has identified the Resource Layer requirements shown in the exhibit.

  Click the Exhibit button to view the requirements.



  Which feature of Citrix Profile Management could help the architect address the Graphic Designers Group requirements while minimizing login time?

  A. Profile streaming
  B. Active write back
  C. Folder redirection
  D. File exclusions
  A. Profile streaming

  ---

  Reference: https://www.citrix.com/blogs/2012/02/11/citrix-profile-management-and-vdi-doing-it-right/
