Citrix 1Y0-200 Online Practice Questions and Exam Preparation

Citrix 1Y0-200 Online Questions & Answers

• Question 21:

  Scenario: A Citrix Administrator creates a delivery group with 20 server OS machines. The machine catalog was provisioned with Machine Creation Services. When viewing the delivery group in Citrix Studio, none of the server OS machines report as registered.

  What are two potential causes of this issue? (Choose two.)

  A. The Citrix License Server is NOT started.
  B. The Virtual Delivery Agent is missing on the master image.
  C. The server OS machines do NOT have RDS licenses installed.
  D. The server OS machines are unable to resolve the FQDN of the Delivery Controller.
  B. The Virtual Delivery Agent is missing on the master image.
  D. The server OS machines are unable to resolve the FQDN of the Delivery Controller.

  ---

  Explanation/Reference:

• Question 22:

  Scenario: A Citrix Administrator needs to set up a new provisioning environment. The administrator builds and configures two Provisioning Servers to support 200 target devices. All of the target devices are configured to start up using vDisks that are caching in device HD. Network Engineering mandates that the administrator configure the TFTP service and DHCP scope to assign IP addresses to all the target devices.

  When the administrator tries to start any target devices, the machines hang and show the error in the attached exhibit.



  Click the Exhibit button to view the error message.

  Which action could the administrator take to resolve this issue?

  A. Enable DHCP options 66 and 67.
  B. Assign a vDisk to the target devices.
  C. Set the firewall to allow UDP 67 and 68.
  D. Configure the correct VLAN ID for the target devices.
  D. Configure the correct VLAN ID for the target devices.

• Question 23:

  Which action should a Citrix Administrator take to identify the source IP addresses of external users who have accessed hosted desktops and applications in a XenDesktop site through NetScaler?

  A. Configure the Auditing Syslog in the Configuration tab.
  B. Download the current trace files from the Diagnostics tab.
  C. Monitor the 'Current ICA connections' in the Configuration tab.
  D. Generate a 'Current AAA sessions' report on the Reporting tab.
  A. Configure the Auditing Syslog in the Configuration tab.

• Question 24:

  Scenario: An error is displayed in Citrix Director when a Citrix Administrator attempts to shadow a user connected to a desktop hosted on a server OS machine. Shadowing does NOT start. What is the likely cause of this error?

  A. Remote Assistance is NOT enabled on the server OS machine.
  B. Citrix Receiver is NOT installed on the administrator's workstation.
  C. The administrator does NOT have the Help Desk role in Citrix Studio.
  D. Remote Desktop is NOT configured on the administrator's workstation.
  A. Remote Assistance is NOT enabled on the server OS machine.

• Question 25:

  When users launch their pooled desktops from Receiver through StoreFront, the following error is displayed:

  An error occurred while making the requested connection.

  Which action could the Citrix Administrator take to determine the cause of this issue?

  A. Read the client event logs.
  B. Restart the StoreFront server.
  C. Check that the SSL certificates are correctly installed.
  D. Read the Delivery Controller logs and StoreFront logs.
  D. Read the Delivery Controller logs and StoreFront logs.

• Question 26:

  Scenario: A Citrix Administrator replaces the production StoreFront server with a new StoreFront server. Users access their resources from StoreFront through NetScaler.

  Which NetScaler policy must the administrator modify in order to allow users to continue to access resources securely from external locations?

  A. Traffic
  B. Session
  C. Authorization
  D. Authentication
  B. Session

• Question 27:

  Scenario: A Citrix Administrator enables Citrix Profile Management for virtual desktop users. These users are now reporting that their session logon times have become slow. The administrator needs to gather data to resolve the issue. To gather information on the slow logons, the administrator could use __________ or __________. (Choose the two options to complete the sentence.)

  A. Citrix Studio
  B. Citrix Director
  C. Citrix Profile Management log files
  D. Citrix Configuration Logging database
  B. Citrix Director
  C. Citrix Profile Management log files

  ---

  Explanation/Reference:

• Question 28:

  Scenario:

  A Citrix Administrator must modify the store configuration on a StoreFront server to provide users with access to desktop OS machines and server OS hosted applications. A Delivery Controller named Controller-1 needs to be added to the existing site. Controller-1 will serve as the Secure Ticket Authority. The administrator has been instructed to ensure communication with the Delivery Controllers takes place over port 8080.

  Tasks:

  1. Modify the store named Apps and Desktops to provide users with access to desktop OS machines and server OS hosted applications using hostnames only. Do NOT assume the FQDN.

  2. Ensure communication with the Delivery Controllers take place over port 8080.

  3. Set up Controller-1 as the Secure Ticket Authority.



  Correct Answer. Review the steps and solution in explanation below.
  Review the steps and solution in explanation below.

  ---

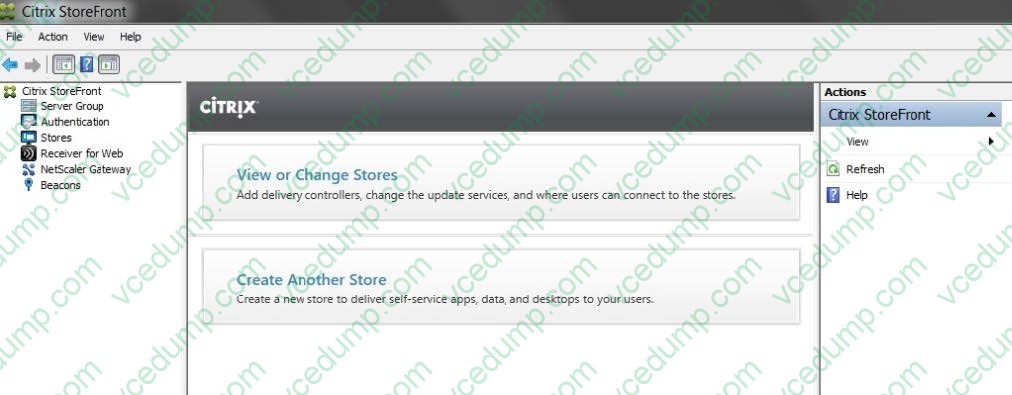

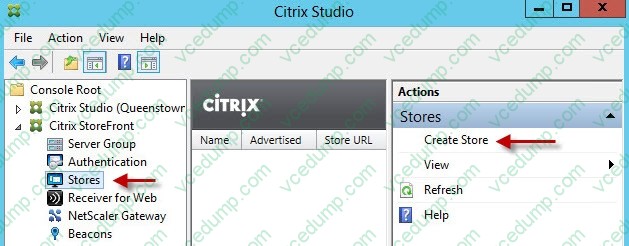

  Citrix StoreFront Configuration



  1.

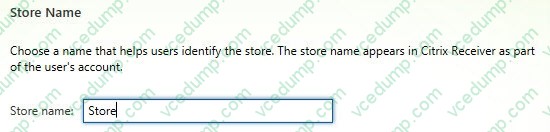

  When the wizard starts enter a store name.

  2.

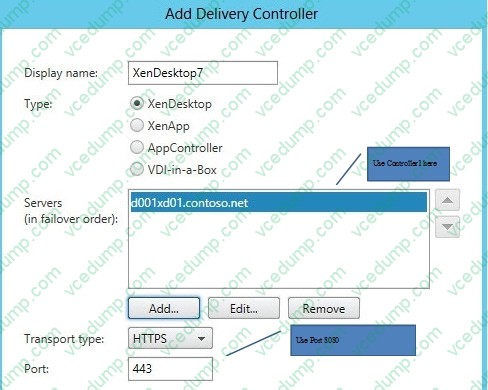

  Now we need to add the delivery controllers (Controller1) that StoreFront will interface with

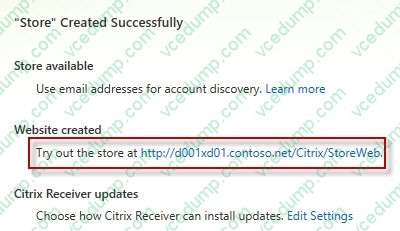

  6. Once the store is created it will give you the web browser URL that you can use to access it. Also take note that to access StoreFront from a web browser you must append “Web” to the store URL, as the URL shows below. Don’t try going to /Citrix/Store as that won’t work.

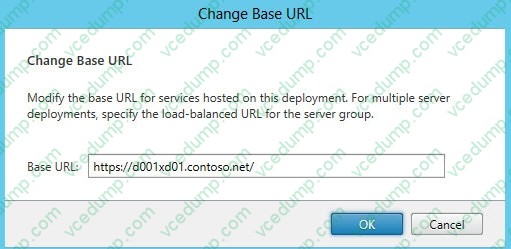

  7. To change the StoreFront base URL you can go to the Server Group node and in the right pane select Change Base URL. Change URL to use HTTPS and port 8080

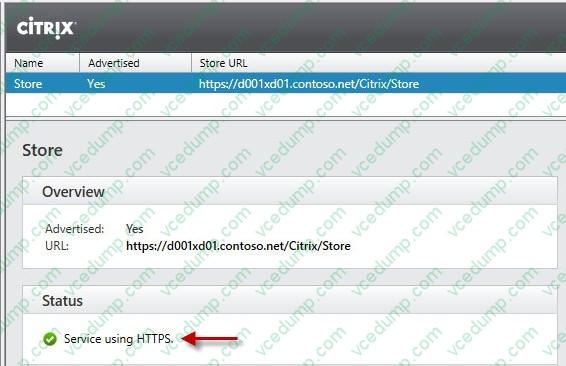

  8. Back in the StoreFront console, after refreshing, you can see that the service is using HTTPS.

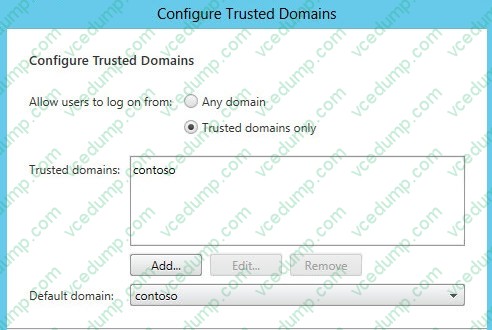

  9. One quick tweak to make authentication easier is to set a default domain. This way the user doesn’t have to enter a domain when authenticating to the StoreFront web site. Locate the Authentication node, then in the right pane click on Configure Trusted Domains.

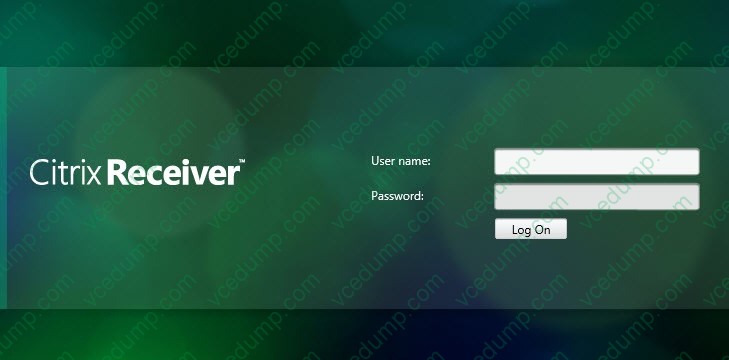

  And that's pretty much it to get an operational StoreFront. If you open your browser and go to the full web store URL you should get a green bubbly Citrix receiver page.



  Creating a XenDesktop 7 Delivery Group

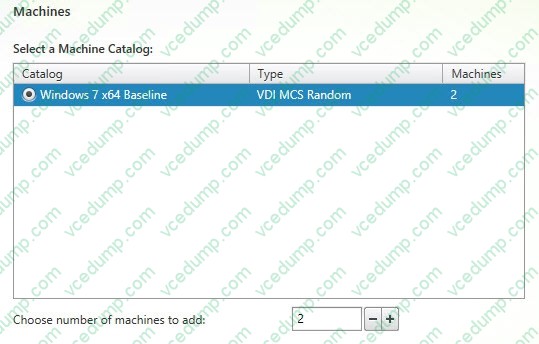

  1. When a new Delivery Group is created it will list all of your machine catalogs. It lists the number of computers in that catalog and one can choose how many to assign to my delivery group. You need not put all of the computers into a single delivery group.

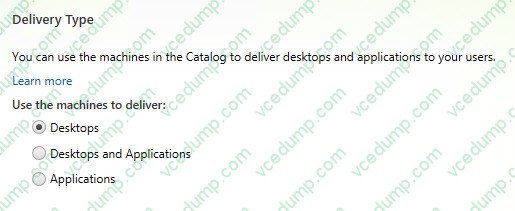

  2. Next up choose what combination of desktops and applications you want to deliver. But here you could assign the same desktop VM to everyone, but have different delivery groups that customize the mix of XenApp applications they get delivered.

  3. Now you have to define what users or groups are part of the delivery group.

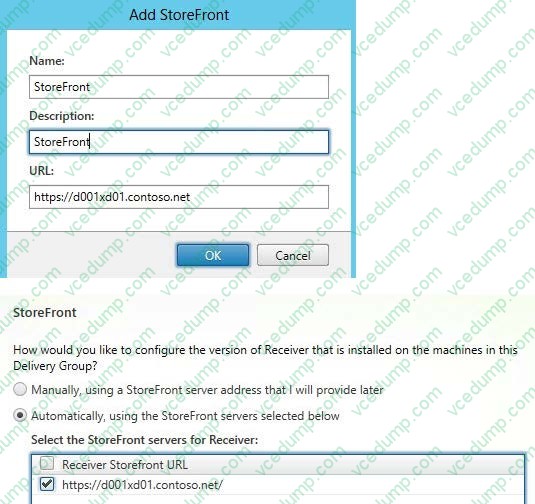

  4. An optional step at this point is to define the StoreFront server(s) which the Receiver inside of the desktop will be configured to use. A great feature if you are using XenApp, or perhaps have another XenDesktop farm for RandD that some users should have access to.

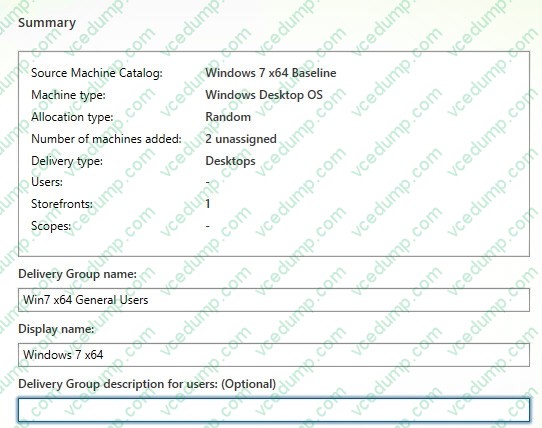

  5. The final step is configuring a Delivery Group name, and a display name. The display name is something users will see, so keep it simple.

  6. And that's it! A few seconds later you will have a nice delivery group in your console. In the right hand column make sure your VMs show a Registered state. If not, then you may have some networking (DHCP, DNS) or other issues preventing the VDA from properly communicating with the desktop controller.

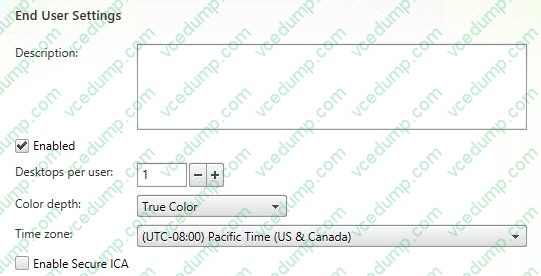

  7. Once the delivery group is created, you can Edit it and find more options that weren’t presented during the simplified wizard. For example, you can allow a user to access more than one desktop from the pool, change the color depth, time zone, and secure the ICA protocol with some lightweight encryption.















• Question 29:

  Scenario: Users in an environment are assigned static desktops with personal vDisks. A Citrix Administrator needs to give a particular user more disk space to install an application. Which two actions should the administrator take to give the user more disk space? (Choose two.)

  A. Set EnableDynamicResizeofAppContainer to 1.
  B. Set the virtual hard disk drive to grow dynamically.
  C. Add a second personal vDisk to double disk space.
  D. Configure MinimumVHDSizeMB to the desired size.
  A. Set EnableDynamicResizeofAppContainer to 1.
  D. Configure MinimumVHDSizeMB to the desired size.

• Question 30:

  When external users attempt to access a Receiver for Web store through NetScaler, the following error message is displayeD.

  Cannot complete your request.

  You can log on and try again, or contact your help desk for assistance.

  What is a possible cause of this error?

  A. The user licenses on the NetScaler have expired.
  B. The SSL certificate on the NetScaler has expired.
  C. TheStoreFront server CANNOT resolve the callback FQDN.
  D. The Secure Ticket Authority has been configured incorrectly on the StoreFront server.
  C. TheStoreFront server CANNOT resolve the callback FQDN.

  ---

  Explanation/Reference:
