F5 101 Online Practice Questions and Exam Preparation

F5 101 Online Questions & Answers

• Question 671:

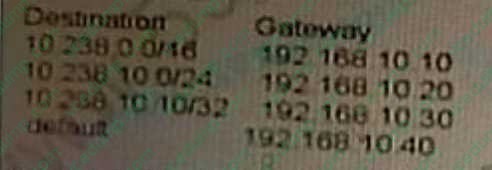

  The BIG-IP device has the following configured routes:



  Which gateway will be chosen to send the packet to the destination 10 238 10 11?

  A. 192. 168 10 20
  B. 192. 168.10. 40
  C. 192 168. 10. 30
  D. 192. 168. 10. 10
  A. 192. 168 10 20

• Question 672:

  Which three are GTM server dynamic load balancing modes? (Choose three.)

  A. Packet Rate
  B. Virtual Server Score
  C. CPU
  D. Fallback IP
  E. Ratio
  A. Packet Rate
  B. Virtual Server Score
  C. CPU

• Question 673:

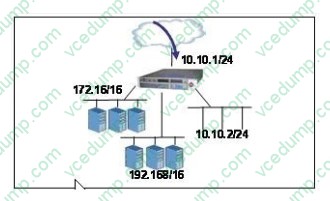

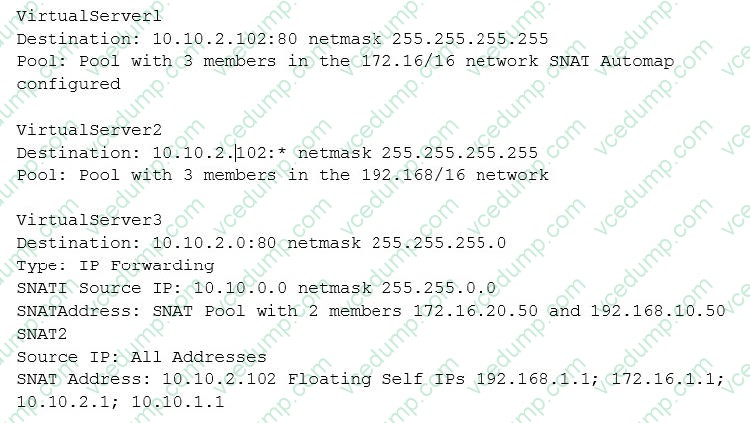

  An LTM has the 3 virtual servers, 2 SNATs, four self IP addresses defined and the networks shown in the graphic below. Selected options for each object are shown below. Settings not shown are at their defaults. Assume port exhaustion has not been reached.



  A connection attempt is made with a source IP and port of 10.20.10.50:2222 and a destination IP and port of 10.10.2.102:80. When the request is processed, what will be the source and destination IP addresses?



  A. Source IP: 10.20.10.50; Destination IP: pool member in the 172.16/16 network
  B. Source IP: 172316.20.50; Destination IP: pool member in the 182.16/16 network
  C. Source IP: 192.168.1.1; Destination IP: pool member in the 192.168/16 network
  D. The request will be dropped.
  E. Source IP: 10.20.10.50; Destination IP: pool member in the 192.168/16 network
  F. Source IP: 182.16.1.1; Destination IP: pool member in the 172316/16 network
  G. Source IP: 192.168.10.50; Destination IP: pool member in the 192.168/16 network
  H. Source IP:192.168.10.50; Destination IP: pool member in the 192.168./16 network
  F. Source IP: 182.16.1.1; Destination IP: pool member in the 172316/16 network

• Question 674:

  After all expected HTTP data has been sent from a server to a client, the client does not close connection. The server reaps the connection, but after that the client sends a "Keep alive" packet to the server. Which type of packet will the server respond with?

  A. FiN
  B. RST
  C. ACK
  D. SYN
  B. RST

• Question 675:

  When configuring monitors for individual pool members, which three options can be selected? (Choose three.)

  A. inherit the pool's monitor
  B. choose a default monitor
  C. inherit the Wide-IP's monitor
  D. assign a monitor to the specific pool member
  E. do not assign any monitor to the specific pool member
  A. inherit the pool's monitor
  D. assign a monitor to the specific pool member
  E. do not assign any monitor to the specific pool member

• Question 676:

  A new virtual server is being tested to replace http://myapp.mydomain.com. The original virtual server is still on use. And the new virtual server is on a different ip address. What should be done to test this new virtual server using the fully quailed domain name for this application?

  A. add a DNS record for the fully qualified domain name
  B. add the fully qualified domain name to the browser cache
  C. make an entry in the client host file
  D. make an entry in the web server services file
  C. make an entry in the client host file

• Question 677:

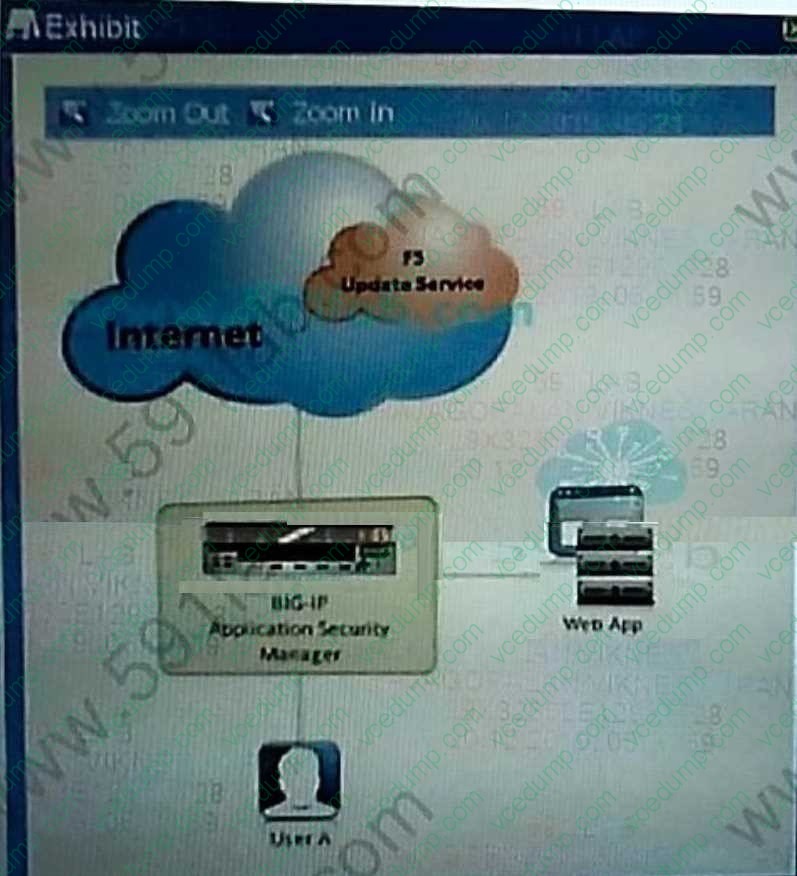

  BIG-IP ASM is requesting automatic signature updates from the F5 update service



  Who is considered the server in this communication?

  A. BIG-IP
  B. User A
  C. F5 update Service
  D. web application
  C. F5 update Service

• Question 678:

  A load balancer receives a TCP SYN packet from a client and immediately sends the packet on to a server.

  This is an example of which type of solution?

  A. packet forwarding architecture
  B. Full proxy architecture
  C. TCP compression
  D. TCP optimization
  A. packet forwarding architecture

• Question 679:

  What is the main business driver for bringing Enterprise Manager into the network infrastructure?

  A. Consolidate management of administrator and user accounts
  B. Consolidate management of licenses
  C. Consolidate management of SSL certificates
  D. Consolidate management of BIG-IP devices
  E. Consolidate management of access policies
  D. Consolidate management of BIG-IP devices

• Question 680:

  The F5 Application Delivery Firewall has the ability to outperform traditional and next generation firewalls during DDoS attacks by leveraging the performance and scalability of BIG-IP to hand extremely high loads, including high throughput, high connection count, and high number of connections per second.

  A. True
  B. False
  A. True
