• Question 631:

  An administrator sets up a web server for a new web application. The administrator cannot access the web server at is causing this issue?



  A. The HTTP service only listens on localhost
  B. The users IP needs to be allowed to access
  C. The server needs to be restarted
  D. The HTTPS service Is not running
  A. The HTTP service only listens on localhost

• Question 632:

  What technology does ARX use to create a logical abstraction of the physical storage environment?

  A. Data de-duplication
  B. File virtualization
  C. Server virtualization
  D. SSL encryption
  B. File virtualization

• Question 633:

  When can a single virtual server be associated with multiple profiles?

  A. Never. Each virtual server has a maximum of one profile.
  B. Often. Profiles work on different layers and combining profiles is common.
  C. Rarely. One combination, using both the TCP and HTTP profile does occur, but it is the exception.
  D. Unlimited. Profiles can work together in any combination to ensure that all traffic types are supported in a given virtual server.
  B. Often. Profiles work on different layers and combining profiles is common.

• Question 634:

  Which of the following can be accomplished using iRules?

  A. Track inbound and outbound traffic
  B. Perform deep packet inspection
  C. Inspect traffic and drop it
  D. All of the above
  E. Intercept traffic and redirect it
  D. All of the above

• Question 635:

  Which event is always triggered when the client sends data to a virtual server using TCP?

  A. HTTP_DATA
  B. CLIENT_DATA
  C. HTTP_REQUEST
  D. VS_CONNECTED
  B. CLIENT_DATA

• Question 636:

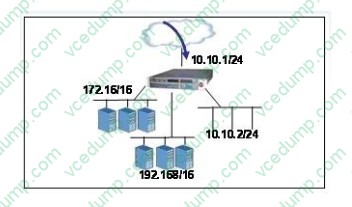

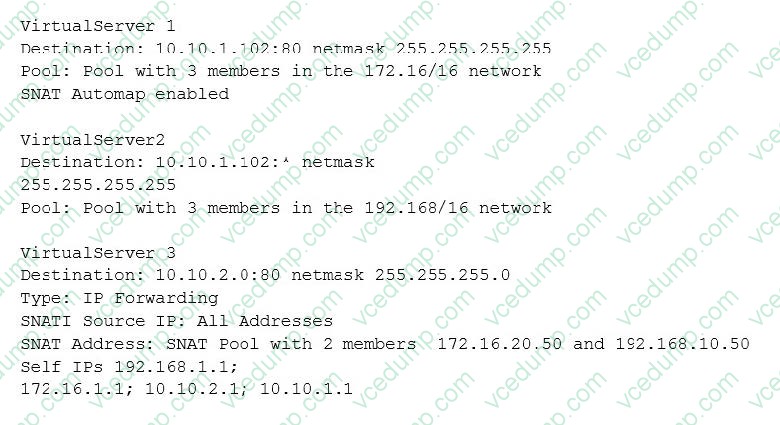

  Click the Exhibit Button an LTM has the 3 virtual servers, a SNAT defined, four self IP addresses defined and the networks shown in the exhibit. Selected options for each object are shown below. Settings not shown are at their defaults.



  A connection attempt is made with a source IP and port of 10.20.100.50:80 and a destination IP and port of 10.10.2.10:80. When the request is processed, what will be the source and destination IP addresses?



  A. The request will be dropped.
  B. Source IP: Either 172.16.20.50 or 192.168.10.50; Destination IP: 10.10.2010
  C. Source IP: 10.20.100.50; Destination IP: 10.10.2.10
  D. Source IP: 10.10.2.1; Destination IP: 10.10.2.10
  B. Source IP: Either 172.16.20.50 or 192.168.10.50; Destination IP: 10.10.2010

• Question 637:

  Given that VLAN failsafe is enabled on the external VLAN and the network that the active BIG-IP's external VLAN is connected to has failed, which statement is always true about the results?

  A. The active system will note the failure in the HA table.
  B. The active system will reboot and the standby system will go into active mode.
  C. The active system will failover and the standby system will go into active mode.
  D. The active system will restart the traffic management module to eliminate the possibility that BIG-IP is the cause for the network failure.
  A. The active system will note the failure in the HA table.

• Question 638:

  CORRECT TEXT The layer 3 security feature _______ Cookies that protects against SYN floods, DoS, and DDoS attacks. (Fill in)

  contain / include

• Question 639:

  An administrator needs to connect a new device to a switched network. The interconnect must be both redundant and combined bandwidth than a single link Which low-level protocol will help facilitate this?

  A. Link Aggregation Control Protocol (LACP)
  B. Link Allocation and Configuration Protocol (LACP)
  C. Link Local Distribution Protocol (LLDP)
  D. Link Layer Discovery Protocol (LDP)
  A. Link Aggregation Control Protocol (LACP)

• Question 640:

  A, steaming profile will do which of the following?

  A. Search and replace all occurrences of a specified string only is responses processed by a virtual server.
  B. Search and replace all occurrences of a specified string only in request processed by a virtual server.
  C. Search and replace all occurrences of a specified string in requests and responses processed by a virtual server.
  D. Search and replace the first occurrence of a specified of a specified string in either a request or response processed by a virtual server.
  C. Search and replace all occurrences of a specified string in requests and responses processed by a virtual server.
