Cisco 010-151 Online Practice Questions and Exam Preparation

Cisco 010-151 Online Questions & Answers

• Question 121:

  What does the IEEE 802.3 standard define?

  A. the physical layer of wired Ethernet
  B. the signal strength of wireless networks
  C. the application layer of wired networks
  D. the physical layer of wireless networks
  A. the physical layer of wired Ethernet

  ---

  Explanation/Reference:

• Question 122:

  Which type of connection across the network does a SAN allow for multiple servers to access an unlimited amount of storage devices?

  A. any-to-many
  B. many-to-any
  C. any-to-any
  D. any-to-one
  E. one-to-any
  F. one-to-one
  C. any-to-any

• Question 123:

  On the Sensors page from the CIMC view, which four tabs are displayed to view further information? (Choose four.)

  A. Power Supply
  B. Fan
  C. Memory
  D. CPU
  E. LEDs
  F. Temperature
  A. Power Supply
  B. Fan
  E. LEDs
  F. Temperature

  ---

  Explanation/Reference:

  There are 2 more tabs: Voltage and Current

• Question 124:

  Which device contains the CIMC and should always be present in the Cisco UCS E-Series Servers?

  A. CMOS
  B. SD1
  C. HDD
  D. SD0
  D. SD0

  ---

  Explanation/Reference:

• Question 125:

  Which important feature on the front end is provided to the clients by multiple servers that access the same storage devices across the SAN?

  A. recovery
  B. redundancy
  C. resiliency
  D. security
  E. storage
  B. redundancy

• Question 126:

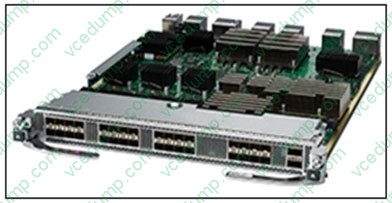

  Refer to the exhibit. What is the name of this Cisco MDS 9700 Series network module?

  A. Cisco MDS 9700 48-port 16-Gbps switching module
  B. Cisco MDS 9700 48-port 32-Gbps Fibre Channel switching module
  C. Cisco MDS 48-Port 10-Gbps Fibre Channel over Ethernet module
  D. Cisco MDS 24-/10-port SAN Extension module
  B. Cisco MDS 9700 48-port 32-Gbps Fibre Channel switching module

  ---

  Explanation/Reference:

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/hw/9700/mds_9700_hig.pdf page 47

• Question 127:

  Which command can be used to exit to EXEC mode from this current mode? switch(config-if) #

  A. Ctrl-C
  B. Ctrl-L
  C. quit
  D. exit
  E. end
  E. end

  ---

  Explanation/Reference:

• Question 128:

  Which processor option is supported in the Cisco UCS C420 M3 Server?

  A. up to two Intel Xeon E5-4600 series multicore processors
  B. up to two Intel Xeon E7-4800 series multicore processors
  C. up to four Intel Xeon E5-4600 series multicore processors
  D. two or four Intel Xeon E7-8800 series multicore processors
  C. up to four Intel Xeon E5-4600 series multicore processors

  ---

  Explanation/Reference:

• Question 129:

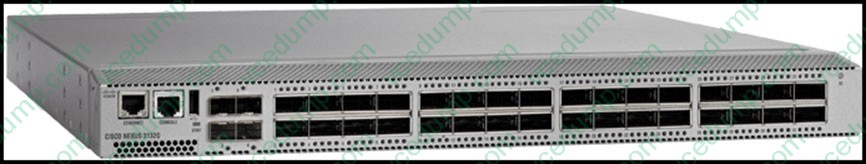

  Refer to the exhibit.



  What is the name of this Cisco Nexus 3000 Series Switch?

  A. Cisco Nexus 3132Q
  B. Cisco Nexus 3172PQ
  C. Cisco Nexus 3524
  D. Cisco Nexus 3016
  A. Cisco Nexus 3132Q

  ---

  Explanation/Reference:

• Question 130:

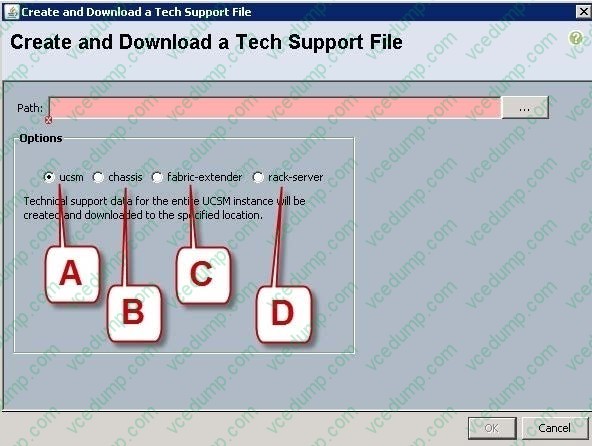

  Refer to the exhibit.



  Which option should you select to get the output of the show tech-support detail command for the Cisco UCS B-Series blade?

  A. A - ucsm
  B. B - chassis
  C. C - fabric-extender
  D. D - rack-server
  A. A - ucsm

  ---

  Explanation/Reference:
