Q5 Single choice

Refer to the exhibits.

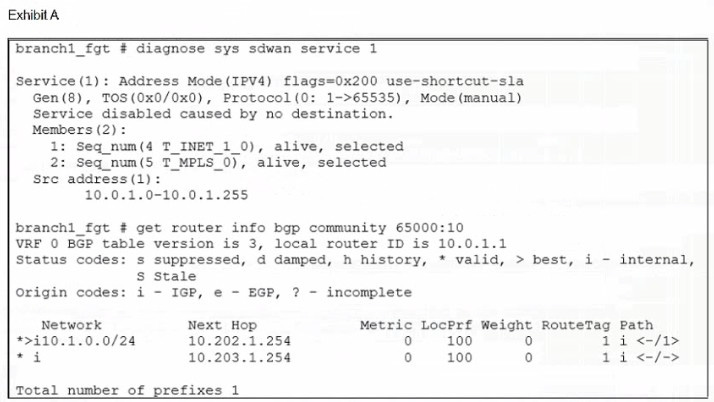

Exhibit A shows the SD-WAN rule status and the learned BGP routes with community 65000:10.

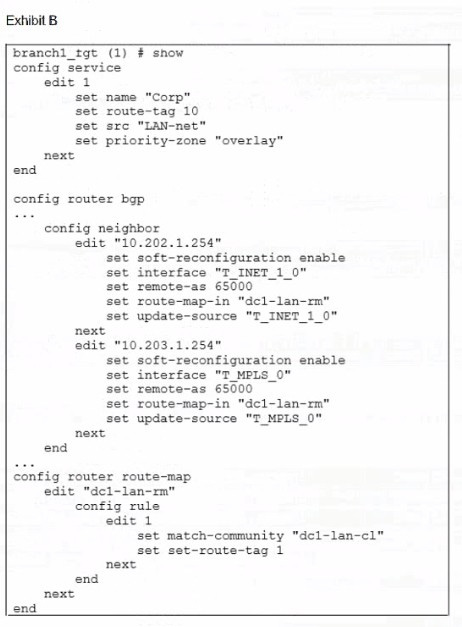

Exhibit B shows the SD-WAN rule configuration, the BGP neighbor configuration, and the route map configuration.

The administrator wants to steer corporate traffic using routes tags in the SD-WAN rule ID 1.

However, the administrator observes that the corporate traffic does not match the SD-WAN rule ID 1.

Based on the exhibits, which configuration change is required to fix issue?

A
In the dc1-lan-rm route map configuration, set set-route-tag to 10.
B
In SD-WAN rule ID 1, change the destination to use ISDB entries.
C
In the dc1-lan-rm route map configuration, unset match-community.
D
In the BGP neighbor configuration, apply the route map dc1-lan-rm in the outbound direction.
