• Question 31:

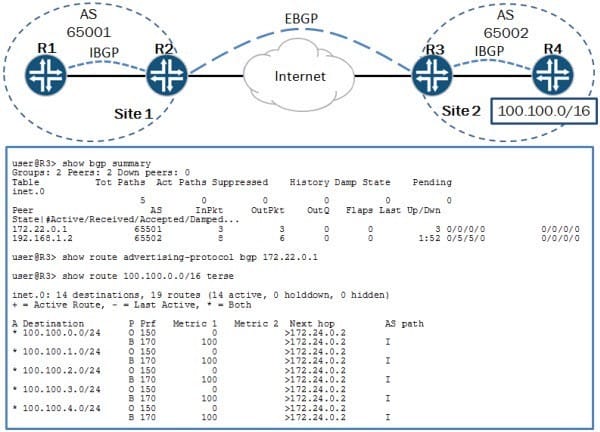

  -- Exhibit -- Exhibit -Click the Exhibit button. You are asked to assist with a problem with a new EBGP peering between Site 1 and Site 2. Referring to



  the exhibit, Site 1 is not receiving the 100.100.0.0/16 routes from Site 2. Which action will resolve the problem?

  A. Enable the advertise-inactive parameter for the EBGP peering.

  B. Enable the as-override parameter for the EBGP peering.

  C. Create an export policy to export the IBGP routes over the EBGP peering.

  D. Create a next-hop-self policy and apply it as an export policy to the EBGP peering.

  Correct Answer: A

• Question 32:

  -- Exhibit -user@R1> show bgp neighbor 172.10.3.201 Peer: 172.10.3.201+54714 AS 64512 Local: 172.10.3.202+179 AS 64513 Type: External State: Established Flags: Last State: OpenConfirm Last Event: RecvKeepAlive Last Error: None Export: [ export ] Options: Local Address: 172.10.3.202 Holdtime: 90 Preference: 170 Local AS: 64513 Local System AS: 0 Number of flaps: 0 Peer ID. 10.247.194.254 Local ID. 10.247.24.6 Active Holdtime: 90 Keepalive Interval: 30 Peer index: 0 BFD. disabled, down Local Interface: ge-0/0/0.500 NLRI for restart configured on peer: inet-unicast NLRI advertised by peer: inet-unicast NLRI for this session: inet-unicast Peer supports Refresh capability (2) Restart time configured on the peer: 120 Stale routes from peer are kept for: 300 Restart time requested by this peer: 120 NLRI that peer supports restart for: inet-unicast NLRI that restart is negotiated for: inet-unicast NLRI of received end-of-rib markers: inet-unicast NLRI of all end-of-rib markers sent: inet-unicast Peer supports 4 byte AS extension (peer-as 64512) Peer does not support Addpath Table inet.0 Bit: 30000 RIB State: BGP restart is complete RIB State: VPN restart is complete Send state: in sync Active prefixes: 7 Received prefixes: 7 Accepted prefixes: 7 Suppressed due to damping: 0 Advertised prefixes: 30 Last traffic (seconds): Received 5 Sent 18 Checked 8 Input messages: Total 40 Updates 3 Refreshes 0 Octets 877 Output messages: Total 55 Updates 13 Refreshes 0 Octets 1764 Output Queue[2]: 0 -- Exhibit -

  Click the Exhibit button.

  A customer reports that BGP graceful restart is not working on R1. After a Routing Engine failover, R1 did not set the restart state bit in its Open message. The customer provides the BGP neighbor output shown in the exhibit.

  Referring the exhibit, what is causing this problem?

  A. BGP graceful restart is not enabled on R1.

  B. BGP graceful restart is not enabled on the peer device.

  C. The restart duration time is not configured on R1.

  D. The restart duration time is not configured on the peer device.

  Correct Answer: A

• Question 33:

  -- Exhibit -user@router> show route protocol bgp detail

  inet.0: 20 destinations, 20 routes (19 active, 0 holddown, 1 hidden) 10.222.1.3/32 (1 entry, 1 announced) *BGP Preference: 170/-101 Next hop type: Indirect Address: 0x15ec944 Next-hop reference count: 3 Source: 1.1.1.1 Next hop type: Router, Next hop index: 536 Next hop: 1.1.1.1 via ge-0/0/1.0, selected Protocol next hop: 1.1.1.1 Indirect next hop: 14081d0 262142 State: Local AS: 65222 Peer AS: 65221 Age: 2:12 MetriC. 1 Metric2: 0 Task: BGP_65221.1.1.1.1+56417 Announcement bits (2): 0-KRT 4-Resolve tree 1 AS path: 65221 I Communities: no-advertise Accepted Localpref: 100 Router ID. 10.222.1.1 -- Exhibit -

  Click the Exhibit button.

  You are troubleshooting a problem where an EBGP route is not being advertised to your local IBGP peers. You have received a 10.222.1.3/32 route from an EBGP peer as shown in the exhibit, but the route is not being advertised.

  What is causing the problem?

  A. The route shows as a hidden route and cannot be advertised.

  B. The next hop for the route is indirect and prevents the route from being advertised.

  C. The community prevents the route from being advertised.

  D. The local preference value is too high for the route to be advertised.

  Correct Answer: C

• Question 34:

  -- Exhibit -user@router# run show log bgp-test ... Jun 10 23:50:43.056697 BGP SEND 192.168.133.1+179 -> 192.168.133.0+64925 Jun 10 23:50:43.056739 BGP SEND message type 3 (Notification) length 23 Jun 10 23:50:43.056760 BGP SEND Notification code 2 (Open Message Error) subcode 7 (unsupported capability) Jun 10 23:50:43.056781 BGP SEND Data (2 bytes): 00 04 Jun 10 23:50:52.215104 advertising receiving-speaker only capabilty to neighbor ::192.168.133.0 (External AS 300) Jun 10 23:50:52.215173 bgp_senD. sending 59 bytes to ::192.168.133.0 (External AS 300) Jun 10 23:50:52.215200 Jun 10 23:50:52.215200 BGP SEND ::192.168.133.1+179 -> ::192.168.133.0+57107 Jun 10 23:50:52.215233 BGP SEND message type 1 (Open) length 59 Jun 10 23:50:52.215256 BGP SEND version 4 as 23456 holdtime 90 id 10.200.1.1 parmlen 30 Jun 10 23:50:52.215276 BGP SEND MP capability AFI=2, SAFI=1 Jun 10 23:50:52.215294 BGP SEND Refresh capability, code=128 Jun 10 23:50:52.215312 BGP SEND Refresh capability, code=2 Jun 10 23:50:52.215332 BGP SEND Restart capability, code=64, time=120, flags= Jun 10 23:50:52.215353 BGP SEND 4 Byte AS-Path capability (65), as_num 2123456789 Jun 10 23:50:52.216018 Jun 10 23:50:52.216018 BGP RECV ::192.168.133.0+57107 -> ::192.168.133.1+179 Jun 10 23:50:52.216058 BGP RECV message type 3 (Notification) length 21 Jun 10 23:50:52.216079 BGP RECV Notification code 2 (Open Message Error) subcode 2 (bad peer AS number) Jun 10 23:51:15.058112 advertising receiving-speaker only capabilty to neighbor 192.168.133.0 (External AS 300) Jun 10 23:51:15.058192 bgp_senD. sending 59 bytes to 192.168.133.0 (External AS 300) Jun 10 23:51:15.058217 Jun 10 23:51:15.058217 BGP SEND 192.168.133.1+50083 -> 192.168.133.0+179 Jun 10 23:51:15.058250 BGP SEND message type 1 (Open) length 59 Jun 10 23:51:15.058273 BGP SEND version 4 as 65001 holdtime 90 id 10.200.1.1 parmlen 30 Jun 10 23:51:15.058294 BGP SEND MP capability AFI=1, SAFI=128 Jun 10 23:51:15.058312 BGP SEND Refresh capability, code=128 Jun 10 23:51:15.058331 BGP SEND Refresh capability, code=2 Jun 10 23:51:15.058386 BGP SEND Restart capability, code=64, time=120, flags= Jun 10 23:51:15.058416 BGP SEND 4 Byte AS-Path capability (65), as_num 65001 Jun 10 23:51:15.058651 bgp_pp_recv:3140: NOTIFICATION sent to 192.168.133.0 (External AS 300): code 6 (Cease) subcode 7 (Connection collision resolution), Reason: dropping

  192.168.133.0 (External AS 300), connection collision prefers 192.168.133.0+53170 (proto) Jun 10 23:51:15.058680 bgp_senD. sending 21 bytes to 192.168.133.0 (External AS 300) Jun 10 23:51:15.058702 Jun 10 23:51:15.058702 BGP SEND 192.168.133.1+50083 -> 192.168.133.0+179 Jun 10 23:51:15.058735 BGP SEND message type 3 (Notification) length 21 Jun 10 23:51:15.058755 BGP SEND Notification code 6 (Cease) subcode 7 (Connection collision resolution) Jun 10 23:51:15.059557 advertising receiving-speaker only capabilty to neighbor 192.168.133.0 (External AS 300) Jun 10 23:51:15.059594 bgp_senD. sending 59 bytes to 192.168.133.0 (External AS 300) Jun 10 23:51:15.059617 Jun 10 23:51:15.059617 BGP SEND 192.168.133.1+179 -> 192.168.133.0+53170 Jun 10 23:51:15.059649 BGP SEND message type 1 (Open) length 59 Jun 10 23:51:15.059671 BGP SEND version 4 as 65001 holdtime 90 id 10.200.1.1 parmlen 30 Jun 10 23:51:15.059691 BGP SEND MP capability AFI=1, SAFI=128 Jun 10 23:51:15.059709 BGP SEND Refresh capability, code=128 Jun 10 23:51:15.059727 BGP SEND Refresh capability, code=2 Jun 10 23:51:15.059747 BGP SEND Restart capability, code=64, time=120, flags= Jun 10 23:51:15.059768 BGP SEND 4 Byte AS-Path capability (65), as_num 65001 Jun 10 23:51:15.060383 bgp_process_caps: mismatch NLRI with 192.168.133.0 (External AS 300): peer: (1) us: (4) Jun 10 23:51:15.060445 bgp_process_caps:2578: NOTIFICATION sent to 192.168.133.0 (External AS 300): code 2 (Open Message Error) subcode 7 (unsupported capability) value 4 Jun 10 23:51:15.060470 bgp_senD. sending 23 bytes to 192.168.133.0 (External AS 300) Jun 10 23:51:15.060492 Jun 10 23:51:15.060492 BGP SEND 192.168.133.1+179 -> 192.168.133.0+53170 Jun 10 23:51:15.060556 BGP SEND message type 3 (Notification) length 23 Jun 10 23:51:15.060578 BGP SEND Notification code 2 (Open Message Error) subcode 7 (unsupported capability) Jun 10 23:51:15.060600 BGP SEND Data (2 bytes): 00 04 -- Exhibit -

  Click the Exhibit button.

  Referring to the exhibit, what is causing the IPv4 BGP peering to stay in an active state?

  A. The peer AS is incorrect.

  B. The peer does not support 4-byte AS values.

  C. The peer has an NLRI mismatch.

  D. The peer has an incorrect IP address.

  Correct Answer: C

• Question 35:

  -- Exhibit



  -- Exhibit -

  Click the Exhibit button.

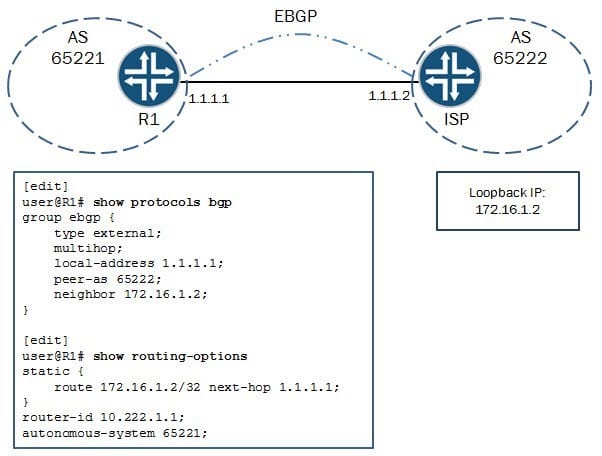

  You are asked to configure a multihop EBGP peering to a loopback address of your ISP. The peering does

  not establish, and the ISP has verified that the settings are correct on their side.

  Referring to the exhibit, what is causing the problem?

  A. The peer-as parameter is misconfigured.

  B. The local-address parameter is misconfigured.

  C. The static route is misconfigured.

  D. The neighbor parameter is misconfigured.

  Correct Answer: C

• Question 36:

  -- Exhibit -user@R1> show ospf neighbor Address Interface State ID Pri Dead

  10.222.0.2 ge-0/0/1.0 Init 10.222.1.2 128 32

  user@R1> show ospf interface detail Interface State Area DR ID BDR ID Nbrs ge-0/0/1.0 DR 0.0.0.0 10.222.1.1 0.0.0.0 1 Type: LAN, Address: 10.222.0.1, Mask: 255.255.255.252, MTU: 1500, Cost: 1 DR addr: 10.222.0.1, Priority: 128 Adj count: 0 Hello: 10, DeaD. 40, ReXmit: 5, Not Stub Auth type: MD5, Active key ID. 10, Start time: 1970 Jan 1 00:00:00 UTC Protection type: None Topology default (ID 0) -> Cost: 1 lo0.0 DR 0.0.0.0 10.222.1.1 0.0.0.0 0 Type: LAN, Address: 10.222.1.1, Mask: 255.255.255.255, MTU: 65535, Cost: 0 DR addr: 10.222.1.1, Priority: 128 Adj count: 0 Hello: 10, DeaD. 40, ReXmit: 5, Not Stub Auth type: None Protection type: None Topology default (ID 0) -> Cost: 0

  user@R2> show ospf neighbor

  user@R2> show ospf interface detail Interface State Area DR ID BDR ID Nbrs ge-0/0/1.0 PtToPt 0.0.0.0 0.0.0.0 0.0.0.0 0 Type: P2P, Address: 10.222.0.2, Mask: 255.255.255.252, MTU: 1500, Cost: 1 Adj count: 0 Hello: 10, DeaD. 40, ReXmit: 5, Not Stub Auth type: MD5, Active key ID. 10, Start time: 1970 Jan 1 00:00:00 UTC Protection type: None Topology default (ID 0) -> Cost: 1 lo0.0 DR 0.0.0.0 10.222.1.2 0.0.0.0 0 Type: LAN, Address: 10.222.1.2, Mask: 255.255.255.255, MTU: 65535, Cost: 0 DR addr: 10.222.1.2, Priority: 128 Adj count: 0 Hello: 10, DeaD. 40, ReXmit: 5, Not Stub Auth type: None Protection type: None Topology default (ID 0) -> Cost: 0 -- Exhibit -

  Click the Exhibit button.

  You are trying to establish an OSPF adjacency between R1 and R2, but the adjacency does not establish.

  Referring to the exhibit, what is causing the adjacency to fail?

  A. The MD5 key ID values are mismatched between R1 and R2.

  B. R1 has both family inet and family iso configured on the link toward R2.

  C. The IP subnet mask is mismatched between R1 and R2.

  D. The interface type is mismatched between R1 and R2.

  Correct Answer: D

• Question 37:

  -- Exhibit

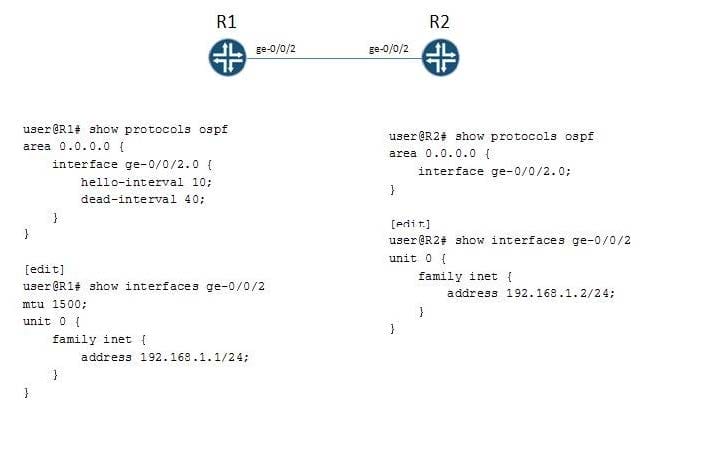

  -- Exhibit -Click the Exhibit button.

  You are troubleshooting an OSPF adjacency problem between R1 and R2.

  Referring to the exhibit, what is causing this OSPF adjacency problem?

  A. There is a hello interval mismatch.

  B. There is a dead interval mismatch.

  C. There is an MTU mismatch.

  D. There is an LSA refresh timer mismatch.

  Correct Answer: C

• Question 38:

  -- Exhibit -Jun 12 02:56:06 R1 rpd[60735]: RPD_OSPF_NBRDOWN: OSPF neighbor 10.50.10.25 (realm ospf-v2 fe0/0/4.0 area 0.0.0.0) state changed from Full to Init due to 1WayRcvd (event reason: neighbor is in one-way mode) Jun 12 02:59:36 R1 rpd[60735]: RPD_OSPF_NBRUP: OSPF neighbor 10.50.10.25 (realm ospf-v2 fe0/0/4.0 area 0.0.0.0) state changed from Init to ExStart due to 2WayRcvd (event reason: neighbor detected this router) Jun 12 02:59:36 R1 rpd[60735]: RPD_OSPF_NBRUP: OSPF neighbor 10.50.10.25 (realm ospf-v2 fe0/0/4.0 area 0.0.0.0) state changed from Exchange to Full due to ExchangeDone (event reason: DBD exchange of slave completed) -- Exhibit -

  Click the Exhibit button.

  You notice that there is a problem with the OSPF adjacency between two routers, R1 and R2. The relevant system logs from R1 are shown in the exhibit.

  What would cause this behavior?

  A. R2 was dropping R1's OSPF hello packets.

  B. R1 was dropping R2's OSPF hello packets.

  C. R1's interface went down and came back up.

  D. There is an OSPF hello timer mismatch between the two routers.

  Correct Answer: A

• Question 39:

  -- Exhibit



  -- Exhibit -Click the Exhibit button.

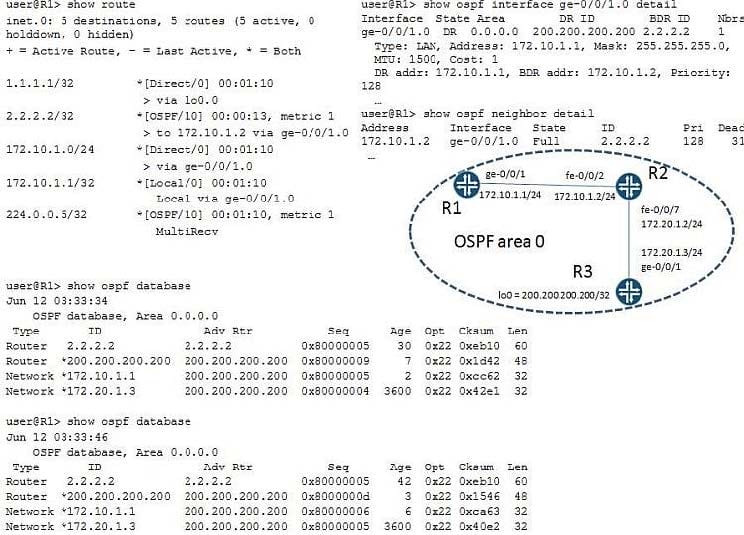

  Referring to the exhibit, you are configuring an OSPF network. All OSPF adjacencies come up and stay stable. But neither R1 nor R2 has the prefix 200.200.200.200/32 in its routing table.

  What is causing this problem?

  A. R2 does not have the export policy for prefix 200.200.200.200/32.

  B. R1 does not have routes to network 172.10.1.0/24.

  C. R2 is BDR on both network 172.10.1.0/24 and 172.20.1.0/24.

  D. The router ID of R1 is the same as the router ID of R3.

  Correct Answer: D

• Question 40:

  -- Exhibit -user@router> show ospf database

  Area 0.0.0.1 Type ID Adv Rtr Seq Age Opt Cksum Len Router 172.24.255.1 172.24.255.1 0x800000d4 182 0x22 0x59f3 36 Router 172.24.255.2 172.24.255.2 0x800000d4 177 0x22 0x57f2 36 Router *172.24.255.4 172.24.255.4 0x800000dc 176 0x22 0x75fa 72 Network 172.24.124.2 172.24.255.2 0x80000007 177 0x22 0x7957 36 Summary 172.24.13.0 172.24.255.1 0x80000004 2370 0x22 0x3f62 28 Summary 172.24.23.0 172.24.255.1 0x80000002 471 0x22 0xdeb9 28 Summary 172.24.255.1 172.24.255.1 0x800000cb 2037 0x22 0x2bbb 28 Summary 172.24.255.2

  172.24.255.2 0x800000cc 487 0x22 0x19ca 28 Summary 172.24.255.3 172.24.255.1 0x80000003 140 0x22 0xb2f9 28 OSPF AS SCOPE link state database Type ID Adv Rtr Seq Age Opt Cksum Len Extern *1.47.82.0 172.24.255.4 0x80000002 1037 0x22 0x4225 36 Extern *100.0.0.0 172.24.255.4 0x80000001 2643 0x22 0xfc88 36

  user@router> show ospf neighbor Address Interface State ID Pri Dead

  172.24.124.2 ge-0/0/1.0 Full 172.24.255.2 128 36

  172.24.124.1 ge-0/0/1.0 Full 172.24.255.1 128 30

  user@router> show ospf interface ge-0/0/1.0 extensive Interface State Area DR ID BDR ID Nbrs ge-0/0/1.0 PtToPt 0.0.0.1 0.0.0.0 0.0.0.0 2 Type: P2MP, Address: 172.24.124.4, Mask: 255.255.255.0, MTU: 1500, Cost: 1 Adj count: 2 Hello: 10, DeaD. 40, ReXmit: 5, Not Stub Auth type: None Protection type: None Topology default (ID 0) -> Cost: 1 user@router> show route protocol ospf table inet.0

  inet.0: 11133 destinations, 11135 routes (11133 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both

  224.0.0.5/32 *[OSPF/10] 1w0d 00:01:14, metric 1 MultiRecv -- Exhibit -

  Click the Exhibit button.

  Referring to the exhibit, why are the OSPF routes missing from the routing table for this router?

  A. mismatching OSPF interface type with the neighbor

  B. MTU mismatch with the neighbor

  C. incorrect IP address configured on the interface

  D. no Type 4 LSAs in the OSPF database

  Correct Answer: A
