Juniper Juniper Certifications JN0-694 Questions & Answers

• Question 1:

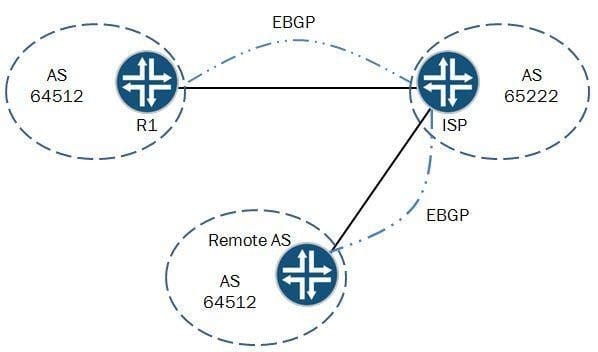

  You want to receive routes from a remote EBGP peer as shown in the exhibit. The remote site has the same AS number as your own. You have successfully established the EBGP peering, but are not receiving any routes.

  Which BGP group configuration parameter will enable you to receive routes from the remote EBGP peer?



  A. advertise-inactive

  B. multipath

  C. as-override

  D. remove-private

  Correct Answer: C

• Question 2:

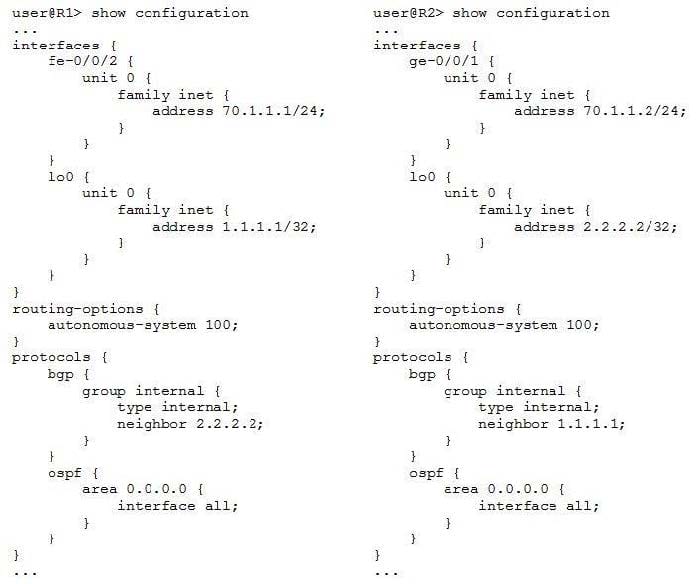

  You are configuring an IBGP peer between R1 and R2. The BGP neighbor cannot be established. Referring to the exhibit, which configuration change will resolve this problem?



  A. Configure local-address on R1 and R2.

  B. Configure local-as on R1 and R2.

  C. Configure family inet-unicast on R1 and R2.

  D. Configure router-id on R1 and R2.

  Correct Answer: C

• Question 3:

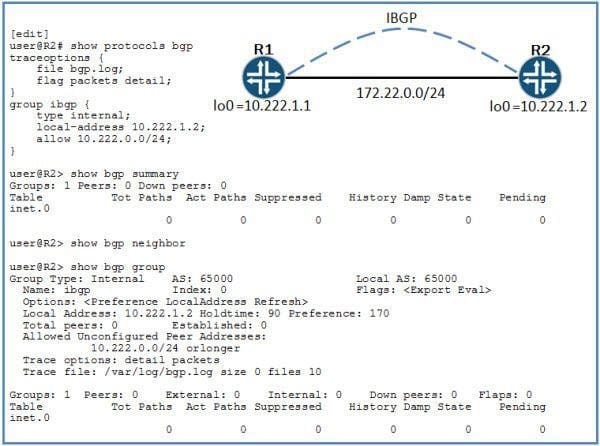

  You are asked to troubleshoot the new IBGP peering session shown in the exhibit between R1 and R2. Which action will resolve the problem?



  A. Configure the multihop option.

  B. Configure the accept-remote-nexthop option.

  C. Change the allowed peer range to 10.222.1.0/24.

  D. Change the allowed peer range to 172.22.0.0/24.

  Correct Answer: C

• Question 4:

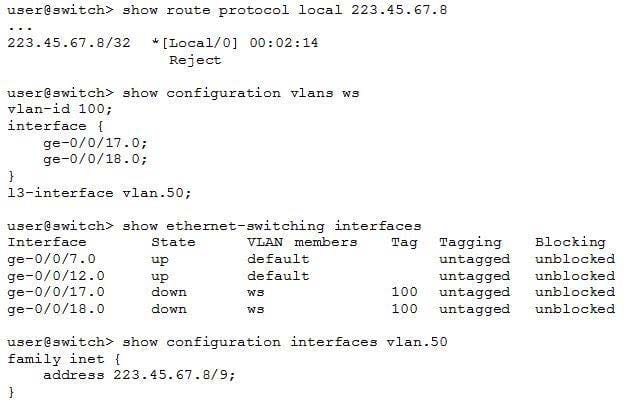

  Referring to the exhibit, an administrator notices that the VLAN interface is not coming up. What would cause this problem? Click the Exhibit to see a larger version.



  A. All member interfaces are down.

  B. The unit number for the VLAN is misconfigured.

  C. The subnet mask is incorrect.

  D. All member interfaces are in access mode

  Correct Answer: A

• Question 5:

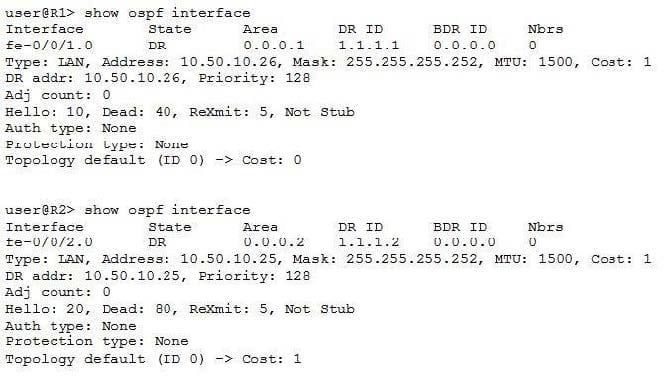

  You have configured OSPF between two routers and the adjacency is not coming up. You confirm that the physical link between them is up and then run the commands shown in the exhibit on both routers. Which two configuration mistakes apply? (Choose two.)



  A. The hello timer is mismatched.

  B. The subnet is mismatched.

  C. The DR ID is mismatched.

  D. The area ID is mismatched.

  Correct Answer: AD

• Question 6:

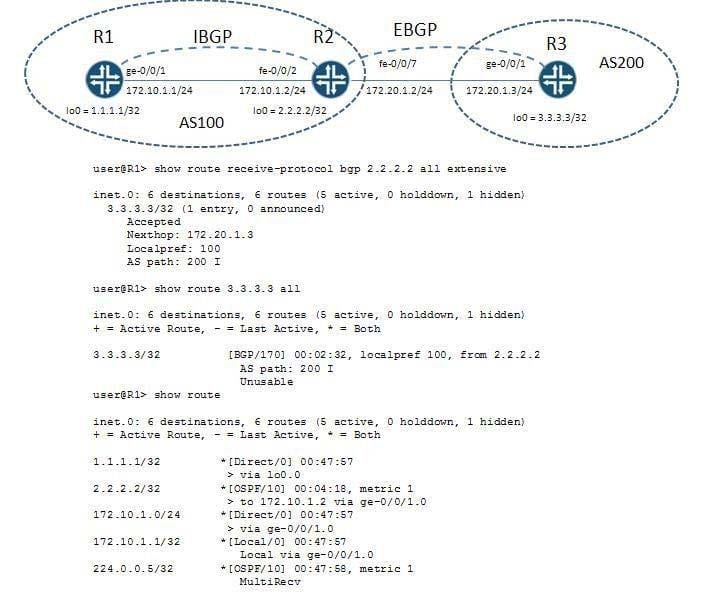

  Referring to the exhibit, the prefix 3.3.3.3/32 is not in R1 's routing table. Which two configuration changes on R2 would resolve the problem? (Choose two.)



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: BC

• Question 7:

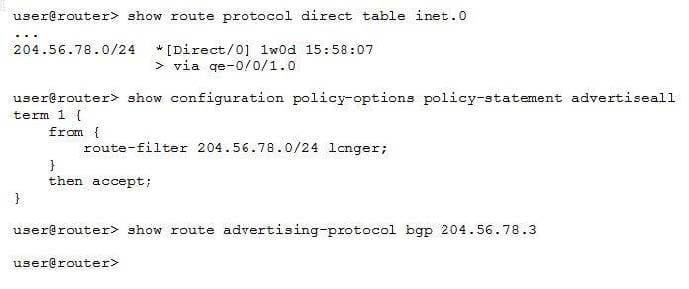

  Referring to the exhibit, an administrator is trying to advertise a direct route to its neighbor. The route is not advertised. What is causing this behavior?



  A. The policy needs the orlonger match.

  B. The policy needs to match on protocol direct

  C. The policy needs to have the accept action inside the term.

  D. The policy needs to add a seed metric into BGP.

  Correct Answer: A

• Question 8:

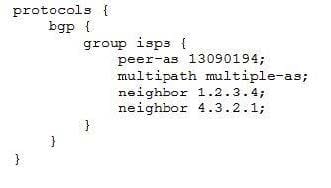

  The exhibit shows the BGP configuration for a router. The router should be receiving an identical set of prefixes over its two peering sessions. You want to ensure the router is using both routes for forwarding. Which command will show this information?



  A. show bgp neighbor

  B. show route forwarding-table

  C. show route protocol bgp

  D. show route receive-protocol bgp

  Correct Answer: B

• Question 9:

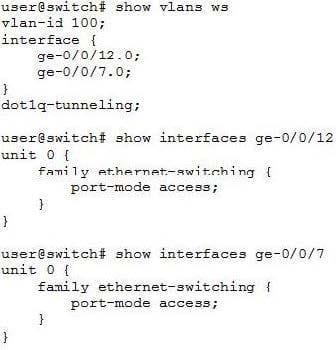

  Referring to the exhibit, an administrator has configured dot1q-tunneling on the VLAN, but LLDP is not being tunneled.



  What is causing the problem?

  A. LLDP needs to be enabled as a protocol to tunnel.

  B. LLDP can only be processed one hop away.

  C. LLDP needs to be disabled on the tunneling device.

  D. LLDP tunneling only works on trunked interfaces.

  Correct Answer: A

• Question 10:

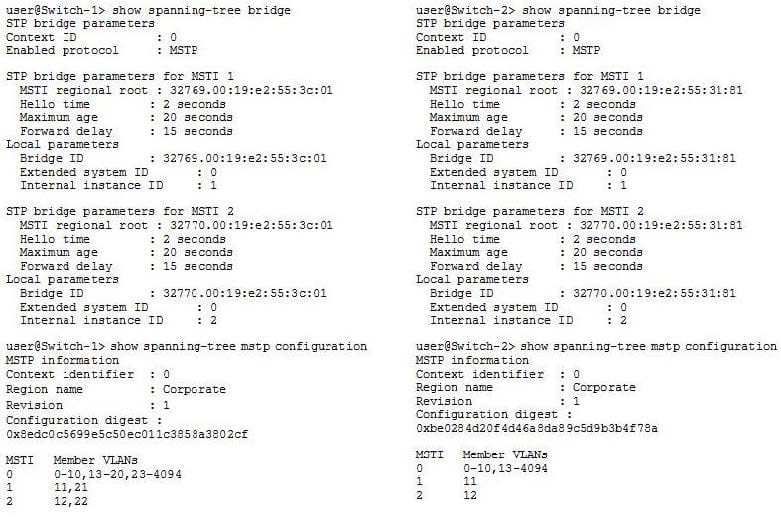

  You are asked to troubleshoot a problem with MSTP and determine why Switch-1 and Switch-2 think they are the root bridge for the same MSTI instances. Switch-1 should be the root bridge for the MSTI 1 instance and Switch-2 should be the root bridge for the MSTI 2 instance. Referring to the exhibit, what is causing this problem?



  A. The configuration digest is misconfigured.

  B. Both switches have the same bridge priority.

  C. The member VLAN assignments are not identical.

  D. The revision levels are identical.

  Correct Answer: C
