Extreme Networks Extreme Networks Certifications EW0-200 Questions & Answers

• Question 171:

  The CLI Command ?7KHand/,andRPPDQGdisable learning ports 1?will do the following on an Extreme switch:

  A. disable MAC address learning for port 1

  B. disable link detection for port 1

  C. disable STP learning on port 1

  D. None of the above

  Correct Answer: A

• Question 172:

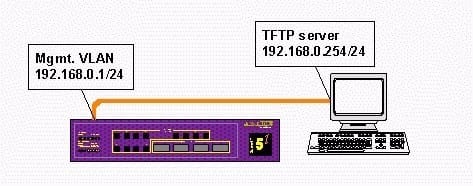

  Given the following diagram, which command would you use to send the switch active configuration file to the TFTP server?



  A. download config 192.168.0.1

  B. upload config 192.168.0.254

  C. download config 192.168.0.254

  D. upload config 192.168.0.1

  Correct Answer: B

• Question 173:

  What is the default STP max age value?

  A. 20 seconds

  B. 30 seconds

  C. 40 seconds

  D. 60 seconds

  Correct Answer: A

• Question 174:

  Which CLI command would you use to configure VLAN corporate with IP address 192.168.0.1/16?

  A. config vlan corporate ipaddress 192.168.0.1/16

  B. config ipaddress corporate vlan 192.168.0.1/16

  C. config ipaddress 192.168.0.1/16 vlan corporate

  D. config ipaddress 192.168.0.1/16 corporate vlan

  Correct Answer: A

• Question 175:

  When typing commands, the ExtremeWare CLI will auto-complete a command if followed with this keystroke:

  A. Space bar

  B. Escape key

  C. Tab key

  D. None of these

  Correct Answer: C

• Question 176:

  There can be only one frame transmitted at a time on a traditional CSMA-CD Ethernet network. What is the result when more frames are sent at the same time?

  A. Runts

  B. Jabbers

  C. Collisions

  D. Jumbo frames

  Correct Answer: C

• Question 177:

  It is highly recommended to change the SNMP community strings on an Extreme switch from the factory default. The following well-known community strings apply by default:

  A. R/O extreme R/W networks

  B. R/O public R/W private

  C. R/O shared R/W secret

  D. R/O nonblocking R/W wirespeed

  Correct Answer: B

• Question 178:

  In normal IP unicast routing, all forwarding decisions are based on the ______________ of each packet.

  A. destination MAC address

  B. source IP address

  C. source MAC address

  D. destination IP address

  Correct Answer: D

• Question 179:

  I/O modules for the BlackDiamond 6808 and Alpine 3804 switch products are interchangeable.

  A. TRUE

  B. FALSE

  Correct Answer: B

• Question 180:

  How can you tell by looking at the front panel of an Summit 1i switch, which ports are disabled?

  A. Flashing amber light

  B. Flashing green light

  C. Solid amber light

  D. Solid green light

  Correct Answer: B
