EMC Platform Engineer E20-690 Questions & Answers

• Question 131:

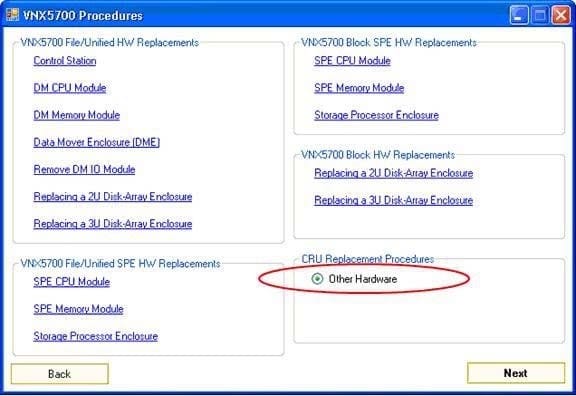

  Refer to the exhibit.



  When using the VNX Procedure Generator to make a hardware replacement procedure, what will be the results of selecting the indicated link?

  A. A series of windows with drop-down lists is presented for the user to select the VNX model, storage type, and part to be replaced.

  B. A parts replacement PDF file is generated and emailed to the user who is running the VNX Procedure Generator.

  C. Unisphere Service Manager is launched with user-selectable drop-down lists for selecting part replacement activity.

  D. Unisphere Service Manager is launched to gather system information for producing a part replacement procedure.

  Correct Answer: A

• Question 132:

  Refer to the exhibit.



  What happens when the user selects the indicated option within the VNX Procedure Generator?

  A. A PDF document is generated and displayed to the user for the associated activity.

  B. A Word document is both displayed and emailed to the user for the associated activity.

  C. A PDF document is produced with a link to a site where the user can build User Personalized Documentation.

  D. A Word document is produced with a link to a site where the user can build User Personalized Documentation.

  Correct Answer: D

• Question 133:

  Your customer contacts you regarding an illuminated hardware fault LED on a VNX LCC component. Using ESRS you access the system with Unisphere and determine that the faulted LCC component needs to be replaced. Which action would you take to get the LCC part number for ordering a new replacement part?

  A. Use the VNX Procedure Generator and view the specific VNX model parts guide.

  B. Access the Alerts section in Unisphere and locate the specific alert for the faulted LCC.

  C. Launch Unisphere Service Manager and perform a system verification operation.

  D. Access the Hardware for File section of Unisphere and locate the faulted LCC.

  Correct Answer: A

• Question 134:

  You are working on a VNX Unified system that has a hardware fault on a storage processor and you need to determine which components of the SP are FRUs. What action would you take to get the needed information?

  A. Use the VNX Procedure Generator to view the specific VNX model's illustrated parts guide.

  B. Access the Alerts section of Unisphere and review the details of the specific hardware fault alert.

  C. View the appropriate VNX installation guide VNX on Powerlink.

  D. Use the VNX Procedure Generator to generate an SP replacement procedure.

  Correct Answer: A

• Question 135:

  You are working on a VNX Block system that has a fault LED illuminated on a DAE. What action would you take to further analyze the system status?

  A. Install VNX Analyzer to capture the DME hardware status.

  B. Perform a background verify operation on the system's LUNs.

  C. Launch USM and capture diagnostic data from the system.

  D. Trespass the system's LUNs to the peer storage processor.

  Correct Answer: C

• Question 136:

  You are working on a VNX Unified system that has a fault LED illuminated on the DME. What action would you take to further analyze the system status?

  A. Launch USM and capture diagnostic data from the system.

  B. Install VNX Analyzer to capture the DME hardware status.

  C. Perform a background verify operation on the control LUNs.

  D. Trespass the control LUNs to the peer storage processor.

  Correct Answer: A

• Question 137:

  You are working on a VNX Block system that has a fault LED illuminated on a DAE. What action would you take to further analyze the system status?

  A. Launch USM and perform a Verify Storage System operation.

  B. Install VNX Analyzer to capture the DAE hardware status.

  C. Perform a background verify operation on the system's LUNs.

  D. Trespass the system's LUNs to the peer storage processor.

  Correct Answer: A

• Question 138:

  When using USM's Capture Diagnostic Data feature, where are the files automatically stored upon completion of this task?

  A. They are in the C:\EMC\repository folder located on the system running USM.

  B. They are automatically uploaded to EMC support if the system is registered.

  C. The user is prompted to either view them or upload them to EMC if ConnectHome is configured.

  D. They are automatically stored in the repository located on the VNX vault drives.

  Correct Answer: A

• Question 139:

  You are working on a VNX Unified system that has a fault LED illuminated on the DME. What action would you take to further analyze the system status?

  A. Perform a Data Mover failover operation to the standby Data Mover.

  B. Launch USM and perform a Verify Storage System operation.

  C. Install VNX Analyzer to capture the DME hardware status.

  D. Perform a background verify operation on the control LUNs.

  Correct Answer: B

• Question 140:

  How can users search for hardware issues on a VNX for File storage system using EMC Unisphere?

  A. Once logged in to Unisphere, use the drop-down list to select System > Storage Hardware for File

  B. Once logged in to Unisphere, use the drop-down list to select System > Storage Hardware for Block

  C. Once logged in to Unisphere, navigate to the dashboard section and select System > Storage Hardware for File

  D. Once logged in to Unisphere, navigate to the dashboard section and select System > Storage Hardware for Block

  Correct Answer: A
