NI Clad Certification CLAD Questions & Answers

• Question 21:

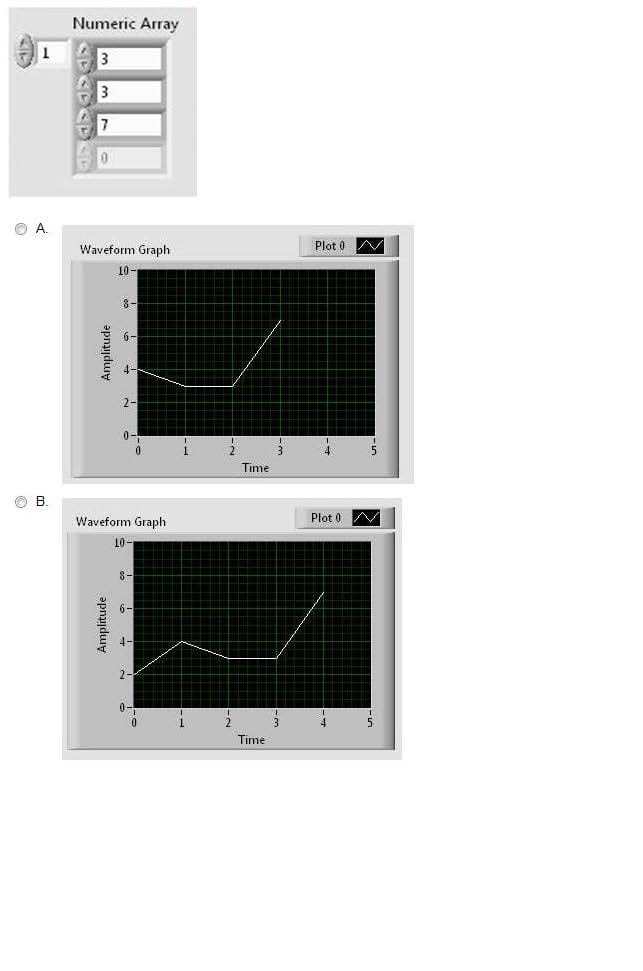

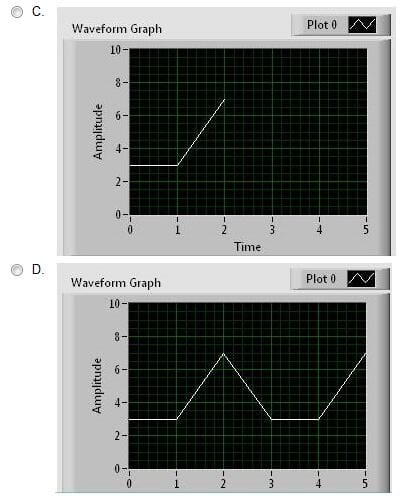

  Which Waveform Graph could be a representation of the data in the Numeric Array control?





  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: C

• Question 22:

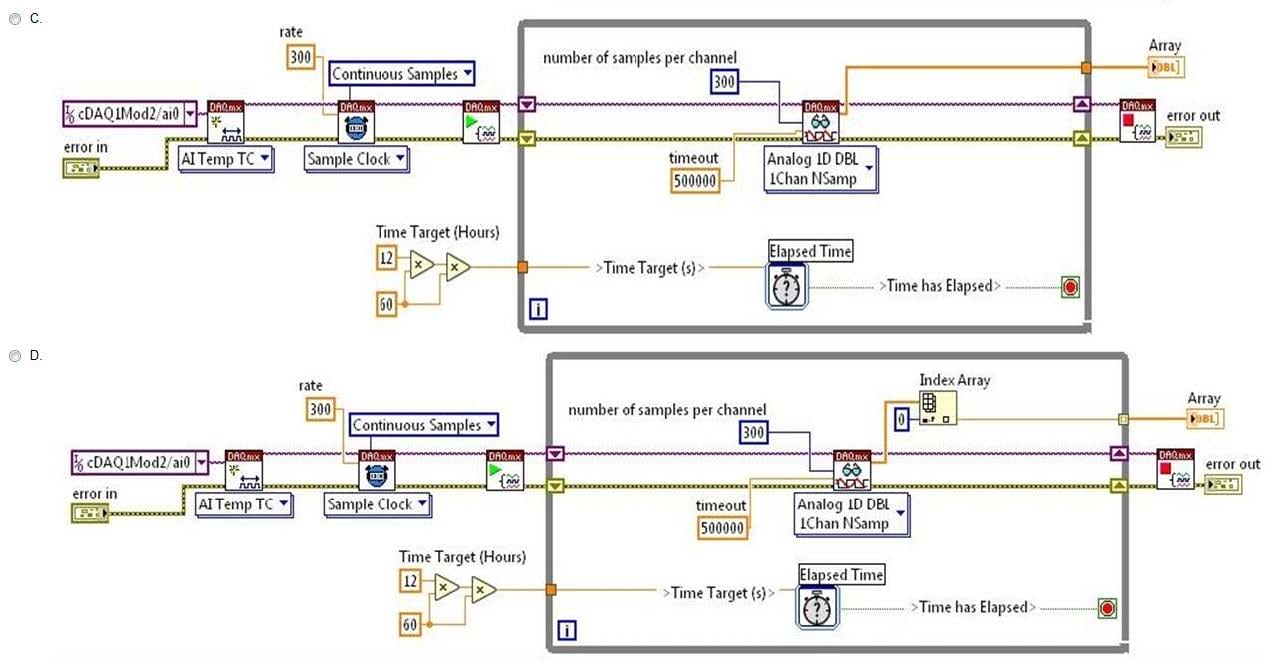

  Which VI will acquire one temperature data point every 5 minutes for 12 hours?





  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: B

• Question 23:

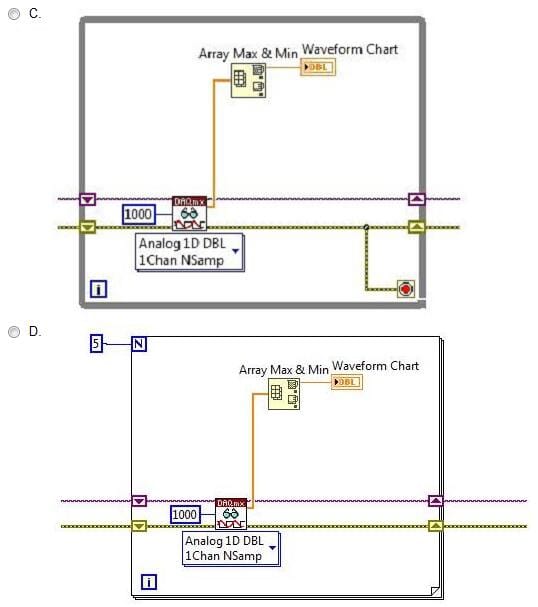

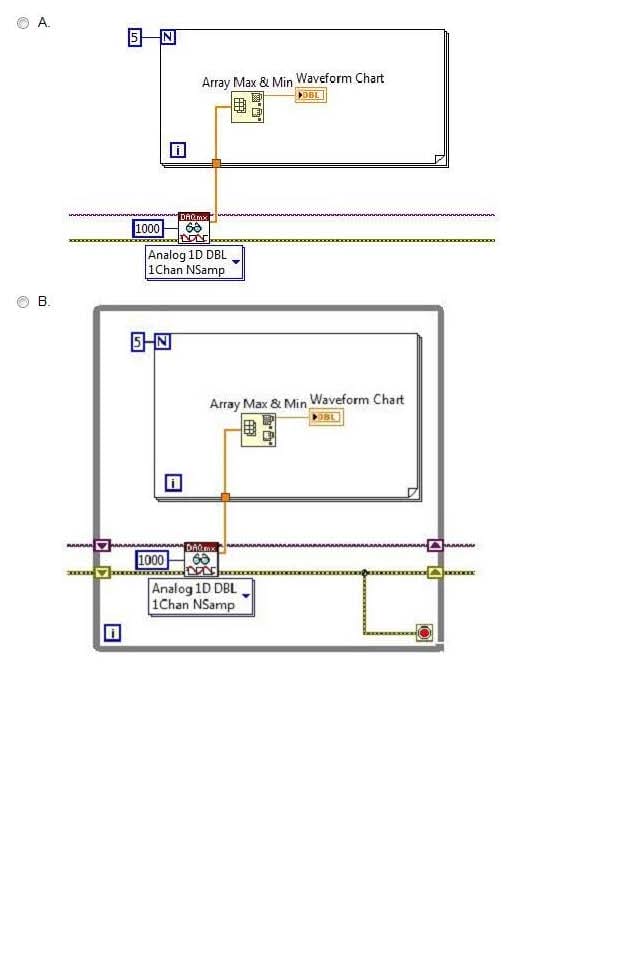

  The DAQmx task is set to acquire at a rate of 1000 Hz.

  Which VI Snippet acquires and plots only the maximum value for each set of 1000 samples, for a period of

  5 seconds?





  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: A

• Question 24:

  Which of the following is a manual step when creating a SubVI from a section of Code using Edit>Create SubVI?

  A. Select the section of the block diagram you want to convert to a SubVI

  B. Connect the controls and indicators on the front panel to terminals on the connector pane

  C. Assigning terminals to the appropriate indicators and controls

  D. Configure the Connector Pane to have enough terminals for all inputs and outputs

  Correct Answer: A

  Selected section of the block diagram is replaced with an icon for the subVI. Reference: http://www.ni.com/white-paper/7593/en/

• Question 25:

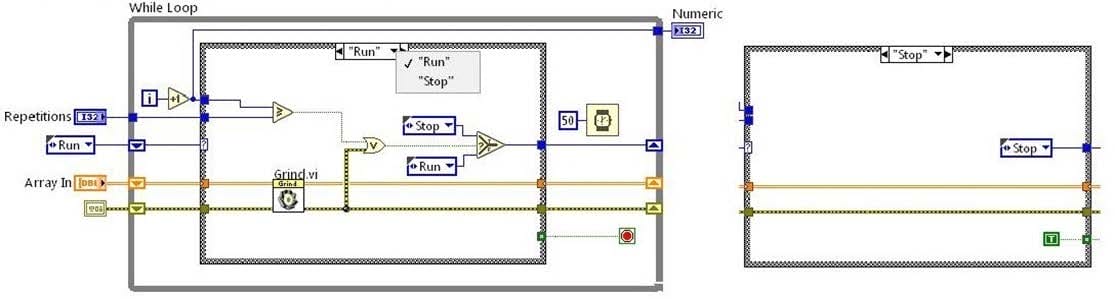

  This VI is started with a value of 7 in the Repetitions control.

  The SubVI Grind.vi returns an error the fifth time it runs.

  What is the value in the Numeric indicator after this VI has run?



  A. 6

  B. 5

  C. 4

  D. 7

  Correct Answer: B

• Question 26:

  The following code executes with the error in control configured as shown.

  What value will be displayed in the error out indicator when the VI completes execution?





  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: A

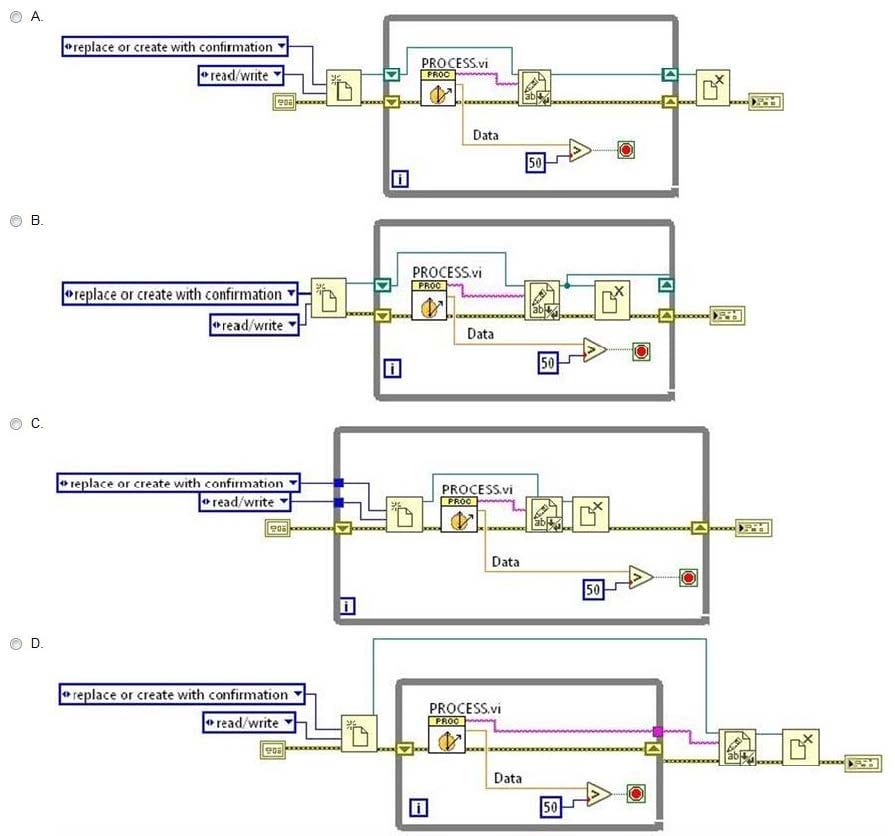

• Question 27:

  The SubVI PROCESS represents a test that outputs one line of text each time the test runs. When the VI stops, we need to have a log showing every line of data output from PROCESS. Which of the following VIs meets all these requirements?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: C

• Question 28:

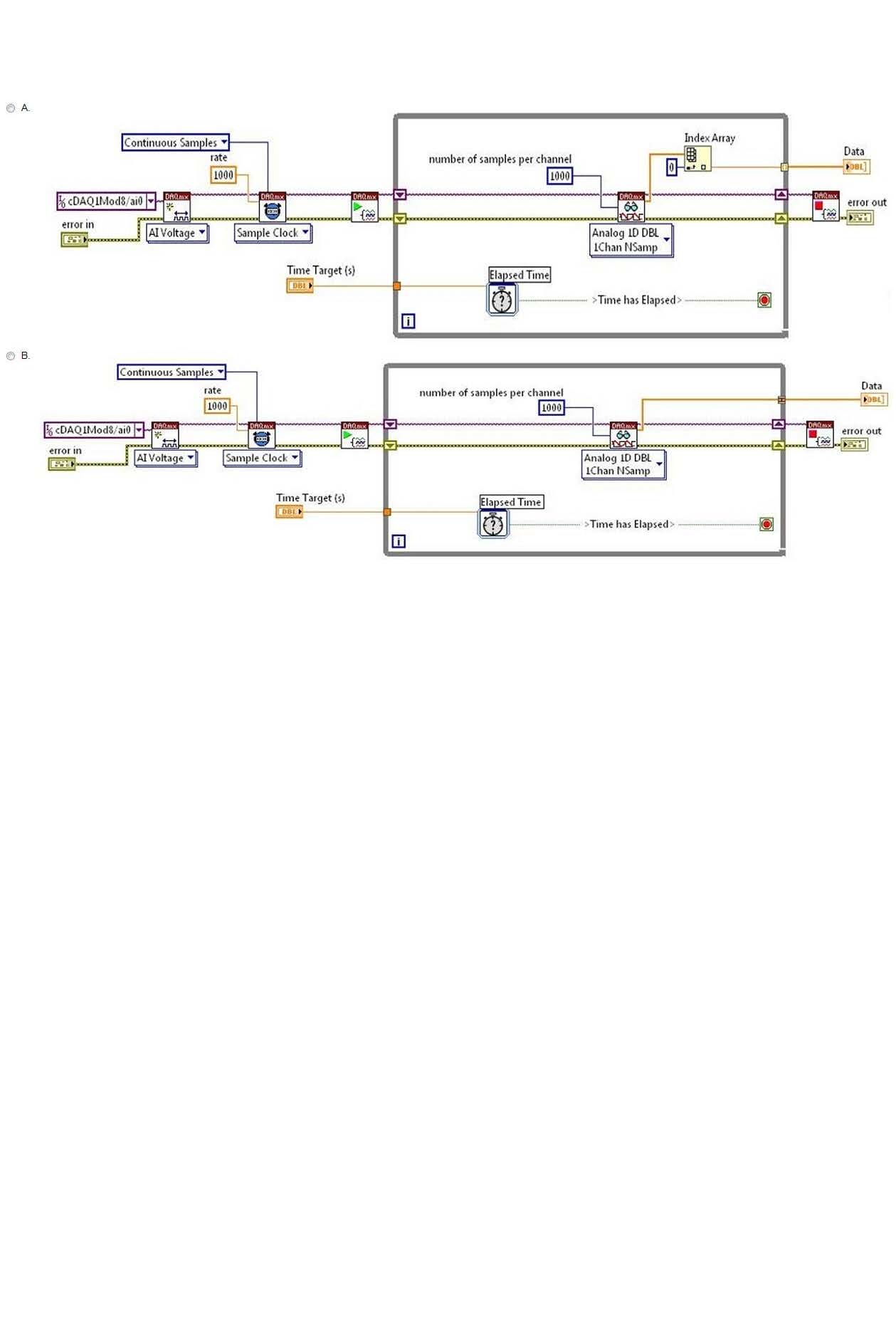

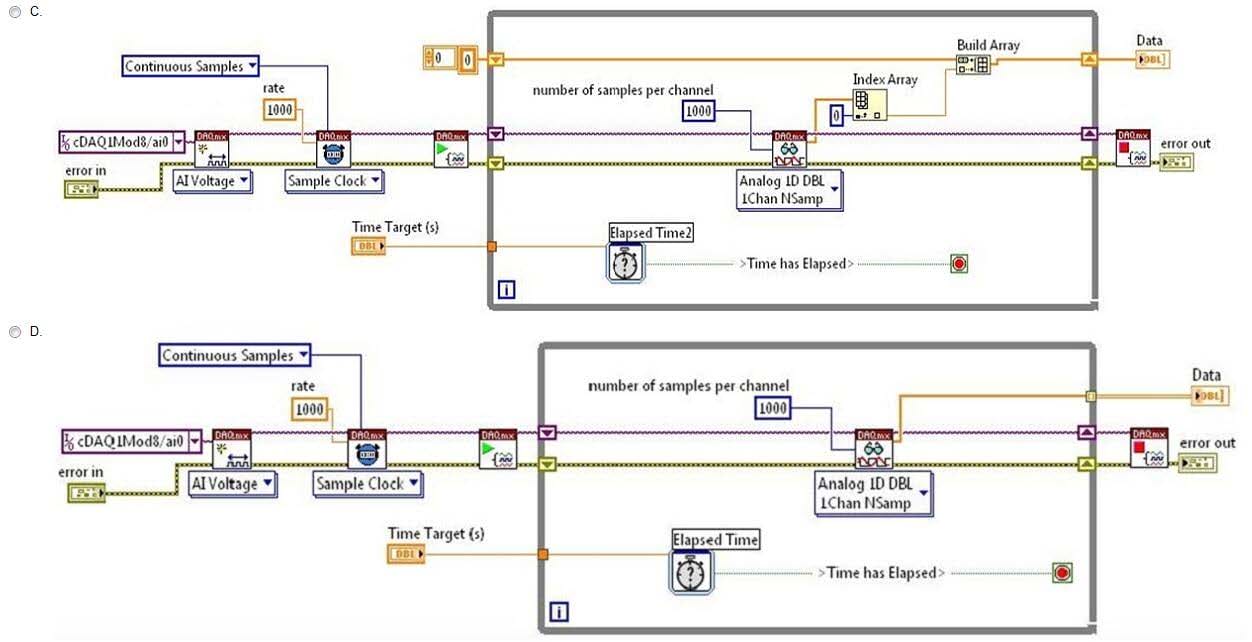

  The Time Target (s) control is set for 10 seconds.

  Which VI will collect all the data into a 1D array to be processed later?





  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: C

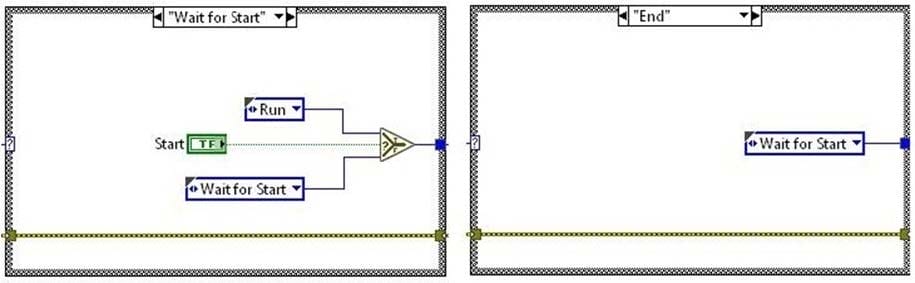

• Question 29:

  The operator of this VI presses the run arrow, then presses the Start button.

  After 3 seconds the Process SubVI sends a "True" value for "Process Complete."

  What is the entire sequence of States this VI goes through, starting when the run arrow is pressed?





  A. Run, Wait for Start, End, Wait for Start

  B. Run, Wait for Start, End

  C. Wait for Start, Run, End, Wait for Start

  D. Wait for Start, Run, End

  Correct Answer: B

• Question 30:

  What value will be displayed in the array w/ subset deleted and the deleted portion indicators after the VI completes execution?





  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: D
