HP HP Certifications ACMP_6.3 Questions & Answers

• Question 71:

  An access port has been placed in trusted mode. The Vlan on the port is in Untrusted mode. Which of the following statements is true?

  A. The traffic is trusted since the port is trusted

  B. The traffic is untrusted since the VLAN is untrusted

  C. This is an invalid configuration, both must be set the same

  D. You cannot set Vlans as trusted or untrusted

  E. Only traffic from that specific port is trusted, all other traffic is untrusted

  Correct Answer: B

• Question 72:

  A port firewall policy is applied to a trunk port that denies controller access. An "allow all" Vlan firewall policy is applied to VLAN 33 on the same port. A user connected to VLAN 33 on that port attempts to gain access to the controller. Which of the following statements is true?

  A. The Port policy is applied, therefore no controller access

  B. The Vlan policy is applied, then the port policy, therefore no controller access

  C. The Vlan policy is applied, therefore access to the controller is allowed

  D. You cannot place a firewall policy on a Ports Vlan when the Port already has a policy, therefore no controller access

  E. When locally connected to a controller's port you always have controller access

  Correct Answer: C

• Question 73:

  A university has 2 departments. Department 1 has its own mobility domain with one controller. Department 2 has multiple controllers configured in a second domain. The university is planning on offering a new application and needs users to be able to roam between both mobility domains.

  What is the best way to accomplish this?

  A. The 2 existing domains should be left as they are. A 3rd mobility domain should then be created and all 3 controllers need to be added to it

  B. Merge the controllers into the same mobility domain

  C. The IP subnets of all controllers need to be configured to match

  D. This cannot be accomplished

  E. Create a new domain between a department 1 controller and one of the department 2 controllers

  Correct Answer: B

• Question 74:

  How many Aruba controllers can be added to a single mobility domain?

  A. 64 controllers of any type

  B. 128 controllers supporting 2000 users

  C. 256 controllers with no more than 1024 subnets

  D. Controllers supporting up to 6000 AP's

  E. There is no controller limit

  Correct Answer: E

• Question 75:

  In a master-local controller scenario, where is the mobility domain defined?

  A. the AP group

  B. the master controller

  C. the local controller

  D. the master and the local controllers

  E. the master and the local controllers where roaming is needed

  Correct Answer: B

• Question 76:

  What settings need to be changed on a factory default AP in order for it to use ADP to discover the Aruba Controller?

  A. DNS of the controller

  B. Static route

  C. AP group

  D. enable multicast

  E. no changes needed

  Correct Answer: E

• Question 77:

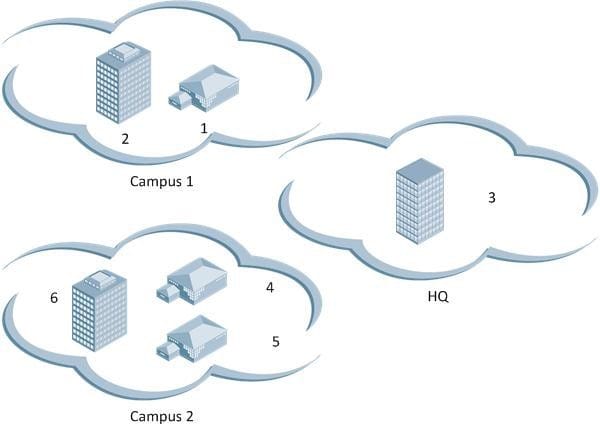

  As illustrated in the above diagram, a company has two campus locations and a building headquarters all located in different cities.



  Following best practices, what would be the best way to construct mobility domains for the company?

  A. Buildings (1, 2) in one domain and Buildings (3, 4, 5, 6) in one domain

  B. Buildings (1, 2) in one domain, Building (3) in one domain, and Buildings (4, 5, 6) in one domain

  C. Buildings (1, 2, 4, 5, 6) in one domain and Building (3) in one domain

  D. Buildings (1, 2, 3, 4, 5, 6) in one domain

  E. Buildings (1) in one domain building (4) in one domain

  Correct Answer: B

• Question 78:

  When direct consoled to an AP, what is the command sequence to factory default the AP and re-bootstrap?

  A. setenv bootstat init

  B. setenv master init, boot

  C. purge, save, boot

  D. init, save, boot

  E. print, purge, boot

  Correct Answer: C

• Question 79:

  A campus AP has been provisioned with a VAP in bridge forwarding and standard operation modes. Which of the following authentication types are supported? (Choose two)

  A. 802.1X authentication

  B. Open System authentication

  C. Local authentication

  D. Captive portal authentication

  E. VPN authentication

  Correct Answer: AB

• Question 80:

  Which method is NOT supported to provision an Aruba campus AP?

  A. Telnet directly to AP

  B. SSH to the AP's controller

  C. Web interface to the AP's controller

  D. Console to AP

  E. CLI on controller

  Correct Answer: A
