HP HP Certifications ACMP_6.3 Questions & Answers

• Question 41:

  What are two different methods of configuring AP redundancy between 2 local controllers? (Choose two)

  A. Fast-Failover

  B. Configure the locals as remote nodes

  C. Use named VLANS

  D. LMS and Backup LMS IP

  E. AP Redundancy can only be configured between a Master and Local

  Correct Answer: AD

• Question 42:

  An Aruba 650 controller is functioning as a standby Master. How many APs can it control while in standby mode?

  A. 0

  B. 16

  C. 24

  D. 128

  E. 256

  Correct Answer: A

• Question 43:

  Where should mobility domains be enabled in a network with 1 master, 1 backup master and 5 local controllers?

  A. Only on the master controller

  B. All the local controllers in the network

  C. All the controllers where the client is allowed to roam

  D. Master and backup master

  E. Only on the backup master

  Correct Answer: C

• Question 44:

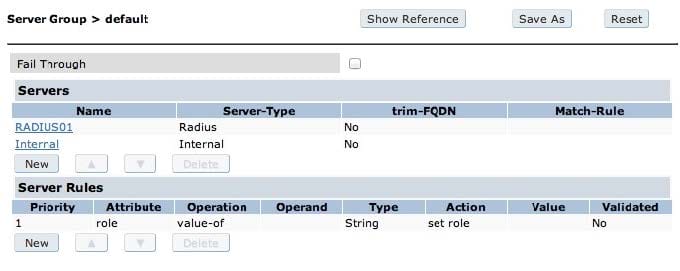

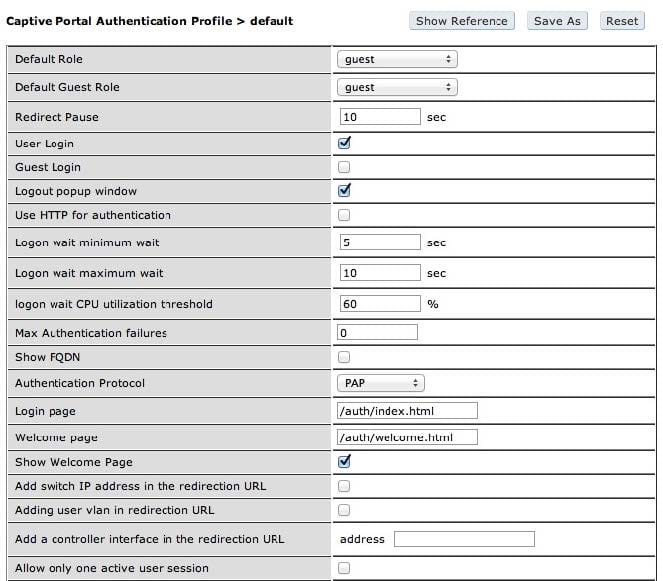

  Screenshots of the Captive Portal authentication profile and server group of a guest network are displayed above.





  How was the user authenticated?

  A. with a radius server called Radius01

  B. with the Internal database

  C. with a radius server called Internal

  D. with another form of authentication

  E. user wasn't authenticated against any server

  Correct Answer: E

• Question 45:

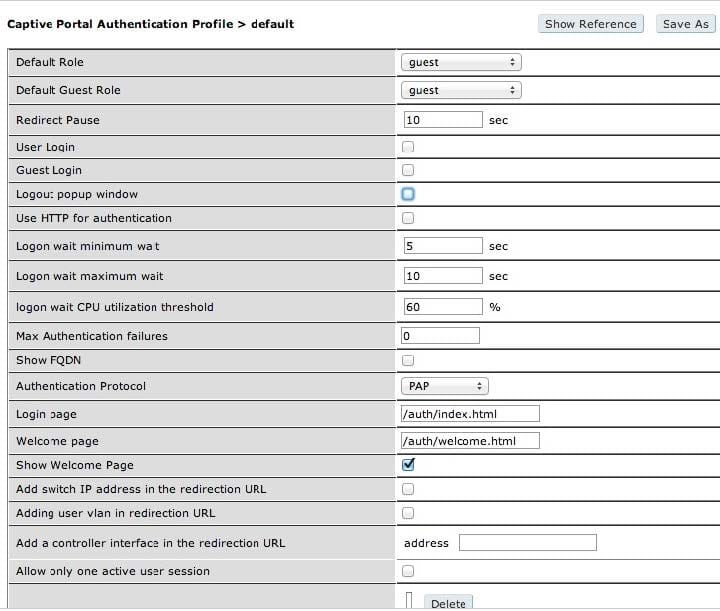

  A user logged in with the Captive Portal settings shown in the above screen capture.



  What does the user need to do to logout?

  A. wait 30 minutes then logout

  B. wait 60 minutes then logout

  C. click Logout on the browser screen

  D. he cannot logout

  E. wait 10 seconds for redirect

  Correct Answer: C

• Question 46:

  When the controller is configured for Captive Portal and the user is only required to provide an email address for authentication, which option is configured in the GUI?

  A. enable termination

  B. enable guest logon

  C. enable user logon

  D. eap method

  E. disable CP Login

  Correct Answer: B

• Question 47:

  When configuring Captive Portal, which protocols are supported when accessing the Captive Portal? (Choose two)

  A. HTTPS

  B. VPN

  C. HTTP

  D. TELNET

  E. SSH

  Correct Answer: AC

• Question 48:

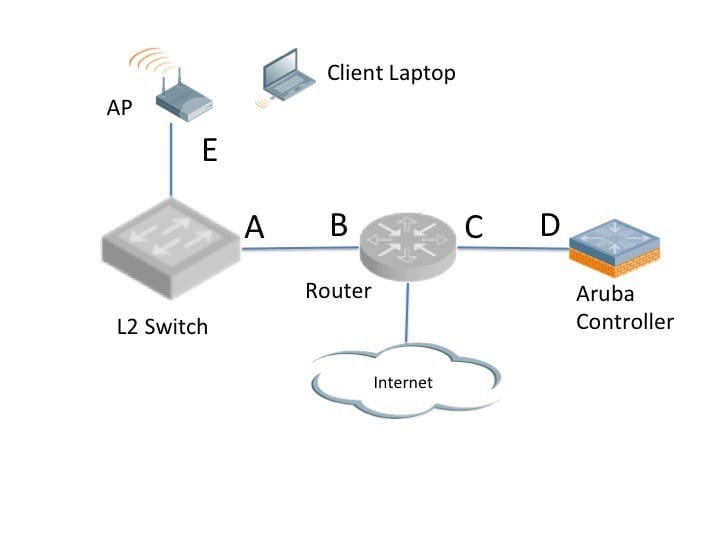

  Exhibit: Referring to the diagram provided for this question, if the Aruba controller is configured to perform L3 switching, what will be the wireless client laptop default gateway?



  A. A

  B. B

  C. C

  D. D

  E. E

  Correct Answer: D

• Question 49:

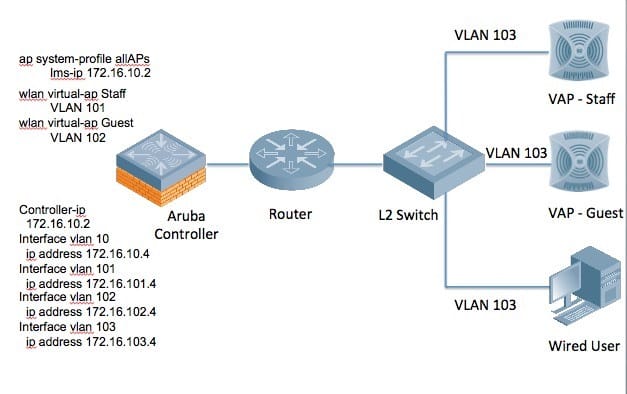

  In the above diagram, the system shows two Aruba access points.



  Which VLANs must be configured on trunk link D between the router and Aruba controller to support wireless users when the controller is provisioned for L2 operations?

  A. 10, 101 and 102

  B. 101 and 102

  C. 101, 102 and 103

  D. 10, 101,102 and 103

  E. 10 and 103

  Correct Answer: A

• Question 50:

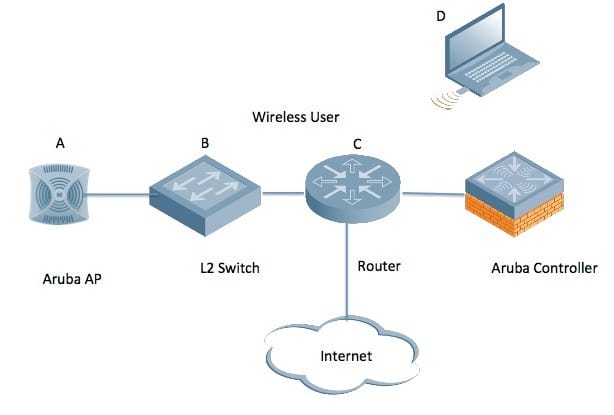

  In the diagram provided for this question, the Aruba controller terminates one end of a GRE tunnel that carries wireless user traffic.



  Where does the other end terminate?

  A. A

  B. B

  C. C

  D. D

  E. A or B

  Correct Answer: A
