Avaya Avaya Certifications 3100.1 Questions & Answers

• Question 41:

  The monitor and display capacity commands can be used to get a real-time status of the system using Avaya Site Administration (ASA). Which command and tool should you use to view a summary of the overall condition of the system?

  A. monitor system command using terminal emulation

  B. monitor system command using GEDI

  C. monitor status command using terminal emulation

  D. display status using GEPI or terminal emulation

  Correct Answer: A

• Question 42:

  Which setting in the system parameter feature screen will enable TTI to be applicable to both analog and digital stations?

  A. Terminal Trans. Init.? Y, TTI state = `voice', TTI enable = `y', TTI security code = `1709', CTI enabled = `n'.

  B. Terminal Trans. Init.? Y, TTI state = `data', TTI enable = `y', TTI security code = `1709', CTI enabled = `y'.

  C. Terminal Trans. Init.? Y, TTI state = `vdata', TTI enable = `y', TTI security code = `1709', CTI enabled = `n'.

  D. Terminal Trans. Init.? Y, TTI state = `voice', TTI enable = `y', TTI security code = `1709', CTI enabled = `y'.

  Correct Answer: D

• Question 43:

  You are configuring Personal Station Access (PSA) and you configure the Communication Manager with the following settings:

  -

  Set TTI enabled = `Y'

  -

  Set PSA Associated code = `25' and disassociate code `#25'

  -

  Set security code for the station = `1234'

  You activate the station by keying in FAC for PSA, station extension number, `#', the security code of the station, and `#'. However, the station is not activated. Which statement describes the issue to be addressed?

  A.

  You need to set TTI = `n'

  B.

  You did not enable PSA on the COS of the station.

  C.

  You should not set the security code in sequential order.

  D.

  You did not key in the correct activation sequence

  Correct Answer: B

• Question 44:

  Which statement most accurately describes the major difference between Automatic Alternative Rom (AAR) and Automatic Route Selection (ARS) in a typical installation?

  A. AAR routes calls over a public network; ARS routes calls over a private network.

  B. AAR routes calls over a private network; ARS routes calls over a public network.

  C. AAR chooses routes automatically; ARS chooses routes according to pre programmed, best-choice parameters.

  D. AAR chooses routes automatically; ARS chooses routes according to a manually administered route plan.

  Correct Answer: B

• Question 45:

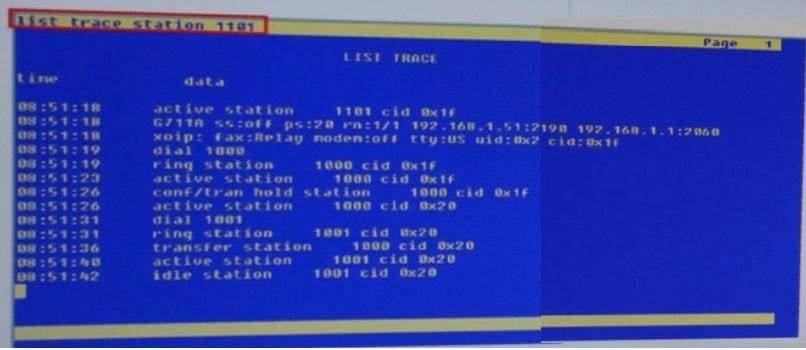

  With reference to the list trace station 1101 printout shown in the exhibit, what statement describes what happened during the time period of the trace?

  A. Station 1101 called station, hung-up and finally called station 100.

  B. Station 1101 called station 1000, the unanswered call went to the voicemail, and finally station 1101 called 1001.

  C. Station 1101 called station 1000, and the station answered, then station 1000 transferred to call to station 1001.

  D. Station 1101 called station 1000, unanswered; the call covered the station 1001.

  Correct Answer: C

• Question 46:

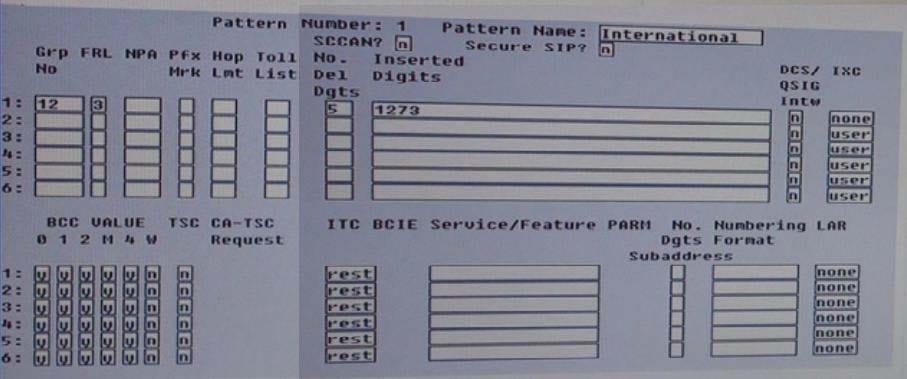

  Consider the settings shown in exhibit displayed by using the display route ?pattern command. You must deny calls from users in COR 10 to use route pattern 1. What should the fault restriction level (FRL) for COR 10 be?

  A. 2

  B. 3

  C. 4

  D. 5

  E. 6

  Correct Answer: A

• Question 47:

  Your customer has a communication Manager 6.0 branch location with SIP endpoints that need to survive a WAN failure when communication to the core or main Session Manager is unavailable. Which solution will provide survivability to the remote location?

  A. an S8300 configured as an local survivable processor (LSP)

  B. a simplex server configured as an enterprise survivable server (ESS)

  C. an S8300 or simplex server configured as a Survivable Remote

  D. an S8300 01 simplex server configured for high availability (HA)

  Correct Answer: C

• Question 48:

  You need to configure a station so that when a department manager makes calls to employees the manager's calls will ring even though the called station might have Sent All Calls activated. Although the manager's station can be designated as a VIP telephone, the manger must be able to selectively activate this feature. Which feature addresses this need?

  A. Button activated Executive Calling

  B. FAC or button activated Automatic Inclusion

  C. FAC or button activated Priority Calling

  D. Button activated Send All Calls override

  Correct Answer: D

• Question 49:

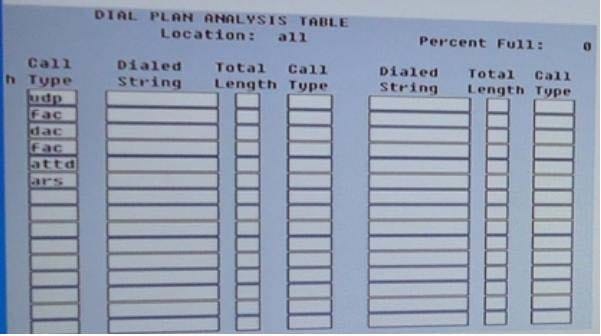

  With reference to the Dial Plan Analysis Tables, how many codes are available in the system for activation / deactivation of features?

  A. 2

  B. 3

  C. 11

  D. 21

  Correct Answer: A

• Question 50:

  You have to add a new G650 Media Gateway to the system. Which command will perform this I

  A. add cabinet next

  B. add port network next

  C. add media ?gateway next

  D. add G6SO-port next.

  Correct Answer: A
