Question 1

Single choice

The final version of the diagram must depict that a SoftwareSession is created by some activity of a:User.

Which change must be made to the Initial draft diagram to meet this requirement'

A
The arrow '"Start Software" has to be solid and with a closed head.
B
The first activation on the lifeline SoftwareSession has to be removed
C
The arrow "Start Software" has to cud at the tail and not at the head of the lifeline SoftwareSession.
D
No change is required.

Reveal answer details Close answer details

Correct answerC

Question 2

Single choice

Choose the correct answer.

Given the following diagram:

What Is the meaning of the consider fragment?

A
It is a constraint that prevents adding a nested ignore fragment for any one of ml. m2 or m3.
B
It ignores all messages other than ml m2 and m3 in the scenario being described by the interaction
C
The meaning is undefined because the diagram is ill-formed in the absence of n>3. which must be
considered.
D
It allows the invocation of the operations corresponding to messages m 1. m? and m3 only when they appear in that order

Reveal answer details Close answer details

Correct answerA

Question 3

Single choice

Choose the correct answer

Which SysML construct is used to represent a connection point to an interaction when It is being used by another interaction?

A
a formal gate
B
a usage point
C
a message port
D
an interaction parameter

Reveal answer details Close answer details

Correct answerC

Question 4

Single choice

Choose the correct answer.

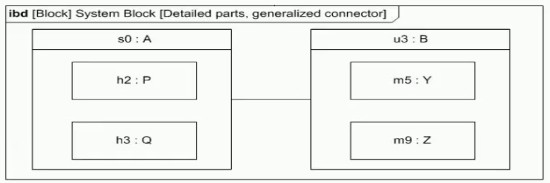

Given the following diagram:

What needs to be determined in order to model the connection between components s0 and u3 in more detail?

A
whether component s0 subclasses component u3
B
which parts of each component participate in the connection
C
which parts of each component participate in a reference association
D
whether any part that belongs to component s0 subclasses a pan that belongs to component u3

Reveal answer details Close answer details

Correct answerB

Question 5

Single choice

Choose the correct answer.

To "show what you know" about SysML a Systems Engineer (SE) must take a total of four examinations in
order Model User (MU). Model Bulkier Fundamental (MBF), Model Builder intermediate (MBI> and Model
Builder Advanced (MBA). The SE must also study before taking each exam.

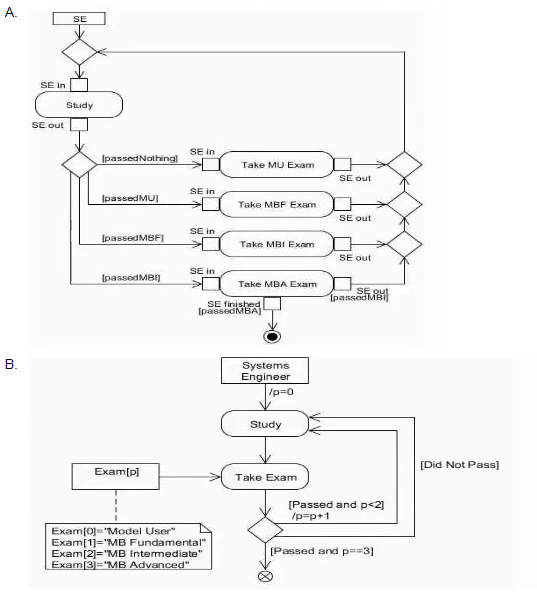

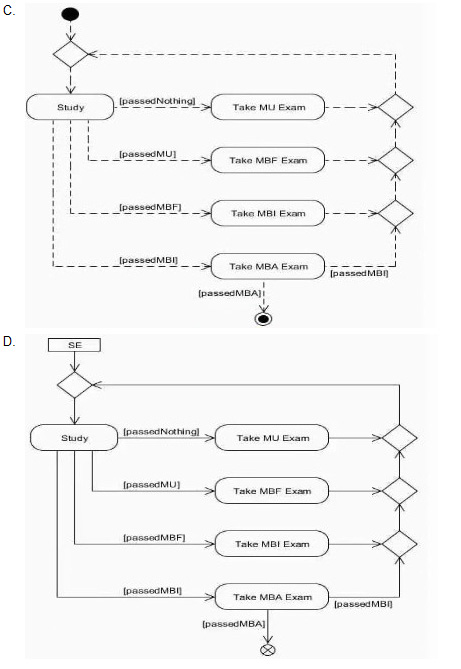

Which activity diagram fragment correctly uses object state constraints to document the process of studying and taking the exams, ensuring that the exams are taken in order of increasing difficulty, and allowing for the possibility that exams may have to be repeated?

A
Option A
B
Option B
C
Option C
D
Option D

Reveal answer details Close answer details

Correct answerB

Question 6

Single choice

Choose the correct answer.

How should a generalization set between Shape (superclass) and subclasses Polygon.

Rectangle and Triangle be marked?

A
{complete, disjoint{
B
{incomplete, disjoint}
C
{complete, overlapping}
D
{incomplete, overlapping{

Reveal answer details Close answer details

Correct answerB

Question 7

Single choice

Choose the correct answer.

Assume the following state machine fragment Is In the A-State when the event evC arrives.

What is the order of behaviors that are executed after evj arrives?

A
action 9, action 1
B
action 2, action 9, action 1
C
action 2, action 9, action 1, start activity X, evC
D
stop activity X (if needed), action 2, action 9, action 1, start activity X
E
stop activity X (If needed), action 2, action 9, action 1, action 4 start activity X

Reveal answer details Close answer details

Correct answerC

Question 8

Single choice

Choose the correct answer.

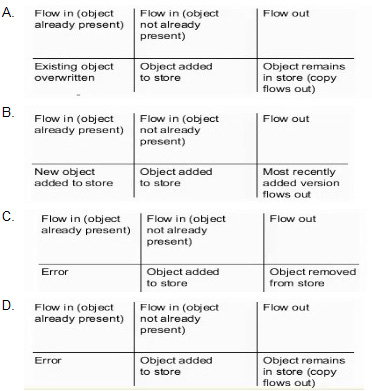

Which option correctly describes the effect of an object flowing into and out of a data store?

A
Option A
B
Option B
C
Option C
D
Option D

Reveal answer details Close answer details

Correct answerB

Question 9

Single choice

Choose the correct answer.

What is the relationship between objective functions and measures of effectiveness (MOEs)?

A
An objective function is usually a function of only one MOE.
B
An objective function is usually a function of several different MOEs
C
An MOE is usually composed of only one objective function.
D
An MOF is usually composed of several different objective functions

Reveal answer details Close answer details

Correct answerA

Question 10

Single choice

Choose the correct answer.

Given the following diagram:

What is the significance of typing the connector with an association?

A
Only items compatible with Card Connection may pass over connector c1. There are no other implications
B
If SD Card and Card Reader blocks ever have ports, they must be compatible with the Card Connection association
C
Card Connection represents the pan that d uses to connect SD Card to Card Reader, eg the arrangement of contact points
D
An association must exist between the SD Card block and Card Reader block, and not just between parts in the Digital Picture Frame block.

Reveal answer details Close answer details

Correct answerD

Question 11

Single choice

Choose the correct answer

The following are behavioral requirements for an automobile electric window

(1) When the window button is moved into the up position and the window is not fully up the window shall begin to move up

(2) When the window button is moved into the down position and the window is not hilly down, the window shall begin to move down

(3) When the window button is released or the window reaches the fully up or fully down position, the window shall stop moving

(4) Requirements (1-3) apply when the ignition is on. However, turning the ignition off shall lake effect only after the window has stopped moving.

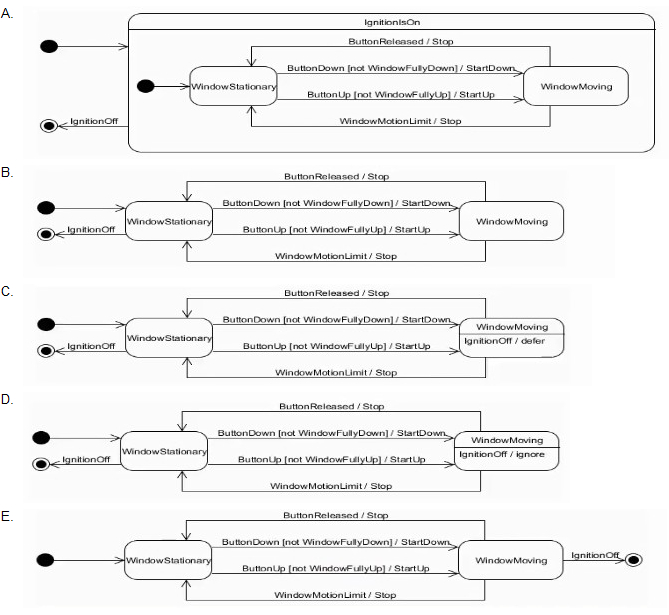

Which state machine diagram fragment describes the required behavior?

A
Option A
B
Option B
C
Option C
D
Option D
E
Option E

Reveal answer details Close answer details

Correct answerA

Question 12

Single choice

Choose the correct answer In a state machine which behavior can be interrupted by a transition which leaves the current state?

A
a do behavior
B
an entry behavior
C
an exit behavior
D
the effect of an internal transition

Reveal answer details Close answer details

Correct answerA

Question 13

Single choice

Choose the correct answer

What is a flow port that is typed by a flow specification said to be?

A
atomic
B
nonatomic
C
delegation
D
behavioral
E
conjugated
F
directionless

Reveal answer details Close answer details

Correct answerB

Question 14

Single choice

Choose the correct answer.

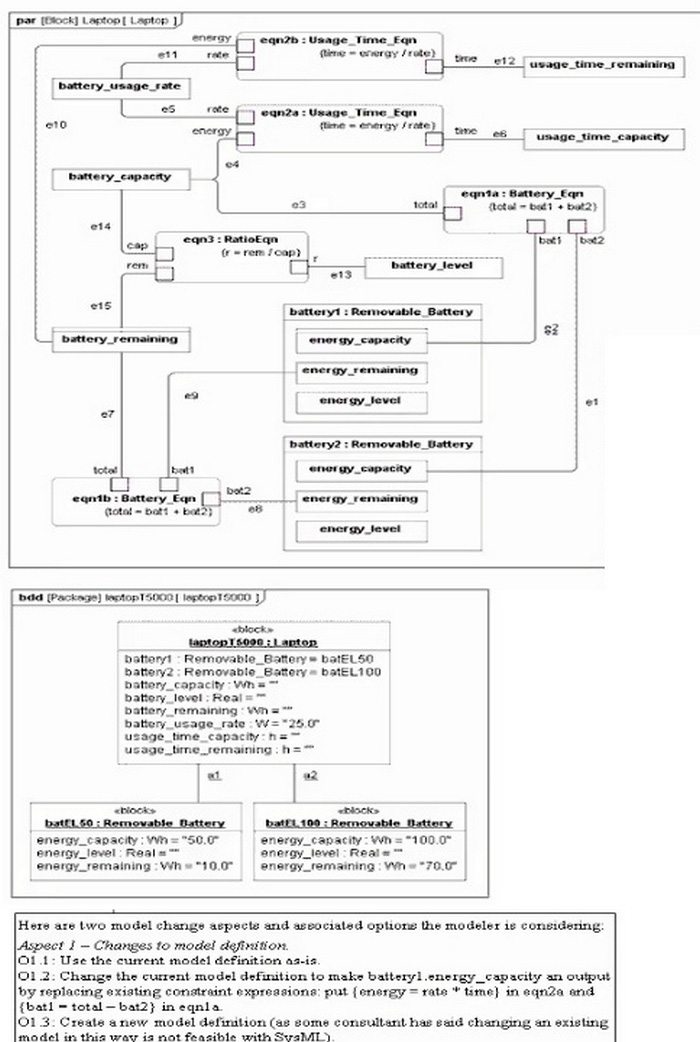

The essentials of a laptop battery capacity model are shown In the following diagrams (where the value types W, h and Wh stand for watl, hour, and watt-hour respectively). Assume that the instance values shown are inputs, and that nothing relevant has been omitted.

The designer needs to determine what the energy_capacity of battery 1 should be to enable a laptop usage_time_capacity time of 8 hours.

Which combination of the options listed in the text box in the figure will achieve this Intent with minimal changes (including minimal new aspects)?

A
O1.1 and O2 1
B
O1.1 and O2 2
C
O1 1 and O2 3
D
O1.2 and O2.1
E
O1 7 and O2.2
F
O1.2 and O2.3
G
O1 3 and O2 3

Reveal answer details Close answer details

Correct answerC
