Nutanix · NCM-MCI-6.5

NCM-MCI-6.5 questions and answers

Review the question wording, option layout, and available explanations before choosing a study plan.

Case study

NCM-MCI-6.5

CaseStudy

Topic 1, Performance Based Questions

Environment
You have been provisioned a dedicated environment for your assessment which includes the following: Workstation
- windows Server 2019
- All software/tools/etc to perform the required tasks
- Nutanix Documentation and whitepapers can be found in desktop\files\Documentation
- Note that the workstation is the system you are currently togged into

Nutanix Cluster
- There are three clusters provided. The connection information for the relevant cluster will be displayed to
the high of the question Please make sure you are working on the correct cluster for each item Please
ignore any licensing violations
- Cluster A is a 3-node cluster with Prism Central 2022.6 where most questions will be performed
- Cluster B is a one-node cluster and has one syslog item and one security item to perform
- Cluster D is a one-node duster with Prism Central 5.17 and has a security policy item to perform

Important Notes
- If the text is too small and hard to read, or you cannot see an of the GUI. you can increase/decrease the
zoom of the browser with CTRL + ,and CTRL + (the plus and minus keys)
You will be given 3 hours to complete the scenarios for Nutanix NCMMCI Once you click the start button below, you will be provided with:
- A Windows desktop A browser page with the scenarios and credentials (Desktop\instructions)
Notes for this exam delivery: The browser can be scaled lo Improve visibility and fit all the content on the screen.
- Copy and paste hot-keys will not work Use your mouse for copy and paste.
- The Notes and Feedback tabs for each scenario are to leave notes for yourself or feedback for
- Make sure you are performing tasks on the correct components.
- Changing security or network settings on the wrong component may result in a falling grade.
- Do not change credentials on an component unless you are instructed to.
- All necessary documentation is contained in the Desktop\Files\Documentation directory

Question 1

Testlet 5 Lab simulation

Simulation

Task 15

An administrator found a CentOS VM, Cent_Down, on the cluster with a corrupted network stack. To correct the issue, the VM will need to be restored from a previous snapshot to become reachable on the network again.

VM credentials:

Username: root

Password: nutanix/4u

Restore the VM and ensure it is reachable on the network by pinging 172.31.0.1 from the VM.

Power off the VM before proceeding.

A. Answer: See the Explanation for step by step solution.

Reveal model answer Close model answer

To restore the VM and ensure it is reachable on the network, you can follow these steps: Log in to the Web Console of the cluster where the VM is running. Click on Virtual Machines on the left menu and find Cent_Down from the list. Click on the power icon to power off the VM.
Click on the snapshot icon next to the power icon to open the Snapshot Management window.
Select a snapshot from the list that was taken before the network stack was corrupted. You can use the date and time information to choose a suitable snapshot. Click on Restore VM and confirm the action in the dialog box. Wait for the restore process to complete.
Click on the power icon again to power on the VM. Log in to the VM using SSH or console with the username and password provided. Run the command ping 172.31.0.1 to verify that the VM is reachable on the network. You should see a reply from the destination IP address.

Go to VMS from the prism central gui Select the VMand go to More -> Guest Shutdown
Go to Snapshots tab and revert to latest snapshot available power on vm and verify if ping is working

Question 2

Testlet 5 Lab simulation

Simulation

Task 12

An administrator needs to create a report named VMs_Power_State that lists the VMs in the cluster and their basic details including the power state for the last month.

No other entities should be included in the report.

The report should run monthly and should send an email [email protected] it runs.

Generate an instance of the report named VMs_Power_State as a CSV and save the zip file as Desktop
\Files\VMs_Power_state.zip

Note: Make sure the report and zip file are named correctly. The SMTP server will not be configured.

A. Answer: See the Explanation for step by step solution.

Reveal model answer Close model answer

To create a report named VMs_Power_State that lists the VMs in the cluster and their basic details including the power state for the last month, you can follow these steps: Log in to Prism Central and click on Entities on the left menu. Select Virtual Machines from the drop-down menu and click on Create Report. Enter VMs_Power_State as the report name and a description if required. Click Next. Under the Custom Views section, select Data Table. Click Next. Under the Entity Type option, select VM. Click Next. Under the Custom Columns option, add the following variables: Name, Cluster Name, vCPUs, Memory, Power State. Click Next.
Under the Time Period option, select Last Month. Click Next. Under the Report Settings option, select Monthly from the Schedule drop-down menu. Enter [email protected] as the Email Recipient. Select CSV as the Report Output Format. Click Next.
Review the report details and click Finish.
To generate an instance of the report named VMs_Power_State as a CSV and save the zip file as Desktop
\Files\VMs_Power_state.zip, you can follow these steps: Log in to Prism Central and click on Operations on the left menu. Select Reports from the drop-down menu and find the VMs_Power_State report from the list. Click on Run Now.
Wait for the report to be generated and click on Download Report. Save the file as Desktop\Files
\VMs_Power_state.zip.

1. Open the Report section on Prism Central (Operations > Reports) 2. Click on the New Report button to
3. Under the Custom Views section, select Data Table 4. Provide a title to your custom report, as well as a description if required.
5. Under the Entity Type option, select VM 6. This report can include all as well as a selection of the VMs

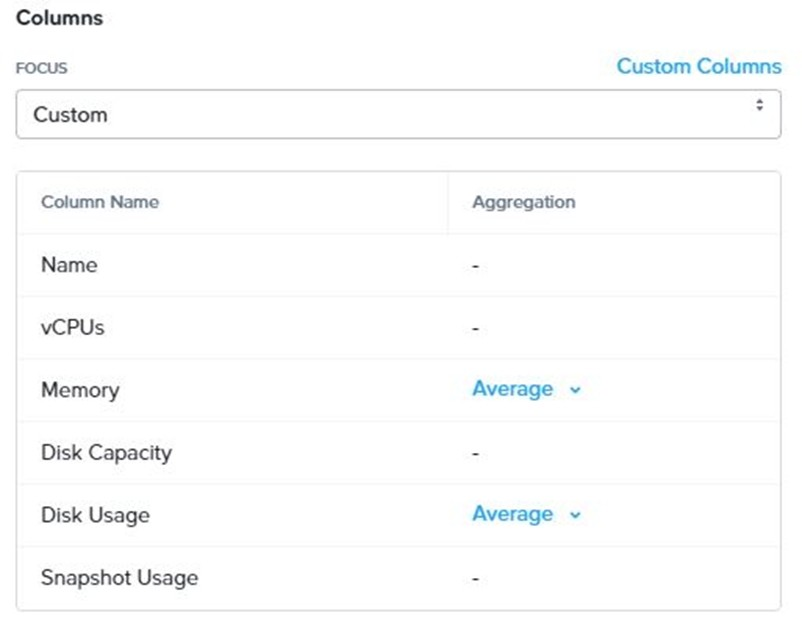

7. Click on the Custom Columns option and add the below variables:
a.Name - Name of the listed Virtual Machine b.vCPUs - A combination of the vCores and vCPU's assigned to the Virtual Machine c.Memory - Amount of memory assigned to the Virtual Machine d.Disk Capacity - The total amount of assigned virtual disk capacity e.Disk Usage - The total used virtual disk capacity f.Snapshot Usage - The total amount of capacity used by snapshots (Excluding Protection Domain snapshots) 8. Under the Aggregation option for Memory and Disk Usage accept the default Average option

9. Click on the Add button to add this custom selection to your report 10. Next click on the Save and Run
Now button on the bottom right of the screen 11.Provide the relevant details on this screen for your custom report:
12. You can leave the Time Period For Report variable at the default of Last 24 Hours 13. Specify a report output of preference (PDF or CSV) and if required Additional Recipients for this report to be mailed to. The report can also simply be downloaded after this creation and initial run if required
14. Below is an example of this report in a CSV format:

Question 3

Testlet 5 Lab simulation

Simulation

Task 1

An administrator has been asked to configure a storage for a distributed application which uses large data sets across multiple worker VMs.

The worker VMs must run on every node. Data resilience is provided at the application level and low cost per GB is a Key Requirement.

Configure the storage on the cluster to meet these requirements. Any new object created should include the phrase Distributed_App in the name.

A. Answer: See the Explanation for step by step solution.

Reveal model answer Close model answer

To configure the storage on the cluster for the distributed application, you can follow these steps:
Log in to Prism Element of cluster A using the credentials provided. Go to Storage > Storage Pools and click on Create Storage Pool. Enter a name for the new storage pool, such as

Distributed_App_Storage_Pool, and select the disks to include in the pool. You can choose any combination of SSDs and HDDs, but for low cost per GB, you may prefer to use more HDDs than SSDs.
Click Save to create the storage pool.
Go to Storage > Containers and click on Create Container. Enter a name for the new container, such as Distributed_App_Container, and select the storage pool that you just created, Distributed_App_Storage_Pool, as the source. Under Advanced Settings, enable Erasure Coding and Compression to reduce the storage footprint of the data. You can also disable Replication Factor since data resilience is provided at the application level. These settings will help you achieve low cost per GB for the container.
Click Save to create the container.
Go to Storage > Datastores and click on Create Datastore. Enter a name for the new datastore, such as Distributed_App_Datastore, and select NFS as the datastore type. Select the container that you just created, Distributed_App_Container, as the source.
Click Save to create the datastore.
The datastore will be automatically mounted on all nodes in the cluster. You can verify this by going to Storage > Datastores and clicking on Distributed_App_Datastore. You should see all nodes listed under
Hosts.
You can now create or migrate your worker VMs to this datastore and run them on any node in the cluster.
The datastore will provide low cost per GB and high performance for your distributed application.
