Once the implemented solution has resolved the issue, the troubleshooting process concludes by documenting the findings, actions, and outcome. This preserves the cause and successful remediation for future support and organizational knowledge. Identifying the problem, establishing a theory, and creating a plan of action all occur before implementation and resolution.

An OTDR launches light into the fiber and analyzes reflected energy from the cable path. A break produces a reflection whose return time can be converted into distance, allowing the engineer to locate the fault along the campus link. A fusion splicer repairs fiber, while a general cable tester may establish continuity without giving precise distance.

ESP provides confidentiality by encrypting the protected payload, preventing observers from reading its contents. AH does not provide encryption; it authenticates the IP header fields that remain stable in transit along with the payload, providing integrity and origin authentication. These capabilities distinguish ESP's confidentiality from AH's broader header authentication coverage.

An IDS monitors network traffic and generates alerts or analysis when it detects suspicious activity. It can receive a copied traffic stream rather than sitting directly in the forwarding path, so its inspection does not add processing delay to internet traffic. An IPS is typically inline because it must actively block malicious packets, which can affect latency.

802.1Q tagging inserts a VLAN identifier into Ethernet frames. A link between the two Layer 2 switches can then carry traffic for multiple logical networks while each frame remains associated with the correct VLAN. A native VLAN handles untagged traffic, link aggregation combines links, and jumbo frames change frame capacity rather than network identity.

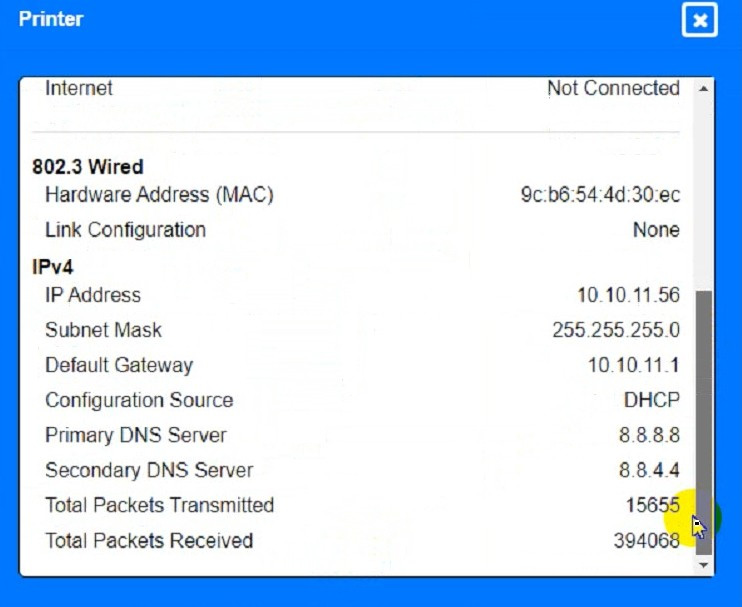

After the outage, the printer may obtain a different dynamic IPv4 address, leaving users configured for its previous address unable to reach it. A DHCP reservation maps the printer's MAC address to a consistent address whenever it requests a lease, preserving a stable destination for printing without manual client changes.

Activating the second site creates multiple WAN paths between locations. With OSPF used by both providers and EIGRP used internally, traffic can select one provider in the outbound direction and another path on return. This asymmetrical routing can produce unstable reachability when devices or policies expect both directions of a session to follow the same path.

Temperature sensors reveal overheating or cooling failures that can damage equipment or trigger shutdowns. Humidity sensors detect conditions that may cause condensation when too high or increase static-discharge risk when too low. Monitoring both humidity and temperature therefore covers the most common environmental risks to data center hardware.

PaaS supplies a managed platform on which developers can build, test, and deploy applications without administering the underlying infrastructure. Application development is therefore a direct use case for this environment. The other choices describe access methods, workload examples, or software characteristics rather than the primary platform activity.

Each PoE switch has a finite power budget shared across its powered ports. Once existing devices consume the available budget, newly connected APs may receive no power or insufficient power and therefore cannot start broadcasting. A VLAN assignment can affect client connectivity but does not explain an AP that never powers up.

IPSec protects IP traffic across an untrusted network by providing authentication, integrity, and encryption. A tunnel between the regional data-center gateways can therefore secure communications while using the public internet as transport. GRE and VXLAN provide encapsulation or overlays but do not independently supply the required secure communication properties.

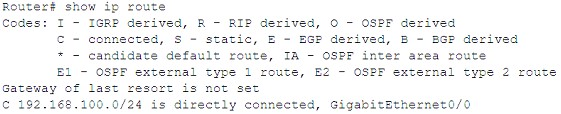

The server is configured as 192.168.100.225 with mask 255.255.255.224, which is a /27. The router reports the connected VLAN as 192.168.100.0/24, using mask 255.255.255.0. Because the host and router disagree about the local subnet boundary, the server has an incorrect subnet mask for this existing VLAN.

After the issue has been resolved and service has been verified, the ticket is completed by documenting the findings, actions, outcomes, and lessons learned. This preserves a useful record for future incidents and formally closes the process. Escalation, testing, and action planning occur earlier when needed to reach and verify the resolution.

OSPF is a link-state routing protocol. Routers advertise link-state information, build a common topology database, and run Dijkstra's shortest path first algorithm to calculate the best routes for the routing table. RIP uses distance-vector behavior, BGP uses path attributes, and EIGRP uses its own route calculation method.

SSL supports an encrypted, integrity-protected session and can be used to secure remote-access VPN traffic. IPSec protects IP packets with confidentiality and integrity and is designed for VPN tunnels at the network layer. Both therefore address eavesdropping and tampering. AES is an encryption algorithm rather than a complete VPN solution, while the remaining choices do not independently provide both required VPN protections.

Wireless deployments must comply with the destination country's rules governing permitted frequencies, channels, and transmission power. Those regulatory requirements determine whether and how the access points may legally operate, so they must be checked before optimizing features such as channel bonding or choosing an SSID.

Tracert discovers the sequence of routers used to reach the web application by sending probes with progressively increasing time-to-live values. The returned hops reveal the outbound route, allowing the technician to identify which of the two internet links carries the application's traffic.

A /25 subnet provides 128 total addresses, with 126 usable host addresses after excluding the network and broadcast addresses. This is the smallest subnet listed that can support 75 hosts. A /26 provides only 62 usable hosts, while /27 and /28 provide even fewer, making /25 the most efficient valid choice.

An SQL server should expose only the services needed for its role. If FTP is unnecessary, disabling unused ports on the server removes that listening service and reduces the available attack surface at the host itself. Changing passwords does not close FTP, and changing unrelated transit controls is less direct.

The nslookup utility performs DNS queries and identifies the DNS server used for those lookups, making it suitable for checking the computer's resolver configuration. The other commands inspect NetBIOS information, address-resolution cache entries, or active network connections rather than querying the configured DNS service.

A UPS contains stored energy that supplies connected equipment when utility power is interrupted. It can keep devices operating through a short outage or provide enough time for an orderly shutdown during a longer loss. A PDU only distributes available power, while power load and voltage are electrical properties rather than backup-power devices.

The working IP phone demonstrates that the switch connection and voice VLAN path are functioning. The workstation's traffic must instead be associated with a data VLAN so it receives the appropriate addressing and network access for ordinary user traffic. Configuring the data VLAN restores the missing workstation path without changing the already-working voice path.

Internal EIGRP routes have a default administrative distance of 90. Administrative distance represents how trustworthy the router considers a route's source when multiple routing sources advertise the same destination. The value is used for route-source preference; it is distinct from EIGRP's calculated path metric.

An infrastructure wireless network has access points connecting clients to the wired network, and those access points can be managed by a centralized wireless LAN controller. This model fits a large coordinated deployment. Ad hoc and point-to-point designs do not provide that client-access structure, while mesh emphasizes wireless links between nodes.

The VLANs and their Layer 3 interfaces already provide separate subnets and gateway addresses, but isolation alone does not forward packets between them. Enabling inter-VLAN routing with IP routing allows the Layer 3 switch to route traffic from the VLAN 10 interface to the VLAN 20 interface. DHCP relay, port security, and STP do not provide that forwarding.

SSH provides an encrypted remote command-line session and authenticates the server and user, making it the standard fit for secure Ubuntu administration. HTTPS secures web applications, and SFTP transfers files over an SSH-based channel, but neither specifically represents the requested interactive server-management protocol. RDP is associated with graphical remote desktops.

Moving wireless service to the 5GHz frequency separates it from industrial interference occurring in the 2.4GHz range. Where 2.4GHz service must remain, choosing a non-overlapping channel reduces interference between nearby wireless networks using overlapping spectrum. These two measures address interference through frequency separation and cleaner channel allocation.

A reverse DNS lookup begins with an IP address and requests the hostname associated with it. A PTR record supplies that reverse mapping, allowing the SMTP relay's address to resolve to a name when another mail system performs the check. An MX record instead identifies the mail server responsible for receiving mail for a domain.

The packet loss establishes an intermittent path problem, but incomplete documentation leaves the relevant cable route unidentified. Performing toning and probe work traces the cable and locates its endpoints without restarting shared equipment or replacing an unconfirmed component, preserving service while narrowing the fault location.

Disabling unused ports removes unnecessary entry points, preventing an unneeded physical or logical interface from accepting connections. Changing default passwords eliminates credentials that are predictable and commonly shared across devices. Both changes reduce the device's attack surface directly, making them core hardening actions rather than monitoring activities.

The application is delay-sensitive during periods when the existing link is congested, yet only a few users generate its traffic. QoS can classify and prioritize that application traffic so its packets are transmitted ahead of less important traffic during contention. This addresses lag by managing the available bandwidth and is more cost-effective than purchasing a dedicated cloud connection.

SSH provides authenticated, encrypted remote command-line access to a network appliance. Encryption protects credentials and administrative commands while they traverse the external network. Telnet sends management traffic without comparable protection, while RDP and FTPS serve different remote-access purposes.

The employees can communicate on their local segment, so local connectivity is already functioning. A depleted or incorrectly sized pool on the DHCP server can prevent new devices from receiving valid addressing for routed company resources. Modifying that pool allows the clients to obtain usable network configurations.

An ESSID represents one extended wireless network formed by multiple access points using the same wireless LAN name. Configuring that common identity across the building lets users recognize a single network and move among its coverage areas instead of selecting location-specific names. Mesh describes AP backhaul, while band steering and WPA3 address radio selection and security.

Initial DHCP client messages are broadcasts, and routers normally do not forward broadcasts between subnets. A DHCP relay receives the local broadcast and forwards the request as a routable message to the remote DHCP server, then returns the response to the client subnet. A scope supplies addresses but does not transport requests across the router.

An evil twin is a malicious wireless AP made to resemble a trusted network, commonly by advertising an identical SSID. Users are tricked into associating with the attacker's AP, allowing the attacker to observe or manipulate their traffic. Address-resolution manipulation, MAC impersonation, and generic interception describe different attack mechanisms.

An exploit is code or an application designed to use a software vulnerability to produce an unintended result, such as gaining access or executing commands. The software flaw itself is the vulnerability; a threat is a potential source of harm, and risk expresses the possibility and impact of that harm. The malicious application is therefore the exploit.

OSPF is a link-state routing protocol. Routers advertise the state and cost of their links, build a shared topology database, and calculate shortest paths from that topology. RIP uses distance-vector behavior, BGP is a path-vector protocol, and a static route is manually configured rather than dynamically learned.

A /22 leaves 10 host bits, providing 1,024 total addresses and 1,022 usable host addresses, enough for about 800 workstations. The 10.0.100.0 boundary is valid for a /22. A /23 supplies only 510 usable addresses, while /21 and /20 networks are larger than necessary and therefore waste more addresses.

An ACL evaluates packet fields against ordered permit and deny rules. A rule matching the unwanted source IP address can deny that traffic while later rules define what other traffic remains permitted. VLANs provide segmentation, NAT translates addresses, and DHCP distributes client configuration; none of those functions directly expresses an IP-based blocking policy.

A /27 subnet provides 32 total addresses and 30 usable host addresses, which satisfies the requirement. Channels 1, 6, and 11 are the standard non-overlapping 2.4 GHz channels, preventing interference. WPA provides TKIP support, and 802.11g is the fastest available TKIP-compatible mode shown. All three APs must use the same SSID and key.

IPSec is the protocol suite used to authenticate peers and protect IP traffic through an encrypted tunnel. Its tunnel mode is suited to connecting two company networks, and a pre-shared key can be used during peer authentication. VPN describes the overall solution rather than a specific protocol, while SSL and TLS primarily secure application sessions.

The switch's show interface command exposes counters for input errors, CRC failures, drops, link transitions, and other port conditions. Increasing physical-layer errors on the client's switchport would support an intermittent cable fault and tie the symptom to the local link. End-to-end ping or traceroute can reveal disruption without identifying cable errors directly.

Elasticity is the ability of a cloud service to add or remove resources dynamically as demand changes, often expanding during peaks and contracting afterward. Scalability describes the broader ability to handle growth by increasing capacity, but elasticity specifically emphasizes on-demand adjustment in response to changing workload requirements.

Out-of-band management uses a path that is separate from the network carrying ordinary production traffic. Management interfaces reside on a dedicated network and therefore use a different IP address range from user and service interfaces. Administrators can retain an independent route to network devices even when the production data path has failed.

Data-in-transit encryption directly protects sensitive information while it crosses the network by converting readable data into ciphertext. An observer who captures the traffic cannot use its contents without the required cryptographic key. Access controls and authentication regulate access but do not themselves encrypt packets in transit.

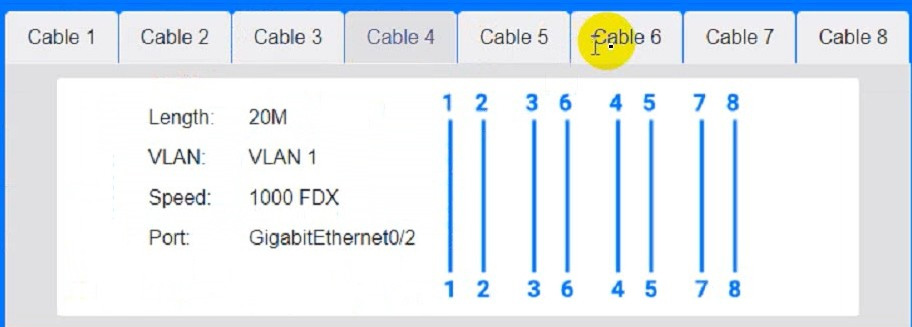

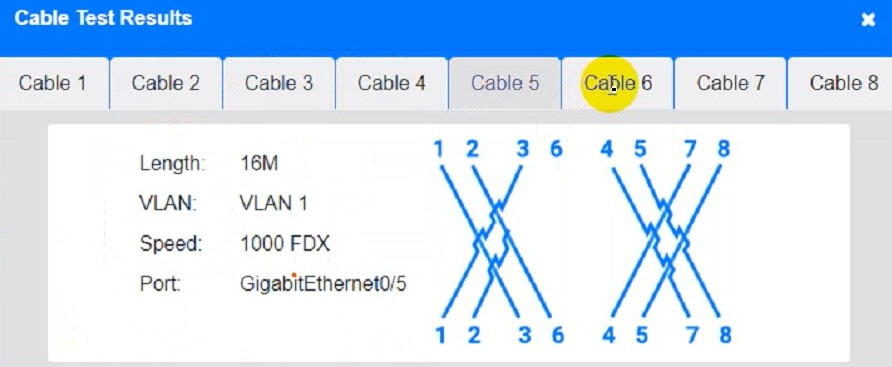

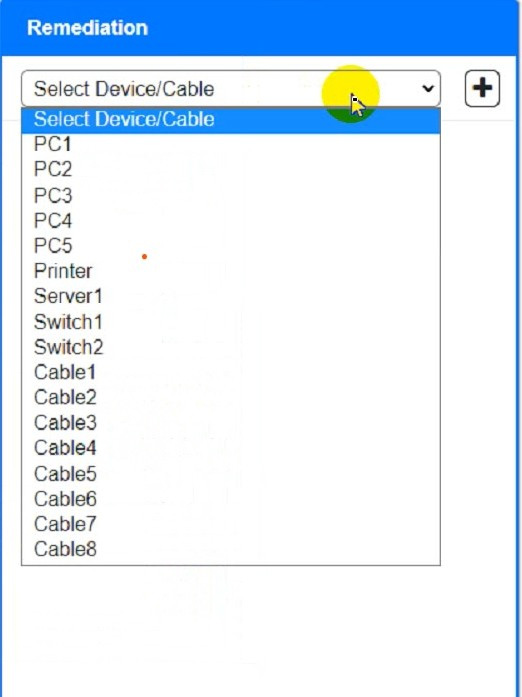

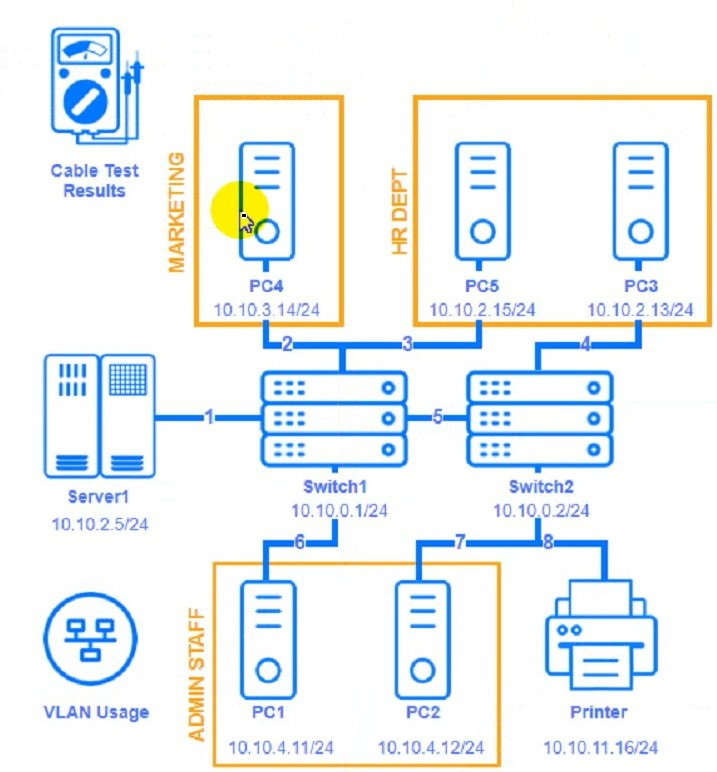

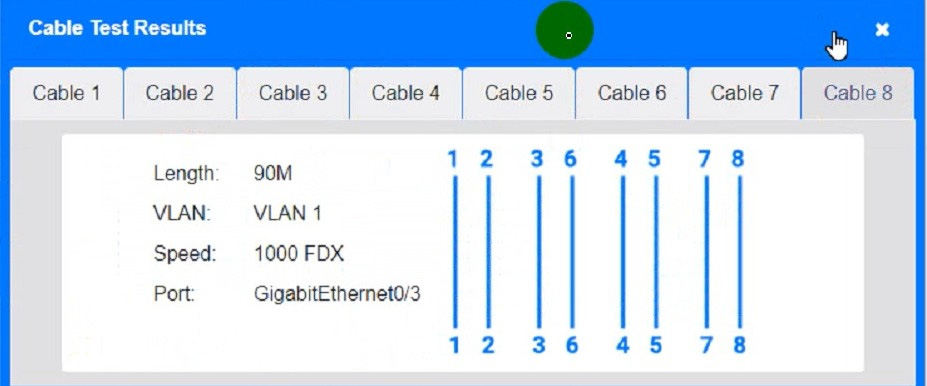

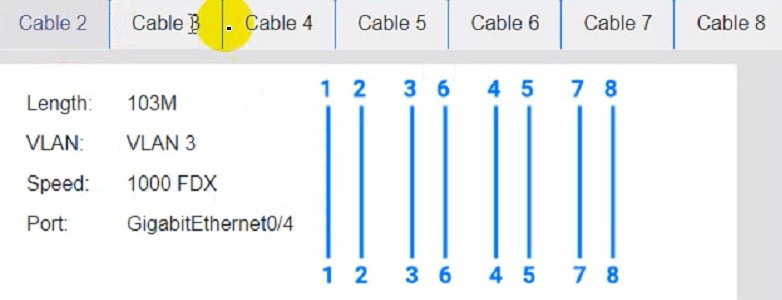

Cable 3 measures 103 m, exceeding the 100 m maximum for standard copper Ethernet, so it must be replaced or shortened. Cable 4 is associated with the Marketing network but is assigned to VLAN 1; it should use VLAN 3. Cable 6 is associated with an Admin Staff device but is assigned to the wrong VLAN; it should use VLAN 4. The remaining cable tests show acceptable length, wiring, and VLAN assignments.

TACACS+ provides a centralized service for validating administrator credentials when users access routers, switches, and other network devices. It also supports centralized authorization of administrative actions and accounting of activity. MFA strengthens login verification, but it does not by itself supply the central network-device credential service requested.

In a hub-and-spoke topology, each spoke connects through the central hub rather than directly to every other spoke. Traffic between spokes therefore passes through that single central point. A mesh provides multiple interconnections, a point-to-point link joins only two endpoints, and a hybrid combines topology types without requiring one traffic center.

Twinaxial direct-attach cables contain fixed connector modules on both ends and plug directly into compatible QSFP ports. Because the cable and interface modules are an integrated assembly, separate optical transceivers are unnecessary. Multimode fiber requires suitable optics, while RG11 and Category 6 are not direct-attach QSFP cable assemblies.

A honey net is a network of decoy systems designed to attract malicious activity in a controlled environment. Interactions with those systems can reveal an attacker's tactics, techniques, and procedures, which defenders can use to improve protections. An IDS or IPS primarily detects or blocks traffic rather than providing the same decoy environment.

Administrative distance ranks routes from different sources so the router can prefer one path over another. The administrator can configure a backup static route with a higher distance than the primary route. It remains less preferred while the primary route exists, then enters use when that route is removed after a failure.

The shortcut can still contain the correct corporate hostname while DNS poisoning causes that name to resolve to a false address. The user is then directed to an imitation or altered site, explaining the discrepancies despite using a familiar shortcut. VLAN hopping and MAC flooding target switching behavior, while ARP spoofing redirects traffic on a local segment.

192.168.1.0/24 belongs to the RFC1918 private range 192.168.0.0/16. A /24 contains 256 addresses and normally provides 254 usable host addresses, so it accommodates 200 systems without allocating a much larger network. The 150.200.1.0 and 254.169.0.0 choices are not RFC1918 networks.

An SFP transceiver installs in the network device's SFP interface and accepts the appropriate fiber-optic connector. It converts between the optical signal on the fiber and the electrical signaling used by the device interface, enabling the network link. SC is only a connector type, while DAC and twinaxial describe copper direct-attach media.

PAT translates transport-layer port information as traffic crosses the firewall. The mapping changes an external connection addressed to port 80 into a connection to the internal server on port 88, allowing multiple services or hosts to be distinguished through address-and-port translation rules.

Port 636 is assigned to LDAPS, which carries LDAP directory communication over a TLS-protected connection. It is therefore the listed port that provides secure access to a directory service. Port 389 is associated with standard LDAP, while ports 22 and 445 are associated with SSH and SMB rather than secure directory queries.

Branching creates an independent line of development from the primary configuration. An administrator can modify and test the new configuration on that branch without changing the primary branch, then merge it after validation. A repository stores content, while version history alone does not provide the same isolated workspace.

NS records identify the authoritative DNS servers for a domain. Changing the domain's name-server delegation at the registrar directs external resolvers to the new hosts that contain the public DNS records. Individual host aliases or reverse records do not transfer authority for the domain's externally visible zone.

Traffic analysis examines network flows and packet behavior to identify the system generating suspicious communications. Tracing the spam-related traffic back to the infected workstation connects the external reputation problem to its root cause, whereas availability or baseline monitoring would only describe broader operational conditions.

SNMP exposes detailed device status through managed objects and can send unsolicited traps when a monitored condition changes. A power-supply failure can therefore generate a specific event that a monitoring platform turns into an email alert. TFTP transfers files, while TLS and SSL protect communications but do not define device-health monitoring data.

A jump box is a controlled intermediary that administrators must access before reaching protected management interfaces. Placing it between the corporate network and the management environment creates an additional authentication and access-control boundary and centralizes administrative entry. In-band management uses the production network directly and does not add that intermediary layer.

The phone requires PoE for electrical power, while the workstation can continue passing ordinary Ethernet traffic through the inline connection. When the switch's PoE power budget is exceeded, power to a powered device can become insufficient or unstable, causing the phone to reboot. The intact data path explains why the workstation remains connected.

Avoidance, acceptance, mitigation, and transfer are standard ways to respond to risk. An organization can stop the risky activity, knowingly retain the exposure, reduce its probability or impact, or shift financial responsibility to another party. Threats, vulnerabilities, and exploits are inputs or events considered during risk analysis, not response categories.

Baseline metrics establish what normal utilization, latency, error rates, and availability look like before new monitoring results are interpreted. With that reference, the administrator can recognize meaningful deviations and choose useful thresholds. Deploying tools or collecting packet captures first provides data, but without a baseline it lacks a reliable normal-state comparison.

Spanning Tree prevents Layer 2 switching loops by selecting a loop-free topology and placing redundant paths into a non-forwarding state. Without that control, Ethernet frames can circulate repeatedly and multiply into a broadcast storm. The routing and discovery protocols listed do not remove redundant Layer 2 forwarding loops.

A pre-shared key, or PSK, provides a simple shared credential that guests can enter to join the wireless network for casual internet access. It avoids the account and authentication infrastructure associated with enterprise access. WPA names a wireless security family rather than the specific credential method here, while ESP and IKE are IPsec components.

Because other devices can reach the repository, the service itself is operating and the investigation should focus on the path from the user's device. tracert identifies each Layer 3 hop toward the destination and reveals where replies stop or latency begins. That makes it the first listed command for locating this device-specific connectivity break.

The previously installed horizontal and uplink cables both test successfully, and adding the 26ft patch segment keeps the total run below the normal 100m Ethernet channel limit. The failure began immediately after newly crimped patch cables were installed in one room. A repeated incorrect pinout on those cables would break pair continuity or arrangement and prevent every affected user from linking.

SSH establishes an encrypted remote session and presents a command-line interface for administering a network device. Encryption protects credentials and commands while they cross the network. Telnet also provides a remote CLI but lacks that protection, while a console connection is normally direct rather than network-based.

Traceroute measures the path to the shared-drive destination one hop at a time and reports response timing for those hops. This helps locate where latency rises or replies stop between the office users and the service. Wireshark can provide deeper packet analysis later, but traceroute is the direct first test for path-related network latency.

An autonomous access point operates independently and contains the functions needed to manage its own wireless service. It does not require ongoing communication with a wireless LAN controller, matching the remote-office requirement. A lightweight access point depends on controller interaction, while mesh and ad hoc describe different wireless topology relationships.

Port 443 is the standard port for HTTPS, which protects web sessions with TLS encryption and server authentication. This provides a secure alternative to unencrypted HTTP. The other listed ports are associated with FTP data, Telnet, and SMB, and their port numbers alone do not identify the secure web protocol requested.

A host sends traffic directly to peers on its local subnet. When the destination belongs to another network, the host forwards the packet to its default gateway, whose routing function moves it toward that external network. The gateway is therefore the host's next hop for destinations outside the local subnet, not a name or address assignment service.

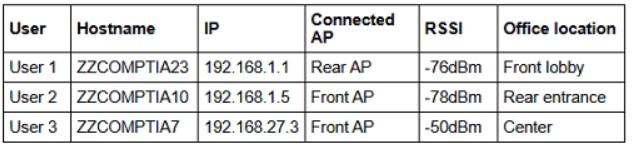

The front-lobby user remains connected to the rear AP at -76 dBm, while the rear-entrance user remains on the front AP at -78 dBm. Those weak connections to the opposite AP indicate that clients are not transitioning effectively as they move. Inspecting the roaming configuration addresses how clients hand off between the two coverage areas.

A switch can forward Ethernet frames with an MTU larger than the standard frame size when jumbo-frame support is enabled. This capability must be configured consistently along the relevant path so oversized frames are not dropped. A hub merely repeats signals, while a switch actively processes frames and can enforce the supported MTU.

Elasticity is the automatic adjustment of allocated resources as demand rises or falls. Because the application server changes its allocation in response to unpredictable load, capacity tracks current need rather than remaining fixed. Scalability describes the ability to grow capacity, but does not by itself require automatic demand-driven adjustment.

MAC filtering controls network attachment according to each device's Layer 2 hardware address. The network team can permit registered addresses and reject unapproved ones, directly addressing rogue devices attempting to connect. Content and URL filters examine requested material, while IP filtering acts after an endpoint has an IP configuration.

Least privilege network access limits each account or device to only the resources required for its role, reducing exposure and opportunities for lateral movement after a breach. Central policy management provides one controlled place to define and apply those security rules consistently across the environment. Together they reduce excessive access and fragmented enforcement.

SNMPv3 can securely manage device settings through authenticated, integrity-protected, and optionally encrypted management operations, including configuration changes. SSH supplies an encrypted, authenticated remote terminal for entering device configuration commands. Telnet lacks session encryption, while Syslog transports event messages rather than configuration commands.

GDPR governs the protection and processing of personal data associated with people in the European Union. It establishes responsibilities for handling that data, including lawful processing, security, and individual privacy rights. SCADA controls industrial systems, SAML exchanges authentication assertions, and PCI DSS focuses specifically on payment-card data.

The working link light establishes physical connectivity, and the printer already has valid Layer 3 settings. Replacing the NIC can cause the device to appear on a port whose VLAN membership is incorrect for the printer's subnet. Running show vlan first verifies the port assignment and whether the required VLAN is present and active.

SSO allows a user to authenticate through one account and then access multiple authorized resources without signing in separately to each one. The shared identity and session provide the requested user experience. MFA adds authentication factors, while RADIUS and TACACS+ are centralized authentication protocols rather than the general one-login capability.

NAT rewrites address information as packets pass between private and public networks. It can replace a private source address with a public address for outbound communication and maintain the translation needed for returning traffic. DNS performs name resolution, SNMP supports monitoring, and NTP synchronizes clocks rather than translating packet addresses.

The Session layer coordinates communication sessions between application endpoints. Its responsibilities include establishing a session, maintaining the dialog while communication continues, and terminating the session when complete. The Transport layer handles end-to-end data delivery, while the Network and Physical layers address routing and signal transmission.

Jumbo frames increase the payload carried by each frame, reducing header overhead and the number of frames that hosts and network devices must process for a large transfer. This improves efficiency within each high-volume flow. Link aggregation raises aggregate capacity, but a single flow is normally assigned to one member link.

A jump box can provide a controlled bridge into a network that is otherwise isolated from the user's normal network. The user first connects to the jump box and then initiates the management connection to the stand-alone device from the reachable side. SSH is a connection protocol, but it does not by itself create reachability into an isolated segment.

A trunk port carries traffic for multiple VLANs over one physical link, commonly between switches. VLAN identification on the link keeps frames associated with their respective logical networks. An access port normally serves one VLAN for an endpoint, whereas a routed port handles Layer 3 traffic instead of extending several switched VLANs.

Content filtering evaluates requested services, destinations, or application categories and applies policy to them. It can deny social media and personal cloud-storage traffic while allowing approved business access. Filtering only by a port, MAC address, or basic name resolution does not express the complete application-content restriction described.

In a high-density environment, 2.4GHz offers relatively few non-overlapping channels, so many clients compete for the same airtime. Without band steering, dual-band personal devices are not encouraged to move to the less crowded 5GHz band. Concentrating clients on 2.4GHz increases contention and latency, producing the reported wireless slowness.

Tabletop exercises bring representatives from relevant departments together to walk through a disaster scenario and discuss their responsibilities, decisions, dependencies, and recovery procedures. This exposes gaps in coordination without requiring a live disruption. SLA alignment concerns commitments, while active-active is an operating architecture rather than an evaluation activity.

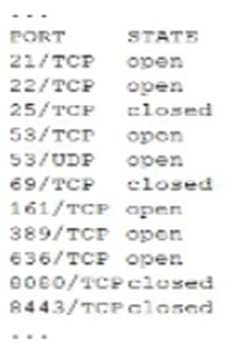

A DNS server needs DNS on TCP and UDP port 53, but the scan also reports several other open services, including FTP, SSH, SNMP, LDAP, and LDAPS-related ports. Services that are not required increase the exposed attack surface and can complicate troubleshooting. The administrator should determine which of these services are unused and disable or restrict them while preserving the DNS service needed by clients.

A traditional fax machine connects to an analog telephone line, which commonly terminates in an RJ11 connector. Because the damaged end is on the phone cable and the machine has lost dial tone, replacing that connector restores the physical telephone-line interface. RJ45 is used for Ethernet, SC for fiber, and F-type for coaxial cable.

PoE cameras depend on the switch supplying suitable electrical power over their Ethernet connections. Because eight cameras power on while the remaining cameras do not, checking the delivered voltage first tests the failed function directly and can reveal inadequate PoE power delivery. DHCP affects addressing only after a camera has powered on.

A warm site has computing and network hardware prepared for recovery but does not maintain the fully current, continuously replicated state of a hot or active-active site. Data must be restored or updated before operations resume. This balances faster recovery than an unequipped cold site with the stated budget limitation.

An ICMP Redirect Message tells a host that a better next-hop gateway exists for a destination. A router sends it when the host used that router even though another gateway provides a more appropriate path, commonly reachable through the same local interface. The host can then update its routing behavior and use the better gateway.

RFC1918 reserves 10.0.0.0/8 as the private Class A address range. The subnet 10.1.1.0/24 lies within that block and can be used internally without public routing. The 172.16.0.0 private block is historically Class B, while 192.168.0.0 is Class C; 100.1.1.0 is not an RFC1918 range.

A VPC creates a logically isolated network boundary for cloud resources within an account. Subnets, routing, and related controls can divide compute resources inside that virtual network while keeping them separate from other environments. A network security group filters traffic for resources, but the VPC supplies the broader segmentation boundary.

Passthrough plugs can leave conductor ends exposed or positioned so they touch neighboring conductors. Either condition can disrupt pair geometry or create an electrical fault that contributes to excessive crosstalk. Inspecting the connectors first is fast and directly checks the recent termination work before replacing connections or investigating unrelated device settings.
