Key details to be taken from the given scenario:

>> Organization uses BOTH cloud-based and on-premises systems

>> On-premises systems can only be accessed from within the organization's intranet

Let us evaluate the given choices based on above key details:

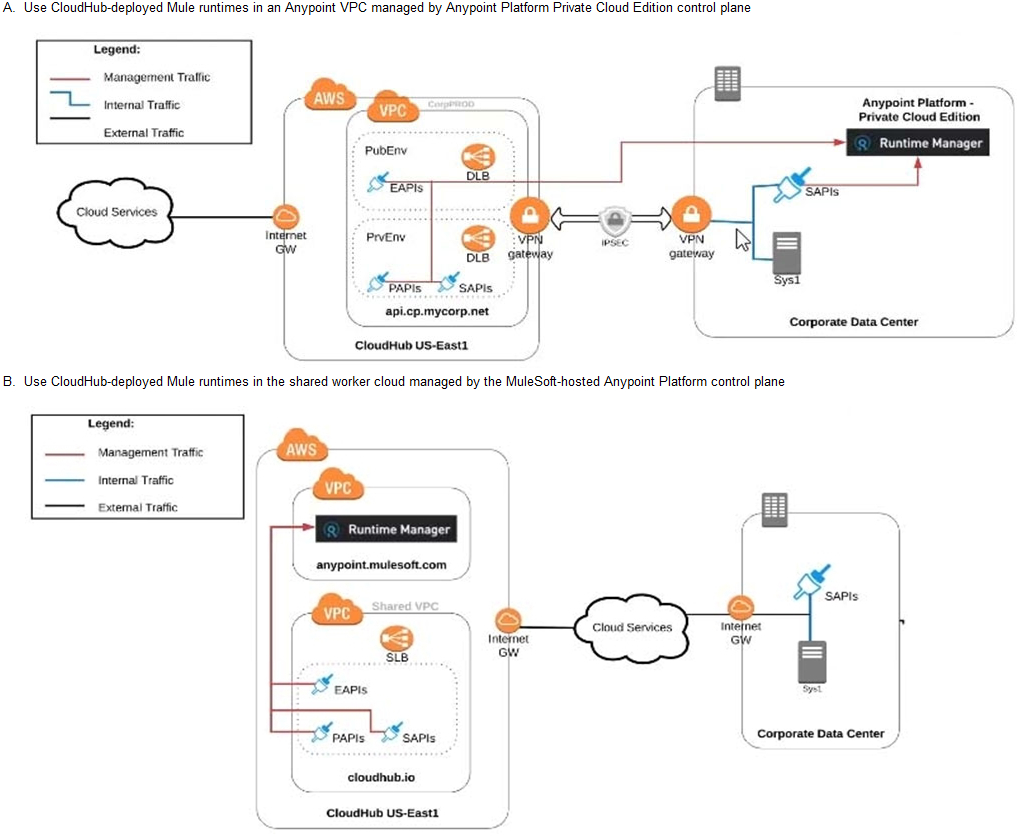

>> CloudHub-deployed Mule runtimes can ONLY be controlled using MuleSoft-hosted control plane. We CANNOT use Private Cloud Edition's control plane to control CloudHub Mule Runtimes. So, option suggesting this is INVALID
>> Using CloudHub-deployed Mule runtimes in the shared worker cloud managed by the MuleSoft-hosted
Anypoint Platform is completely IRRELEVANT to given scenario and silly choice. So, option suggesting this is INVALID

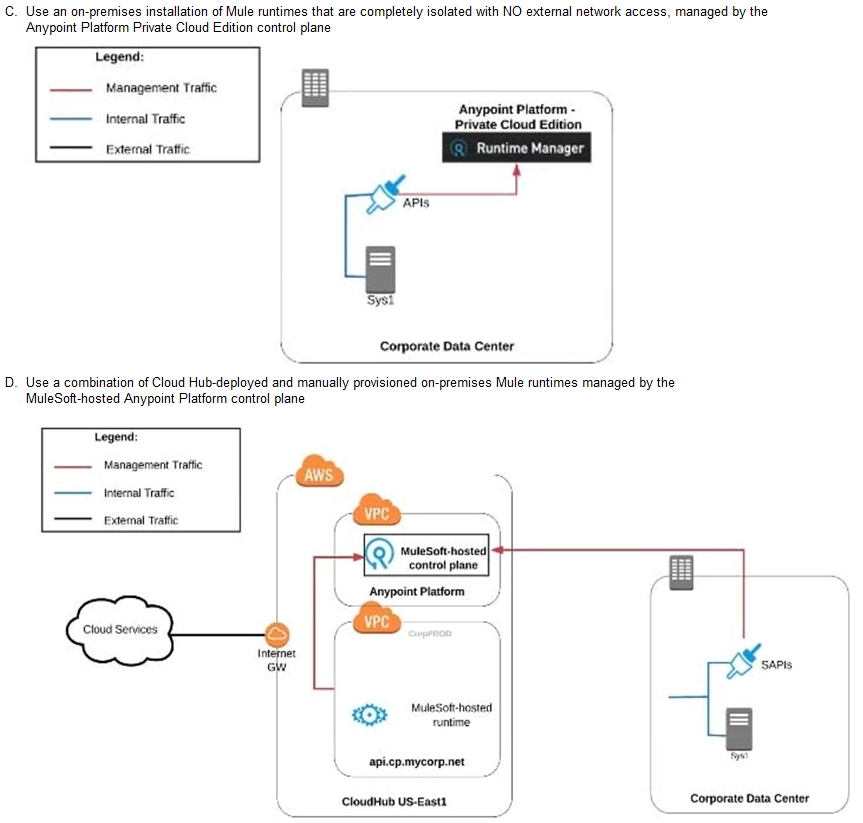

>> Using an on-premises installation of Mule runtimes that are completely isolated with NO external network access, managed by the Anypoint Platform Private Cloud Edition control plane would work for On-premises integrations. However, with NO external access, integrations cannot be done to SaaS-based apps. Moreover CloudHub-hosted apps are best-fit for integrating with SaaS-based applications. So, option suggesting this is BEST WAY.

The best way to configure and use Anypoint Platform to support these mixed/hybrid integrations is to use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

Key requirement in the question is:

>> Approach that minimizes the impact of this change on API clients

Based on above:

>> Updating the RAML definition would possibly impact the API clients if the changes require any thing mandatory from client side. So, one should try to avoid doing that until really necessary.

>> Implementing the changes as a completely different API and then redirectly the clients with 3xx status code is really upsetting design and heavily impacts the API clients.

>> Organisations and IT cannot simply postpone the changes required until all API consumers acknowledge they are ready to migrate to a new Process API or API version. This is unrealistic and not possible.

The best way to handle the changes always is to implement required changes to the API implementations so that, whenever possible, the API's RAML definition remains unchanged.

>> API Policies can be enforced at two places in Mule platform.

>> One - As an Embedded Policy enforcement in the same Mule Runtime where API implementation is
running.

>> Two - On an API Proxy sitting in front of the Mule Runtime where API implementation is running.

>> As the deployment scenario in the question has API Proxy involved, the policies will be enforced at the
API Proxy.

The scenario in this question can be split as below:

>> There are 3 CloudHub workers (So, there are already good number of workers to handle high volume
of requests)

>> The workers are not using static IP addresses (So, one CANNOT use customer load-balancing solutions without static IPs)

>> Looking for most cost-effective component to load balance the client requests among the workers.

Based on the above details given in the scenario:

>> Runtime autoscaling is NOT at all cost-effective as it incurs extra cost. Most over, there are already 3 workers running which is a good number.

>> We cannot go for a customer-hosted load balancer as it is also NOT most cost-effective (needs custom load balancer to maintain and licensing) and same time the Mule App is not having Static IP Addresses which limits from going with custom load balancing.
>> An API Proxy is irrelevant there as it has no role to play w.r.t handling high volumes or load balancing.

So, the only right option to go with and fits the purpose of scenario being most cost-effective is - using a CloudHub Shared Load Balancer.

There is one important consideration to be noted in the question which is - System API in DR environment provides only 20% of the rate limiting offered by the primary environment. So, comparitively, very less calls will be allowed into the DR environment API opposed to its primary environment. With this in mind, lets analyse what is the right and best fault-tolerant invocation strategy.

1. Invoking both the system APIs in parallel is definitely NOT a feasible approach because of the 20% limitation we have on DR environment. Calling in parallel every time would easily and quickly exhaust the rate limits on DR environment and may not give chance to genuine intermittent error scenarios to let in during the time of need.

2. Another option given is suggesting to add timeout and retry logic to process API while invoking primary environment's system API. This is good so far. However, when all retries failed, the option is suggesting to invoke the copy of process API on DR environment which is not right or recommended. Only system API is the one to be considered for fallback and not the whole process API. Process APIs usually have lot of heavy orchestration calling many other APIs which we do not want to repeat again by calling DR's process API. So this option is NOT right.

3. One more option given is suggesting to add the retry (no timeout) logic to process API to directly retry on DR environment's system API instead of retrying the primary environment system API first. This is not at all a proper fallback. A proper fallback should occur only after all retries are performed and exhausted on Primary environment first. But here, the option is suggesting to directly retry fallback API on first failure itself without trying main API. So, this option is NOT right too.

This leaves us one option which is right and best fit.

- Invoke the system API deployed to the primary environment

- Add Timeout and Retry logic on it in process API

- If it fails even after all retries, then invoke the system API deployed to the DR environment.

General guidance w.r.t choosing Data Models:

>> If an Enterprise Data Model is in use then the API data model of System APIs should make use of data types from that Enterprise Data Model and the corresponding API implementation should translate between these data types from the Enterprise Data Model and the native data model of the backend system.

>> If no Enterprise Data Model is in use then each System API should be assigned to a Bounded Context, the API data model of System APIs should make use of data types from the corresponding Bounded Context Data Model and the corresponding API implementation should translate between these data types from the Bounded Context Data Model and the native data model of the backend system. In this scenario, the data types in the Bounded Context Data Model are defined purely in terms of their business characteristics and are typically not related to the native data model of the backend system. In other words, the translation effort may be significant.

>> If no Enterprise Data Model is in use, and the definition of a clean Bounded Context Data Model is considered too much effort, then the API data model of System APIs should make use of data types that approximately mirror those from the backend system, same semantics and naming as backend system, lightly sanitized, expose all fields needed for the given System API's functionality, but not significantly more and making good use of REST conventions.

The latter approach, i.e., exposing in System APIs an API data model that basically mirrors that of the backend system, does not provide satisfactory isolation from backend systems through the System API tier on its own. In particular, it will typically not be possible to "swap out" a backend system without significantly changing all System APIs in front of that backend system and therefore the API implementations of all Process APIs that depend on those System APIs! This is so because it is not desirable to prolong the life of a previous backend system's data model in the form of the API data model of System APIs that now front a new backend system. The API data models of System APIs following this approach must therefore change when the backend system is replaced.

On the other hand:

>> It is a very pragmatic approach that adds comparatively little overhead over accessing the backend
system directly
>> Isolates API clients from intricacies of the backend system outside the data model (protocol, authentication, connection pooling, network address, ...)

>> Allows the usual API policies to be applied to System APIs

>> Makes the API data model for interacting with the backend system explicit and visible, by exposing it in the RAML definitions of the System APIs

>> Further isolation from the backend system data model does occur in the API implementations of the
Process API tier

>> It is not ideal and good approach, until unless there is a pre-approved agreement with the API clients that they will receive a HTTP 3xx temporary redirect status code and they have to implement fallback logic their side to call another API.

>> Creating separate entry of same Order API in API manager would just create an another instance of it on top of same API implementation. So, it does NO GOOD by using clone od same API as a fallback API.
Fallback API should be ideally a different API implementation that is not same as primary one. >> There is NO option currently provided by Anypoint HTTP Connector that allows us to invoke a fallback API when we receive certain HTTP status codes in response.

The only statement TRUE in the given options is to Search Anypoint exchange for a suitable existing fallback API, and then implement invocations to this fallback API in addition to the order API.

>> Reference:
https://docs.mulesoft.com/api-manager/2.x/rate-limiting-and-throttling-sla-based-policies#response-headers

>> All the options eventually helps to generate the alert required when the application stops responding.
>> However, handling exceptions within calling API and then raising alert from API client is inappropriate and silly. There could be many API clients invoking the API implementation and it is not ideal to have this setup consistently in all of them. Not a realistic way to do.

>> Implementing a health check/ heartbeat with in the API and calling from outside to detmine the health sounds OK but needs extra setup for it and same time there are very good chances of generating false alarms when there are any intermittent network issues between external tool calling the health check API on API implementation. The API implementation itself may not have any issues but due to some other factors some false alarms may go out.

>> Creating an alert in API Manager when the API receives no requests within a specified time period would actually generate realistic alerts but even here some false alarms may go out when there are genuinely no requests from API clients.

The best and right way to achieve this requirement is to setup an alert on Runtime Manager with a condition "Worker not responding". This would generate an alert AS SOON AS the workers become unresponsive.

>> API Design and Development - Anypoint Studio, Anypoint Design Center, Anypoint Connectors

>> API Runtime Execution and Hosting - Mule Runtimes, CloudHub, Runtime Services

>> API Operations and Management - Anypoint API Manager, Anypoint Exchange

>> API Consumer Management - API Contracts, Public Portals, Anypoint Exchange, API Notebooks
Correct Answers: API Operations and Management and API Consumer Engagement

*****************************************

>> API Design and Development - Anypoint Studio, Anypoint Design Center, Anypoint Connectors

>> API Runtime Execution and Hosting - Mule Runtimes, CloudHub, Runtime Services >> API Operations and Management - Anypoint API Manager, Anypoint Exchange

>> API Consumer Management - API Contracts, Public Portals, Anypoint Exchange, API Notebooks

References:
https://docs.mulesoft.com/api-manager/2.x/rate-limiting-and-throttling#response-headers
https://docs.mulesoft.com/api-manager/2.x/rate-limiting-and-throttling-sla-based-policies#response-headers

>> 8091 and 8092 ports are to be used when keeping your HTTP and HTTPS app private to the LOCAL
VPC respectively.

>> Above TWO ports are not for Shared AWS VPC/ Shared Worker Cloud.

>> 8081 is to be used when exposing your HTTP endpoint app to the internet through Shared LB

>> 8082 is to be used when exposing your HTTPS endpoint app to the internet through Shared LB

So, API invocations should be sent to port 8082 when calling this HTTPS based app.

References:
https://docs.mulesoft.com/runtime-manager/cloudhub-networking-guide
https://help.mulesoft.com/s/article/Configure-Cloudhub-Application-to-Send-a-HTTPS-Request-Directly-to-Another-Cloudhub-Application
https://help.mulesoft.com/s/question/0D52T00004mXXULSA4/multiple-http-listerners-on-cloudhub-one-with-port-9090

>> Redis distributed cache is performant but NOT out-of-the-box solution in Anypoint Platform

>> File-storage is neither performant nor out-of-the-box solution in Anypoint Platform

>> java.util.WeakHashMap needs a completely custom implementation of cache from scratch using Java code and is limited to the JVM where it is running. Which means the state in the cache is not worker aware when running on multiple workers. This type of cache is local to the worker. So, this is neither out-of-the-box nor worker-aware among multiple workers on cloudhub.
https://www.baeldung.com/java-weakhashmap

>> Persistent Object Store is an out-of-the-box solution provided by Anypoint Platform which is performant as well as worker aware among multiple workers running on CloudHub.
https://docs.mulesoft.com/object-store/

So, Persistent Object Store is the right answer.

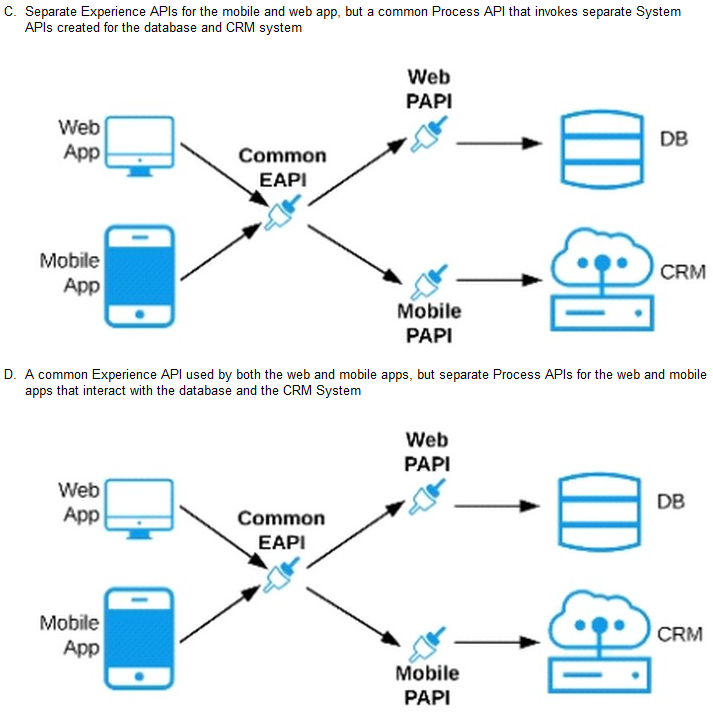

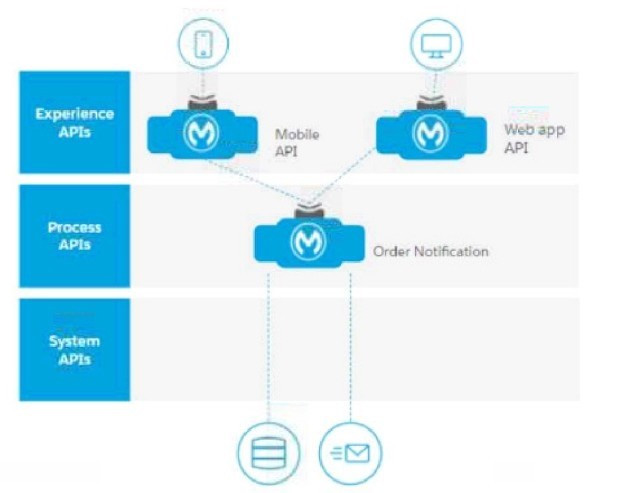

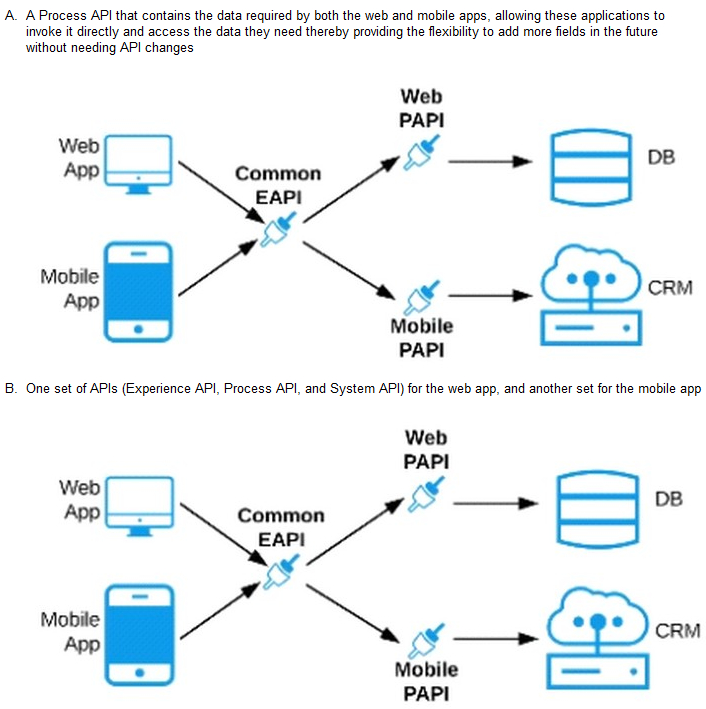

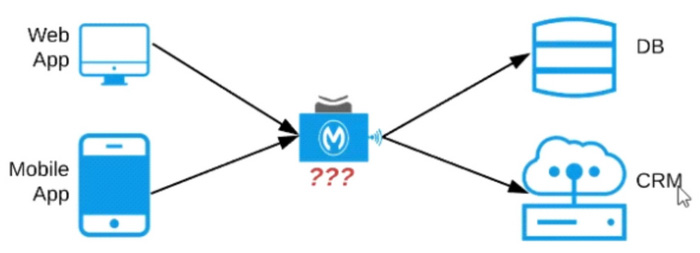

As per MuleSoft's API-led connectivity:

>> Experience APIs should be built as per each consumer needs and their experience.

>> Process APIs should contain all the orchestration logic to achieve the business functionality.

>> System APIs should be built for each backend system to unlock their data.

>> Backend system overloading can be handled by enforcing "Spike Control Policy"

>> Logging HTTP requests and responses can be done by enforcing "Message Logging Policy"

>> Credentials can be tamper-proofed using "Security" and "Compliance" Policies

However, unfortunately, there is no proper way currently on Anypoint Platform to guard against DOS attacks.

>> Alerts can be setup for all the given options using the default Anypoint Platform functionality

>> However, the question insists on an alert whose conditions depend on the end-to-end request processing of the API implementation.

>> Alert w.r.t "Response Times" is the only one which requires end-to-end request processing of API implementation in order to determine if the threshold is exceeded or not.

As per semver.org semantic versioning specification:

Given a version number MAJOR.MINOR.PATCH, increment the:

- MAJOR version when you make incompatible API changes.

- MINOR version when you add functionality in a backwards compatible manner.

- PATCH version when you make backwards compatible bug fixes.

As per the scenario given in the question, the API implementation is completely changing its behavior.
Although the format of the time is still being maintained as hh:mm:ss and there is no change in schema w.r.t format, the API will start functioning different after this change as the times are going to come completely different.

Example: Before the change, say, time is going as 09:00:00 representing the PST. Now on, after the change, the same time will go as 18:00:00 as Central European Summer Time is 9 hours ahead of Pacific Time.

>> This may lead to some uncertain behavior on API clients depending on how they are handling the times in the API response. All the API clients need to be informed that the API functionality is going to change and will return in CEST format. So, this considered as a MAJOR change and the version of API for this new change would be 4.0.0

>> Canonical models are not an option here as the organization has already put in efforts and created bounded-context models for Experience and Process APIs.

>> Anti-corruption layers for ALL APIs is unnecessary and invalid because it is mentioned that experience and process APIs share same bounded-context model. It is just the System layer APIs that need to choose their approach now.

>> So, having an anti-corruption layer just between the process and system layers will work well. Also to speed up the approach, system APIs can mimic the backend system data model.
