Free HPE7-A07 Exam Dumps Preview

In OSPF, when a router learns about an external network through both E1 and E2 advertisements, and if both have the same path cost, the router will prefer the E1 path. This is because E1 routes consider both the external cost to reach the external network and the internal cost to reach the ASBR, providing a more comprehensive metric. E2 routes only consider the external cost and ignore the internal cost to the ASBR, which could potentially lead to suboptimal routing. Therefore, the router will choose the E1 path due to its more accurate representation of the total path cost.

In a multi-site deployment with a mix of bridged and tunneled SSIDs, if there are session sync errors between different areas, it could be due to connectivity issues with the central management platform, which in the case of Aruba, is likely HPE Aruba Networking Central. This interruption could cause inconsistencies in session states across the network.

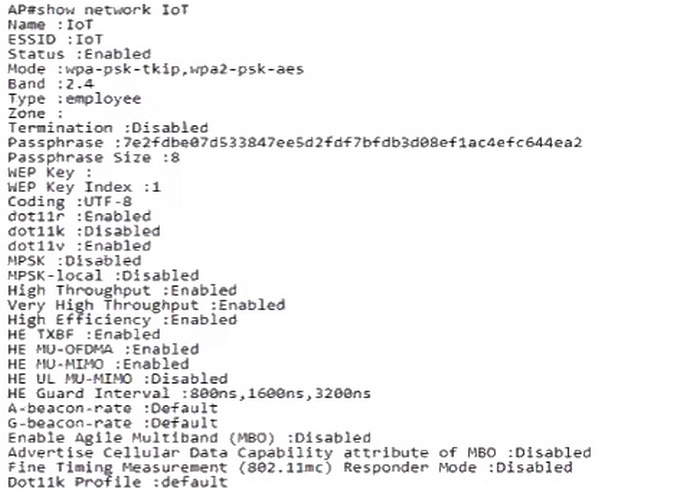

The SSID supports 802.11ac clients, which is indicated by the "High Throughput" and "Very High Throughput" options being enabled. These are terms associated with the 802.11ac wireless standard, indicating that the SSID can serve clients that support this technology.

The Change of Authorization (CoA) messages are used in network access control scenarios and are typically received by the network access server, in this case, an Aruba AOS 10 Gateway. The correct command to verify the receipt of a CoA message is related to the control path traffic because CoA is a control plane function.

Option B, packet-capture controlpath udp 3799 , is the correct answer because it specifies capturing control plane traffic on UDP port 3799, which is the standard port for CoA messages.

Options A, C, and D are incorrect because: Option A captures data plane traffic, not control plane traffic.
Option C's packet-capture interprocess udp 3799 does not refer to a standard command for capturing CoA messages.
Option D, tcpdump host-port 3799 , does not specify the correct syntax for capturing traffic on Aruba devices.

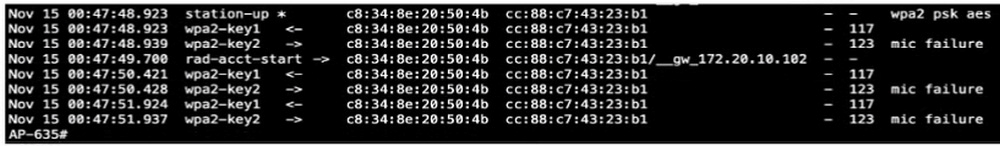

The issue indicated by the output is an invalid pre-shared key (PSK). The logs show multiple failures during the WPA2 key exchange process, which points to a mismatch between the PSK configured on the client device and the PSK expected by the AOS 10 mobility gateway.

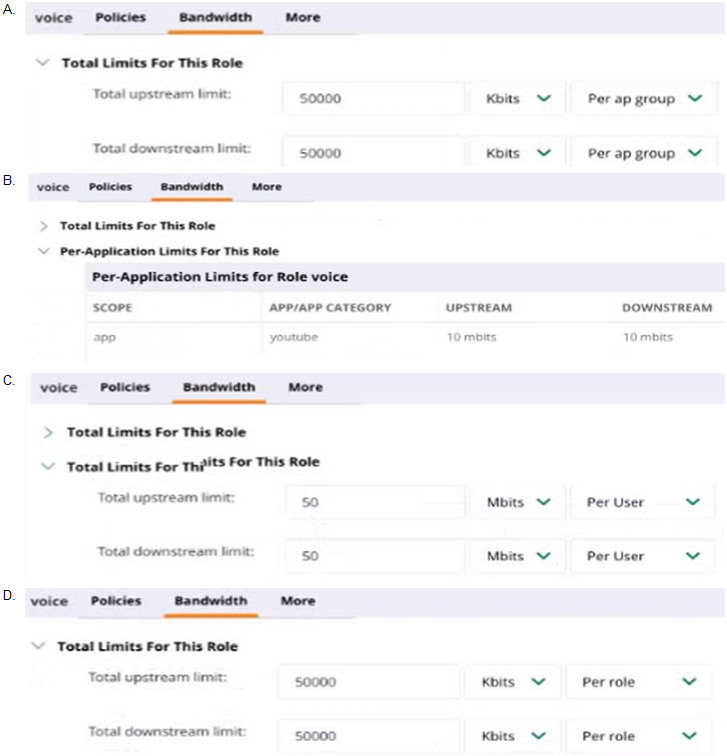

To achieve the bandwidth limits set by the network administrator, both per-application and total limits need to be configured.
Option B shows the configuration for setting a per-application bandwidth limit, which can restrict YouTube traffic to 10 Mbps in both directions.
Option D shows the configuration for setting a total bandwidth limit for all users within the voice role to 50000 Kbps (or 50 Mbps), satisfying the requirement to restrict total wireless bandwidth. By applying these configurations in HPE Aruba Networking Central, the administrator will successfully implement the necessary controls to ensure that visitor traffic does not impede the network performance for employee traffic, aligning with the capabilities of Aruba solutions to manage and prioritize network resources effectively.

In Aruba's infrastructure, the Access Points (APs) are configured with primary and secondary gateway clusters to ensure connectivity and resiliency. The APs will failover to the secondary gateway cluster if they are unable to reach the primary gateway cluster, even if the primary cluster is operational. This mechanism ensures that the APs maintain connectivity to the network infrastructure for continuous service delivery.

To maximize wired bandwidth utilization, especially when multiple APs are terminating on mobility gateways, it's best practice to aggregate physical ports into a port channel. This provides redundancy and increased bandwidth by combining the throughput of multiple ports.

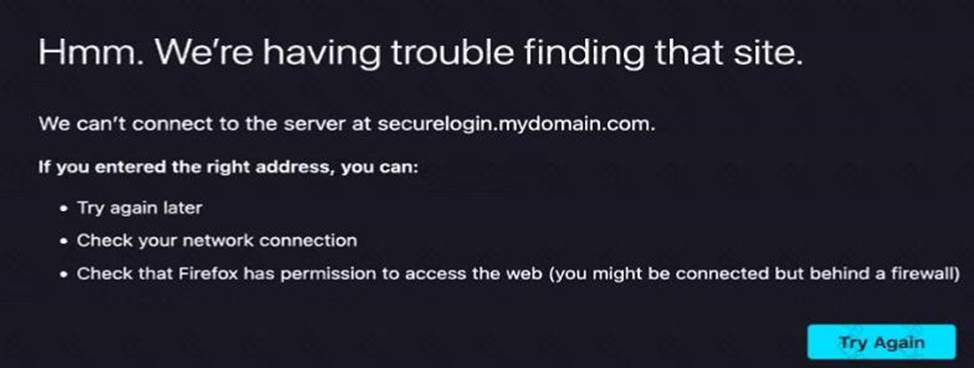

Including the root and intermediate certificates in the captive portal certificate for the gateway will resolve the error seen during the login action after successful registration. This is necessary to ensure the SSL/ TLS handshake can be completed successfully, as the client browser needs to validate the entire certificate chain.

Multi-Pre-Shared Key (MPSK) with ClearPass is the recommended solution for a scenario where the IT
Helpdesk needs to configure IoT devices to connect to a single SSID using unique PSKs. MPSK allows for the use of different PSKs on the same SSID, and ClearPass enables the management of these unique keys efficiently.

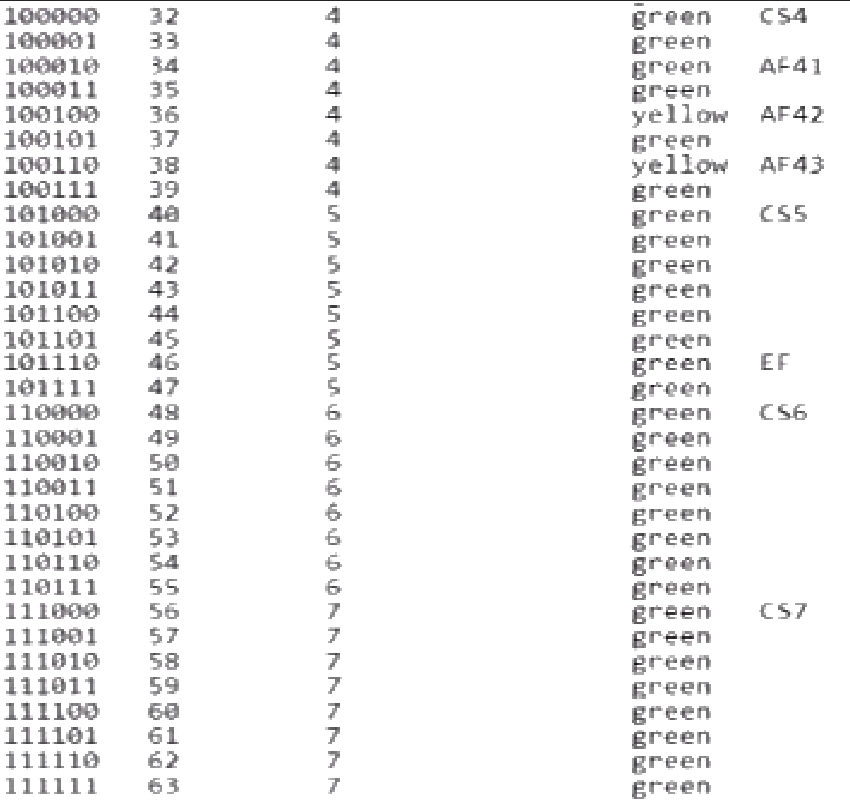

Applying the 'acmethreshold' profile as shown in the exhibit would set a minimum and maximum threshold for queue 0, which affects the drop probability for traffic that exceeds these thresholds. The yellow marking indicates a medium drop precedence, so yellow-flagged traffic would be more likely to be dropped when congestion occurs, and the uplink is over-utilized. This action is intended to protect higher-priority traffic, such as VoIP, by giving it a lower probability of being dropped.
