HP · HPE6-A49

Free HPE6-A49 Exam Dumps Preview

Preview real exam questions, verified answers and available explanations before choosing a study plan.

Question 1

Single choice

Refer to the exhibit.

A company needs a new wireless solution for its large campus with multiple buildings. The campus has 8,000 users, and the company also has 1000 users who use VIA concurrently. The customer requires full redundancy for the Mobility Controllers (MC), including seamless roaming and stateful failover for the main site.
Buildings are close enough together for users to roam between them. The exhibit shows the existing wired network.
The architect plans to propose: 500 APs (100 each in Building 1 and 2, 200 each in Buildings 3 and 4). two 7030 MCs two 7220 MCs one MM appliance

The exhibit shows the existing wired network at the main site.

Where should the architect plan to connect the MCs? (Potential locations are numbered in the exhibit.)

A
two 7030 MCs at 6; two 7220 MCs at 5
B
one 7030 MC at 1 and one at 2; one 7220MC at 3 and one at 4
C
two 7030 MCs at 5; one 7220 MC at 3 and one at 4
D
all of the MCs at 6

Reveal answer details Close answer details

Correct answerA

Question 2

Single choice

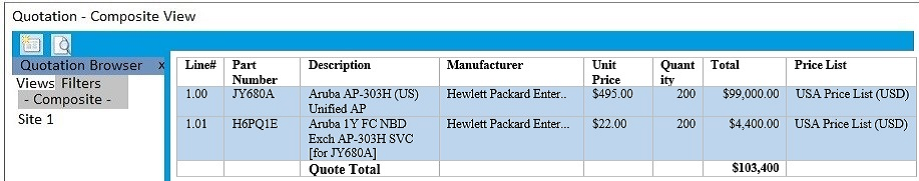

Refer to the exhibit.

A hotel needs a wireless solution. The architect has selected 303H Series, controlled by a local MC, as the best choice. The hotel plans to have the APs installed in the existing wall boxes which have one Ethernet port each. The architect has created to BOM shown in the exhibit. (Note that this portion of the BOM does not include the MC, which is not part of this question.

) Which additional clarification should the architect seek to determine whether this BOM fully meets the customer needs?

A
whether the hotel wants to deploy the APs as RAPs or CAPs
B
whether the hotel has CAT5e patch cables long enough to reach the boxes
C
whether directional or omnidirectional external antennas work better for the APs
D
whether the hotel already has a PoE or PoE+ source

Reveal answer details Close answer details

Correct answerD

Question 3

Single choice

Compare the scenarios below.
For which scenario do AP-365s meet the needs?

A
The customer needs APs mounted to a concrete building exterior to provide coverage in a 90 foot
(27m) radius from the building.
B
The customer needs APs for an indoor high density environment in which the customer prefers dual
5GHz operation.
C
The customer needs to mount APs in an outdoor area, but that area only has fiber cable available.
D
The customer needs APs for an indoor stadium that requires overhead coverage and directional antennas.

Reveal answer details Close answer details

Correct answerA

Question 4

Single choice

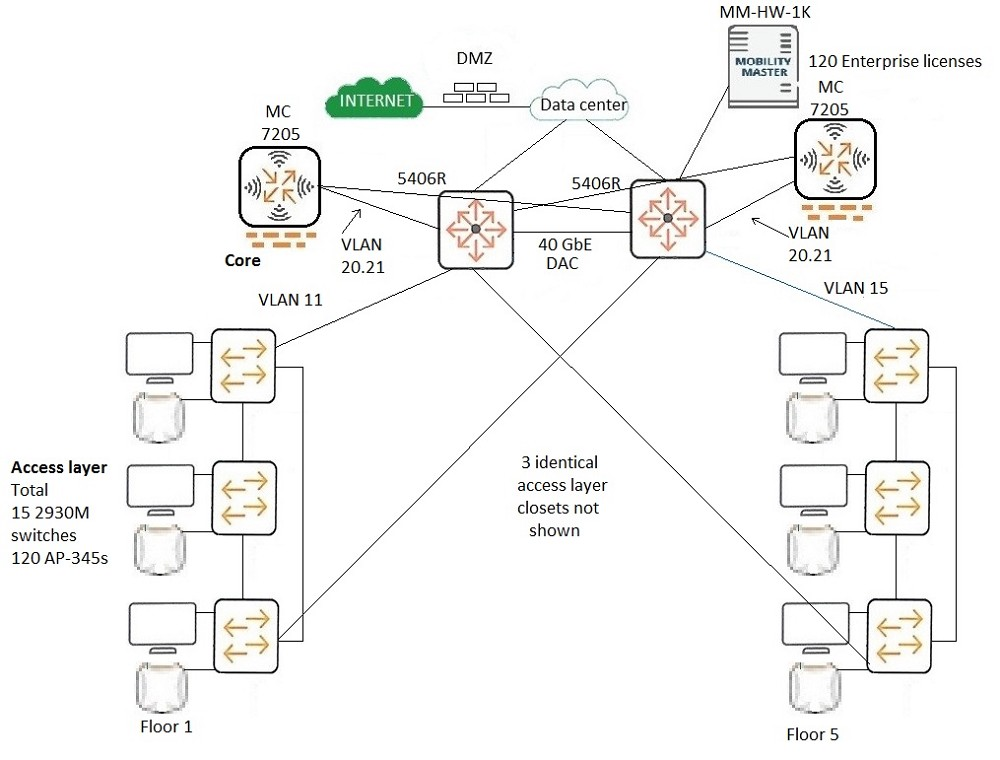

Refer to the exhibit.

A customer has these availability requirements: loss of one controller with stateful failover and without impact on wireless client connectivity loss of one core switch without loss of connectivity for any endpoints or APs in the building loss of any one switch-to-switch or MC-to-switch link without loss of connectivity for any endpoints or APs in the building and with minimal impact on infrastructure functionality loss of any one access switch with minimal impact to wireless client connectivity

The exhibit shows the current plan for the topology.

Which change should the architect make to the plan to provide better support for the customer availability requirements?

A
Use two 40GbE DACs for the VSF link between the core switches.
B
Add VLANs 11 and 15 to the MC connections to ensure both MCs can manage any of the APs.
C
Add 120 additional AP licenses, so that each MC can support all the APs even if the other MC fails.
D
Change the 40GbE DAC on the 5406R switch to a stacking cable with stacking module.

Reveal answer details Close answer details

Correct answerD

Question 5

Single choice

A customer has phones used as wireless Voice over IP (VoIP) devices.

Which is one implication for the design?

A
Plan policies for the phone role on MCs to give the phones a high QoS priority.
B
Ensure a -75 GHz signal in both the 2.4GHz band and the 5GHz band across the entire site.
C
Ensure that APs connect on Smart Rate ports to support the high bandwidth demands of the phones.
D
Apply a bandwidth contract to the phone VLAN to limit broadcast and multicast traffic.

Reveal answer details Close answer details

Correct answerC

Question 6

Single choice

A customer requires new MCs for a large multi-site network with about 600 AP-345s and 30,000 wireless clients. The customer requires redundancy for the MCs with each MC being able to handle the full load in a failover situation. The network should be able to sustain the loss of a controller with stateful failover within seconds. It should be able to undergo software upgrades without downtime. The architect has recommended two 7240XM MCs. The customer points out that 7220 MCs can support enough APs and wonders why the architect recommended the 7240XMs.

What should the architect explain?

A
The 7240XMs MCs are required to support the large number of wireless clients in this network.
B
The 7240XMs MCs support 40GbE ports, which are desirable for future proofing.
C
The 7240XMs MCs can support full CPSec tunnels with this number of APs, while the 7220 MCs cannot.
D
The 7240XMs MCs have more advanced clustering and availability capabilities than the 7220s MCs.

Reveal answer details Close answer details

Correct answerA

Question 7

Single choice

What is one requirement for ensuring that MCs can update their software without the need for a maintenance window?

A
MCs must be managed by an MM and connected to the same switch.
B
MCs must be in a cluster and connected in the same VLANs.
C
MCs must be directly connected on at least one port.
D
MCs must have AP licenses assigned to them in a dedicated local pool.

Reveal answer details Close answer details

Correct answerD

Question 8

Single choice

A retailer currently has two redundant ClearPass C2000 DL360 Gen9 hardware appliances and two perpetual 1K Access licenses. The customer uses ClearPass to authenticate employee wireless devices and other corporate wireless devices. ClearPass logs indicate that peak license usage is currently 1900.
The customer now wants to add a guest access solution. Guests will connect to an open SSID and redirected to a portal which they can use to self-register and log in. The customer anticipates that up to 1550 guest devices will connect at the same time.

The customer requires the most cost-effective solution that will meet the requirements.

What should the network architect recommend for this solution?

A
Two 1K Guest licenses
B
1K+500 Access licenses; Two 1K Onboard licenses
C
1K+500 Access licenses
D
1K+500 Access licenses; 1K+500 Guest licenses

Reveal answer details Close answer details

Correct answerB

Question 9

Single choice

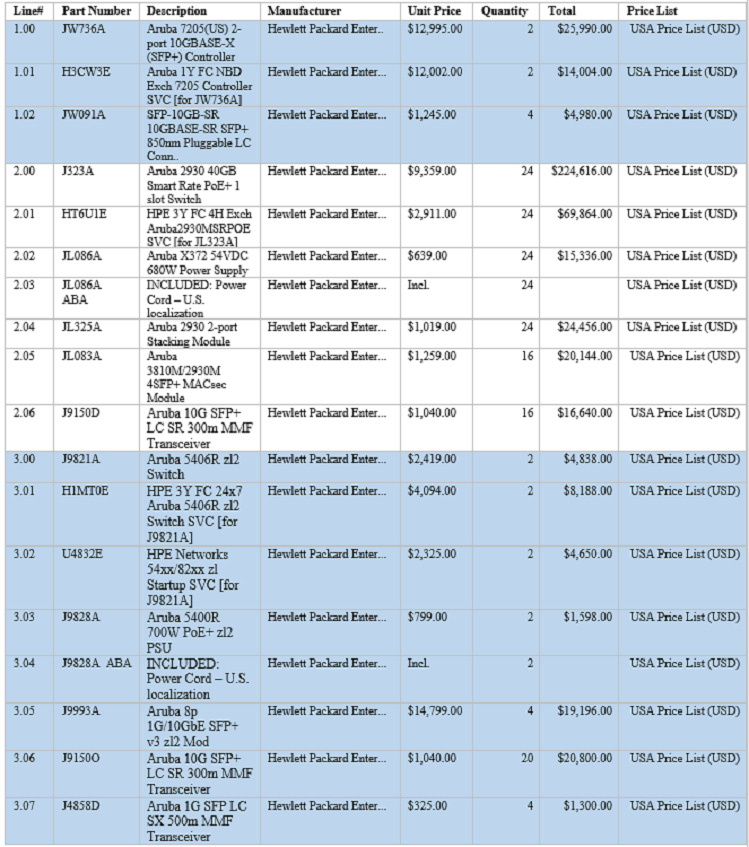

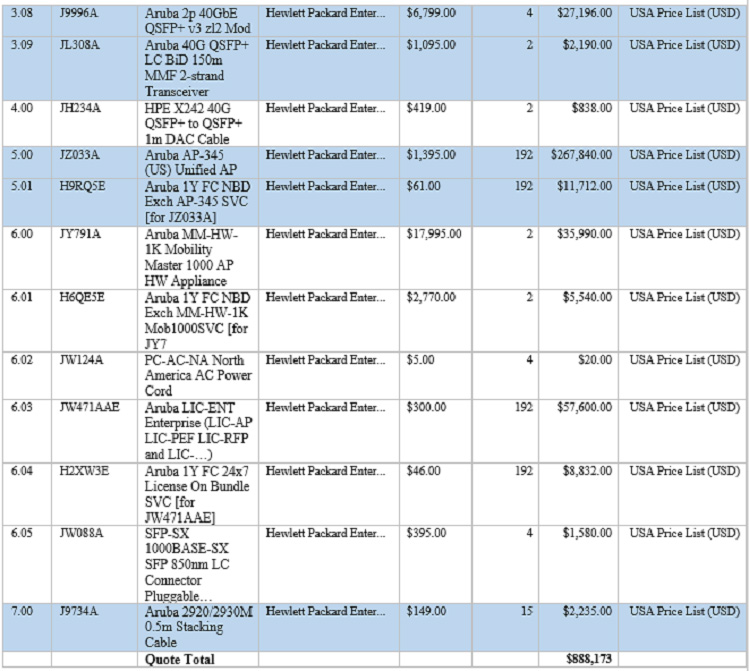

Refer to the exhibit.

The network architect has created the BOM shown in the exhibit for a complete new wired and wireless solution for a customer. This solution will support 6000 wireless clients and 900 wired clients.
The customer wants to discover and manage every component of the network in AirWave, including MMs, MCs, APs, and switches.

How many AirWave licenses does the architect need to add?

A
30
B
222
C
6930
D
7122

Reveal answer details Close answer details

Correct answerA
