HPE2-Z39 Fast Track - Applying Aruba Switching Fundamentals for Mobility

PDF question preview Back to product

Reading controls

Reader tools

Free demo

10 of 62 questions

Purchase the full version to unlock every question and answer.

View the full question set

Preview tools

Try Web TestEngine

Question formats

Single choice10

HP · HPE2-Z39

Free HPE2-Z39 Exam Dumps Preview

Preview real exam questions, verified answers and available explanations before choosing a study plan.

Question 1

Single choice

A network administrator suspects that interfaces in a link aggregation have been accidentally connected to multiple switches. The administrator wants to find the hostnames of the switches on the other side of the interfaces.

How can the administrator find this information?

A
Use the show lace command to view LACP information.
B
Use the show trunks command to view link aggregation information.
C
Use the show interface command to view detailed interface status.
D
Use the show lldp info remote-device command to view LLDP information.

Reveal answer details Close answer details

Correct answerD

Question 2

Single choice

Which settings are required on ArubaOS switches for Aruba AirWave to discover, monitor,and manage them?

A
credentials for Telnet or SSH login and an HTTPS certificate
B
SNMP v2 community or v3 user and an HTTPS certificate
C
credentials for Telnet or SSH login and an SNMP v2 community or v3 user
D
shared cluster key and an SNMP v2 community or v3 user

Reveal answer details Close answer details

Correct answerA

Question 3

Single choice

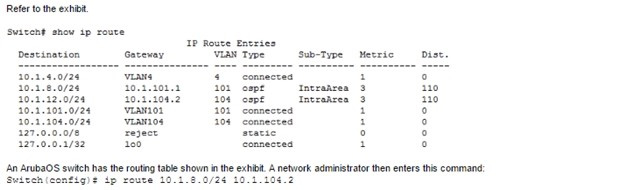

After the administrator enters this command, packets arrive that are destined for 10.1.8.8 and 10.1.8 13

What does the switch do with this traffic?

A
It forwards all of the traffic to 10.1.101.1.
B
It load balances some of the traffic 10.1.101.1 and some to 10.1.104.2.
C
It forwards all of the traffic to 10.1.104.2.
D
It drops the traffic.

Reveal answer details Close answer details

Correct answerD

Question 4

Single choice

Currently the routing switches shown in the exhibit have only connected IP routes. The network administrator needs to add static routes to support communications between subnet 10.1.4.0/24 and subnet 10.1.8.0/24.

Which switch or switches require a static route to 10.1.8.0/24?

A
Switch-3 only
B
Switch-1 and Switch-3
C
Switch-1 only
D
Switch-1 and Switch-2

Reveal answer details Close answer details

Correct answerB

Question 5

Single choice

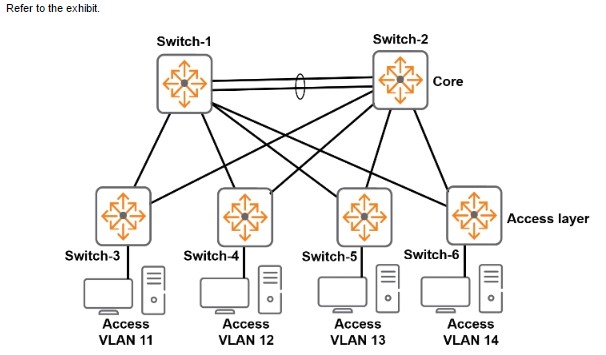

This exhibit shows the topology for a company campus LAN. Each access layer switch will be the default router for the devices connected to it. The company needs to permit the following:

1. Communications between devices in an subnets
2. Support for efficient traffic paths during normal operation and in situations in which a link fails
3. Fast failover if a link fails

Which feature should the network administrator configure on the ArubaOS switches to support these requirements?

A
MSTP
B
RIP
C
Static Routes
D
OSPF

Reveal answer details Close answer details

Correct answerA

Question 6

Single choice

What is one requirement to combine Aruba 5400R zl2 Series switches in a Virtual Switching Framework (VSF) fabric?

A
One of the switches must be an Aruba 5412R switch, white the other member can be any switch in the
5400R series.
B
Both of the members must have two management modules.
C
The switches must operate in v3-modute only mode: any modules of an earlier version are automatically disabled.
D
The interfaces assigned to the VSF link must be pre-configured as part of a link aggregation.

Reveal answer details Close answer details

Correct answerA

Question 7

Single choice

A network administrator needs to configure Virtual Switching Framework (VSF) for the first time on an ArubaOS switch. The administrator enters this command:

The administrator then wants to provision member 2 settings.

What must the administrator do before provisioning these settings?

A
Specify the model type for member 1.
B
Configure SNMP settings that match settings configured on member 2
C
Join member 2 to the VSF fabric.
D
Enable VSF on the switch and reboot.

Reveal answer details Close answer details

Correct answerB

Question 8

Single choice

A network administrator wants to apply a critical PoE priority to any ArubaOS switch port that connects to an Aruba AR The priority should be applied dynamicaly based on LLDP messages received from the AP.

Which step should the administrator take to meet this goal?

A
Configure the PoE usage setting on all ports as class and make sure that Aruba APs are defined as Class 4 devices.
B
Configure the PoE usage setting on all ports as tfdp.
C
Enable LLDP MED TLV extensions on the switch port.
D
Enable the default AP profile bound to the Aruba AP device type.

Reveal answer details Close answer details

Correct answerD

Question 9

Single choice

A company wants to use Zero Touch Provisioning (ZTP) to provision new ArubaOS switches.

Which AirWave settings must match the switch default SNMP and Telnet/SSH password settings?

A
Global communication settings
B
Settings in the device template for the device group to which ZTP switches are assigned
C
Communication settings for the device group to which ZTP switches are assigned
D
Credentials in device discovery settings

Reveal answer details Close answer details

Correct answerD

Question 10

Single choice

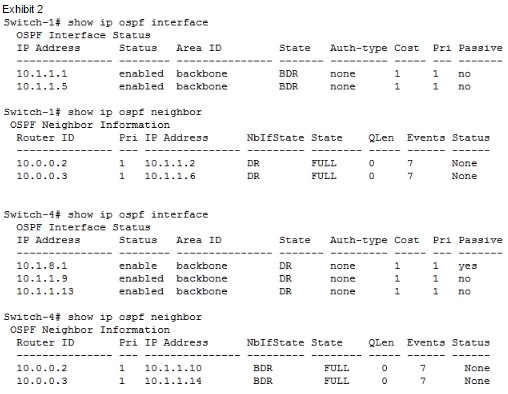

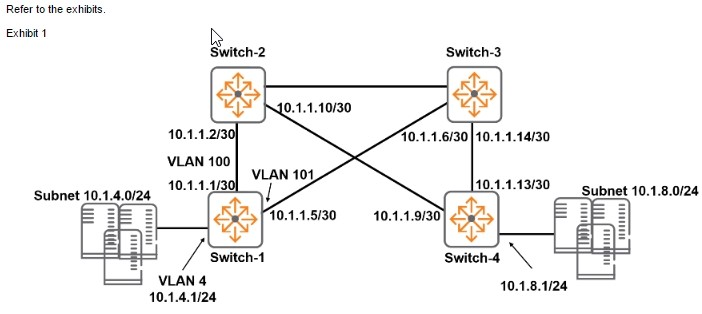

A network administrator has set up OSPF to enable communications between subnets 10.1.4.0/24 and 10.1.8.0/24. Swffch-4 is not receiving a route to 10.1.4.0/24.

What should the network administrator do to help fix this issue?

A
Fix the router IDs on al switches so that they are valid.
B
Enable OSPF on VLAN 4 on Switch-1.
C
Configure Switch-1 with a better DR priority on VLANs 100 and 101.
D
Verify that Switch-2 and Switch-3 are part of the backbone area.

Reveal answer details Close answer details

Correct answerB
