Q1 Single choice

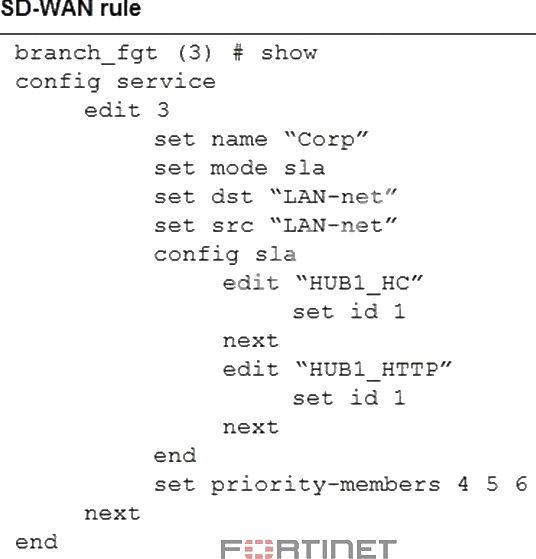

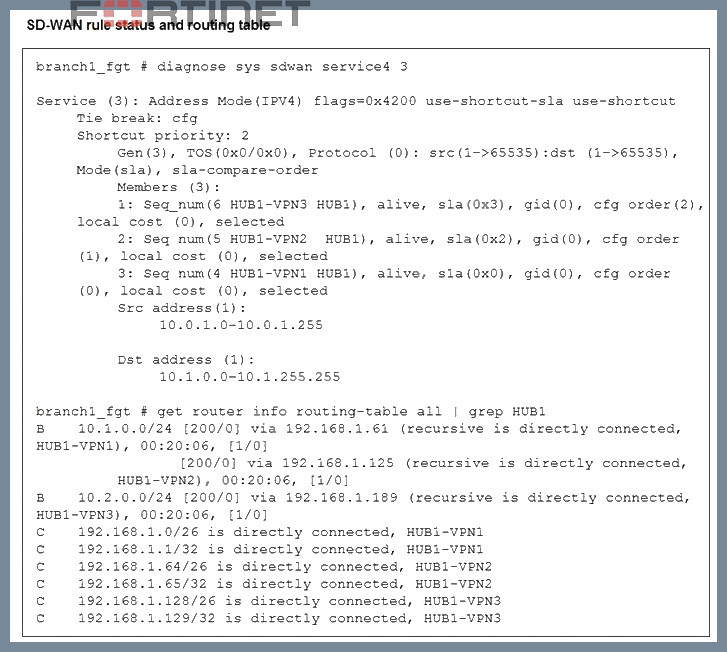

Refer to the exhibits, which show the configuration of an SD-WAN rule and the corresponding rule status and routing table.

Question 1 diagram

Question 1 diagram

The administrator wants to understand the expected behavior for traffic matching the SD-WAN rule.

Based on the exhibits, what can the administrator expect for traffic matching the SD-WAN rule?

A
The traffic will be routed over HUB1-VPN3.
B
The traffic will be routed over HUB1-VPN2
C
The traffic will be routed over HUB1-VPN1.
D
The traffic will be load balanced across all three overlays
