Fortinet Fortinet Certifications NSE6_FVE-5.3 Questions & Answers

• Question 11:

  What happens when an extension is added as a fax monitor to an efax account?

  A. efax account will receive a copy of the fax in their user portal FTP.

  B. efax account can send outbound faxes.

  C. efax account will receive an email of the fax.

  D. The fax will get relayed to the assigned extension as well.

  Correct Answer: D

  Reference: https://docs.fortinet.com/document/fortivoice-enterprise/6.0.4/fortivoice-cookbook/508046/ configuring-fortivoice-to-receive-faxes

• Question 12:

  When High Availability is configured and the heartbeat link is lost between FortiVoice units, what will happen?

  A. The slave unit takes over as the master unit.

  B. The master unit beeps loudly to indicate an error.

  C. The master unit defaults the configuration.

  D. The slave unit sends calls to voicemail until the master unit has been rebooted.

  Correct Answer: A

• Question 13:

  A user is consistently reporting issues with call drops and an unstable connection. The administrator is investigating the issue.

  Which action can the administrator take to help troubleshoot this problem?

  A. Disable the SIP helper on the network Firewall.

  B. View call record logs of the problematic extension.

  C. Contact the SIP provider to troubleshoot the issue.

  D. Use a capture tool to capture traffic using the extension and trunk.

  Correct Answer: B

• Question 14:

  An administrator is configuring a new FortiVoice system and is having trouble with outbound and external inbound calls. The network administrator has verified that Internet connectivity is stable and the FortiVoice system can reach the Internet. Local extension calls are also working without any issue.

  Which two configurations are likely causing this issue? (Choose two.)

  A. Office Peers

  B. DID mapping

  C. VoIP Trunk

  D. Inbound call routing

  Correct Answer: AB

• Question 15:

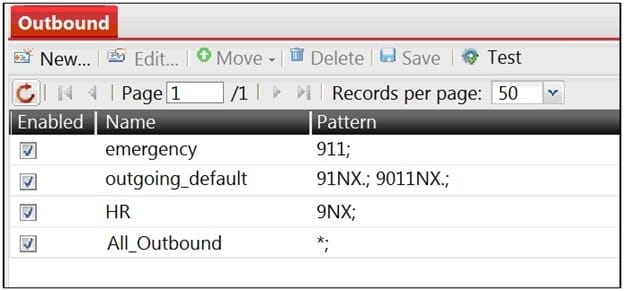

  Refer to the exhibit.



  A FortiVoice system is configured with multiple outbound rules as shown in the above exhibit.

  Which statement about the outbound rule is true?

  A. The 923 extension will use All_Outbound outbound call handing rule.

  B. The 9213 extension will use HR outbound call handing rule.

  C. The 9153 extension will use outgoing_default outbound call handing rule.

  D. The 9245 extension will use emergency outbound call handing rule.

  Correct Answer: C

• Question 16:

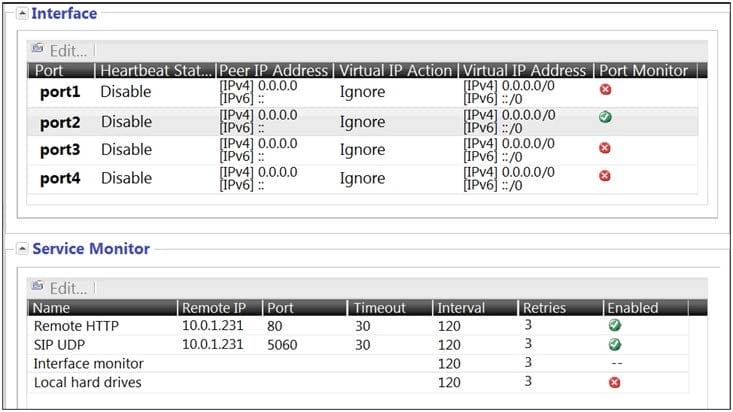

  Refer to the exhibit.



  Given the settings shown in the exhibit, which two statements about the configuration are true? (Choose two.)

  A. A failover will occur if there is no heartbeat for 30 seconds.

  B. Local hard disk drive failure will trigger an HA failover event.

  C. port2 is configured to carry VoIP traffic.

  D. HTTP or SIP UDP on the specified ports can be used to detect master system failure.

  Correct Answer: CD

• Question 17:

  What disposition would you use to search for calls that were unsuccessful outbound calls?

  A. Declined

  B. Failed

  C. Aborted

  D. Incomplete

  Correct Answer: A

• Question 18:

  Which statement correctly describes the configuration of a survivable branch system when set to fully managed?

  A. The central system configures the device, excluding network settings.

  B. The central system configures the device, excluding VoIP profile settings.

  C. The central system configures the full configuration for the system.

  D. The central system configures the device, excluding network settings, and administrator settings.

  Correct Answer: C

• Question 19:

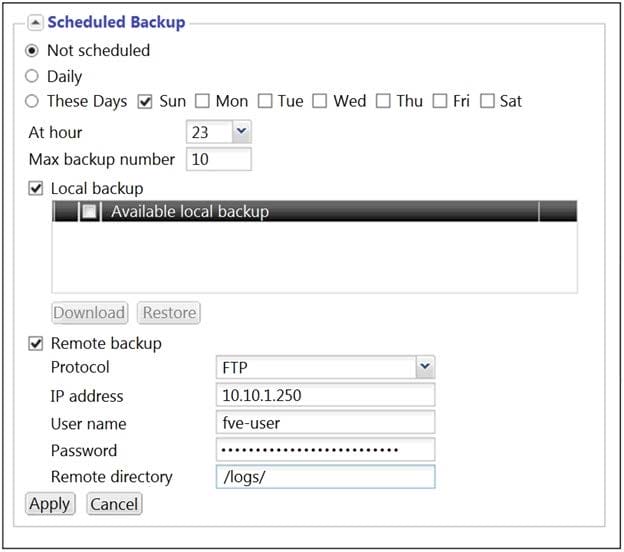

  Refer to the exhibit.



  Given the scheduled backup settings shown in the exhibit, which two statements are true? (Choose two.)

  A. A copy of the backup file is uploaded on a remote FTP server.

  B. The oldest backup files are automatically deleted once the number of backups exceeds 10.

  C. The maximum of 10 backups are saved locally on the FortiVoice unit.

  D. The logs and system settings backup is automatically saved every Sunday at 11:00 PM.

  Correct Answer: AC

• Question 20:

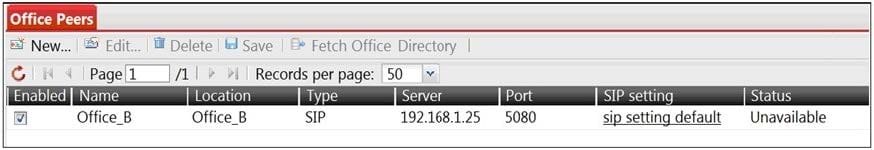

  Refer to the exhibit.



  Given the Office Peers setting shown in the exhibit, which conclusion can be drawn about the behavior of the FortiVoice system?

  A. The Office Peers are connected to each other but the FortiVoice system is configured to not send keep alive messages.

  B. The FortiVoice administrator has disabled the office peer.

  C. The FortiVoice system is cannot reach the Office_B location.

  D. The FortiVoice has not received a 200 OK response from the Office Peer.

  Correct Answer: C

  Reference: https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/03eb7779-50a711e9-94bf-00505692583a/FVE_admin_v5.3.0_rev9.pdf
