SAP SAP Certifications C_ABAPD_2309 Questions & Answers

• Question 11:

  Setting a field to read-only in which object would make the field read-only in all applications of the RESTful Application Programming model?

  A. Service definition

  B. Behaviour definition

  C. Projection view

  D. Metadata extension

  Correct Answer: B

  The object that can be used to set a field to read-only in all applications of the RESTful Application Programming model (RAP) is the behaviour definition. The behaviour definition is a CDS artefact that defines the business logic and the UI

  behaviour of a business object. A business object is a CDS entity that represents a business entity or concept, such as a customer, an order, or a product. The behaviour definition can specify the properties of the fields of a business object,

  such as whether they are mandatory, read-only, or transient. These properties are valid for all applications that use the business object, such as transactional, analytical, or draft-enabled apps12. For example:

  The following code snippet defines a behaviour definition for a business object ZI_PB_APPLICATION. It sets the field APPLICATION to read-only for all applications that use this business object:

  define behavior for ZI_PB_APPLICATION { field ( read only ) APPLICATION; ... } You cannot do any of the following:

  A. Service definition: A service definition is a CDS artefact that defines the interface and the binding of a service. A service is a CDS entity that exposes the data and the functionality of one or more business objects as OData, InA, or SQL services. A service definition can specify the properties of the fields of a service, such as whether they are filterable, sortable, or aggregatable. However, these properties are only valid for the specific service that uses the business object, not for all applications that use the business object12. C. Projection view: A projection view is a CDS artefact that defines a view on one or more data sources, such as tables, views, or associations. A projection view can select, rename, or aggregate the fields of the data sources, but it cannot change the properties of the fields, such as whether they are read-only or not. The properties of the fields are inherited from the data sources or the behaviour definitions of the business objects12.

  D. Metadata extension: A metadata extension is a CDS artefact that defines additional annotations for a CDS entity, such as a business object, a service, or a projection view. A metadata extension can specify the properties of the fields of a CDS entity for UI or analytical purposes, such as whether they are visible, editable, or hidden. However, these properties are only valid for the specific UI or analytical application that uses the metadata extension, not for all applications that use the CDS entity12.

  References: 1: ABAP CDS - Data Definitions - ABAP Keyword Documentation - SAP Online Help 2: ABAP CDS - Behavior Definitions - ABAP Keyword Documentation - SAP Online Help

• Question 12:

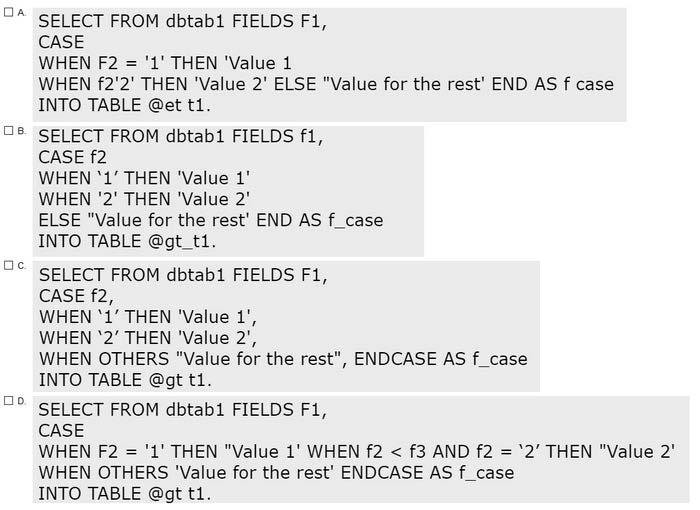

  Image:



  (Sorry, we do not have a more clear image. If we have a better resource for the image, we will update this one immediately.) In the following ABAP SQL code, what are valid case distinctions? Note: There are 2 correct answers to this question.



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: AB

• Question 13:

  What are the effects of this annotation? Note: There are 2 correct answers to this question.



  (Sorry, we do not have a more clear image. If we have a better resource for the image, we will update this one immediately.)

  A. The value of sy-langu will be passed to the CDS view automatically both when you use the -1 CDS view in ABAP and in another CDS view entity (view on view).

  B. You can still override the default value with a value of your own.

  C. The value of sy-langu will be passed to the CDS view automatically when you use the CDS view in ABAP but not when you use it in another view entity

  D. It is no longer possible to pass your own value to the parameter.

  Correct Answer: AB

  Explanation: The annotation @Environment.systemField: #LANGUAGE is used to assign the ABAP system field sy-langu to an input parameter of a CDS view or a CDS table function. This enables the implicit parameter passing in Open SQL,

  which means that the value of sy-langu will be automatically passed to the CDS view without explicitly specifying it in the WHERE clause. This also applies to the CDS views that use the annotated CDS view as a data source, which means

  that the value of sy-langu will be propagated to the nested CDS views (view on view)12. For example:

  The following code snippet defines a CDS view ZI_FLIGHT_TEXTS with an input parameter p_langu that is annotated with @Environment.systemField:

  #LANGUAGE:

  define view ZI_FLIGHT_TEXTS with parameters p_langu : syst_langu @

  { sflight.carrid, sflight.connid, sflight.fldate, scarr.carrname, stext.text as carrtext } where stext.langu = :p_langu

  The following code snippet shows how to use the CDS view ZI_FLIGHT_TEXTS in ABAP without specifying the value of p_langu in the WHERE clause. The value of sy-langu will be automatically passed to the CDS view:

  SELECT carrid, connid, fldate, carrname, carrtext FROM zi_flight_texts INTO TABLE @DATA(lt_flights).

  The following code snippet shows how to use the CDS view ZI_FLIGHT_TEXTS in another CDS view ZI_FLIGHT_REPORT. The value of sy-langu will be automatically passed to the nested CDS view ZI_FLIGHT_TEXTS:

  define view ZI_FLIGHT_REPORT with parameters p_langu : syst_langu @

  connid, fldate, carrname, carrtext

  The annotation @Environment.systemField: #LANGUAGE does not prevent the possibility of overriding the default value with a value of your own. You can still specify a different value for the input parameter p_langu in the WHERE clause,

  either in ABAP or in another CDS view. This will override the value of sy-langu and pass the specified value to the CDS view12. For example:

  The following code snippet shows how to use the CDS view ZI_FLIGHT_TEXTS in ABAP with a specified value of p_langu in the WHERE clause. The value `E' will be passed to the CDS view instead of the value of sy-langu:

  SELECT carrid, connid, fldate, carrname, carrtext FROM zi_flight_texts WHERE p_langu = `E' INTO TABLE @DATA(lt_flights).

  The following code snippet shows how to use the CDS view ZI_FLIGHT_TEXTS in another CDS view ZI_FLIGHT_REPORT with a specified value of p_langu in the WHERE clause. The value `E' will be passed to the nested CDS view

  ZI_FLIGHT_TEXTS instead of the value of sy-langu:

  define view ZI_FLIGHT_REPORT with parameters p_langu : syst_langu @

  `E' group by carrid, connid, fldate, carrname, carrtext

  References: 1: ABAP CDS - parameter_annot - ABAP Keyword Documentation - SAP Online Help 2: ABAP CDS - session_variable - ABAP Keyword Documentation - SAP Online Help

• Question 14:

  Which of the following results in faster access to internal tables? Note: There are 3 correct answers to this question.

  A. In a sorted internal table, specifying the primary key partially from the left without gaps.

  B. In a sorted internal table, specifying the primary key completely.

  C. In a standard internal table, specifying the primary key partially from the left without gaps.

  D. In a hashed internal table, specifying the primary key partially from the left without gaps.

  E. In a hashed internal table, specifying the primary key completely.

  Correct Answer: BDE

  The access to internal tables can be optimized by using the appropriate table type and specifying the table key. The table key is a set of fields that uniquely identifies a row in the table and determines the sorting order of the table. The table key can be either the primary key or a secondary key. The primary key is defined by the table type and the table definition, while the secondary key is defined by the user using the KEY statement1. The following results in faster access to internal tables:

  B. In a sorted internal table, specifying the primary key completely. A sorted internal table is a table type that maintains a predefined sorting order, which is defined by the primary key in the table definition. The primary key can be either unique or non-unique. A sorted internal table can be accessed using the primary key or the table index. The access using the primary key is faster than the access using the table index, because the system can use a binary search algorithm to find the row. However, the primary key must be specified completely, meaning that all the fields of the primary key must be given in the correct order and without gaps2.

  D. In a hashed internal table, specifying the primary key partially from the left without gaps. A hashed internal table is a table type that does not have a predefined sorting order, but uses a hash algorithm to store and access the rows. The primary key of a hashed internal table must be unique and cannot be changed. A hashed internal table can only be accessed using the primary key, not the table index. The access using the primary key is very fast, because the system can directly calculate the position of the row using the hash algorithm. The primary key can be specified partially from the left without gaps, meaning that some of the fields of the primary key can be omitted, as long as they are the rightmost fields and there are no gaps between the specified fields. E. In a hashed internal table, specifying the primary key completely. A hashed internal table is a table type that does not have a predefined sorting order, but uses a hash algorithm to store and access the rows. The primary key of a hashed internal table must be unique and cannot be changed. A hashed internal table can only be accessed using the primary key, not the table index. The access using the primary key is very fast, because the system can directly calculate the position of the row using the hash algorithm. The primary key can be specified completely, meaning that all the fields of the primary key must be given in the correct order. The following do not result in faster access to internal tables, because:

  A. In a sorted internal table, specifying the primary key partially from the left without gaps. A sorted internal table is a table type that maintains a predefined sorting order, which is defined by the primary key in the table definition. The primary key can be either unique or non-unique. A sorted internal table can be accessed using the primary key or the table index. The access using the primary key is faster than the access using the table index, because the system can use a binary search algorithm to find the row. However, the primary key must be specified completely, meaning that all the fields of the primary key must be given in the correct order and without gaps. If the primary key is specified partially from the left without gaps, the system cannot use the binary search algorithm and has to perform a linear search, which is slower2.

  C. In a standard internal table, specifying the primary key partially from the left without gaps. A standard internal table is a table type that does not have a predefined sorting order, but uses a sequential storage and access of the rows. The primary key of a standard internal table is the standard key, which consists of all the fields of the table row in the order in which they are defined. A standard internal table can be accessed using the primary key or the table index. The access using the primary key is slower than the access using the table index, because the system has to perform a linear search to find the row. The primary key can be specified partially from the left without gaps, but this does not improve the access speed, because the system still has to perform a linear search. References: 1: Internal Tables - Overview - ABAP Keyword Documentation 2: Sorted Tables - ABAP Keyword Documentation : Hashed Tables - ABAP Keyword Documentation : Standard Tables - ABAP Keyword Documentation

• Question 15:

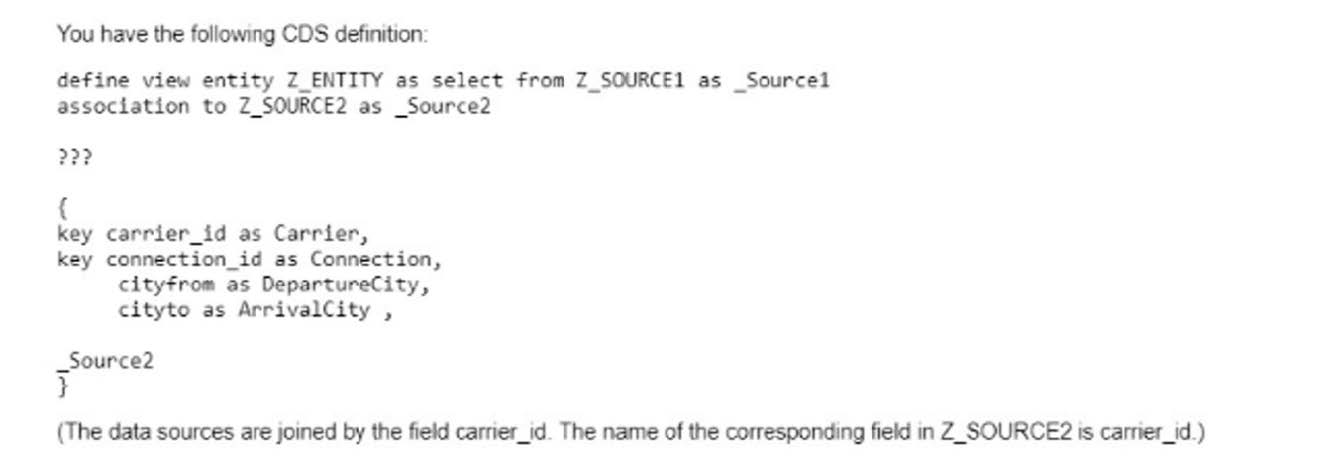

  Which of the following ON conditions must you insert in place of "???"?

  A. ON Z_Sourcel.camer_id = 7_Source2 carrier_id

  B. ON Sprojection Camer=Source2 carrier_id

  C. ON Sprojection. Carrier Source2.carrier

  D. ON Sprojection.carrier_id=Z_Source2.carrier_id

  Correct Answer: D

  The correct ON condition that must be inserted in place of "???" is:

  ON Sprojection.carrier_id=Z_Source2.carrier_id

  This ON condition specifies the join condition between the CDS view Sprojection and the database table Z_Source2. The join condition is based on the field carrier_id, which is the primary key of both the CDS view and the database table.

  The ON condition ensures that only the records that have the same value for the carrier_id field are joined together1. The other options are not valid ON conditions, because:

  A. ON Z_Sourcel.camer_id = 7_Source2 carrier_id is not valid because Z_Sourcel and 7_Source2 are not valid data sources in the given code. There is no CDS view or database table named Z_Sourcel or 7_Source2. The correct names are Z_Source1 and Z_Source2. Moreover, the field camer_id is not a valid field in the given code. There is no field named camer_id in any of the data sources. The correct name is carrier_id.

  B. ON Sprojection Camer=Source2 carrier_id is not valid because Sprojection and Source2 are not valid data sources in the given code. There is no CDS view or database table named Sprojection or Source2. The correct names are Sprojection and Z_Source2. Moreover, the field Camer is not a valid field in the given code. There is no field named Camer in any of the data sources. The correct name is carrier_id. Furthermore, the ON condition is missing the dot (.) operator between the data source name and the field name, which is required to access the fields of the data source1.

  C. ON Sprojection. Carrier Source2.carrier is not valid because Carrier and carrier are not valid fields in the given code. There is no field named Carrier or carrier in any of the data sources. The correct name is carrier_id. Moreover, the ON condition is missing the dot (.) operator between the data source name and the field name, which is required to access the fields of the data source1. References: 1: ON Condition - ABAP Keyword Documentation

• Question 16:

  In the assignment, data (gv_result) = 1/8. What will be the data type of gv_result?

  A. OTYPE I

  B. TYPE DEFLOAT 16

  C. TYPE P DECIMALS 3

  D. TYPE P DECIMALS 2

  Correct Answer: B

  The data type of gv_result in the assignment data (gv_result) = 1/8 will be TYPE DECFLOAT 16. This is because the assignment operator (=) in ABAP performs an implicit type conversion from the source type to the target type, according to

  the following rules12:

  If the target type is specified explicitly, the source value is converted to the target type.

  If the target type is not specified explicitly, the source type is used as the target type, unless the source type is a literal or an expression, in which case the target type is determined by the following priority order: DECFLOAT34, DECFLOAT16,

  P, F, I, C, N, X, STRING, XSTRING.

  In this case, the target type is not specified explicitly, and the source type is an expression (1/8). Therefore, the target type is determined by the priority order, and the first matching type is DECFLOAT16, which is a decimal floating point type

  with 16 digits of precision12. References: 1: ABAP Assignment Rules - ABAP Keyword Documentation - SAP Online Help 2: ABAP Data Types - ABAP Keyword Documentation - SAP Online Help

• Question 17:

  Which of the following are features of Core Data Services? Note: There are 3 correct answers to this question.

  A. Inheritance

  B. Associations

  C. Annotations

  D. Delegation

  E. Structured Query Language (SQL)

  Correct Answer: BCE

  Core Data Services (CDS) is a framework for defining and consuming semantically rich data models in SAP HANA. CDS supports various features that enhance the capabilities of SQL and enable developers to create data models that are optimized for performance, readability, and extensibility12. Some of the features of CDS are: Associations: Associations are a way of defining relationships between CDS entities, such as tables or views. Associations enable navigation and path expressions in CDS queries, which allow accessing data from related entities without explicit joins. Associations also support cardinality, referential constraints, and cascading options34. Annotations: Annotations are a way of adding metadata to CDS entities or their elements, such as fields or parameters. Annotations provide additionalinformation or instructions for the CDS compiler, the database, or the consumers of the CDS views. Annotations can be used for various purposes, such as defining access control, UI rendering, OData exposure, or search capabilities5 . Structured Query Language (SQL): SQL is the standard language for querying and manipulating data in relational databases. CDS is based on SQL and extends it with additional features and syntax. CDS supports SQL features such as joins, aggregations, filters, expressions, functions, and subqueries. CDS also supports SQL Script, which is a scripting language for stored procedures and functions in SAP HANA . You cannot do any of the following: Inheritance: Inheritance is not a feature of CDS. Inheritance is a concept in object- oriented programming that allows a class to inherit the properties and methods of another class. CDS does not support object-oriented programming or classes. Delegation: Delegation is not a feature of CDS. Delegation is a concept in object- oriented programming that allows an object to delegate some of its responsibilities to another object. CDS does not support object-oriented programming or objects. References: 1: Core Data Services (CDS) | CAPire 2: Core Data Services [CDS] in SAP S/4 HANA | SAP Blogs 3: Associations in Core Data Services (CDS) | SAP Help Portal 4: [CDS DDL - Association - ABAP Keyword Documentation - SAP Online Help] 5: [Annotations in Core Data Services (CDS) | SAP Help Portal] : [CDS DDL - Annotation - ABAP Keyword Documentation - SAP Online Help] : [Structured Query Language (SQL) | SAP Help Portal] : [CDS DDL - SQL Features - ABAP Keyword Documentation - SAP Online Help] : [Object-Oriented Programming in ABAP | SAP Help Portal]

• Question 18:

  Which field is defined incorrectly?



  (Sorry, we do not have a more clear image. If we have a better resource for the image, we will update this one immediately.)

  A. field1

  B. field3

  C. field4

  D. field2

  Correct Answer: C

  The field4 is defined incorrectly in the ABAP code snippet. The reason is that the data type c (character) cannot have a decimal places specification. The decimal places specification is only valid for the data types p (packed number) and f (floating point number)1. Therefore, the field4 definition should either omit the decimal places specification or change the data type to p or f. References: 1: Data Types and Data Objects - ABAP Keyword Documentation - SAP Online Help

• Question 19:

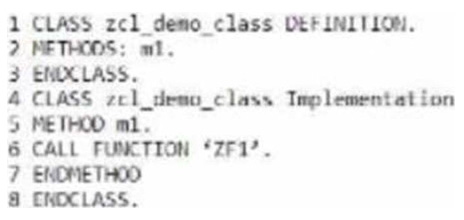

  The class zcl_demo_class is in a software component with the language version set to "Standard ABAP". The function module "ZF11 is in a software component with the language version set to "ABAP Cloud". Both the class and function module are customer created. Regarding line #6, which of the following is a valid statement?

  A. 'ZF1' can be called whether it has been released or not for cloud development.

  B. 'ZF1' can be called via a wrapper that itself has been released for cloud development.

  C. 'ZF1' can be called via a wrapper that itself has not been released for cloud development.

  D. 'ZF1' must be released for cloud development to be called.

  Correct Answer: B

  The function module ZF1 is in a software component with the language version set to "ABAP Cloud". This means that it follows the ABAP Cloud Development Model, which requires the usage of public SAP APIs and extension points to

  access SAP functionality and data. These APIs and extension points are released by SAP and documented in the SAP API Business Hub1. Customer-created function modules are not part of the public SAP APIs and are not released for

  cloud development. Therefore, calling a function module directly from a class with the language version set to "Standard ABAP" is not allowed and will result in a syntax error. However, there is a possible way to call a function module

  indirectly from a class with the language version set to "Standard ABAP":

  Create a wrapper class or interface for the function module and release it for cloud development. A wrapper is a class or interface that encapsulates the function module and exposes its functionality through public methods or attributes. The

  wrapper must be created in a software component with the language version set to "ABAP Cloud" and must be marked as released for cloud development using the annotation @EndUserText.label. The wrapper can then be called from a

  class with the language version set to "Standard ABAP" using the public methods or attributes2.

  For example, the following code snippet shows how to create a wrapper class for the function module ZF1 and call it from the class zcl_demo_class:

  @EndUserText.label: `Wrapper for ZF1' CLASS zcl_wrapper_zf1 DEFINITION PUBLIC FINAL CREATE PUBLIC. PUBLIC SECTION. CLASS-METHODS: call_zf1 IMPORTING iv_a TYPE i iv_b TYPE i EXPORTING ev_result TYPE i.

  ENDCLASS. CLASS zcl_wrapper_zf1 IMPLEMENTATION. METHOD call_zf1. CALL FUNCTION `ZF1' EXPORTING a = iv_a b = iv_b IMPORTING result = ev_result. ENDMETHOD.

  ENDCLASS.

  CLASS zcl_demo_class DEFINITION. METHODS: m1. ENDCLASS. CLASS zcl_demo_class IMPLEMENTATION. METHOD m1. DATA(lv_result) = zcl_wrapper_zf1=>call_zf1( iv_a = 2 iv_b = 3 ). WRITE: / lv_result. ENDMETHOD.

  ENDCLASS.

  The output of this code is:

  References: 1: SAP API Business Hub 2: Creating an ABAP Cloud Project | SAP Help Portal

• Question 20:

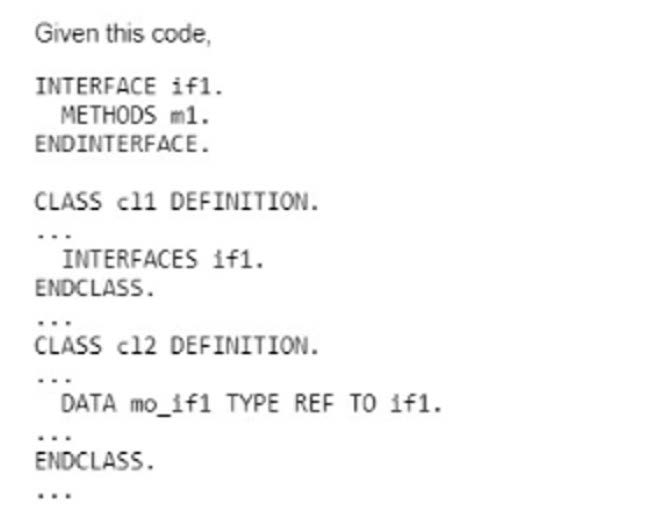

  What are valid statements? Note: There are 3 correct answers to this question

  A. In class CL1, the interface method is named if-ml.

  B. Class CL2 uses the interface.

  C. Class CL1 uses the interface.

  D. In class CL2, the interface method is named ifl-ml.

  E. Class CL1 implements the interface.

  Correct Answer: CDE

  The following are the explanations for each statement:

  C: This statement is valid. Class CL1 uses the interface. This is because class CL1 implements the interface ifl using the INTERFACES statement in the public section of the class definition. The INTERFACES statement makes the class compatible with the interface and inherits all the components of the interface. The class can then use the interface components, such as the method ml, by using the interface component selector ~, such as ifl~ml12

  E: This statement is valid. Class CL1 implements the interface. This is because class CL1 implements the interface ifl using the INTERFACES statement in the public section of the class definition. The INTERFACES statement makes the class compatible with the interface and inherits all the components of the interface. The class must then provide an implementation for the interface method ml in the implementation part of the class, unless the method is declared as optional or abstract12

  D: This statement is valid. In class CL2, the interface method is named ifl~ml. This is because class CL2 has a data member named m0_ifl of type REF TO ifl, which is a reference to the interface ifl. The interface ifl defines a method ml, which can be called using the reference variable m0_ifl. The interfacemethod ml has the name ifl~ml in the class, where ifl is the name of the interface and the character ~ is the interface component selector12 The other statements are not valid, as they have syntax errors or logical errors. These statements are: A: This statement is not valid. In class CL1, the interface method is named ifl~ml, not if-ml. This is because class CL1 implements the interface ifl using the INTERFACES statement in the public section of the class definition. The interface ifl defines a method ml, which can be called using the class name or a reference to the class. The interface method ml has the name ifl~ml in the class, where ifl is the name of the interface and the character ~ is the interface component selector. Using the character - instead of the character ~ will cause a syntax error12

  B: This statement is not valid. Class CL2 does not use the interface, but only has a reference to the interface. This is because class CL2 has a data member named m0_ifl of type REF TO ifl, which is a reference to the interface ifl. The interface ifl defines a method ml, which can be called using the reference variable m0_ifl. However, class CL2 does not implement the interface ifl, nor does it inherit the interface components. Therefore, class CL2 does not use the interface, but only references the interface12 References: INTERFACES - ABAP Keyword Documentation, CLASS - ABAP Keyword Documentation
