Aruba ACMP ACMP_6.4 Questions & Answers

• Question 31:

  When configuring split tunnel mode on a Remote AP (RAP) where is the routing function for the split tunnel defined?

  A. On the IP routing tab in the configuration screen.

  B. On the AP provisioning screen.

  C. In the RAP static routing tables

  D. In the Firewall policy

  E. In the RAP whitelist

  Correct Answer: D

• Question 32:

  Which of the following are valid RAP operating modes?

  A. Always, Backup, Standard, Persistent

  B. Always, Backup, Tunnel, Persistent

  C. Always, Hotel-Connect, Tunnel, Standard

  D. Backup, Hotel-Connect, Standard, Persistent

  E. Backup, Normal, Tunnel, Always

  Correct Answer: A

• Question 33:

  If a Remote AP (RAP) is attempting to contact a controller that is behind a NAT device what protocol must be allowed through the NAT/Firewall?

  A. PAPI

  B. NATT

  C. IPSec

  D. SSH

  E. GRE

  Correct Answer: B

• Question 34:

  IEEE 802.11r provides support for which of the following:

  A. radio measurements within a WLAN

  B. radio measurement within an ESS

  C. fast roaming within an ESS

  D. fast roaming within a BSS

  E. roaming across controllers

  Correct Answer: C

• Question 35:

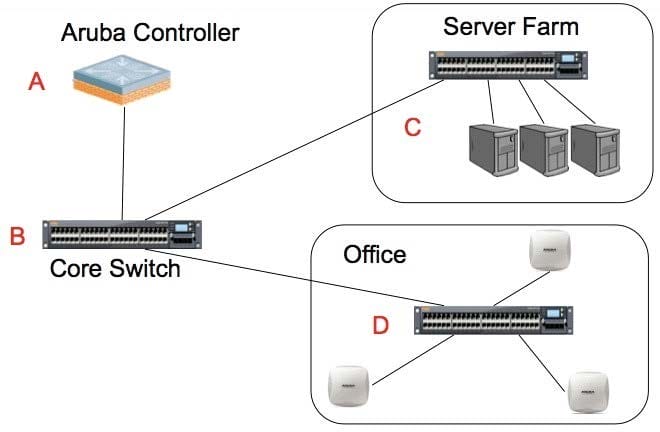

  Exhibit:



  Referring to the diagram provided for this question, representing an office wireless LAN deployment, there will be approximately 250 users in the offices section of the building. All Switches are setup as L3 routers. According to Aruba best practice, which network device is the best choice for the wireless clients' default gateway?

  A. device 'A'

  B. device 'B'

  C. device 'C'

  D. device 'D'

  E. device 'C or D'

  Correct Answer: B

• Question 36:

  Exhibit:



  In the diagram provided for this question, four buildings are identified on a college campus. Most of the

  wireless LAN traffic will be from students accessing the internet.

  According to Aruba best practices, which building is the best location to install the Aruba mobility

  controller?

  A. data center

  B. dormitory

  C. server farm

  D. library

  E. 3rd party site

  Correct Answer: A

• Question 37:

  An Aruba controller is configured with the correct IP address and gateway information and is connected to the corporate LAN via a core layer 2 switch. Control Plane Security is not enabled on the network. An access point is provisioned with AP name and group and connected to a different Layer 2 switch on the corporate LAN that has IP connectivity to the core layer 2 switch. The AP powers on and layer 2 connects to the network, but the wireless radios do not power on. Which could cause this condition? (Choose two.)

  A. the layer 2 switches have ACLs that block GRE traffic

  B. the layer 2 switches are configured to block IPSec traffic

  C. a DHCP server is not configured for the segment to which the AP is connected

  D. the AP's mac address needs to be configured in the Aruba controller whitelist.

  E. the AP and controller are in different subnets

  Correct Answer: AC

• Question 38:

  Which of the following commands is most useful in showing the traffic of an individual user?

  A. show datapath session table

  B. show acl hits

  C. show rights

  D. show firewall

  E. show traffic client

  Correct Answer: A

• Question 39:

  An Aruba based network has a Master and four local controllers deployed. But one of the locals, a new installation, is not seen by the Master. What might be wrong? (Choose two.)

  A. PAPI is not enabled on the local controller.

  B. The master controller can only support three local controllers.

  C. IPSec is blocked by the internal network between the local and the master controllers.

  D. The passphrase does not match on the master and local controllers.

  E. GRE is blocked between the master and local controllers.

  Correct Answer: CD

• Question 40:

  Whichcommand, whenexecutedonamastercontroller, willshow theAPsconnectedtoallcontrollers?

  A. show stm connectivity

  B. show ap active

  C. show ap database

  D. show ap bss-table

  E. show ap controller-lms

  Correct Answer: C
