Juniper Juniper Certifications JN0-343 Questions & Answers

• Question 541:

  Which step in the configuration of filter-based forwarding controls the selection of tables that will share interface routes?

  A. configuration of the RIB group

  B. configuration of the routing instance

  C. configuration of the filter match terms

  D. configuration of member interfaces

  Correct Answer: A

• Question 542:

  You have two ABRs in the same NSSA area. What translates Type 7 LSAs to Type 5 LSAs?

  A. The ABR with the highest RID.

  B. The ABR with the lowest RID.

  C. Both ABRs will translate.

  D. The ABR configured with the area-range statement.

  Correct Answer: A

• Question 543:

  Which two fields in an OSPF hello packet must match before OSPF neighbors can form an adjacency? (Choose two.)

  A. dead interval

  B. neighbor

  C. options

  D. router priority

  Correct Answer: AC

• Question 544:

  What is one benefit of a switched LAN?

  A. It enables the LAN to forward non-IP traffic.

  B. It ensures that all hosts can reach each other by flooding all traffic to all ports.

  C. It limits memory use by eliminating the need for a bridging table.

  D. It limits the collision domain.

  Correct Answer: D

• Question 545:

  A network with five switches has been configured to run Rapid Spanning Tree Protocol (RSTP) with default settings. How many seconds does it take to detect a failure between two neighboring switches?

  A. 2 seconds

  B. 3 seconds

  C. 6 seconds

  D. 15 seconds

  Correct Answer: C

  Reference: Page 3-14 of the JNCIS-ENT Routing Study Guide - "As previously mentioned, STP uses BPDUs to elect a root bridge, identify root ports for each switch, identify designated ports foreach physical LAN segment, prune specific redundant links to create a loop-free tree topology, and report and acknowledge topology changes. RSTP configuration BPDUs also function as keepalives. All RSTP bridges send configuration BPDUs every 2 seconds by default. You can alter this value, if necessary."

• Question 546:

  Which of the following is a spanning tree option in EX Series switches?

  A. MAC move limiting

  B. root protection

  C. root guard

  D. BPDU source guard

  Correct Answer: B

• Question 547:

  Two routers functioning as DR other on a broadcast link will establish which kind of OSPF neighbor state with each other?

  A. Exchange

  B. 2Way

  C. ExStart

  D. Full

  Correct Answer: B

• Question 548:

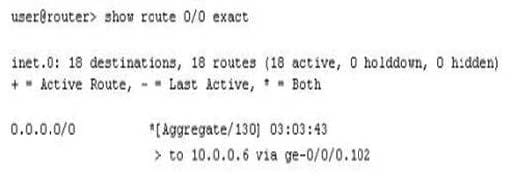

  Which type of route is shown in the following output?



  A. generate

  B. aggregate

  C. static

  D. floating static

  Correct Answer: A

• Question 549:

  What are two mandatory BGP attributes? (Choose two.)

  A. route preference

  B. origin

  C. AS path

  D. originator

  Correct Answer: BC

• Question 550:

  What is the default value of the link-state advertisement (LSA) refresh timer in the Junos OS?

  A. 10 minutes

  B. 30 minutes

  C. 50 minutes

  D. 60 minutes

  Correct Answer: C
