HP HP Certifications HP0-Y47 Questions & Answers

• Question 41:

  A company uses 802.1X authentication to force users to connect to the network. The company uses access layer switches to enforce the 802.1X authentication and HP IMC User Access manager (UAM) as the RADIUS server.

  The customer requires switches to apply a specific settings to contractor use connections. The network administrator checks the switch documentation and determines that this settings uses a vendor-specific attribute (VSA). The administrator

  check UAN and verifies that it has this VSA defined on it.

  How does administrator configure UAM to apply the correct setting?

  A. Define IP port groups on the access devices that need to receive the settings. Configure the VSA and its settings within these groups

  B. Add the settings to the VSA definition and then activate the VSA globally

  C. Create a scenario with the VSA and its settings: apply this scenario to the access devices that need to receive the settings

  D. Create a proprietary attribute policy with the VSA and its settings; apply this policy in the service policy for the contractor users

  Correct Answer: C

• Question 42:

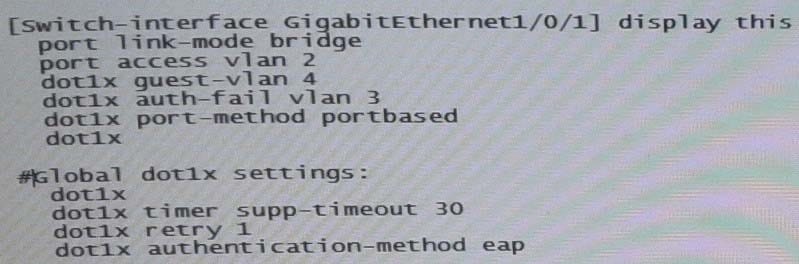

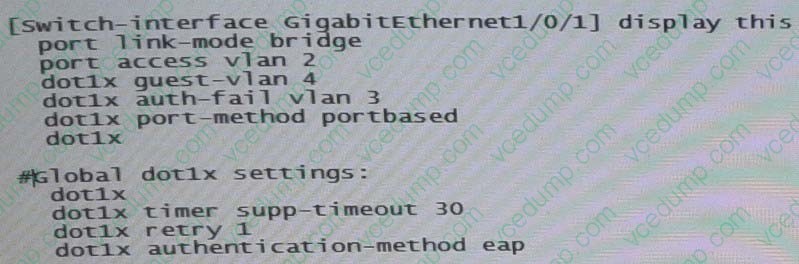

  Refer to the exhibit.



  A user connects a device to GigabitEthernet 1/0/1 on switch. The device does not have an 802.1X supplicant. One minute passes. How does the switch port handle the client?

  A. It blocks the client

  B. It assigns the client to VLAN2

  C. It assigns the client to VLAN3

  D. It assigns the client to VLAN4

  Correct Answer: D

• Question 43:

  A network administrator wants to configure Open Shortest Path (OSPF) MD5 authentication on VLAN 100 on an HP ProVision switch. The administrator has created a global MD5 key chain with an ID and key string that matches the neighbor's. which additional step must the administrator complete to accomplish this?

  A. Set OSPF authentication to MD5 mode in the OSPF area settings

  B. Activate MD5 key rotation globally

  C. Enable MD5 key rotation globally

  D. Assign this MD5 key to OSPF VLAN 100

  Correct Answer: D

• Question 44:

  Refer to the exhibit.



  Switch 1 and switch 2 run open Shortest Path First (OSPF) on all VLANs. Both switches establish an OSPF adjacency to a router at the main data center. Exhibit shows shoes some virtual Routing Redundancy Protocol (VRRP) and OSPF settings on Switch 1 during normal operation.

  How can a network administrator increase the resiliency of this solution?

  A. Implement Bidirectional Forwarding Detection (BFD) on the peer keep alive link between the core switches.

  B. Change the VLAN 10 subnet to a /24 subnet and enable VRRP on it. Place Switch 2's link to the main data center in this subnet.

  C. Make sure that, in each VRRP instance, each switch has a VRRP preempt delay of several minutes.

  D. Configure Switch 1 as an OSPF graceful restart helper in VLAN 11 and Switch 2 as a helper in VLAN 10

  Correct Answer: D

• Question 45:

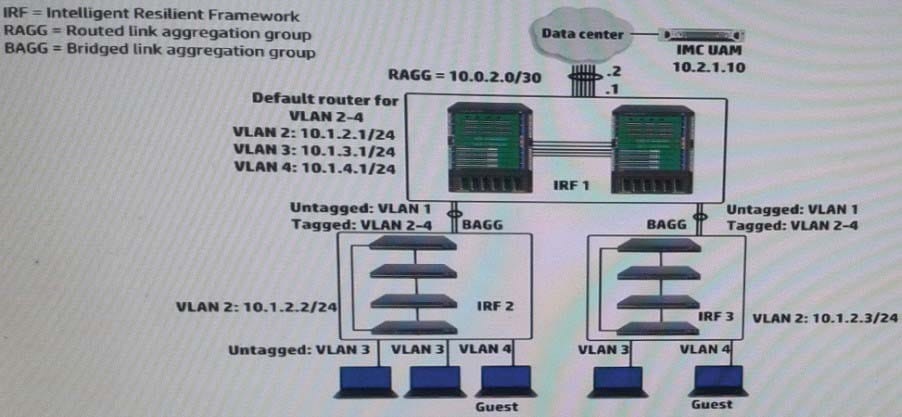

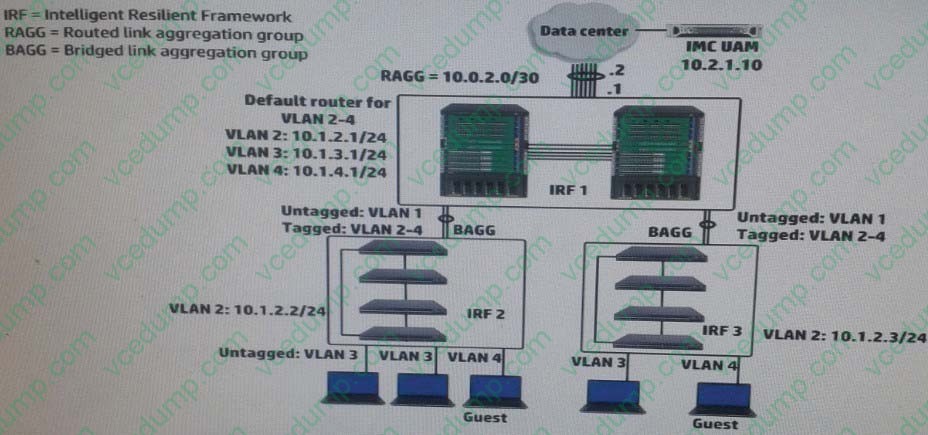

  Refer to the exhibit.



  A company wants to implement a portal authentication solution for guests (such a solution is also called Web-Auth). Guest belong to VLAN4, as shown in the exhibit. The intelligent Management Center (IMC) User Access Manager (UAM) will provide authentication and the Web Portal.

  Where should the network administrator enable portal authentication?

  A. On the VLAN 4 interface on the core IRF virtual switch

  B. On the ports with membership for VLAN 4 on the access layer IRF virtual switches

  C. On the ports with membership for VLAN 4 on the core IRF virtual switch

  D. On VLAN 4 on the core IRF virtual switch

  Correct Answer: B

• Question 46:

  A company is determining whether HP IMC User Access manager (UAM) meets its needs for a RADIUS server. The company requires a solution for dynamic access control lists based on user identity and location (connected switch ID). Which statement correctly describes UAM support for this requirement?

  A. Administrator can use UAM service and access rules to apply identity-based ACLs. The location-based component is configured in individual switch CLIs.

  B. UAM can only meet these requirements if it is synchronized with Microsoft Active Directory (AD).

  C. UAM can meet these requirements if the company adds Endpoint Admission Defense (EAD) to the solution.

  D. Administrator can configure UAM service policies, scenarios, and access rules to meet these requirements.

  Correct Answer: D

• Question 47:

  A network administrator is completing an In-Service Software Upgrade (ISSU) for an Intelligent Resilient Framework (IRF) virtual devices. The device has two members. Each member has one management module. Member1 is currently the master. The administrator has initiated a rollback time for this upgrade.

  When should the administrator accept the upgrade?

  A. After upgrading both members of the IRF virtual device

  B. After checking the new software's ISSU compatibility but before upgrading either member

  C. After upgrading member 1 but before switching over to and upgrading member 2

  D. After upgrading and switching over to member 2 but before upgrading member 1

  Correct Answer: A

  Look here items 6-7 http://www.h3c.com/portal/Technical_Support___Documents/Technical_Documents/Switches/H3C_S12500_Series_Switches/Configuration/ Operation_Manual/ H3C_S12500_CG-Release7128-6W710/01/201301/772597_1285_0.htm

• Question 48:

  For which use case is a basic or standard access control list (ACL) appropriate?

  A. Controlling which devices can access other devices based on the MAC addresses

  B. Controlling which devices can access other devices based on the IP protocol number

  C. Controlling which devices can access other devices based on the IP addresses

  D. Controlling which devices can access other devices based on the source VLAN tag

  Correct Answer: C

• Question 49:

  Refer to the exhibit.



  The switch with the ACL shown in the exhibit has IP address 10.1.4/24 on VLAN 4. It is the default router for 10.1.0/24. A client in VLAN 4 broadcast a DHCP discovery request, and the request arrives on this switch. What happens?

  A. The ACL processes the packet, and the packet is permitted and then switched.

  B. The switch routes the packet out of VLAN 4 to the VLAN with the DHCP server.

  C. The ACL processes the packet, and the packet is dropped.

  D. The switch floods the broadcast in VLAN 4.

  Correct Answer: D

• Question 50:

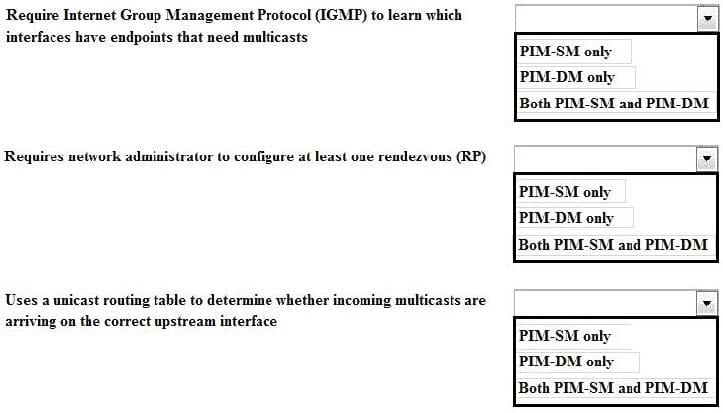

  Match each characteristic to the connect multicast routing protocol. If both protocols exhibit characteristic, you must select both.

  Hot Area:



  Hot Area:



  Correct Answer:



  (PIM-SM distributes information about active sources by forwarding data packets on the shared tree. Because PIM-SM uses shared trees (at least, initially), it requires the use of a rendezvous point (RP). The RP must be administratively configured in the network.)
