Extreme Networks Extreme Networks Certifications EW0-100 Questions & Answers

• Question 181:

  How can you tell which ports are disabled?

  A. Flashing amber light

  B. Flashing green light

  C. Flashing red light

  D. None of these

  Correct Answer: B

• Question 182:

  Your Summit5i switch is connected to a 3rd party switch. By issuing the show ports rxerrors command you can see numerous CRC errors listed. What is the first step you should take to resolve this issue?

  A. Examine the log for errors.

  B. Ping between the two switches.

  C. Match the speed and duplex settings for the two devices.

  D. Call the Extreme Networks TAC.

  Correct Answer: C

• Question 183:

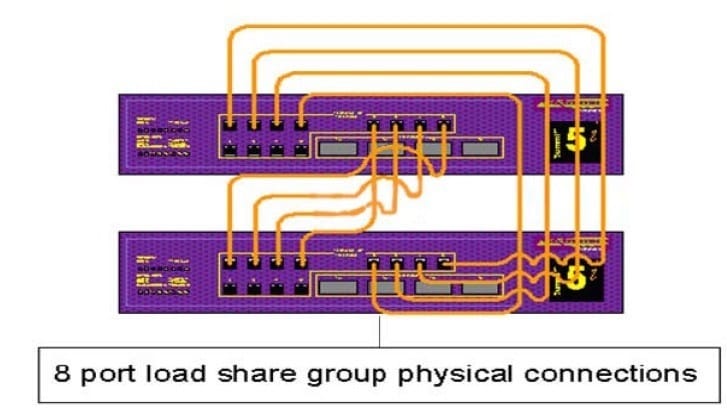

  You have been assigned the task of configuring an 8-port load share group between two switches that uses the round robin-based algorithm. Which of the following commands will provide you with the desired result?

  A. Summit #1: config sharing 1 grouping 1-8 algorithm round-robin, Summit #2: configsharing 1 grouping 1-8 algorithm round-robin

  B. Summit #1: enable sharing 1 grouping 1-8 algorithm round-robin, Summit #2: enablesharing 8 grouping 1-8 algorithm round-robin

  C. Summit #1: config sharing 1 grouping 1-8 algorithm round-robin, Summit #2: configsharing 8 grouping 1-8 algorithm round-robin

  D. Summit #1: enable sharing 1 grouping 1-8 algorithm round-robin, Summit #2: enablesharing 1 grouping 1-8 algorithm round-robin

  Correct Answer: D

• Question 184:

  Routing is disabled in all VLANs by default.

  A. True

  B. False

  Correct Answer: A

• Question 185:

  What information can you find using the show edp command?

  A. ExtremeWare code version used by remote switch.

  B. The ports that are disabled on the remote switch.

  C. The master port of any load share groups.

  D. The speed and duplex settings of the ports connecting the two switches.

  Correct Answer: A

• Question 186:

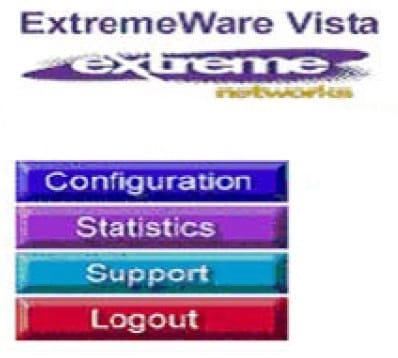

  Exhibit:



  Given this display, how would you find information similar to the SHOW SWITCH command?

  A. Click on STATISTICS, then SHOW, then SWITCH.

  B. Click on STATISTICS, then SWITCH, then SHOW.

  C. Click on STATISTICS, then SHOW.

  D. Click on STATISTICS, then SWITCH.

  Correct Answer: D

• Question 187:

  Which ExtremeWare feature permits ESRP to increase the number of protected VLANs by placing them under the control of a master VLAN?

  A. ESRP groups

  B. ESRP domains

  C. ESRP host attach

  D. None of these.

  Correct Answer: B

• Question 188:

  STPDs s0, s1, and s2 have been created. How would you activate only s1 while leaving the other STPDs inactive?

  A. enable stpd s1

  B. enable s1 stpd

  C. None of these

  Correct Answer: A

• Question 189:

  SNMP access to ExtremeWare can be limited by the following methods:

  A. Use an access list

  B. Use an access profile

  C. Use the disable snmp access command

  D. None of these

  Correct Answer: ABC

• Question 190:

  How would you change the password for John Doe's management account?

  A. Enter config jdoe and then enter the new password twice.

  B. Enter config jdoe user account and then enter the new password twice.

  C. Enter config user account jdoe and then enter the new password twice.

  D. Enter config account jdoe and then enter the new password twice.

  Correct Answer: D
