Extreme Networks Extreme Networks Certifications EW0-100 Questions & Answers

• Question 101:

  After adding all VLANs to STPD s0 you are unable to move VLAN corporate to STPD s1. What steps must you take for this to happen?

  A. Delete all ports associated with VLAN corporate, add VLAN corporate to STPD s1,add all necessary ports to VLAN corporate.

  B. Delete all ports associated with VLAN corporate, add VLAN corporate to STPD s1,reboot the switch, add all necessary ports to VLAN corporate.

  C. Disable STP for VLAN corporate, add it to STPD s1, and then enable STP for VLANcorporate.

  D. Disable STP for VLAN corporate, add it to STPD s1, reboot, then enable STP forVLAN corporate.

  Correct Answer: A

• Question 102:

  What command is used to disable the learning of RIP routes on an interface?

  A. disable rip learning

  B. configure rip rxmode none

  C. configure rip interface passive

  D. None of these.

  Correct Answer: B

• Question 103:

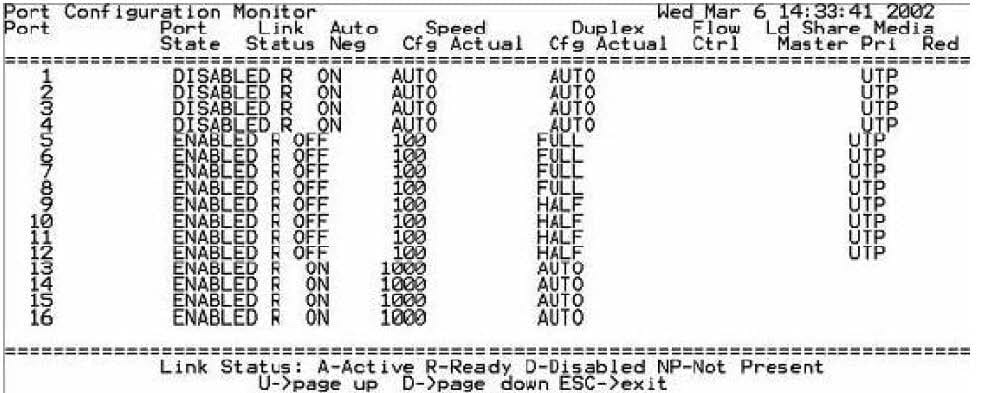

  Which commands would you have used to obtain the following result?

  A. delete ports 1-4 à config ports 5-8 auto off speed 100 duplex full à config ports 9-12auto off duplex half speed 100 à show config ports

  B. disable ports 1-4 à config ports 5-8 auto off speed 100 duplex full à config ports 9-12auto off duplex half speed 100 à show ports config

  C. disable 1-4 ports à config 5-8 ports auto off speed 100 duplex full à config 9-12 portsauto off duplex half speed 100 à show ports config

  D. config 1-4 ports delete à config 5-8 ports auto off speed 100 duplex full à config 9-12ports auto off duplex half speed 100 à show config ports

  Correct Answer: B

• Question 104:

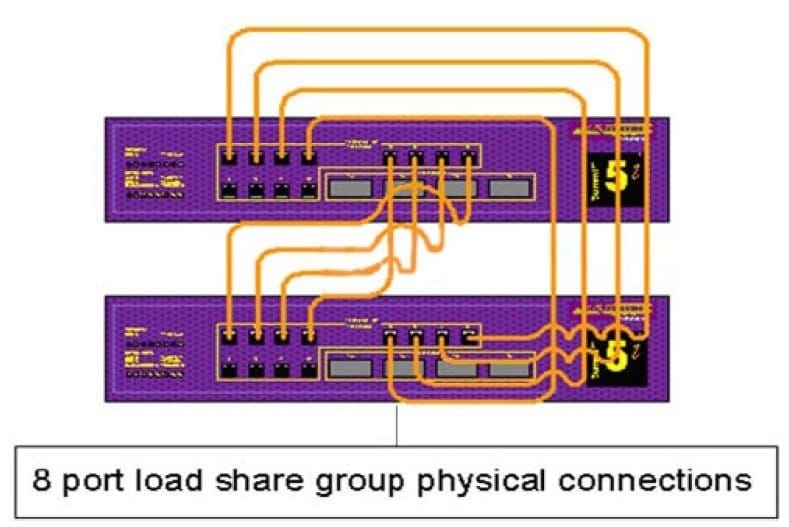

  Exhibit: You need to setup an 8-port load share group between two switches. Summit #1 will use ports 1-8 and Summit #2 will also use ports 1-8. You will need to connect the ports in the following order: Summit #1, port 1 to Summit #2 port 8, Summit #1, port 2 to Summit #2, port 7, and so forth. Which commands will provide you with the desired result?



  A. Summit #1: enable sharing 1 grouping 1-8, Summit #2: enable sharing 1 grouping 1-8

  B. Summit #1: enable sharing 1 grouping 1-8, Summit #2: enable sharing 8 grouping 1-8

  C. Summit #1: config sharing 1 grouping 1-8, Summit #2: config sharing 1 grouping 1-8

  D. Summit #1: config sharing 1 grouping 1-8, Summit #2: config sharing 8 grouping 1-8

  Correct Answer: A

• Question 105:

  What information can you find using the show edp command?

  A. VLANs configured on the remote switch.

  B. The ports that are disabled on the remote switch.

  C. The master port of any load share groups.

  D. The speed and duplex settings of the ports connecting the two switches.

  Correct Answer: A

• Question 106:

  Which command would you use to determine the IP routes that are tracked by ESRP?

  A. show esrp

  B. show esrp detail

  C. show esrp config

  D. None of these.

  Correct Answer: B

• Question 107:

  Which command would you use to configure esrp vlan tracking for vlan engineering?

  A. config vlan add track-vlan engineering

  B. config esrp add track-vlan engineering

  C. enable vlan add track-vlan engineering

  D. enable esrp add track-vlan engineering

  Correct Answer: A

• Question 108:

  Which of the following is the default ESRP priority setting?

  A. 0

  B. 1

  C. 254

  D. 255

  Correct Answer: A

• Question 109:

  When configuring a point-to-point OSPF connection what is the relevance of the command config ospf vlan neighbor add ?

  A. The switch no longer needs to determine the ABR.

  B. Permanent virtual links are established to the backbone area.

  C. This prevents other switches from disrupting the existing adjacency.

  D. This command must be used when a switch is added to a new area.

  Correct Answer: C

• Question 110:

  OSPF area 10.10.10.10 is a stub area that connects to OSPF area 1.1.1.1. OSPF area 1.1.1.1 connects to the backbone area 0.0.0.0. The ABR connecting areas 10.10.10.10 and 1.1.1.1 no longer shows any routes to other areas after being rebooted following an ExtremeWare code upgrade. What is the issue and how should it be resolved?

  A. An ABR's OSPF router ID changed.

  B. Virtual links should be reconfigured.

  C. A new OSPF area was configured.

  D. OSPF should be disabled and then re-enabled.

  Correct Answer: AB
