EMC Platform Engineer E20-690 Questions & Answers

• Question 201:

  Which optional I/O modules for VNX Block provide two cable connections used exclusively for host access?

  A. The 2-port 8 Gb FC I/O module and the 2-port 10 GbE FCoE I/O module.

  B. The 4-port 8 Gb FC I/O module and the 4-port 10 GbE FCoE I/O module.

  C. The 2-port 10 GbE iSCSI I/O module and the 2-port 10 GbE FCoE I/O module.

  D. The 2-port 8 Gb FC I/O module and the 4-port 10 GbE FCoE I/O module.

  Correct Answer: C

• Question 202:

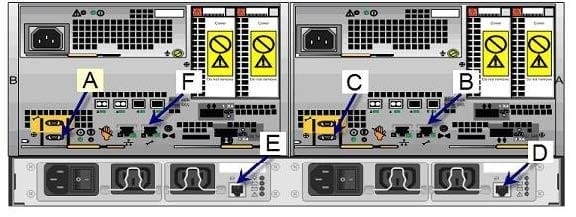

  Refer to the exhibit.



  A service engineer needs to collect logs from SP B due to an unscheduled reboot. Which letter indicates the location where the service engineer would connect to SP B?

  A. F

  B. B

  C. E

  D. C

  Correct Answer: A

• Question 203:

  An engineer is installing a VNX Block system with two SPSs, a DPE, and two optional DAEs. After connecting the SPSs, which ports on the DPE would the engineer use to install the first DAE and the second DAE?

  A. SAS port 1 from the DPE to the first DAE. SAS port 0 from the DPE to the second DAE.

  B. SAS port 0 from the DPE to the first DAE. SAS port 1 from the DPE to the second DAE.

  C. SAS port 1 from the DPE to the first DAE. SAS port 0 from I/O module 1 on the DPE to the second DAE.

  D. SAS port 0 from the DPE to the first DAE. SAS port 0 from I/O module 1 on the DPE to the second DAE.

  Correct Answer: A

• Question 204:

  Which type of I/O module must be installed in slot 0 of a VNX shipped with an SPE?

  A. 4-port 6 Gb SAS

  B. 4-port 2, 4 or 8 Gb FC

  C. 2-port 10 GbE FCoE

  D. 4-port copper 1 GbE iSCSI

  Correct Answer: A

• Question 205:

  Refer to the exhibit.



  Which letter indicates the location of the port where the SPS sense cable would be installed on SP A?

  A. A

  B. E C. D

  D. C

  Correct Answer: D

• Question 206:

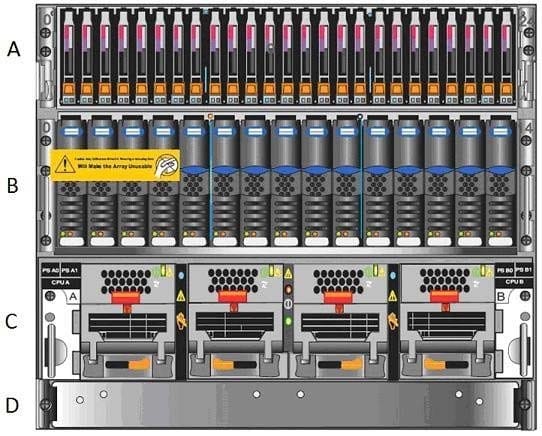

  Refer to the exhibit.



  Which letter refers to the SPSs?

  A. D

  B. B

  C. C

  D. A

  Correct Answer: A

• Question 207:

  What settings can be configured using the Unisphere Storage System Initialization wizard?

  A. iSCSI data ports, SP cache

  B. Network management ports, iSCSI data ports

  C. Network management ports, SP cache

  D. Storage system serial number, network management ports

  Correct Answer: B

• Question 208:

  You are installing ESRS IP Client to monitor a VNX Block array. You also want to connect remotely to SP A and SP B over the ESRS platform.

  What do you need to do first?

  A. Add the ESRS workstation IP address to the RemotelyAnywhere access restriction list on the array's SP A or SP B.

  B. Add the SP A and SP B IP addresses to the ESRS workstation host file.

  C. Add the ESRS workstation IP address to the administration access restriction list.

  D. Add the SP A and SP B IP addresses to the RemotelyAnywhere access restriction list on the array's SP A or SP B.

  Correct Answer: A

• Question 209:

  From which application can the ESRS IP Client software installation be started?

  A. VNX Installation Toolbox

  B. Unisphere Service Manager

  C. Unisphere Client

  D. Server Initialization Utility

  Correct Answer: A

• Question 210:

  You are an EMC service provider and want to install the ESRS IP client solution. The workstation on which you want to install this software is on a network with a proxy server. What information must you provide in order to be able to install the solution?

  A. You must provide your proxy server IP address and the array IP address.

  B. Service partners are not allowed to install the ESRS IP client at a customer site.

  C. You must provide your Powerlink SecurID credentials and the proxy configuration.

  D. You must provide the array serial number and the proxy configuration.

  Correct Answer: C
