Nokia Nuage Networks Professional - Software Defined Datacenter (NNP SD-DC) 4A0-N01 Questions & Answers

• Question 11:

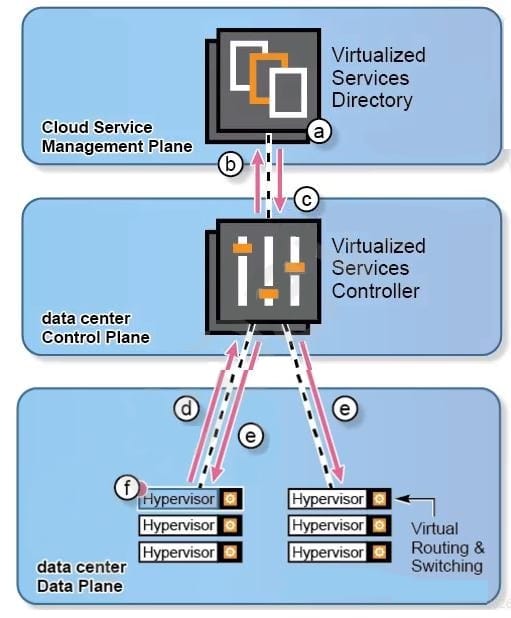

  Refer to the diagram. Which statement is describing a step incorrectly?



  A. Step a, which consists of defining network domain and policy templates on VSD, must be performed first in all situations.

  B. Step d, which refers to the VRS agent informing the VSC of the placement of a new VM, is triggered by step f in which the VM is instantiated on a hypervisor.

  C. Step b, in which the VSC queries VSD on network service and policies required for a new VM, is triggered either by API calls from the CMS or by manual configuration.

  D. Step e, in which the forwarding tables are deployed, consists of the VSC sending them not only to the VRS agent hosting the new VM, but to all applicable VRS agents.

  Correct Answer: D

• Question 12:

  What statement about stateful ACL entries is FALSE?

  A. They can track both TCP and UDP flows.

  B. They can be created in either ingress or egress directions.

  C. A packet in the direction of the stateful ACL rules will automatically create a “related” rule in the reverse direction.

  D. The automatically created rules will not go away until the ACL is manually deactivated and reactivated.

  Correct Answer: D

• Question 13:

  What mapping is FALSE?

  A. CMS – Management plane

  B. VSD – Management plane

  C. VSC – Control plane

  D. VRS – Control plane

  Correct Answer: A

  Reference: https://docs.oracle.com/en-us/iaas/Content/Resources/Assets/whitepapers/sdn-integration-with-nuagenetworks.pdf

• Question 14:

  Which of the following interfaces does NOT belong to the underlay network?

  A. Interface on VSD

  B. “Control” interface on VSC

  C. Openflow interface on VSC

  D. Hypervisor interfaces carrying VXLAN traffic.

  Correct Answer: B

• Question 15:

  Which statement is TRUE when comparing Virtual Machines and Containers?

  A. Virtual Machines are faster to boot.

  B. Contained do not need a CMS.

  C. All Virtual Machines on the same hypervisor must run the same guest OS.

  D. All Containers on the same host use the same OS kernel.

  Correct Answer: D

  Reference: https://www.nuagenetworks.net/blog/more-on-docker/

• Question 16:

  What statement is FALSE regarding the forwarding policies used in VCS for traffic redirection (also known as service chaining)?

  A. Forwarding policies can be applied to either ingress or egress traffic.

  B. Redirection targets should be created in advance and associated with vPorts.

  C. Redirection targets cannot be associated with host vPorts (physical appliances).

  D. A forwarding policy can be created in an active domain or be instantiated from a template.

  Correct Answer: D

  Reference:

  https://www.nuagenetworks.net/wp-content/uploads/2020/06/

  Nuage_Networks_Service_Chaining_Technical_Description_Document_EN-compressed.pdf

• Question 17:

  What is NOT a component of VSD?

  A. Neutron

  B. Statistics Engine

  C. Policy Management Engine

  D. RESTful API

  Correct Answer: C

  Reference:

  https://www.nuagenetworks.net/wp-content/uploads/2020/06/

  PR1507013354EN_NN_RedH_Open_Hybrid_Clouds_PartnerSolutionBrief.pdf

• Question 18:

  What is NOT a function of the VSC?

  A. CMS integration

  B. SDN controller

  C. BGP federation

  D. XMPP communication with VSD

  Correct Answer: B

  Reference: https://www.sdxcentral.com/networking/sdn/definitions/nuage-networks-vsc/

• Question 19:

  What statement is TRUE regarding the pull and push mode of CMS integration with Nuage Networks VCS?

  A. In the push model, VSD pushes the network configuration to CMS.

  B. In the pull model, VRS pull the network configuration from CMS.

  C. In the push model, CMS pushes the network configuration to VSC.

  D. In the pull model, CMS pulls the network configuration from VSD.

  Correct Answer: C

  Reference: https://www.packetcoders.io/what-is-nuage-networks-vcs-virtualized-cloud-services/

• Question 20:

  What statement is TRUE regarding ingress security policies?

  A. An ingress security policy controls the traffic flowing into the virtual machine.

  B. By default, all traffic is dropped at ingress.

  C. It is executed right after the forwarding policy.

  D. It is executed right after the floating IP NAT.

  Correct Answer: C
